High output pet tape production line /PET strap making machine/double strips PET belt production line

Product Overview

Description

pet tape production line /PET strap making machine/PET belt production line

• PP PET strap band extrusion line is mainly for producing PP PET strap.


• The raw material can be 100% recycled material, which can reduce the cost and get a good profit.


• The PP PET bale is the substitution of the steel strap and has a lot of advantages such as good extension high temperature resistant, easy use.


• It is mainly suitable for packaging for various trades.

pet tape production line /PET strap making machine/PET belt production line model

Model	SJ-65	SJ-75	SJ-90
Extruder	SJ-65/30	SJ-75/33	SJ-90/33
Productivity	60-100kg/h	80-120kg/h	150-200kg/h
Drive Motor	22kw	37kw	75kw
Two-station Winder	60-120m/min,adjustable
Strap Size	Width:5mm-20mm	Width:10mm-25mm	Width:20mm-35mm
	Thickness:0.36mm-1.0mm	Thickness:0.5mm-1.3mm	Thickness:0.5mm-1.8mm
Installed Capacity	about80kw	about 90kw	about110kw
Line Dimension	30m×2m×2.2m (L×W×H)	30m×3m×4.5m   (L×W×H)	30m×5m×6m  (L×W×H)

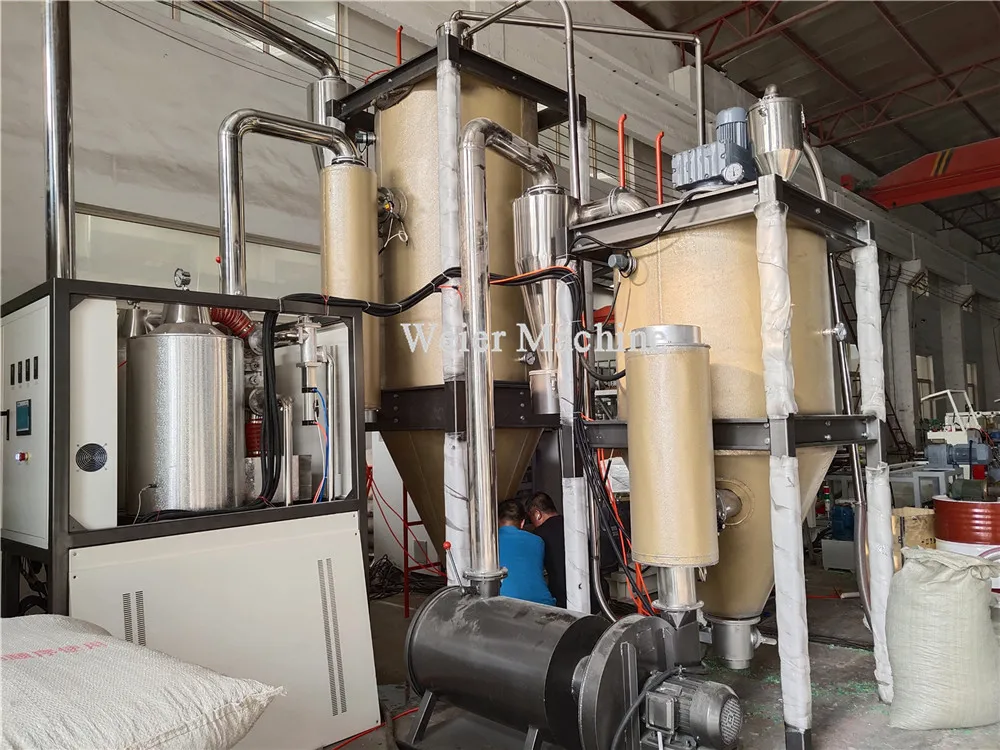

1.High effeciency PET200 continuous crystallizing, dehumidifying, drying and loading System

Include drying system ,crystallizing system and dhumidifying system,with automatic Loading system,

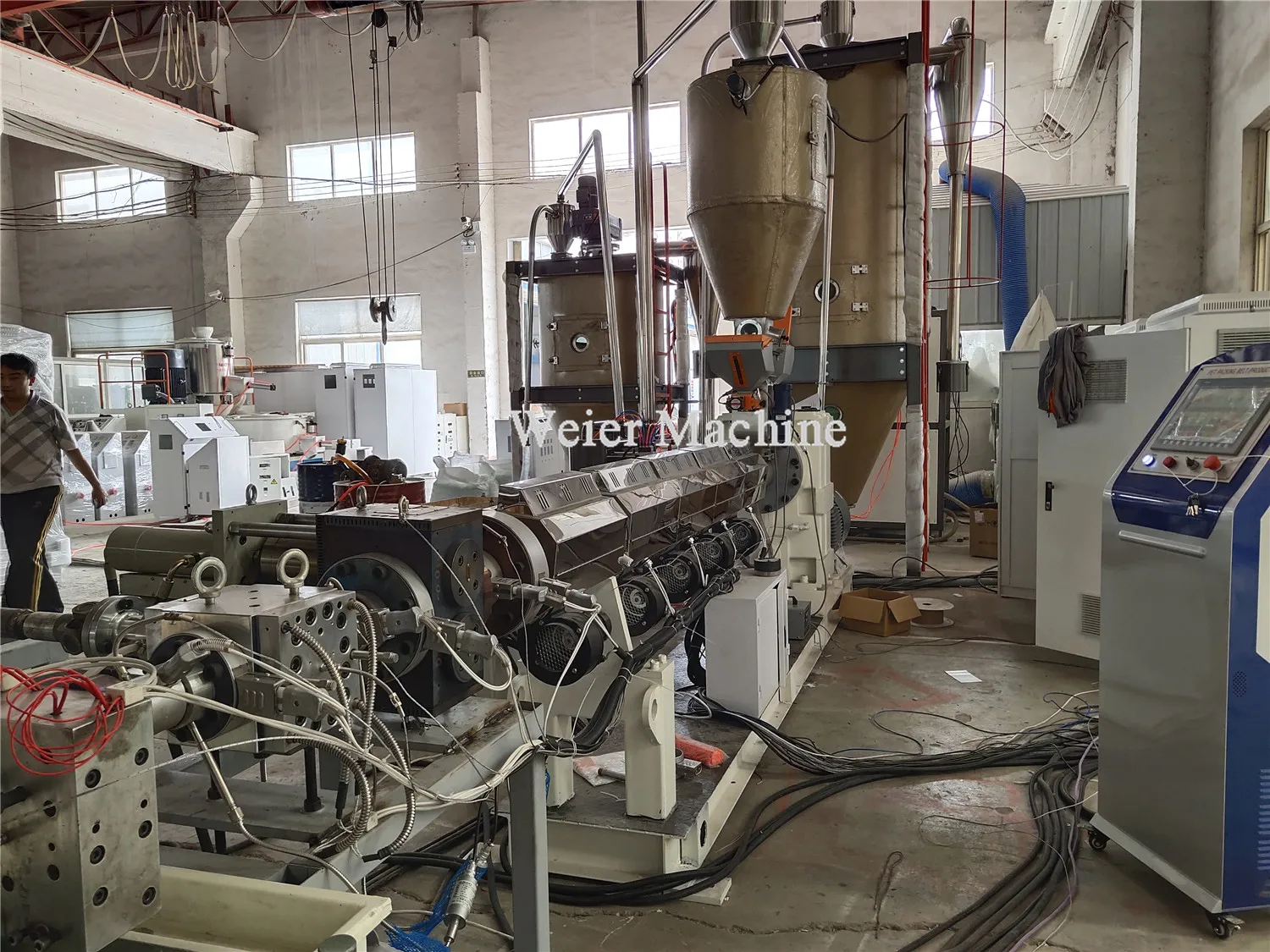

2.High Effeciency Single Screw Extruder

Gear box bearings: NSK, Japan ,with Special design screw & barrel ,with Siemens PLC controlling

system ,ABB550 inverter,Siemens motor, Low voltage component: Siemens

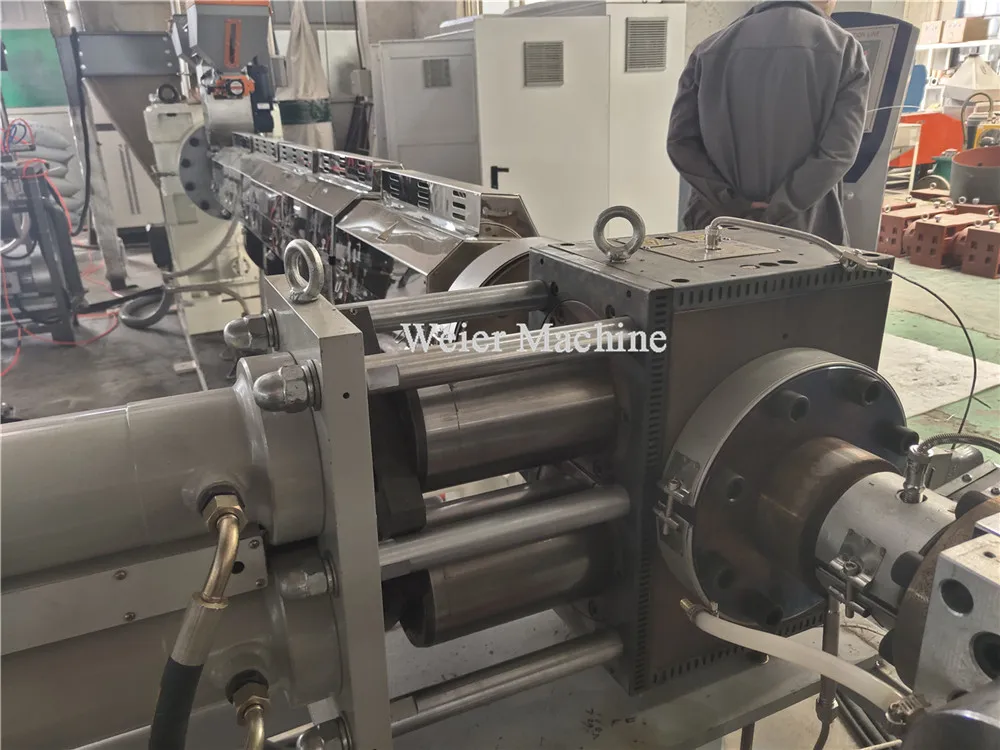

3.Hydraulic rapid screen changer

Hydraulic changing screen device uses structure with two pistons and two working position and

with venting function. When changing screen, it can guarantee that machine is not be stopped

and production speed is not reduced. It does not influence quality of product

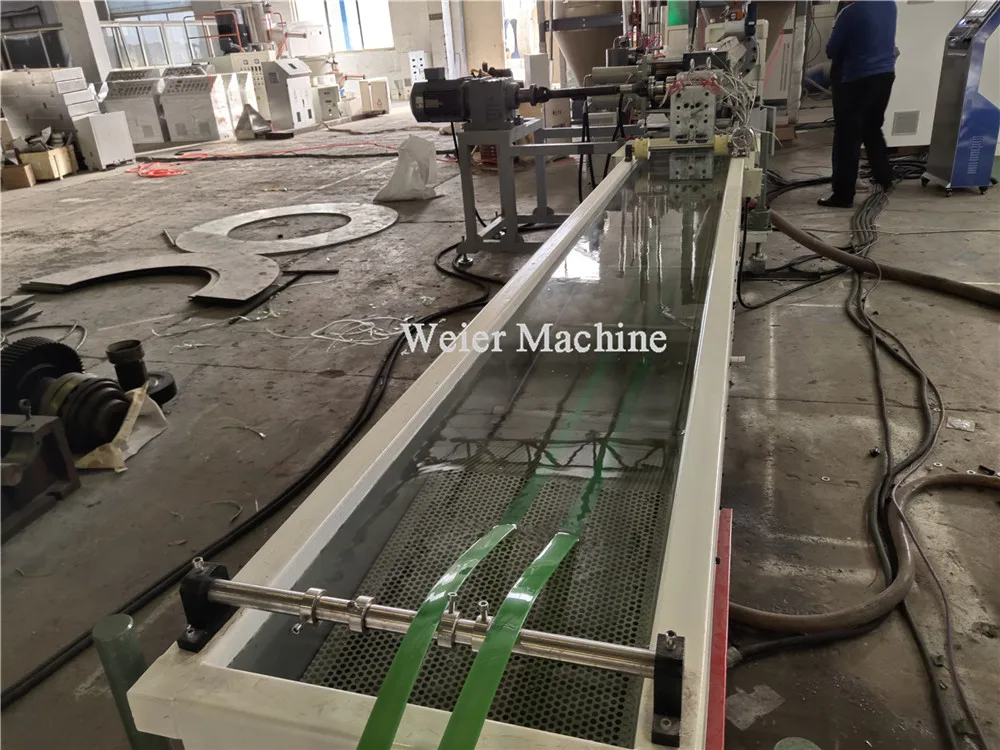

4.Cooling water tank

High precision water tank made from specify steel material , high Wear resistance and good sliding properties.Automatically control water temperature and water level

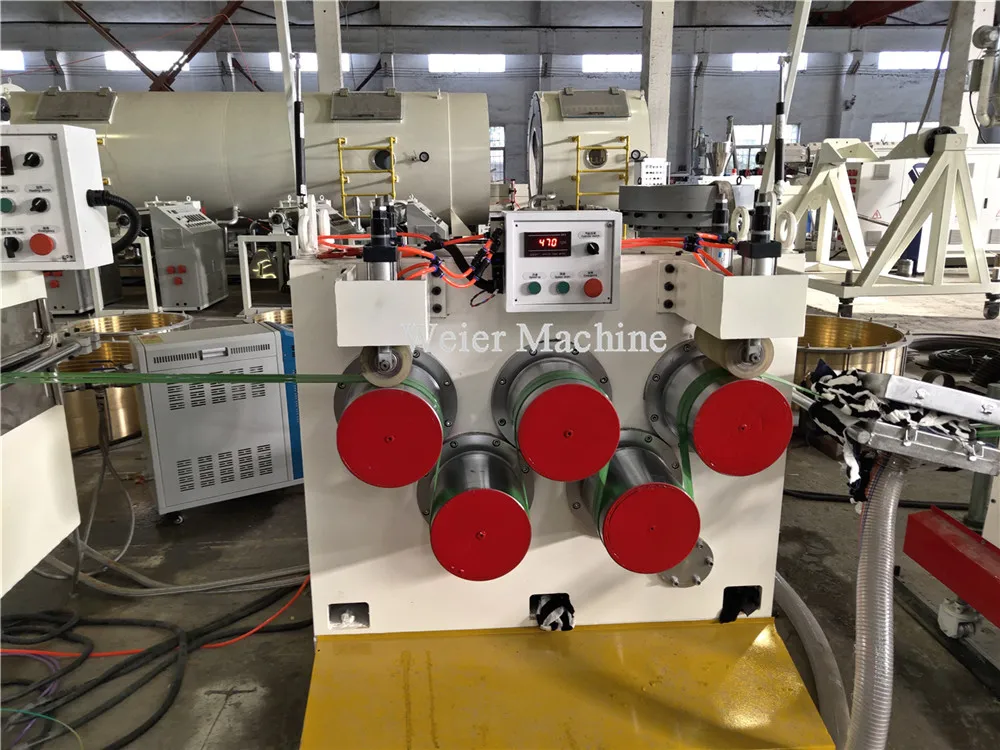

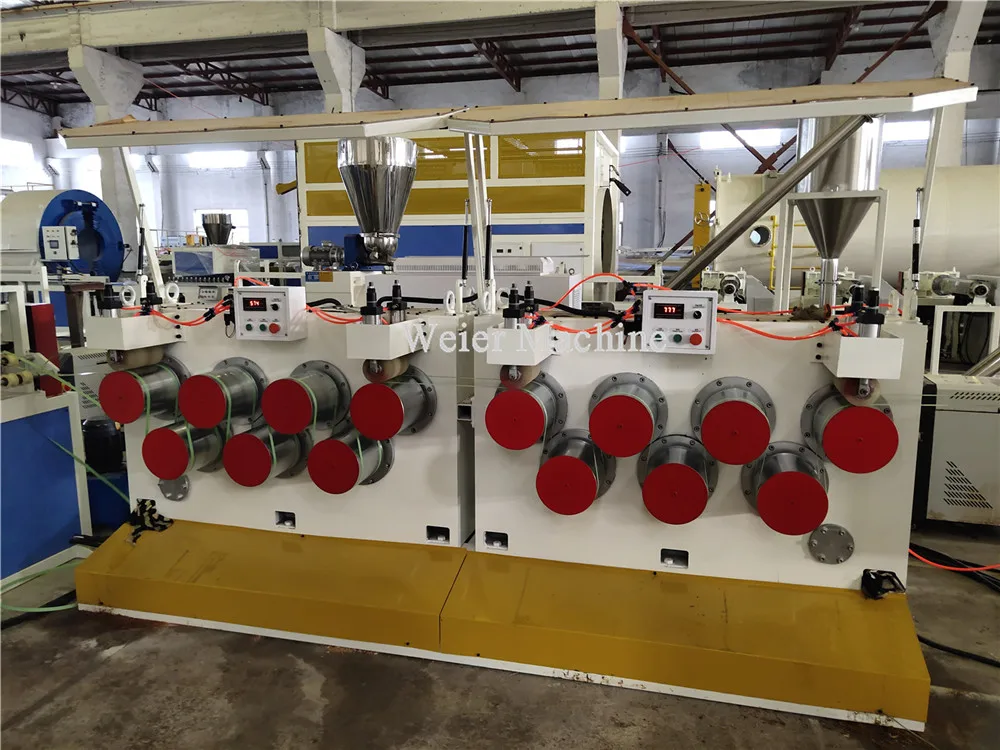

5.the first pre-heating unit

Made up of 5 pre-heating rollers driven by gear,the oil temperature controller is equipped for controlling rollers temperature. Gear driving,driving stable,low noise.

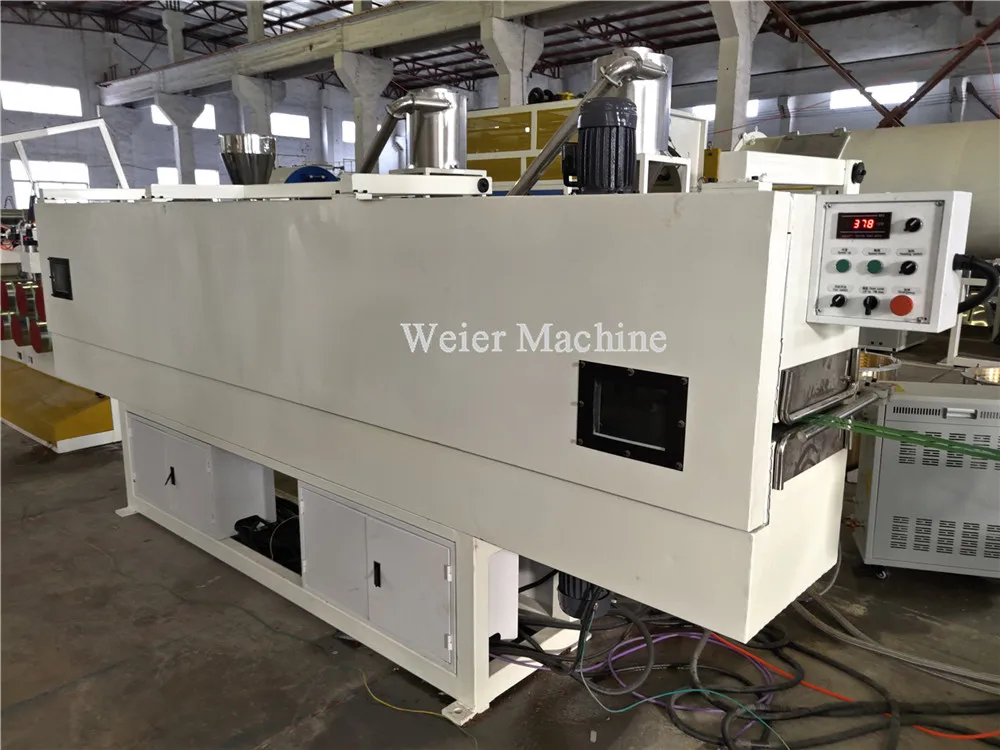

6. Special designed Heating oven

heating oven is used for stretching heating, it has a feature of heating fast,designed for Special strong tensile strength requirement



7.Improved Second stretching unit

Consist of motor, reducer, 5 hauling steel roller and driving gear. The oil temperature controller with digital display control meter is equipped for controlling rollers temperature. Inverter is used for controlling speed

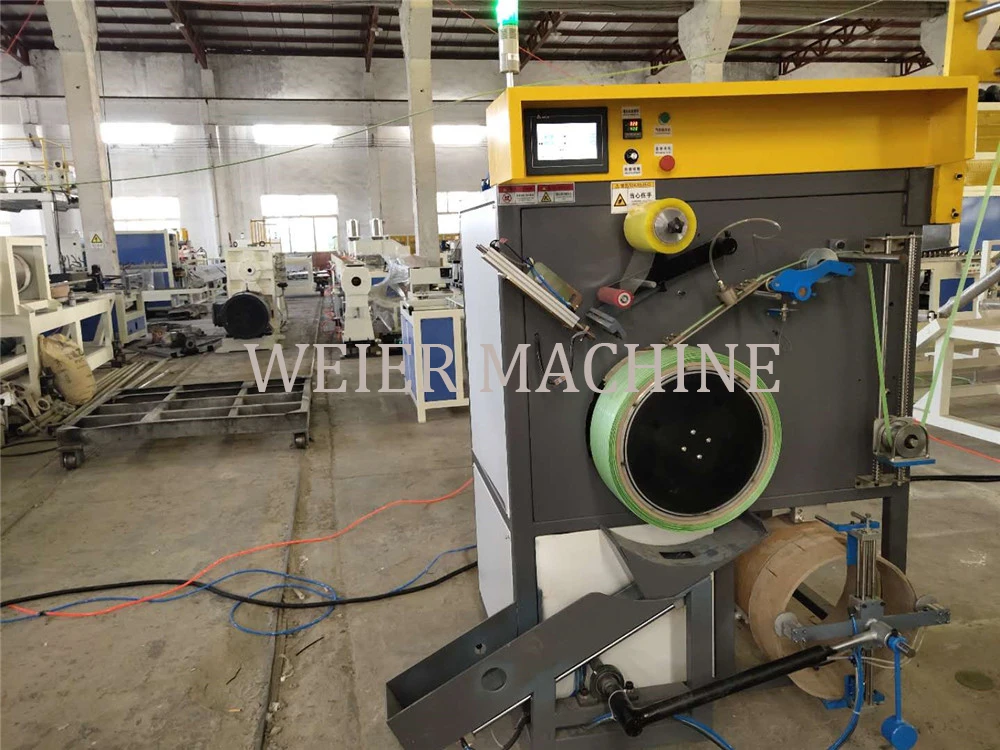

8.Fully automatic winding machine

100% fully automatic winding machine is absolutely different with standard winder in the market, it is easy to operate and can save More labour, save Production cost largely
