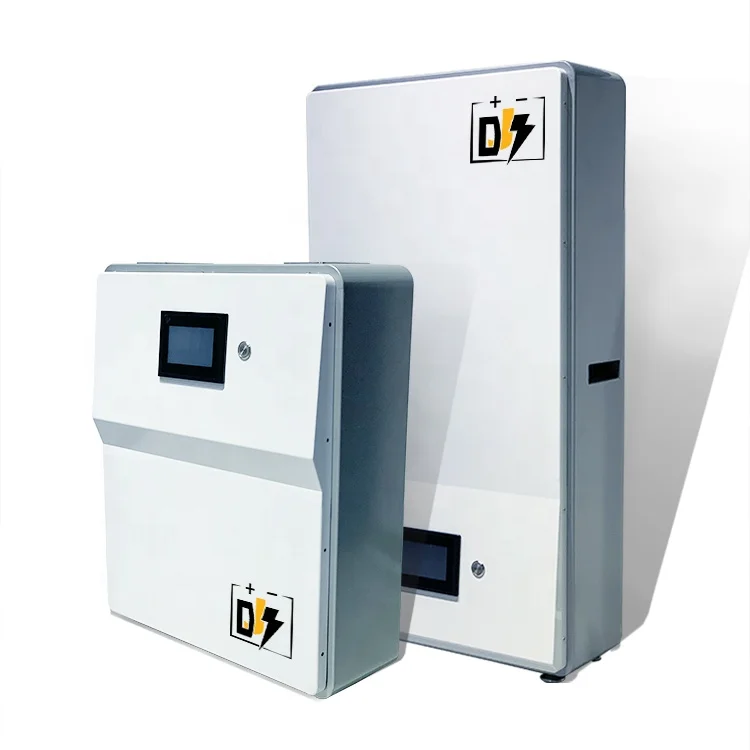

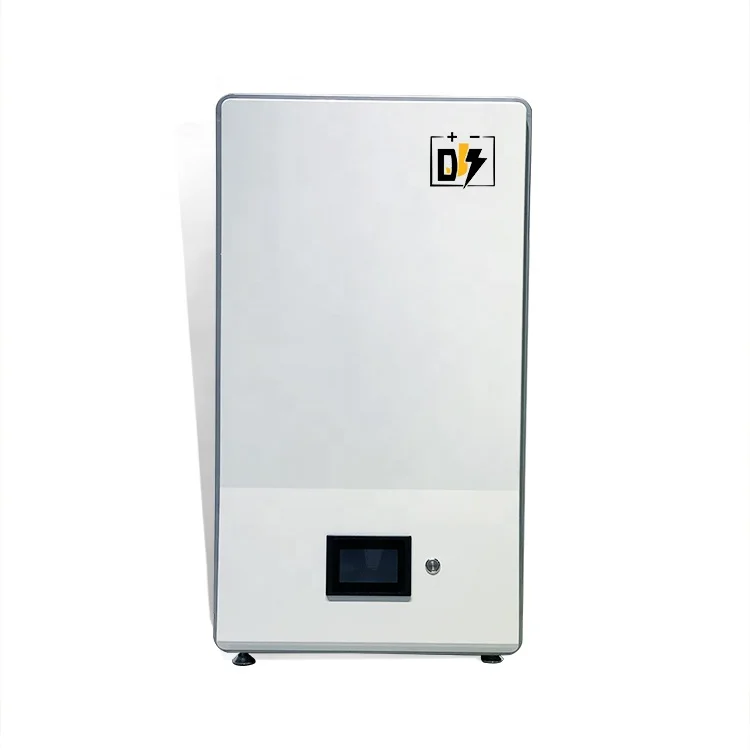

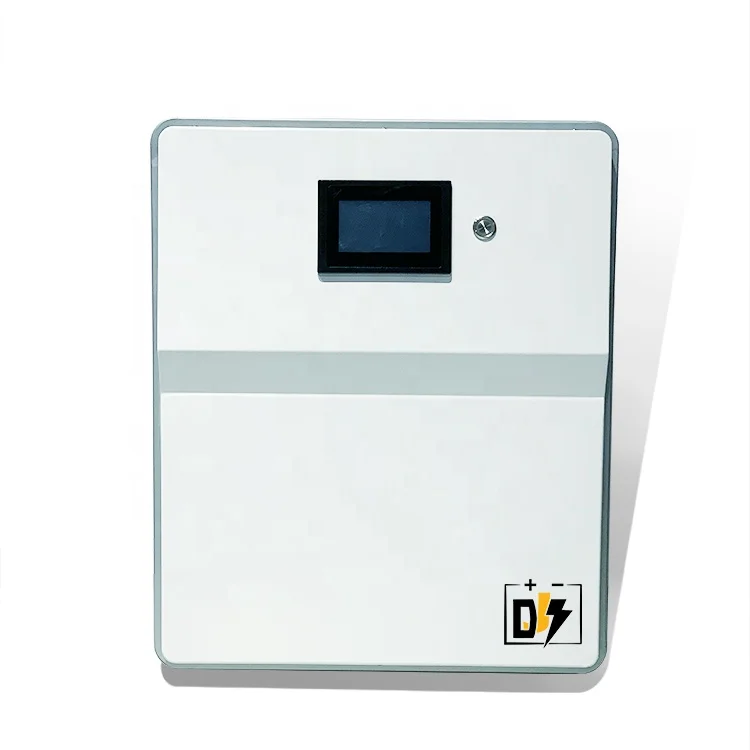

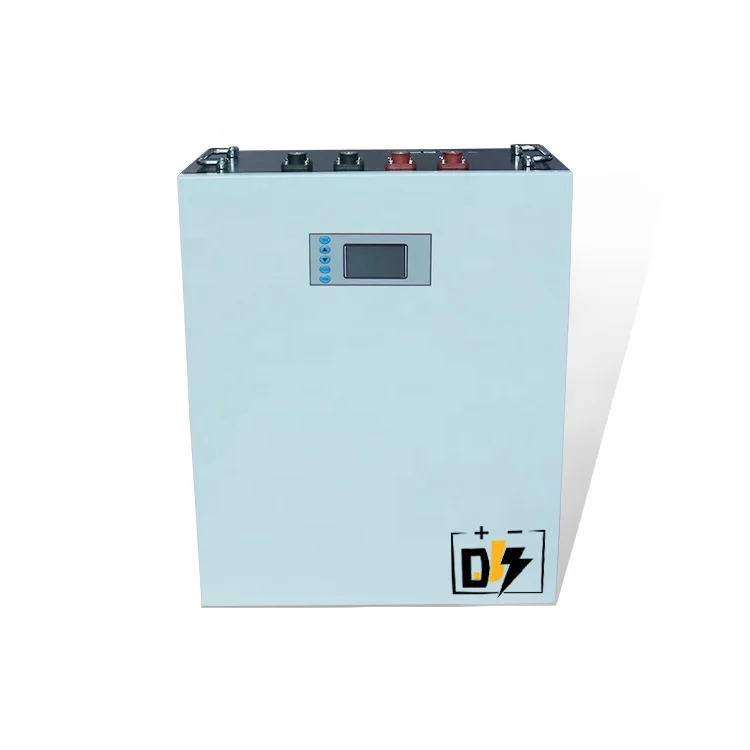

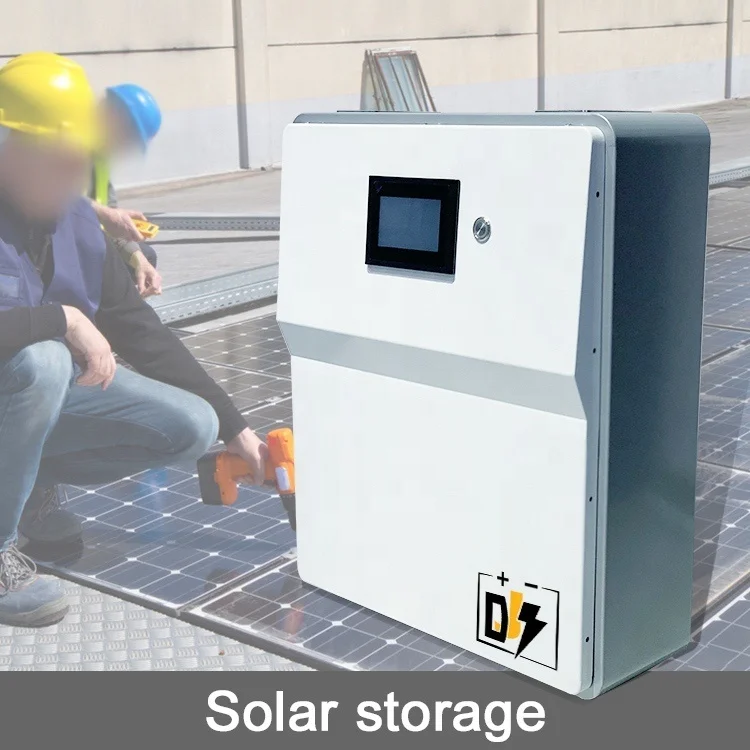

48V 100Ah DJS 5KWh Smart LiFePO4 Battery for Home Energy Storage System OnOff Grid Inverter with Battery for Home Power Wall48V
- Category: >>>
- Supplier: Shenzhen DJS Tech Co. Ltd
Share on (1600518157489):
Product Overview
Description
Product Description

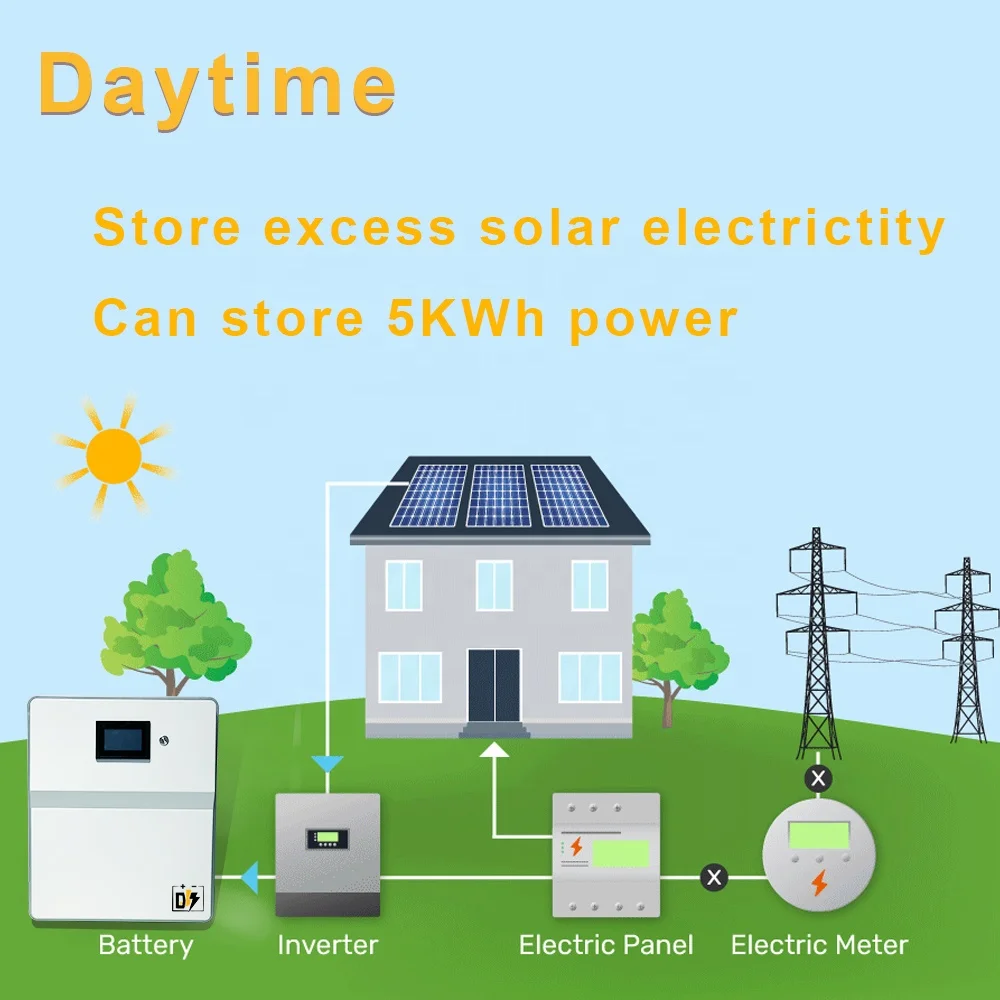

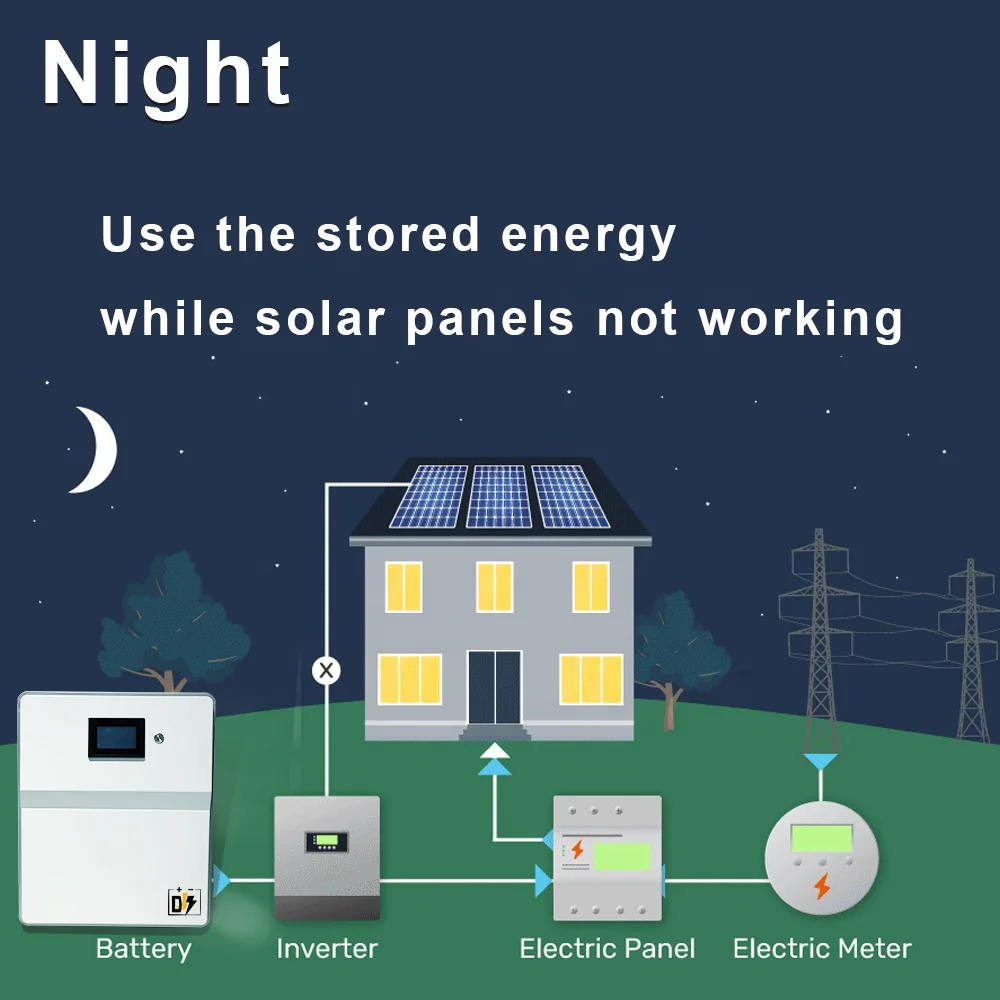

DJS Home Battery comes in a range of power output options, from 5KWh to 10KWh for your off-grid energy requirements. You can connect up to 14 units together in parallel for more power output.With easy installation and a minimalist design, it complements a variety of home styles and solar systems. The compact, all-in-one construction features versatile mounting options for indoor or outdoor spaces.
Features
1. Lighter in weight, heavier on power
2. Excellent cycle life. Our battery has more than 4000 cycle times and there is a 3-8 years warranty
3. Deep cycle. can be discharged to 90% vs lead acid recommended 50% depth of discharge.
4. Maintenance free or automatic repair
5. Safer performance. Our batteries have passed different safety tests.
6. IP65 waterproof ratings. Suitable for marine use.
1. Lighter in weight, heavier on power
2. Excellent cycle life. Our battery has more than 4000 cycle times and there is a 3-8 years warranty
3. Deep cycle. can be discharged to 90% vs lead acid recommended 50% depth of discharge.
4. Maintenance free or automatic repair
5. Safer performance. Our batteries have passed different safety tests.
6. IP65 waterproof ratings. Suitable for marine use.
Datasheet
Technical Specifications | Model | DJS-48-100E |
Cell Chemistry | LiFePO4 Prismatic Cells | |
Cell Configuration | 16S1P | |
Rated Capacity(Ah) | 100Ah @0.2C discharge rate | |
Nominal Voltage(V) | 51.2V | |
Rated Energy(Wh) | 5120Wh | |
Voltage Range(V) | 40-58.4V | |
Cycle life | 6000 cycles | |
Charging | Standard Charge Current(A) | 0.2C(Constant current charging) |
Max. Charge Current(A) | 100A, support BMS customization | |
Charge Condition | @0℃~45℃ | |
Discharging | Standard Discharge Current(A) | 0.2C(Constant current discharging) |
Max. Discharge Current(A) | 100A, support BMS customization | |
Discharge Condition | @-10~60℃ | |
Protection & Function | Heat Dissipation | Nature cooling |
Cell Balancing | Automatic passive cell balancing | |
Safety Function | Overcharge,over-discharge,over-current and temperature protection | |
Heating System(optional) | Available upon requirements | |
Enclosure & Terminals | Dimensions | Custom |
Enclosure | Steel Case, IP65 | |
Terminal | Waterproof Terminals | |
Maintenance & Storage | Maintenance | The battery pack should be charged and discharged fully once every 3 months. |
Storage Condition @-20~25℃ | Can be kept for 3 months at 50% capacity | |
Storage Condition @-20~45℃ | Can be kept for 1 month at 50% capacity |

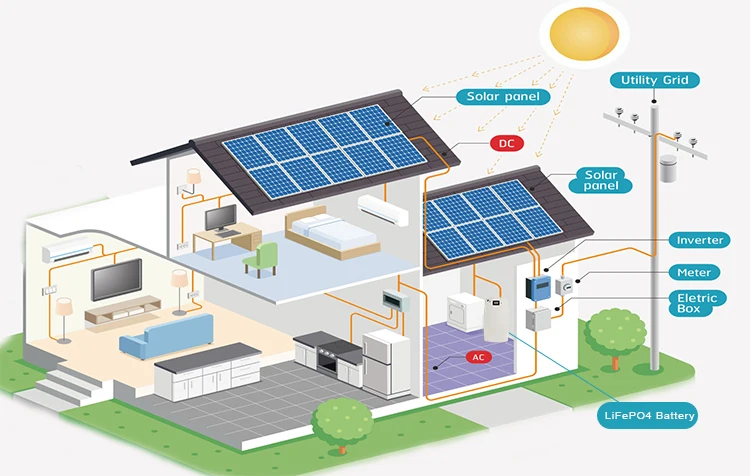

Applications
More Options

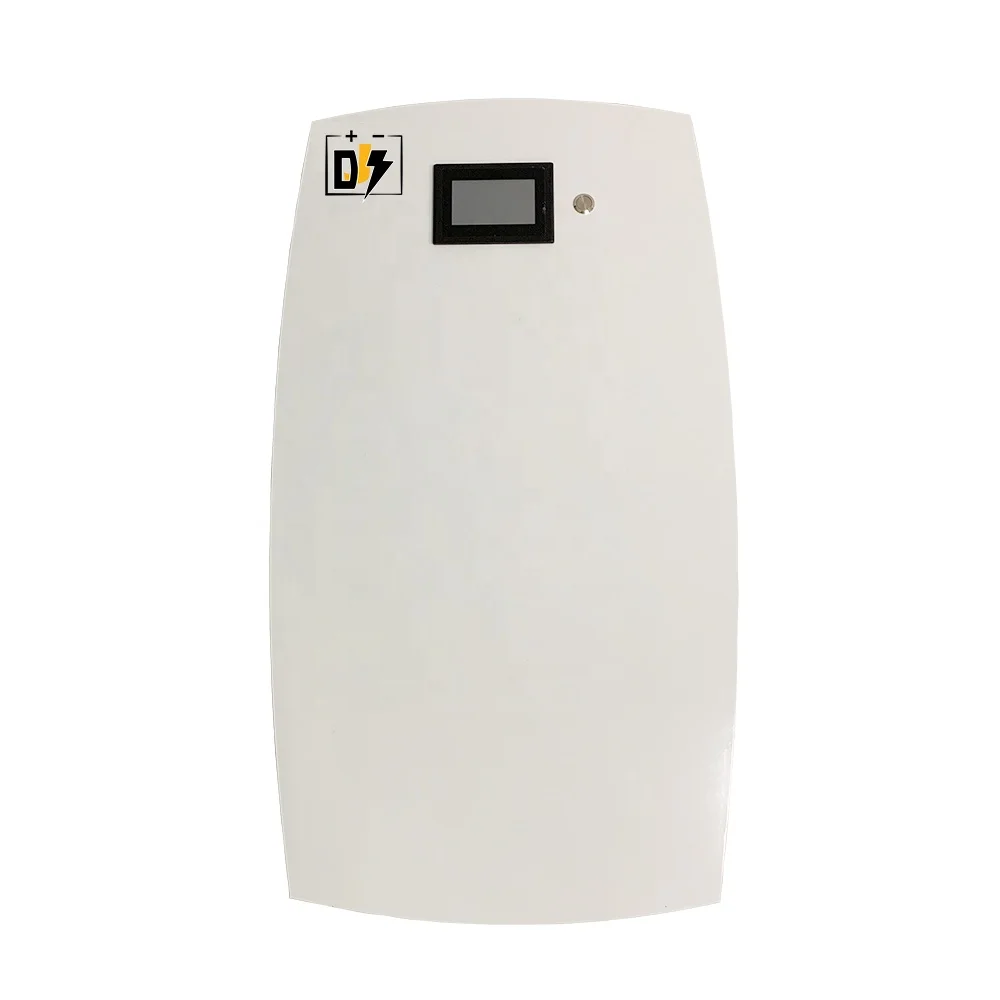

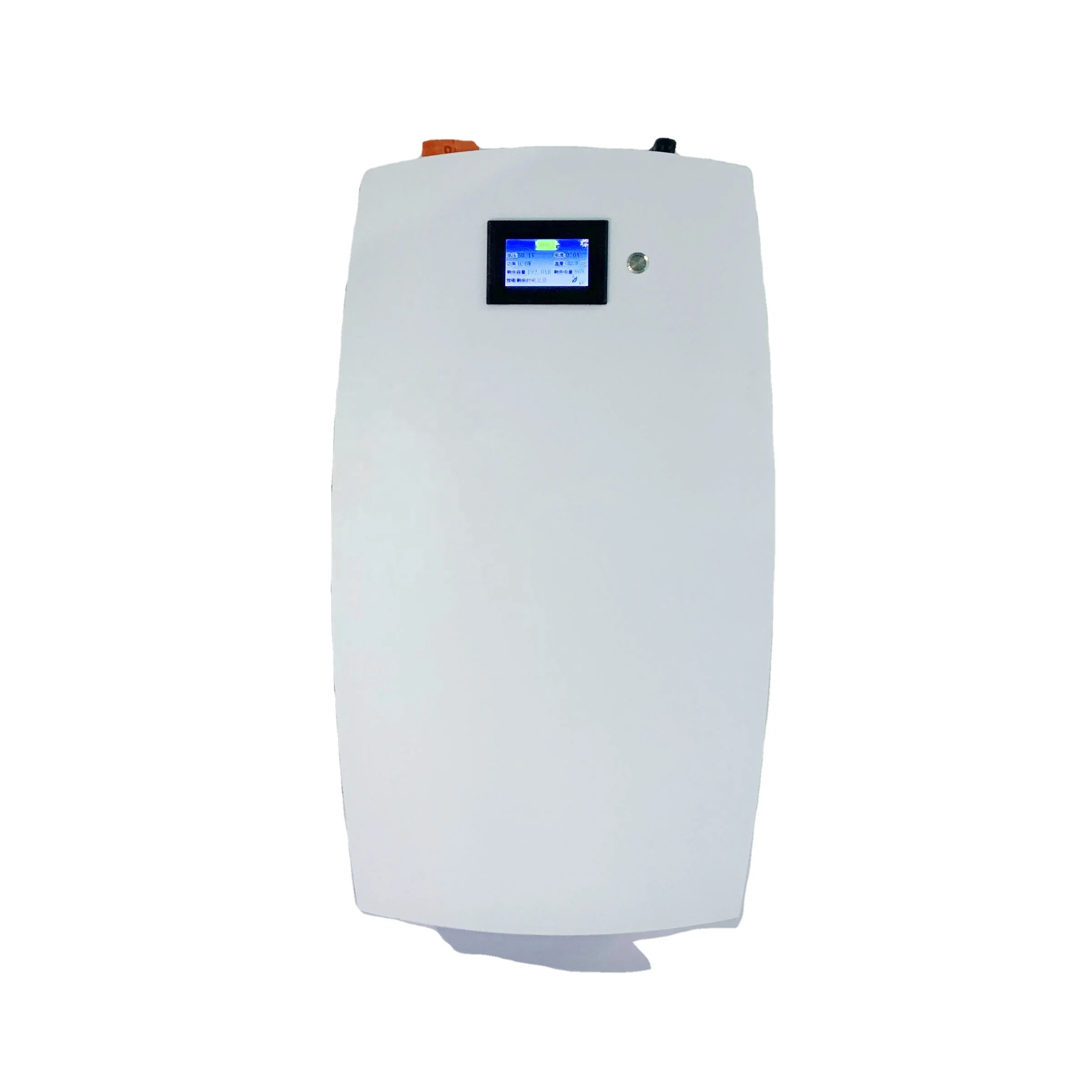

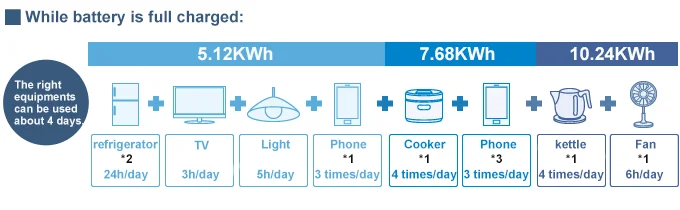

5KWh Home Battery
7.5KWh Home Battery
10KWh Home Battery

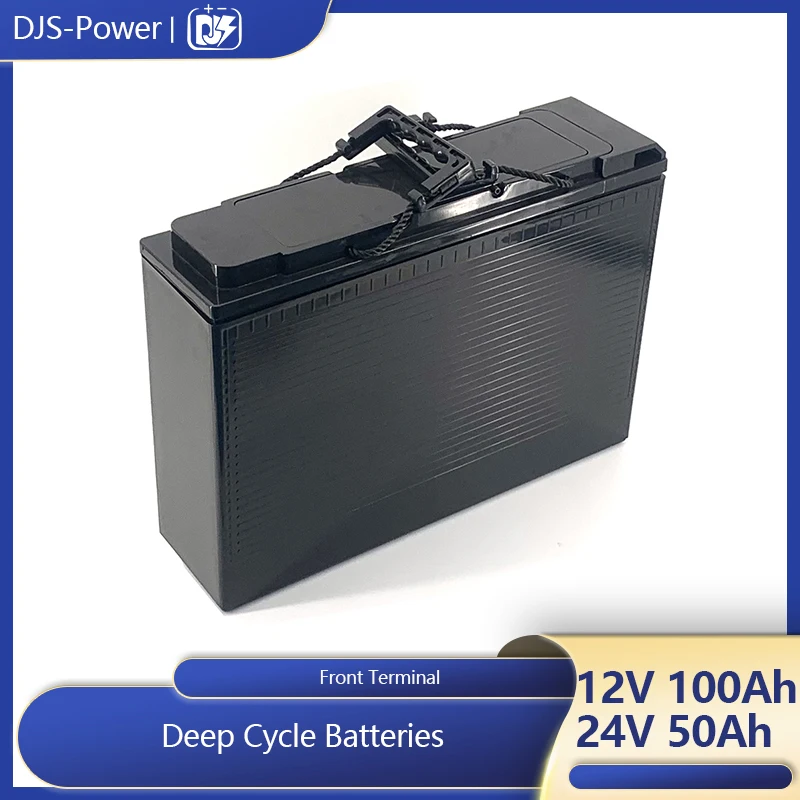

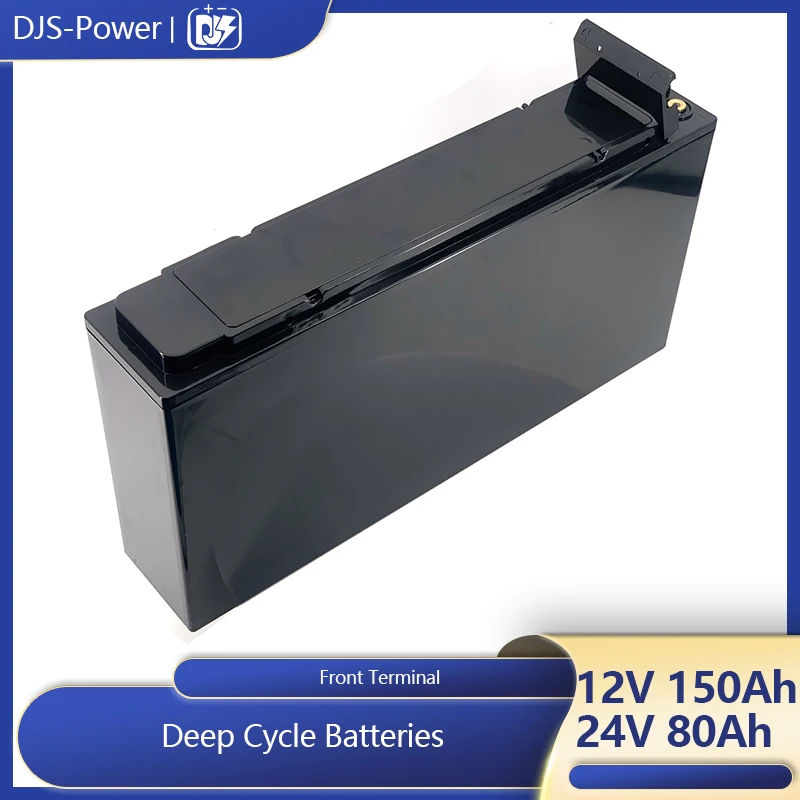

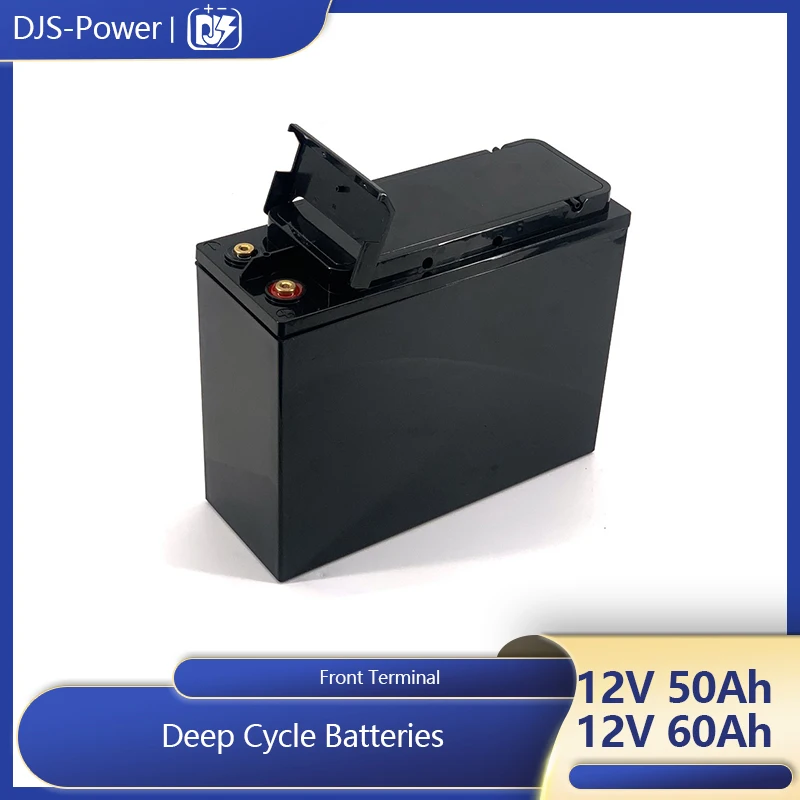

Front Terminal Batteries Series
Model | Specs | Dimensions(mm) | N.W(kg) |
DJS-FT-1250E | 12V 50Ah | L277*H223*W106 | 6.8 |

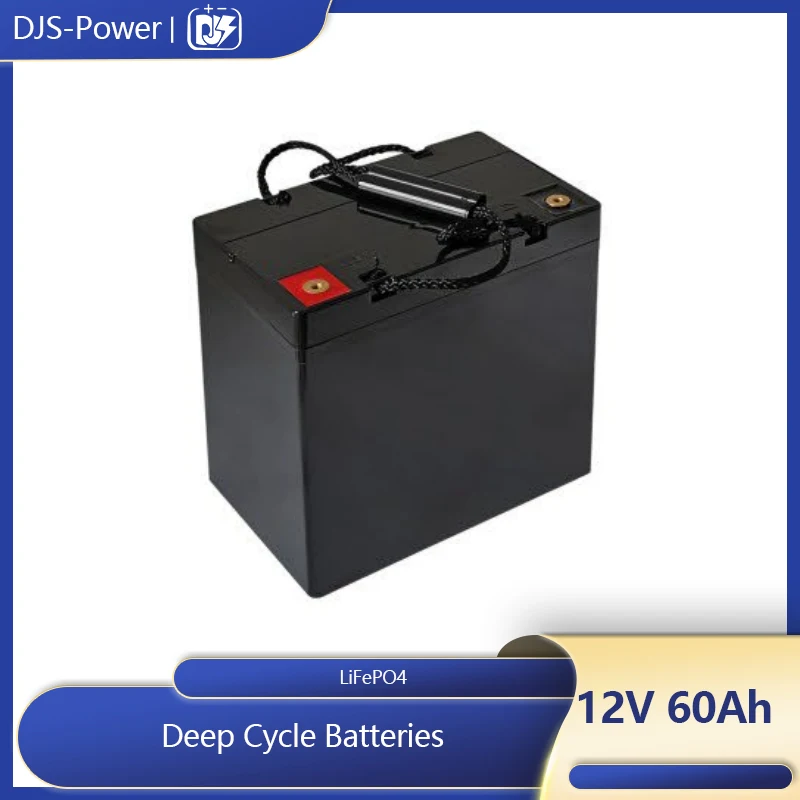

DJS-FT-1260E | 12V 60Ah | L277*H223*W106 | 7.4 |
DJS-FT-12100E | 12V 100Ah | L395*H285*W110 | 11.5 |

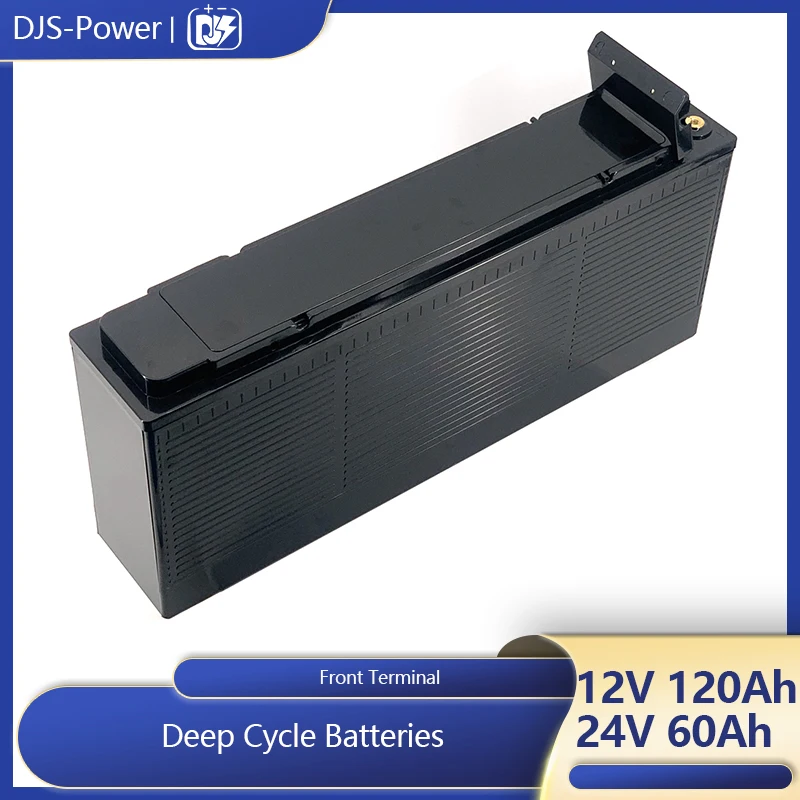

DJS-FT-12120E | 12V 120Ah | L552*H240*W110 | 13 |
DJS-FT-12150E | 12V 150Ah | L552*H285*W110 | 14.5 |

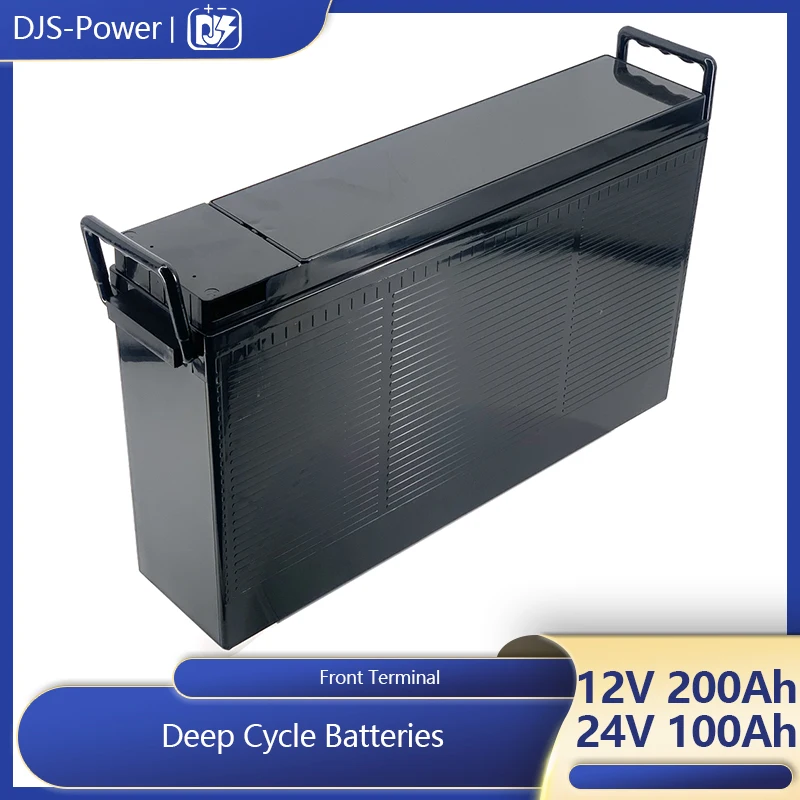

DJS-FT-12200E | 12V 200Ah | L557*H317*W124 | 21.5 |
DJS-FT-2450E | 24V 50Ah | L395*H285*W110 | 11.8 |
DJS-FT-2460E | 24V 60Ah | L395*H285*W110 | 13 |
DJS-FT-2460E | 24V 60Ah | L552*H240*W110 | 13 |
DJS-FT-2480E | 24V 80Ah | L552*H285*W110 | 14.5 |
DJS-FT-24100E | 24V 100Ah | L557*H317*W124 | 21.5 |

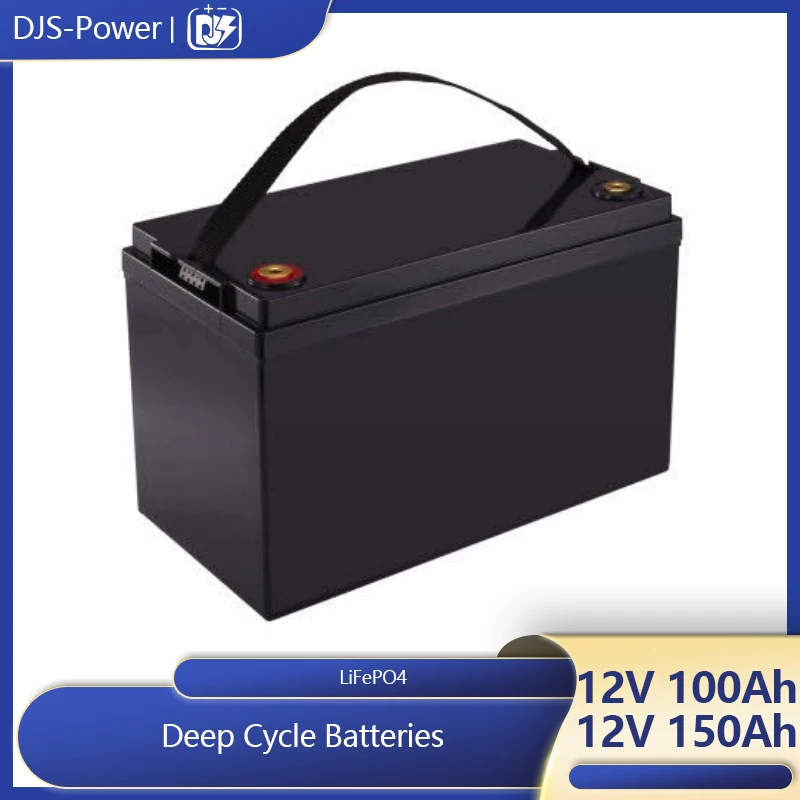

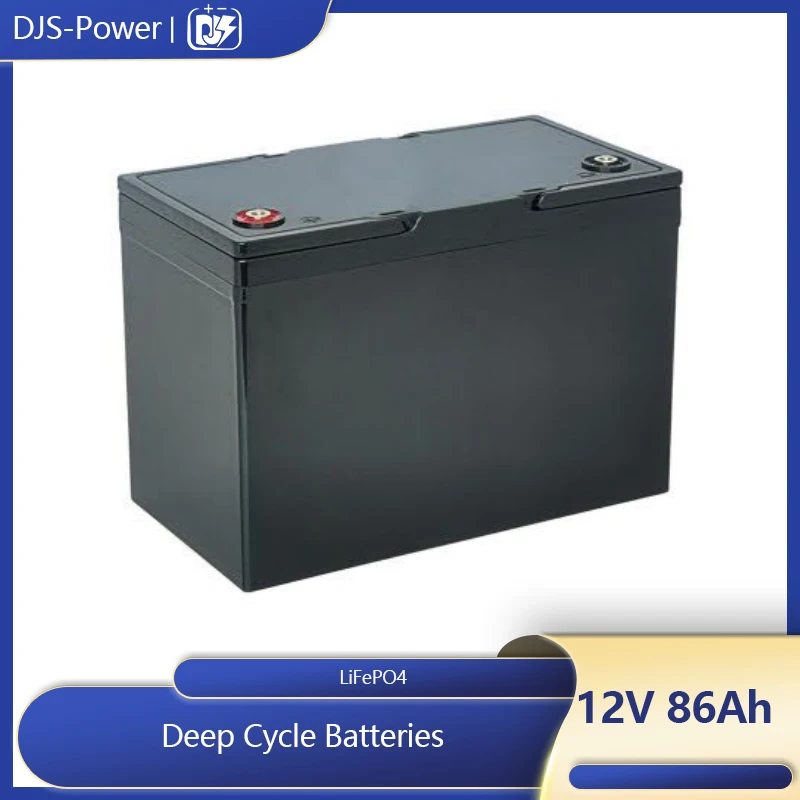

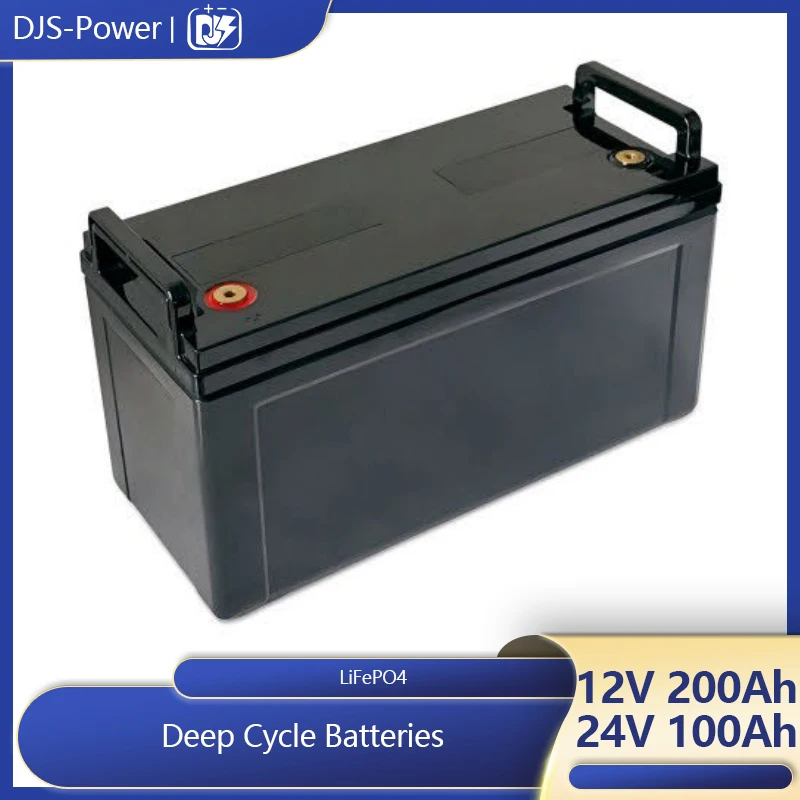

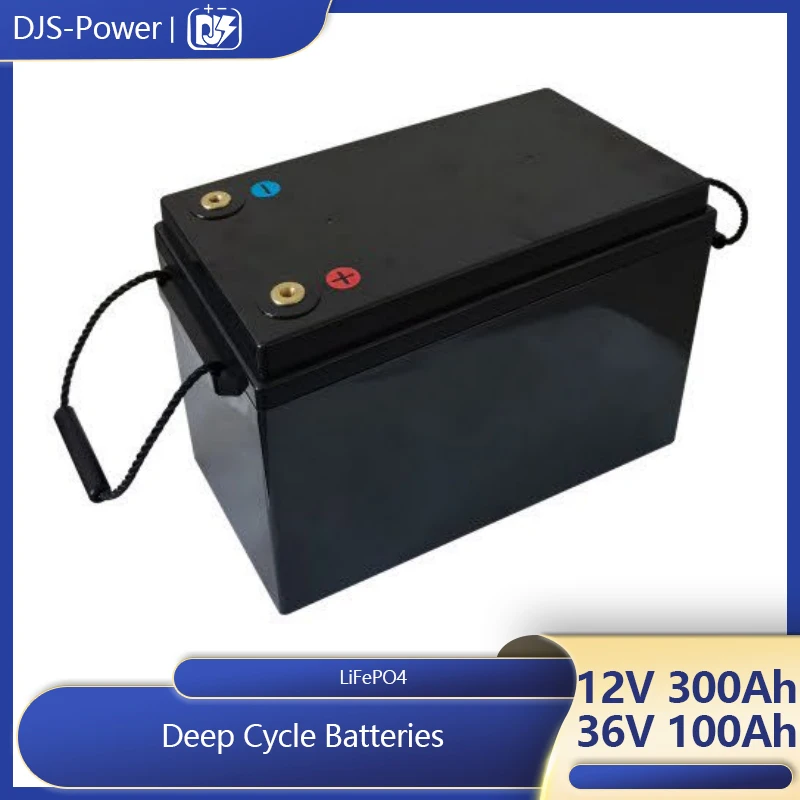

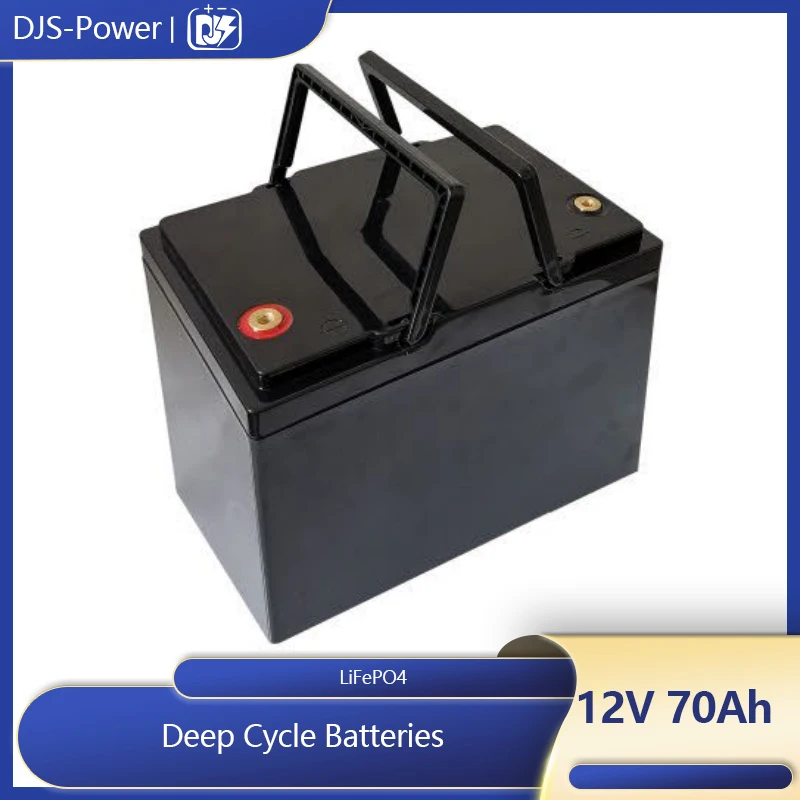

Above are our most usual using deep cycle batteries, can replace the majority of traditional Lead-acid/ AGM/GEL batteries. But we also support customization, if you have special needs, welcome to contact for customization discussion.

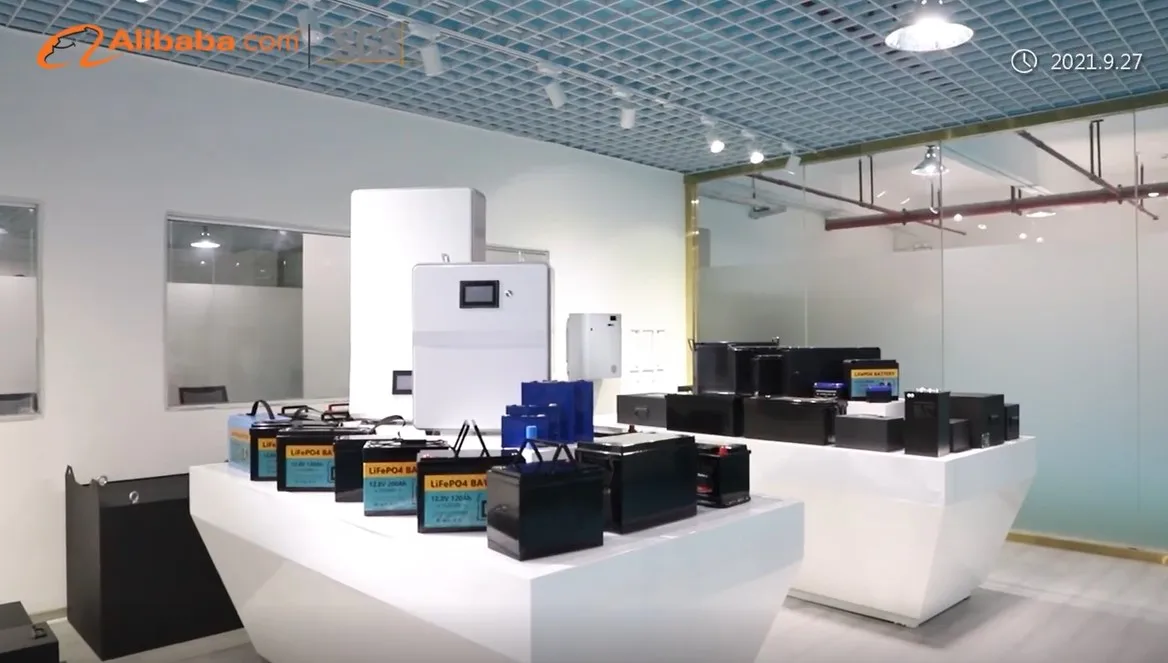

Company Profile

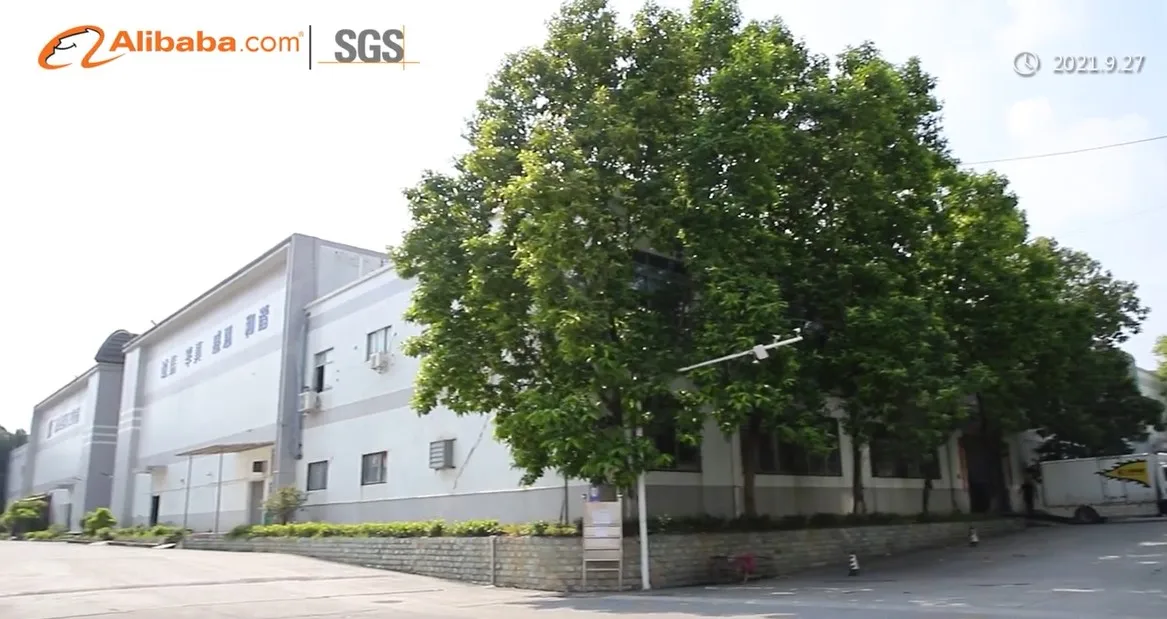

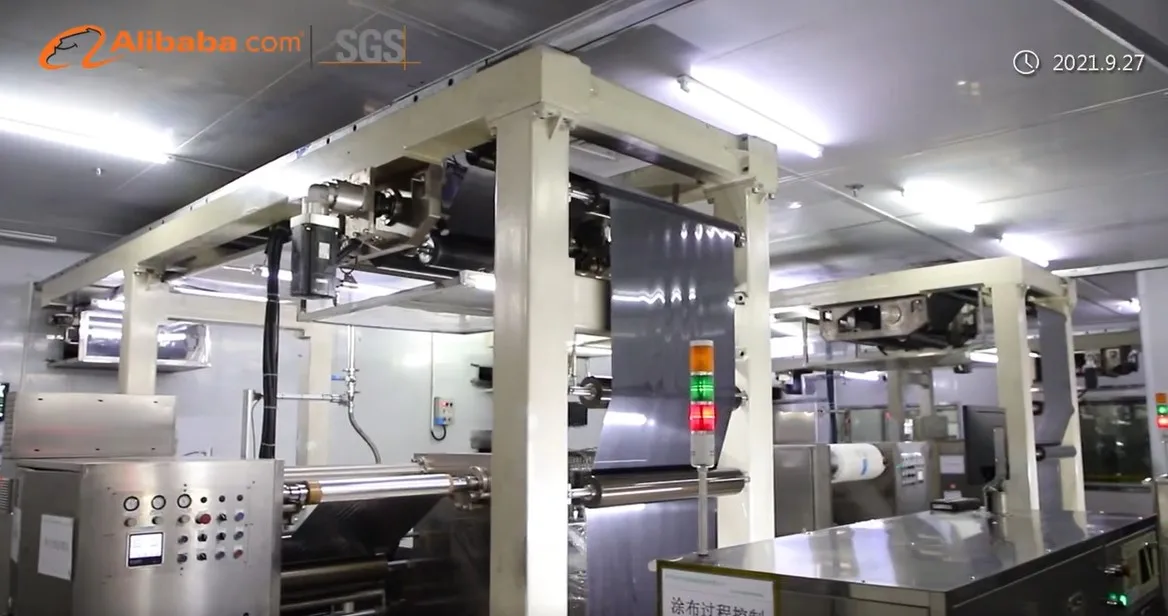

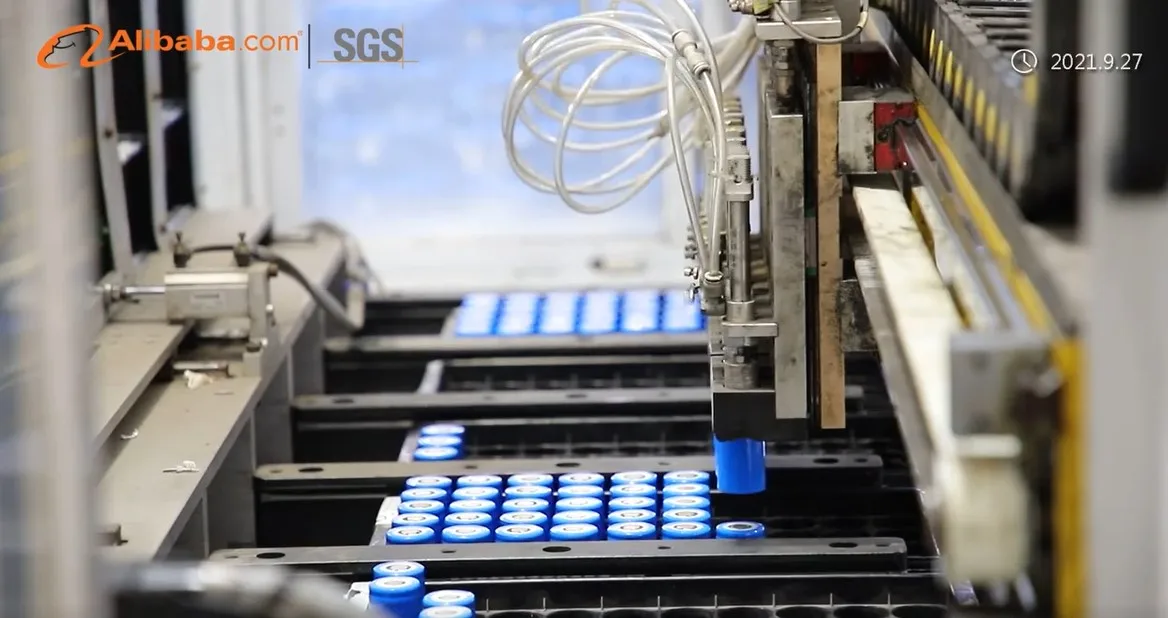

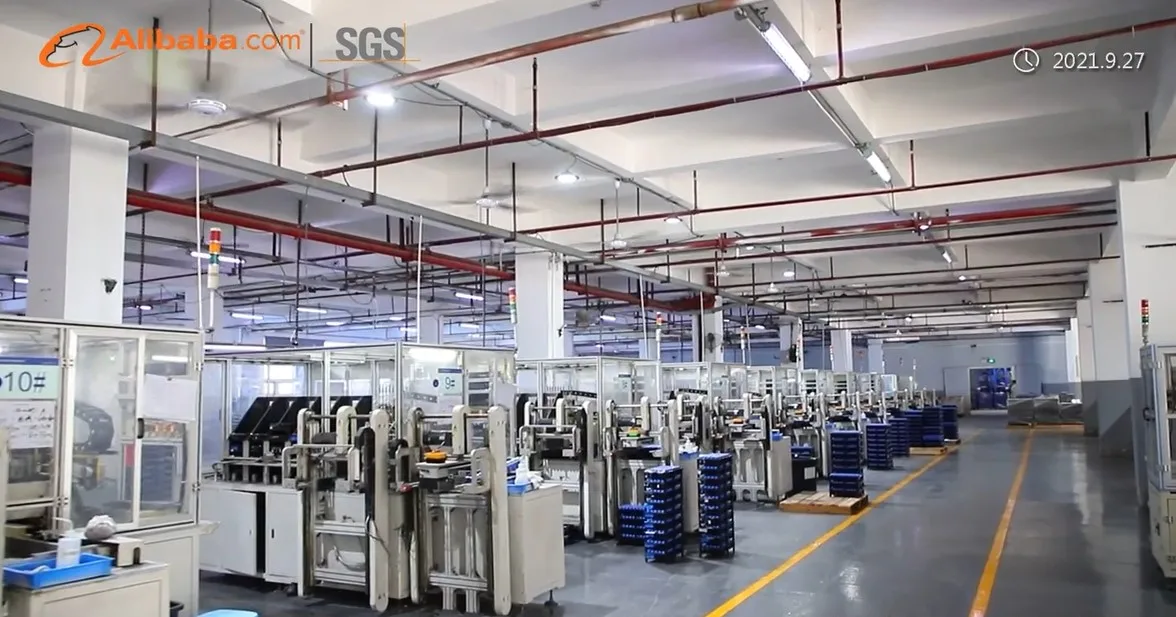

Shenzhen DJS Tech Co., Ltd is a professional Lithium Battery Manufacturer, specialized in the design and producing LiFePO4 battery pack and system, having 12 years of R&D experience, and various kinds of energy storage/EV power battery system producing experience.Our annual output is 50MWh, have been exported to more than 50 different countries.

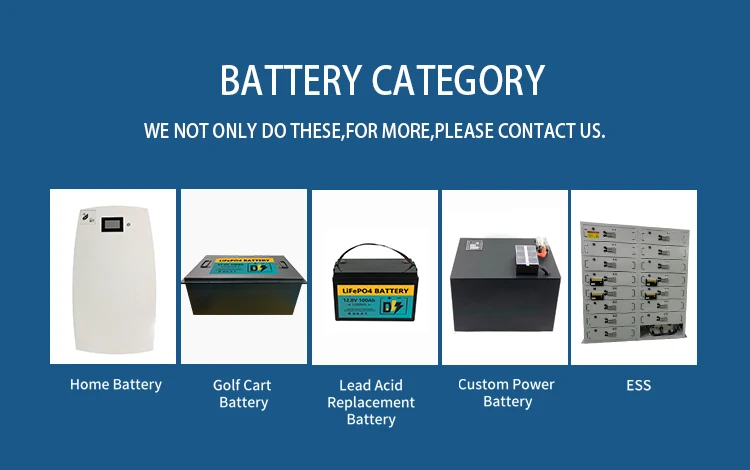

Our main products including Lithium Deep Cycle batteries for solar system/RV/marine/off-grid uses, high burst cranking/ starting batteries for car/boat, Lithium ESS for industrial & residential use, Power Battery system for forklift/golf cart/high voltage vehicle and so on.
For technology, We focus on reliable long cycle life LiFePO4 batteries,having a professional engineer team and a strict QC team, to ensure valuable and high quality products.Currently,we can support CANBUS/ RS485/ RS232 communication solution, complete EV class BMS system to meet smart home solar system & high voltage Electric vehicle system, we also developed battery self-heating and low temperature protection function to solve battery environment problem and extend battery’s lifespan.

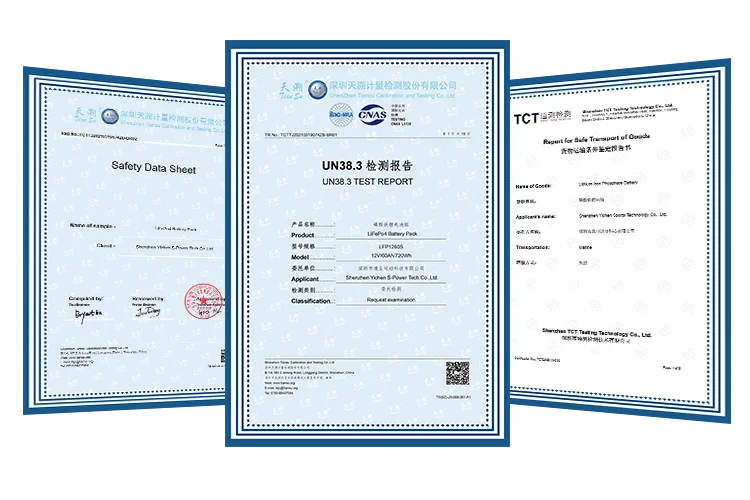

For Certificate, As factory, we can support complete battery certificate for shipment,sale and so on. Such as: CE,UN38.3, MSDS,Transport Report,DG packaging cert.,IEC,BIS,etc. We can also support new certificate testing for clients' customized products.
Our main products including Lithium Deep Cycle batteries for solar system/RV/marine/off-grid uses, high burst cranking/ starting batteries for car/boat, Lithium ESS for industrial & residential use, Power Battery system for forklift/golf cart/high voltage vehicle and so on.
For technology, We focus on reliable long cycle life LiFePO4 batteries,having a professional engineer team and a strict QC team, to ensure valuable and high quality products.Currently,we can support CANBUS/ RS485/ RS232 communication solution, complete EV class BMS system to meet smart home solar system & high voltage Electric vehicle system, we also developed battery self-heating and low temperature protection function to solve battery environment problem and extend battery’s lifespan.
For Certificate, As factory, we can support complete battery certificate for shipment,sale and so on. Such as: CE,UN38.3, MSDS,Transport Report,DG packaging cert.,IEC,BIS,etc. We can also support new certificate testing for clients' customized products.
Customization
As specialized battery factory, our company support OEM/ODM customization.Besides appearance changing, we can also support technical customization, like CANBUS/RS485/RS232 communication, smart Blue tooth function, high voltage battery system solution,and low temperature protection function.
We can do batteries:
Voltage: 12v~700v;
Capacity: 20Ah~1000Ah.
Application: Solar system, RV, Marine, off-grid, Golf cart, Forklift, ESS.
Voltage: 12v~700v;
Capacity: 20Ah~1000Ah.
Application: Solar system, RV, Marine, off-grid, Golf cart, Forklift, ESS.

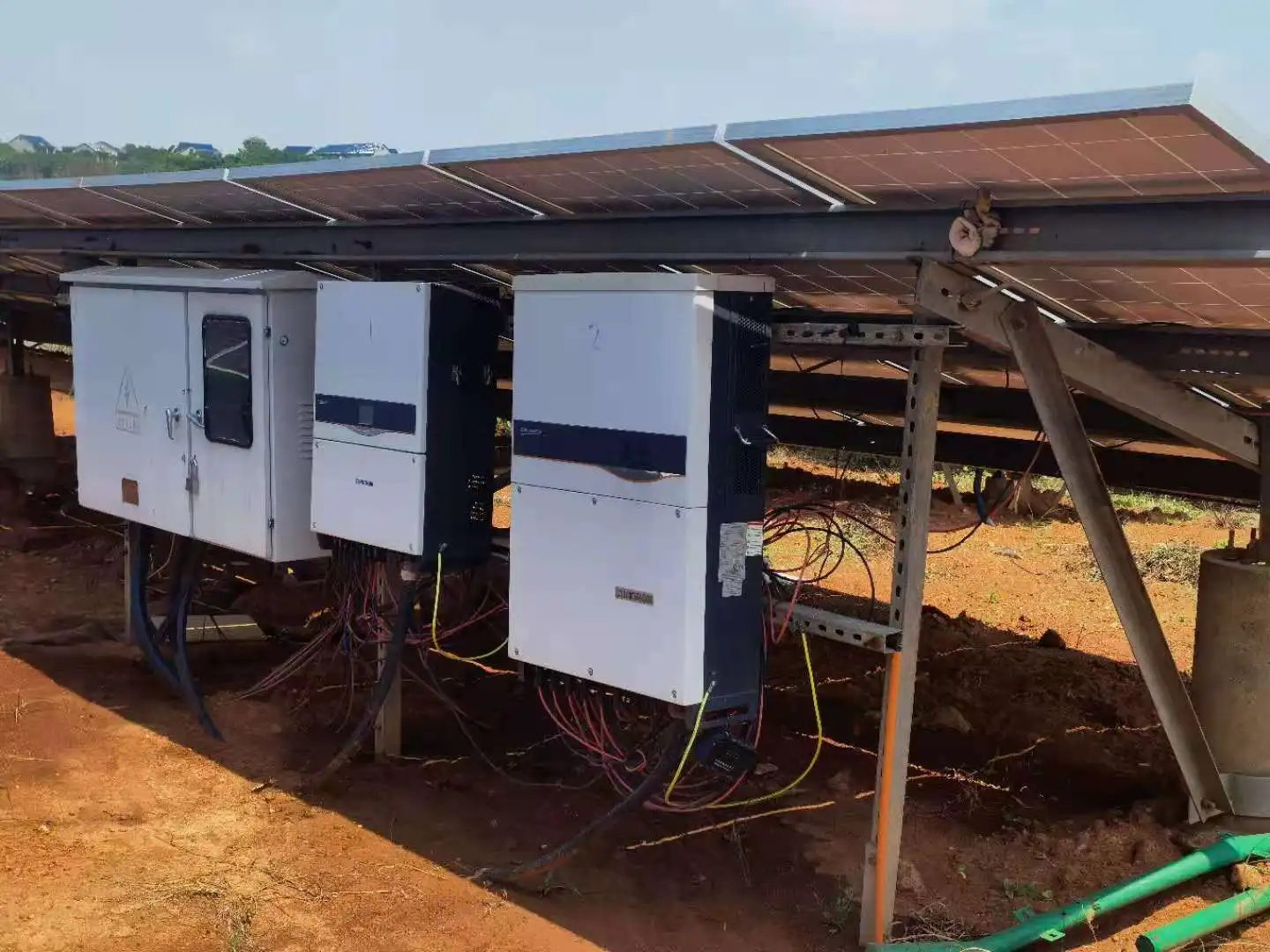

PROJECT CASES
2019. 2MWh Container ESS for Factory

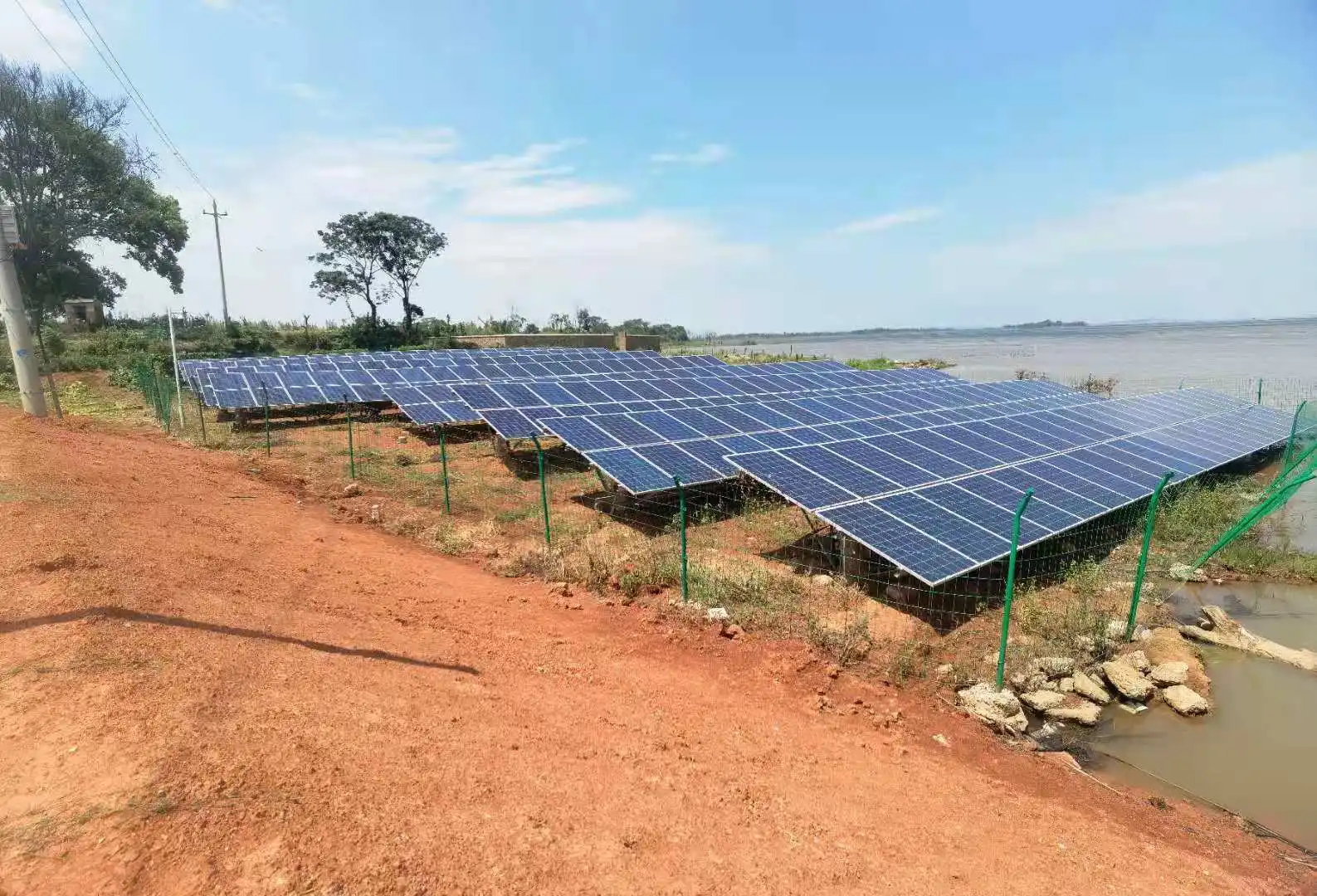

2020. 400KWh Lake Around Power Station
2017. Thailand Airport. Aircraft Tractor Battery Project
2016. Logistics Tractor Battery Case

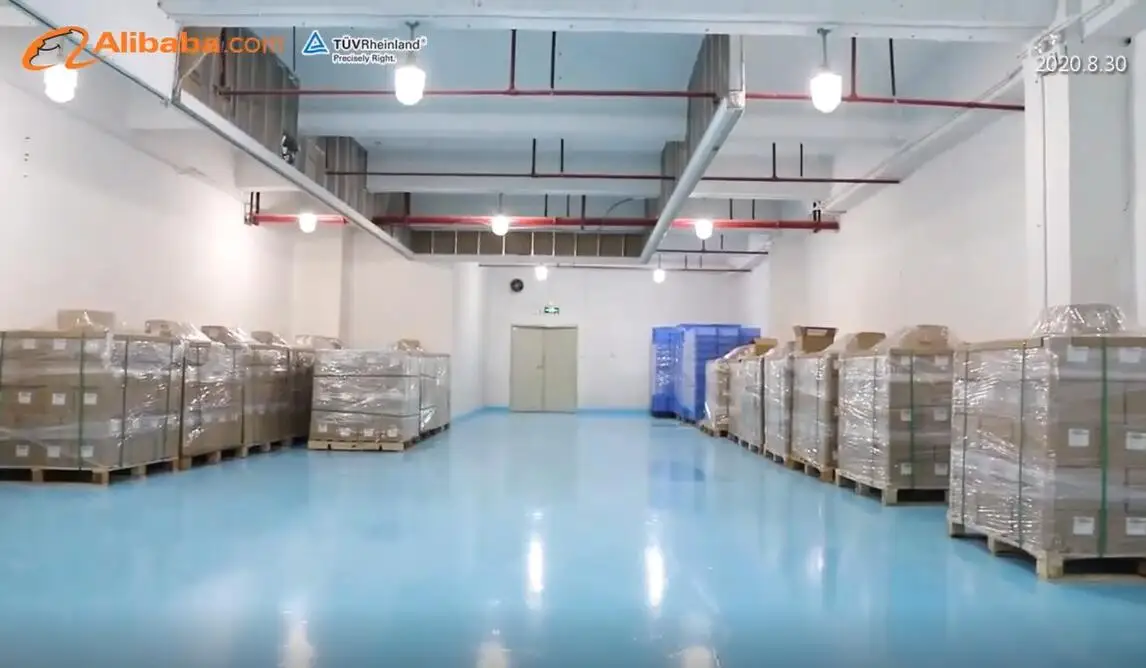

Package & Delivery
All shipment are 100% inspected and packed according to DG packing requirement.
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
