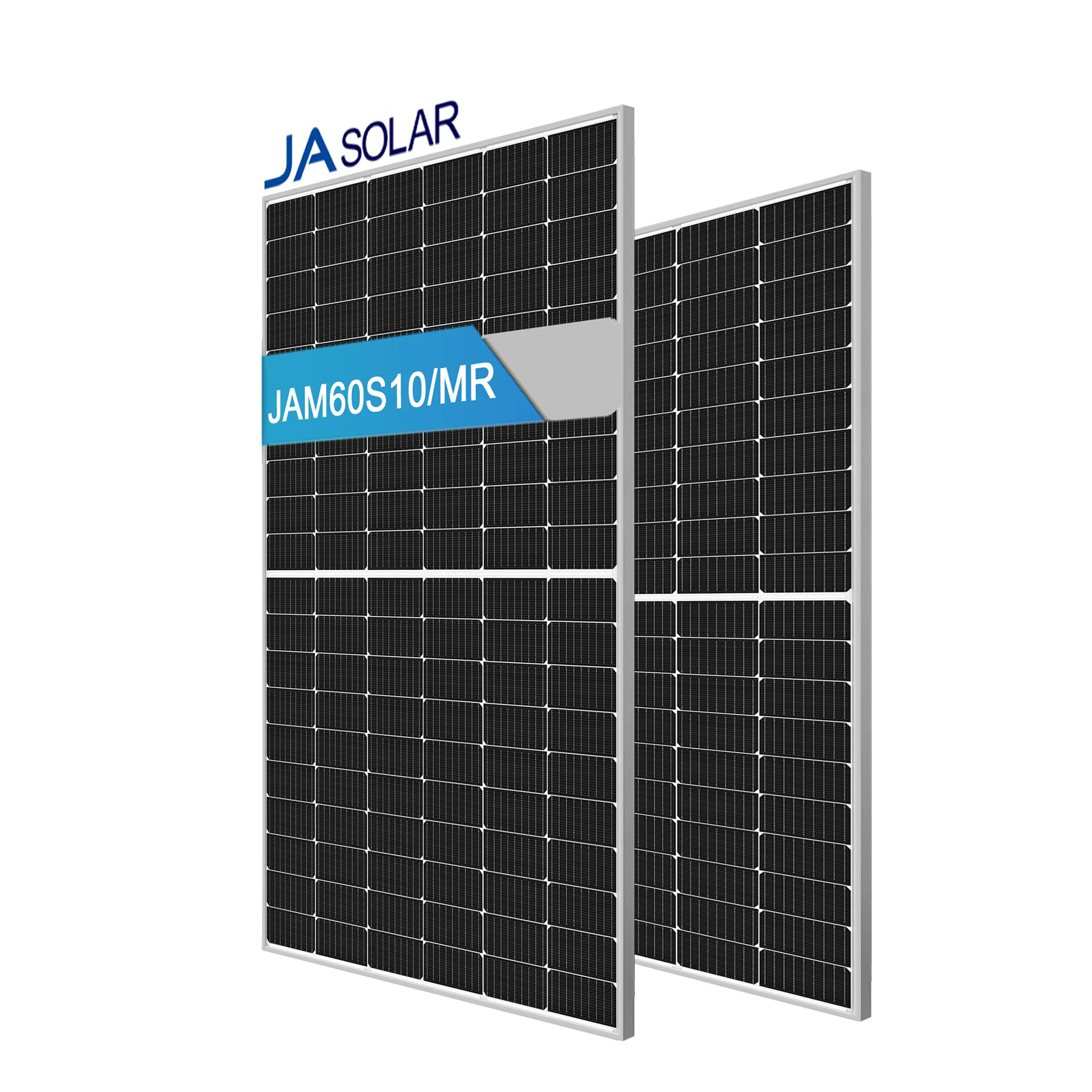

JA Trina Jinko longi 540w 600W 1000 Watt PV Module Mono Cell Power System Home Solar Panels
JA Trina Jinko longi 540w 600W 1000 Watt PV Module Mono Cell Power System Home Solar Panels
JA Trina Jinko longi 540w 600W 1000 Watt PV Module Mono Cell Power System Home Solar Panels
JA Trina Jinko longi 540w 600W 1000 Watt PV Module Mono Cell Power System Home Solar Panels
JA Trina Jinko longi 540w 600W 1000 Watt PV Module Mono Cell Power System Home Solar Panels
JA Trina Jinko longi 540w 600W 1000 Watt PV Module Mono Cell Power System Home Solar Panels
JA Trina Jinko longi 540w 600W 1000 Watt PV Module Mono Cell Power System Home Solar Panels

JA Trina Jinko longi 540w 600W 1000 Watt PV Module Mono Cell Power System Home Solar Panels

Share on (1600518170614):


Price:$0.20 - $0.24

Quantity:


Product Overview

Description



Product Description






Electrical Parameters at STC and NOCT


Type
JAM72S30-525/MR
JAM72S30-530/MR
JAM72S30-535/MR
JAM72S30-540/MR
JAM72S30-545/MR
JAM72S30-550/MR
Rated Maximum Power(Pmax) [W]
525 397
530 401
535 405
540 408
545 412
550 416
Open Circuit Voltage(Voc) [V]
49.15 46.05
49.30 46.18
49.45 46.31
49.60 46.43
49.75 46.55
49.90 46.88
Maximum Power Voltage(Vmp) [V]
41.15 38.36
41.31 38.57
41.47 38.78
41.64 38.99
41.8 39.20
41.96 39.43
Short Circuit Current(lsc) [A]
13.65 10.97
13.72 11.01
13.79 11.05
13.86 11.09
13.93 11.13
14.00 11.17
Maximum Power Current(lmp) (A]
12.76 10.35
12.83 10.39
12.90 10.43
12.97 10.47
13.04 10.51
13.11 10.55
Module Efficiency [%]
20.3%
20.5%
20.7%
20.9%
21.1%
21.3%
Power Tolerance                                                                                           0~+5W
Temperature Coefficient of Isc(α_jsc)                                                  +0.045%/°C
Temperature Coefficient of Voc(β_Voc)                                                -0.275%/°C
Temperature Coefficient of Pmax(γ_Pmp)                                            -0.350%/°C
STC（Standard Testing Conditions）：Irradiance 1000W/㎡,Cell Temperature 25℃.Spectra at AM1.5
NOCT(Nominal Operating Cell Temperature)：Irradiance 800W/㎡,Ambient Temperature 20℃， Spectra at AM1.5 Wind at 1m/s


OPERATING CONDITION
Maximum System Voltage
1000V/1500V DC(IEC)
Operating Temperature
•40°C~+85°C
Maximum Series Fuse
25A
Maximum Static Load,Front
5400Pa
Maximum Static Load,Back
2400Pa
NOCT
45±2°C
Safety Class
Glass Ⅱ
Fire Performance
UL Type 1


Details Images




Glass
*High Anti-PID resistant *Low breakage rate
*High module efficiency up to 20%
*High salt mist and ammonia resistance
*Easy for rooftop installation



Frame
*Conventional frame
*Boost bearing capability and prolong service life
*Serrated-clip design tensile strength
*Seal-lip design glue injection
*Silver or black frames are optional



Junction Box
*Long service life
*Heat dissipation
*IP68 protection level
*Conventional standalone edition and engineering custom edition
*Quality diode ensures module running safety

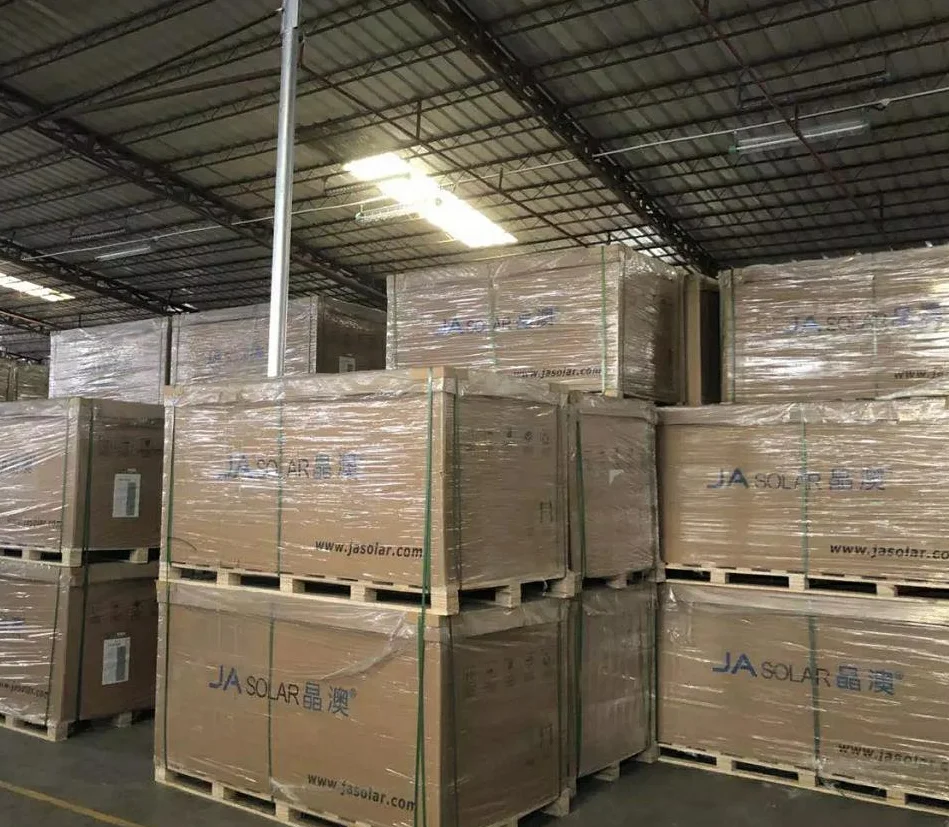

Packing & Delivery




Certifications




Delivery & Payment Terms








Payment Terms



               T/T
EXW
30% in advance for deposit payment, the balance payments will be paid before shipment.
FOB
CFR/C&F
30% in advance for deposit payment, the balance will be paid against copy of B/L
CIF
               L/C
Optional for the amount of above 50,000 usd, L/C at sight is acceptable.
West Union

Optional for amount of order less than 5000 usd
Paypal
Delivery Time
7~30 days after receiving the payment or the deposit payment
