Introduction of Cutting Steel Rail Cutting Machine Rail Cutter K1270
Parameters of Cutting Steel Rail Cutting Machine Rail Cutter K1270
Product Description
K1270 type Internal combustion rail cutter is a portable cutting machine to maintenance machinery .For the import of small gasoline engine as power, the pulley will power transfer to sand wheel, drive cutting grinding wheel rotation, to realize the purpose of cutting rail. Host and rail clamping device can be decomposed easy to carry, has small volume, light weight, cutting speed, cutting section rail high accuracy, reliable, convenient rail clamping operation, etc.
1. The gasoline engine forms | single cylinder air cooling two stroke |
2. The gasoline engine power | 5.8 kw |
3. The grinding wheel piece form | double strengthen silk screen |
4. The maximum linear speed | 100 m/s |
5. Rated speed | 5100 + 100 r/min |
6. Grinding wheel piece size | Φ355mmX25.4mm, |
7. Cutting precision | |
a.Incision and rail longitudinal vertical deviation | ≤0.40 mm |
b.Two-way cutting interface plane deviation | ≤0.35 mm |
8. Cutting time | ≤120 s |
9.clamp weight | 5Kg |
10. weight | 20.5 kg |
11. The fuel tank capacity | 1.25 L |

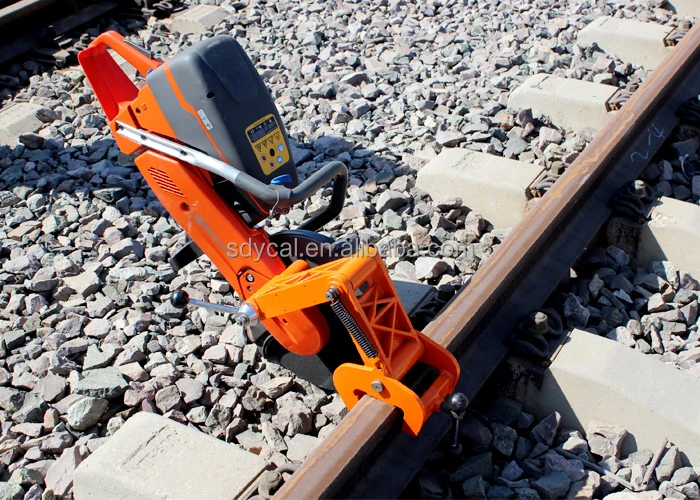

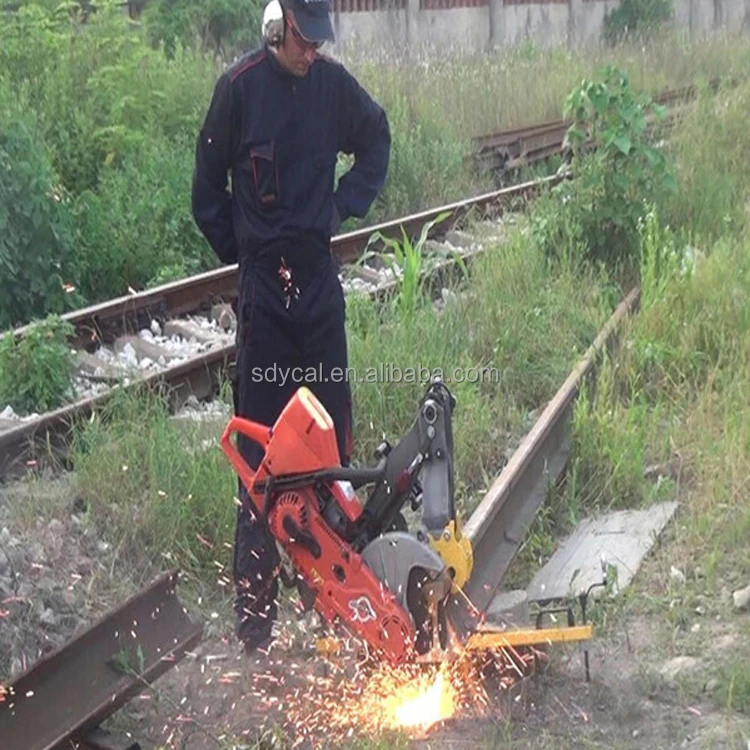

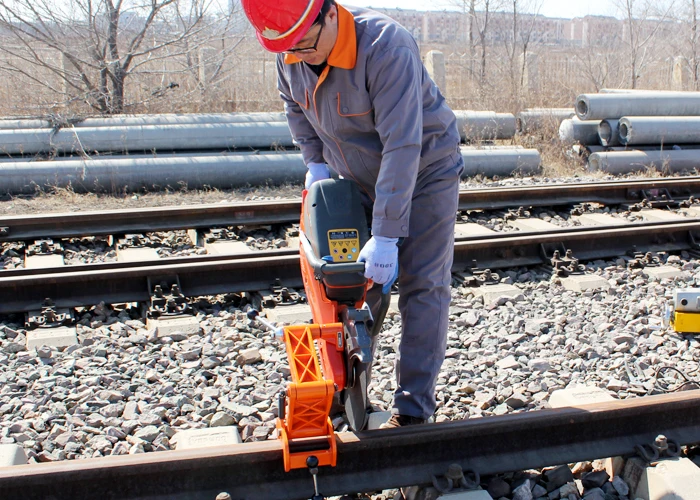

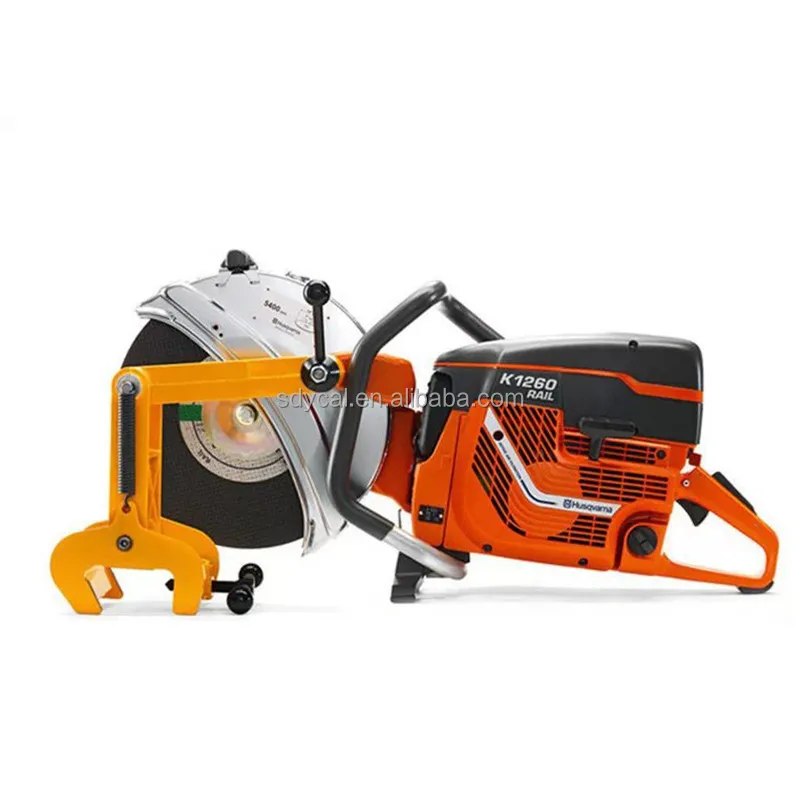

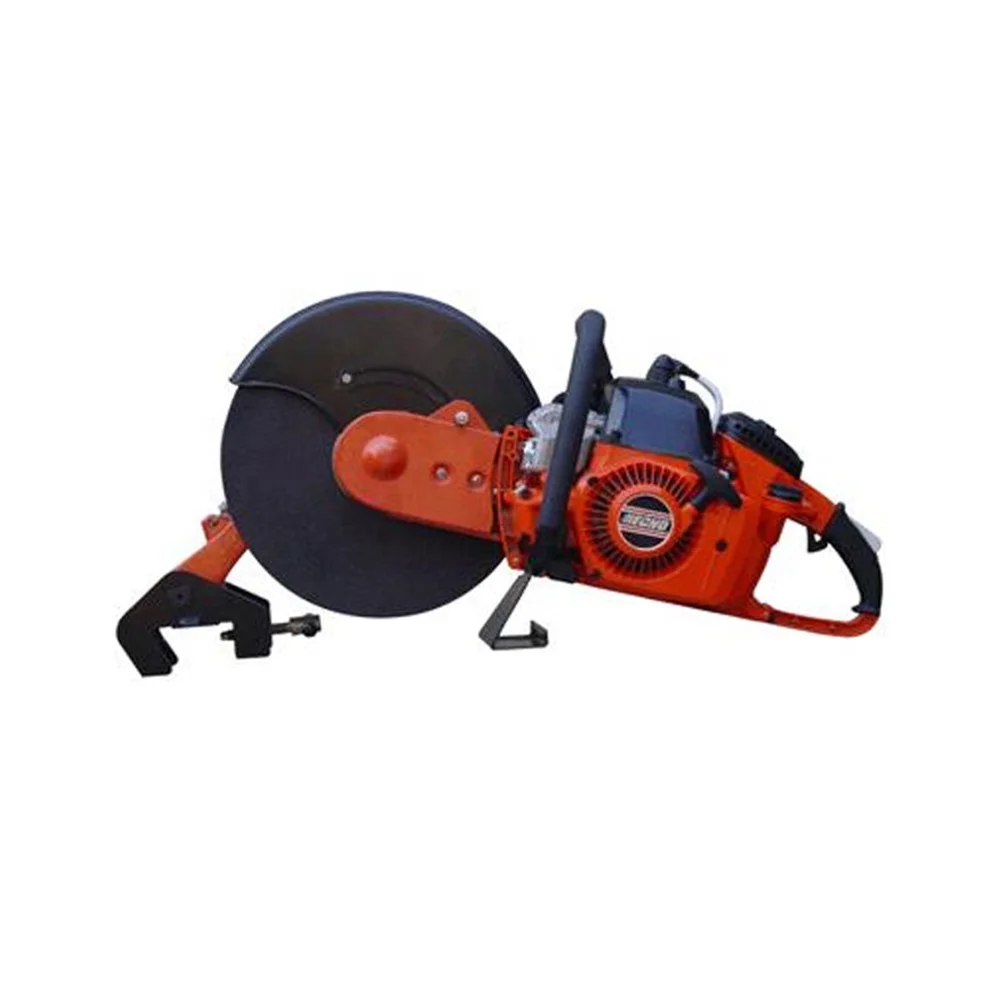

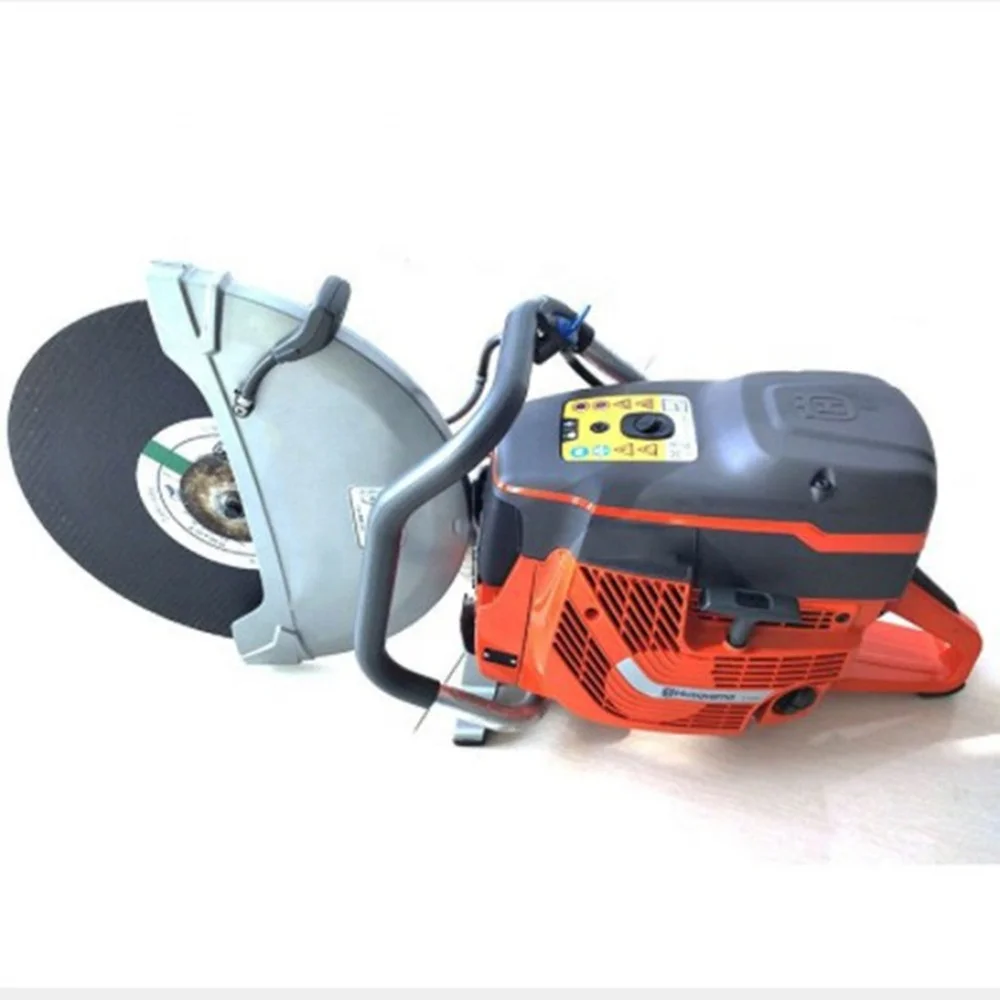

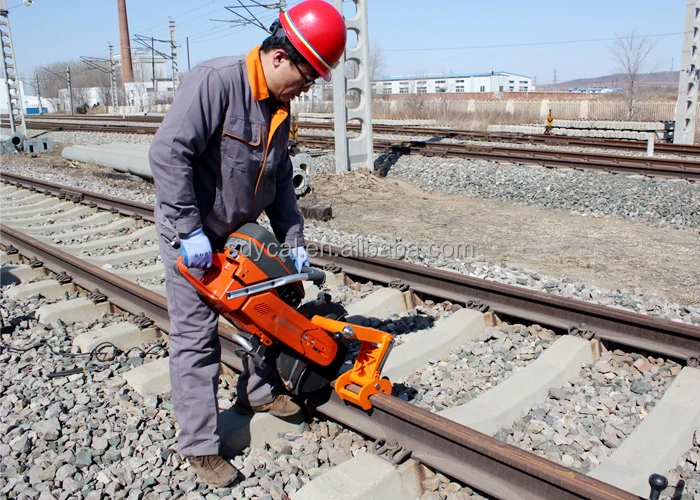

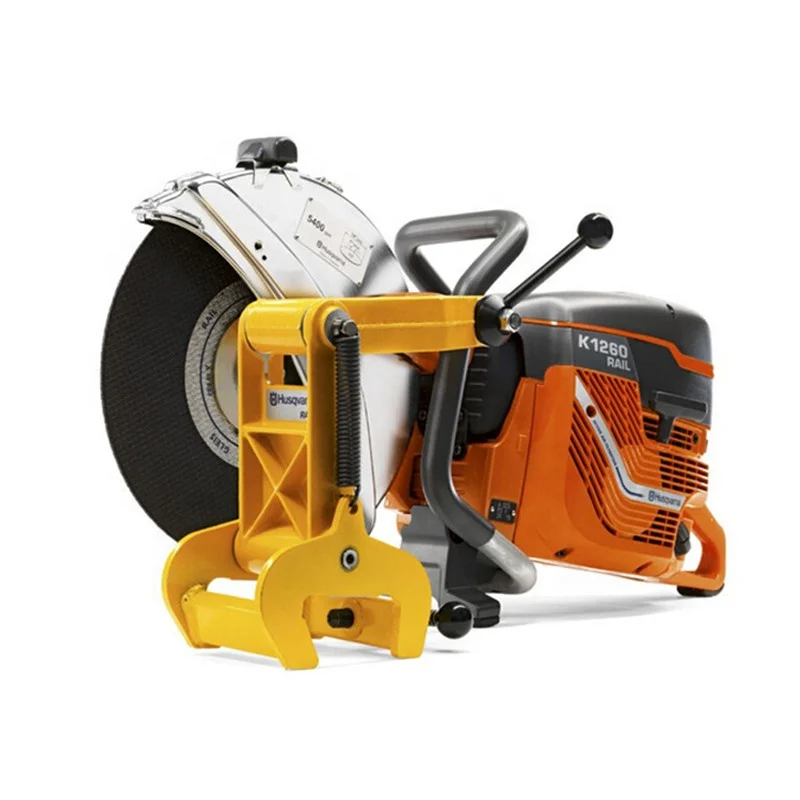

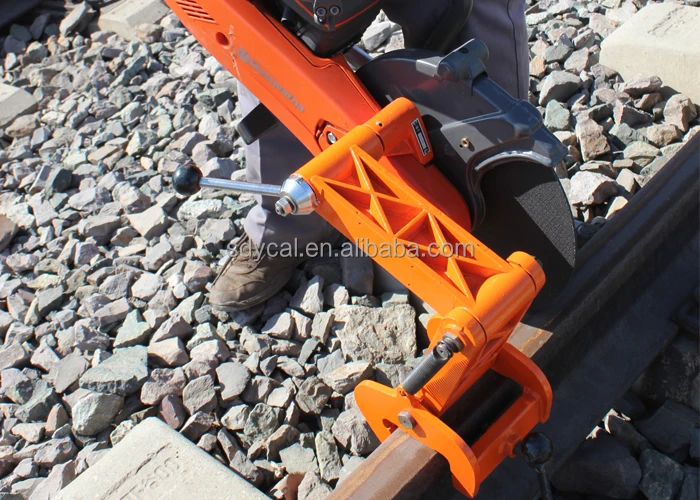

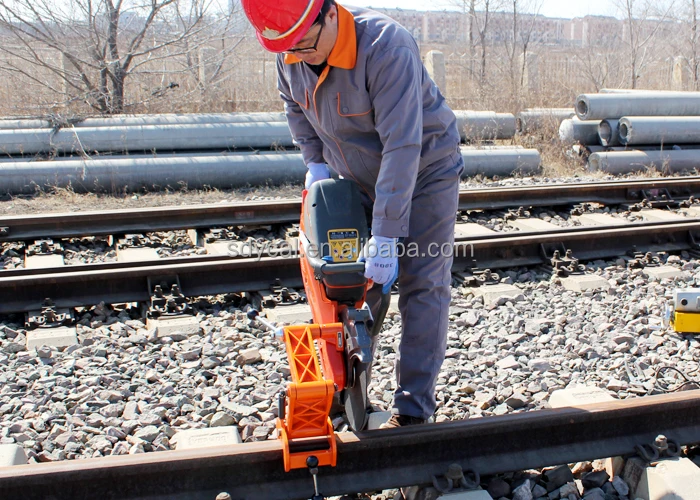

Images of Cutting Steel Rail Cutting Machine Rail Cutter K1270
