11KV Silicon Rubber Drop Out Fuse Cutout 100A 200A 400A
- Category: >>>
- Supplier: Yueqing Annai Electrical Co. Ltd.
Share on (1600518198317):
Product Overview
Description
Product Description
Introduction

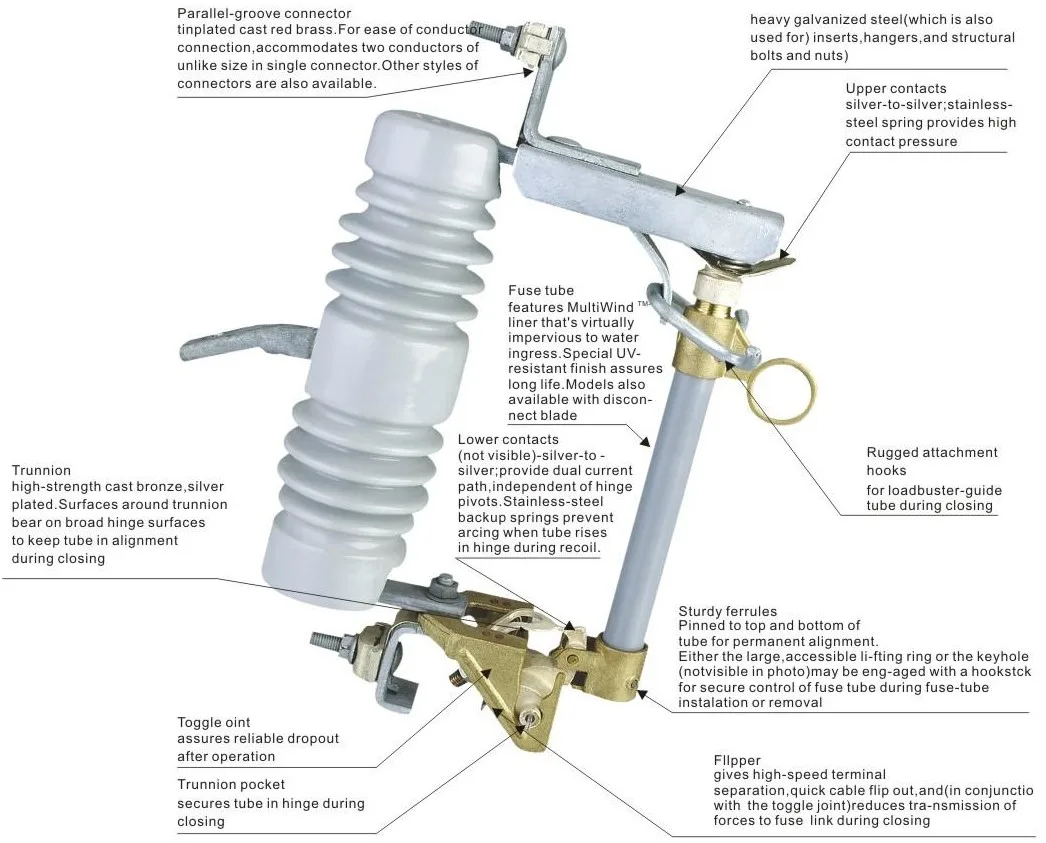

Silicon rubber drop out fuse cutout is made of insulator, contact conductive system and fuse wire tube. When working normally, the fuse locks the movable joint on the fuse tube, so the fuse tube can be in the closing position. When the short circuit current make the blown fuse, the fuse tube produce arc, arc suppression of the fuse tube pipe under the action of electric arc, produce a large amount of gas, when the short circuit current through the zero, produce strong ionization, make the arc extinguishing, then activity joint release, fuse tube in the upper and lower static contact under the action of thrust and its weight, falling rapidly, forming obvious isolation clearance.

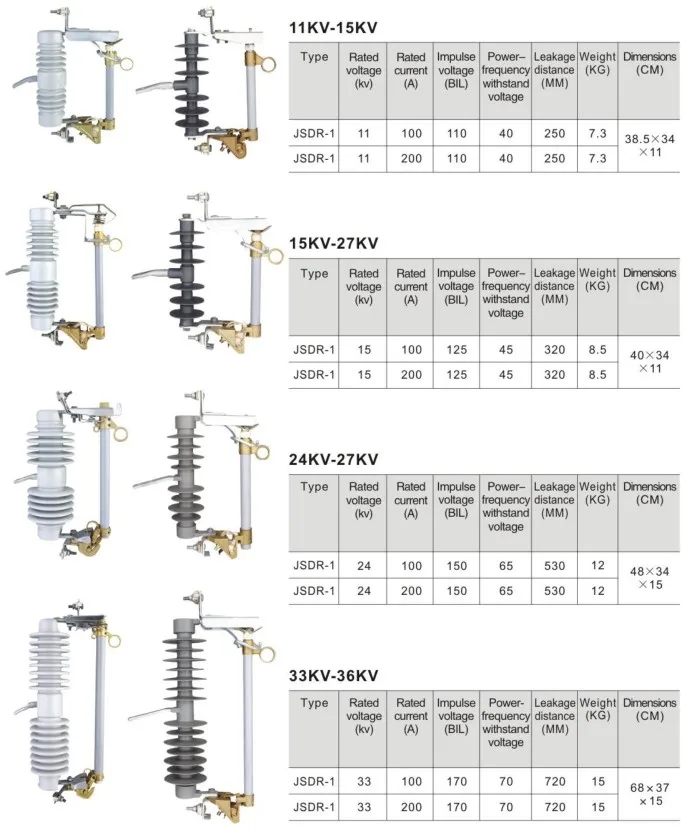

Specification
item | 11KV Drop Out Fuse Cutout |
Place of Origin | China |
Zhejiang | |
Brand Name | ANA |
Model Number | JSDR |
Rated Current | 100A, 200A, 400A |
Rated Voltage | 11KV |
Feature | Drop out |
Material | Silicon Rubber |
Weight | 7.3KGS |
Rated Voltage | 11KV |
Leakage Distance | 250mm |
