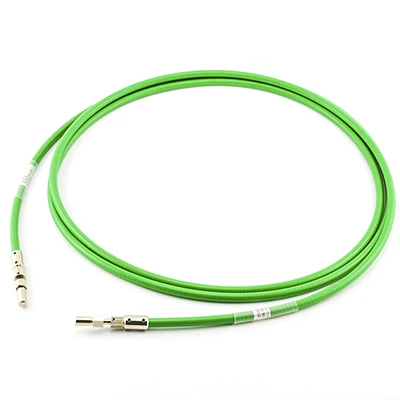

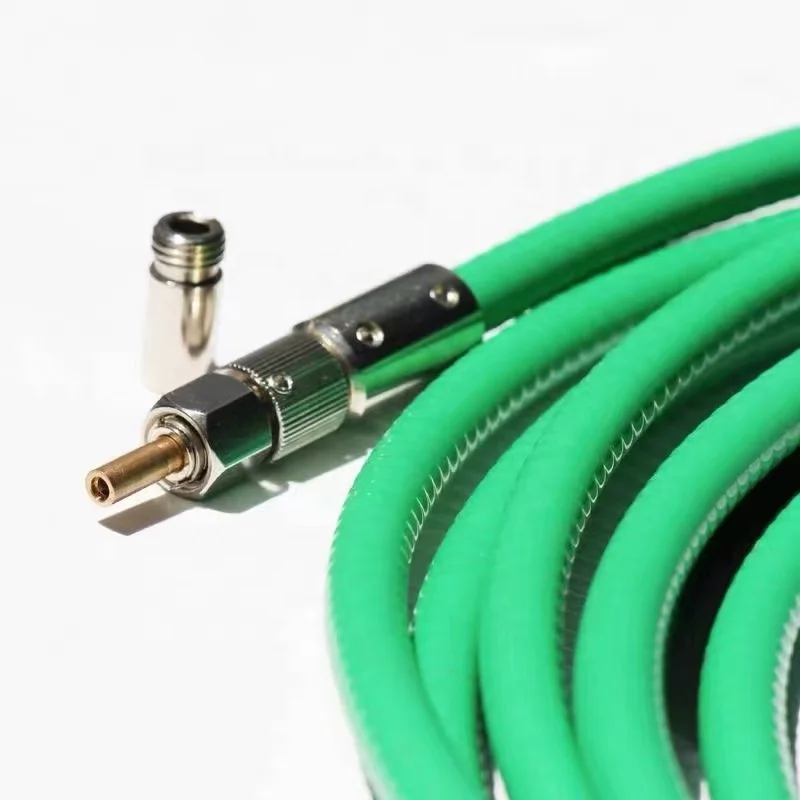

400 2400nm Wavelength Y type 50um 100um 200um 400um 600um core diameter High Power Laser Fibers D80 Fiber Cables
- Category: >>>
- Supplier: Shenzhen Hicorpwell Technology Co. Ltd.
Share on (1600518259153):
Product Overview
Description
Products Description

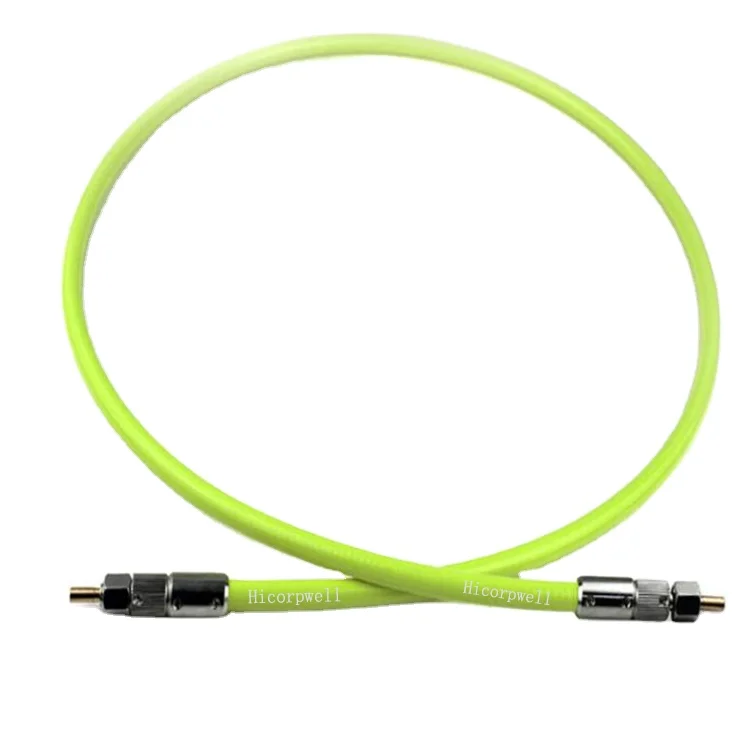

Brief Info on D80 fiber cables
D80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800
microns(200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a crucial role in the coupling of high-power. In principle,
Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser
transmission.
microns(200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a crucial role in the coupling of high-power. In principle,
Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser
transmission.
FEATURES OF D80 FIBER CABLES
* Sapphire and Air Gap Protection

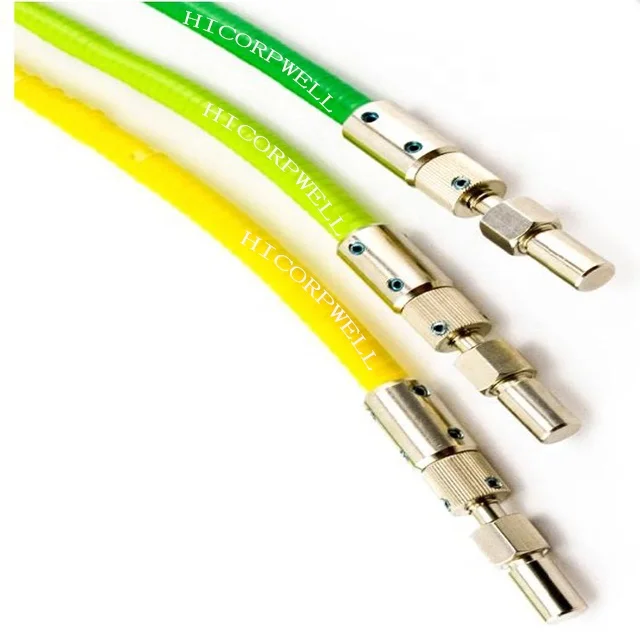

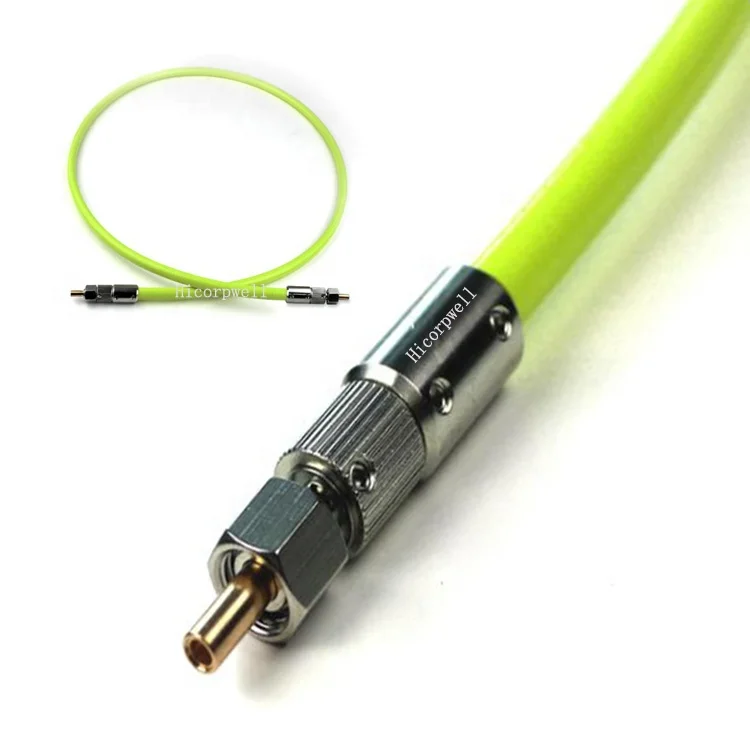

* Precisely Polished D80 Fiber Connectors
* Step-index Fiber Optimized for VIS-NIR
* 0.22NA as Standard; Others on Request
* Sapphire and Air Gap Protection
* Precisely Polished D80 Fiber Connectors
* Step-index Fiber Optimized for VIS-NIR
* 0.22NA as Standard; Others on Request
General info on D80 High Power Laser Cable
For a better protection, it introduces a sapphire and air gap into the D80 fiber connectors so that the D80 fiber cables can sustain laser power up to hundreds of watts in a single fiber with more than 90% transmission efficiency depending on the fiber core diameters and laser specifications. It’s an excellent choice for fiber-coupled laser systems in avelength ranges from visible to near infrared (VIS-NIR, typically 400-2400 nm), such as high-power semiconductor lasers, solid-state lasers, and fiber lasers.
General info on D80 High Power Laser Cable
Areas of application include high power laser transmission, laser welding, laser cutting, and so onD80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns (200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a crucial role in the coupling of high-power.
In principle, Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser transmission.
Specifications of D80 Fiber Cables for High-Power Laser | ||
Fiber Core Diameter (μm) | 200, 300, 400, 600, 800 | |
Fiber Core Material | High purity fused silica (Low-OH) | |
Fiber Type | Step-index fiber as standard; Graded-index fiber on request | |
Numerical Aperture (NA) | 0.22 as standard, others on request | |
Operating Wavelength (nm) | 400-2400 | |
Protection Tube Diameter (mm) | 8 | |
Cable Lengths (m) | 3, 5, 10, 20, etc. (customizable) | |
