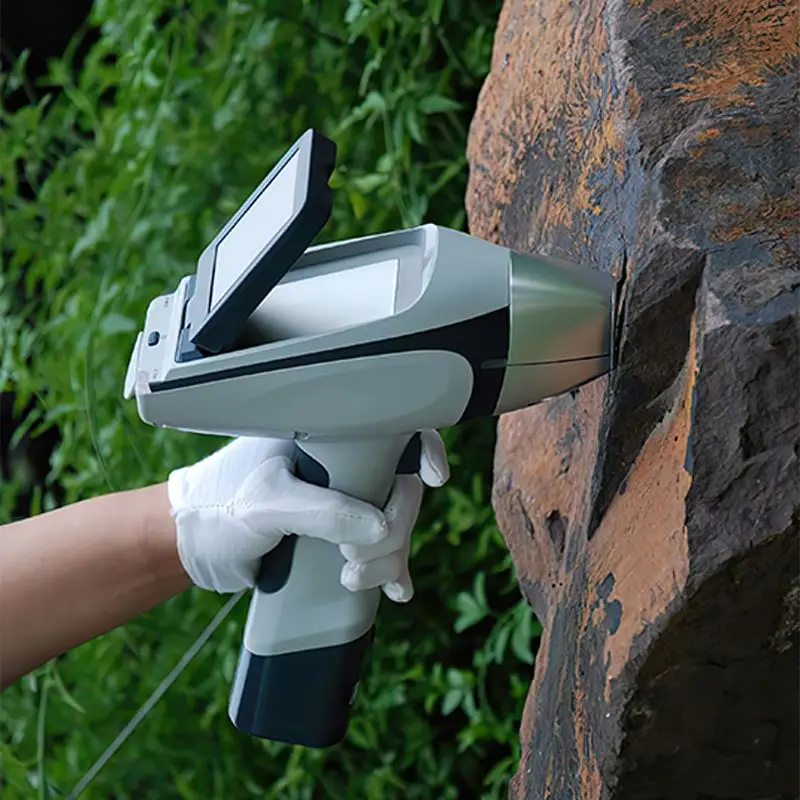

Handheld metal alloy Analizer 3Xl Heavy Cd Niton Xl5 Xrf Mineral Analyzer Handheld Precious Metal Tester gen 1000 gold karat

GEN-1000 An Introduction to Handheld XRF Gold Tester

• Precious metals refer to the eight metal elements Au, Ag and Ru, Rh, Pd, Os, Ir, Pt in Pt family. Most of these metals have beautiful colors. They are normally unreactive as they have strong resistance to chemicals. They are usually made into jewelries or souvenirs and have wide industrial application. Genius 1000XRF can test grades and purity of the precious metals, identify grades of gemstones and conduct routine physical, compositional and structural analysis of jewelries. Genius 1000XRF tests precious metal fineness for gold, silver, platinum, palladium, etc. in accordance with National Standard GB 11887 Jewelry--Fineness of Precious Metal Alloys and Designation and GB/T 18043 Precious Metals Jewelries Content Non-destructive Test Method X-ray Fluorescence Spectrometry.


•


  GEN-1000 Core Application Field





  • Measure content of precious metals Au, Pt,Ag and other jewelries


  • Precious metals and jewelries processing industries


  • Jewelry shops and test institutes


  • Banks and electro plating industry






•








  GEN-1000 Performance Advantage of Handheld XRF Gold Tester





  • Perfect performance as desktop


  • Small power integral end-window miniature X-ray tube, large dimension beryllium window electric-cooling SDD detector(the best detector in the world), and miniature digital signal multi-channel processor, greatly reduce the testing time and test deviation, and improve the detection precision, which make it have the similar performance as the desktop.


  • Small & light, easy to carry


  • It is small, easy to carry, and convenient for wild work. It can conduct on-site and in-situ analysis at anytime anywhere.


  • Rapid &non-destructive detection


  • 1-2secs for rapid detection, more than 10secs for precise detection, whose results are similar to the results gotten in lab; no destruction to sample.


  • Fast detection


  • Instrument not only can operate fast detection with handheld type within 1-2 seconds, but also can operate longtime precise detection with desktop type, having the similar precision as the laboratory detection after 10 seconds.


  • Detection of light elements


  • Helium-charging system (optional) greatly expands measurable range (analyze elements from Mg), satisfying the requirements of customers for light elements detection.


  • Direct testing

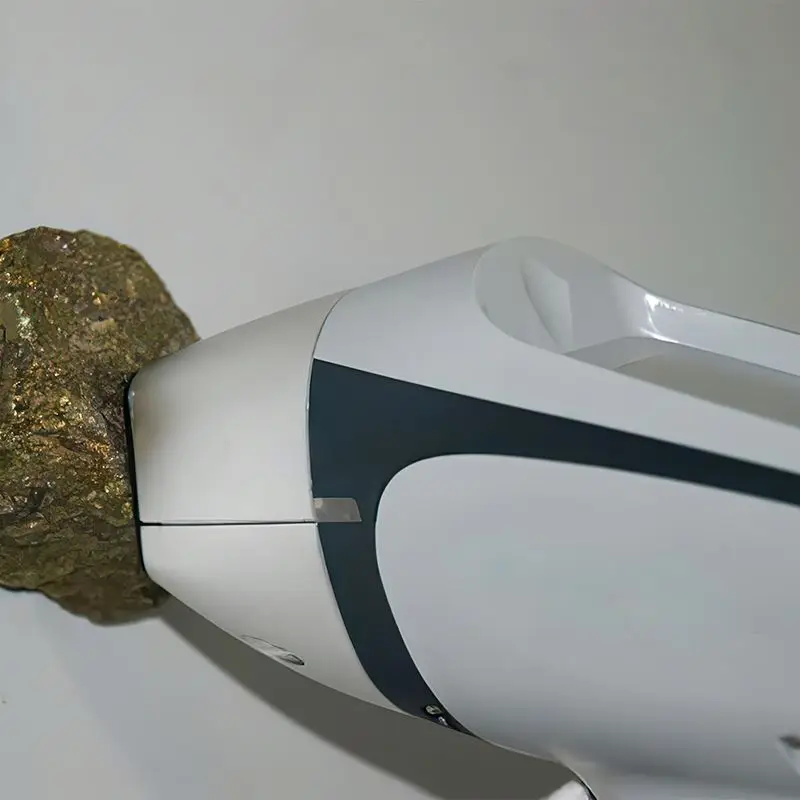

  • It can directly analyze on the surface of the analytes, without needing of preparing samples.


  • Simple deviation calibration


  • Built-in intensify calibration method ensures simple deviation calibration caused by different geometry shapes and inhomogeneous structure density.


  • HD camera for convenient observation


  • Observation of testing position at any time.

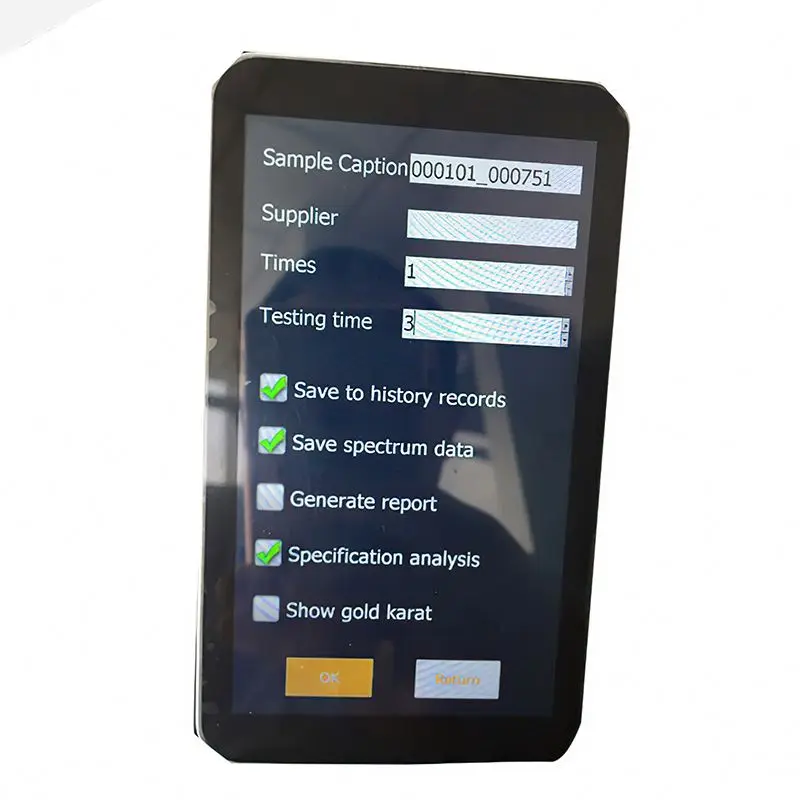

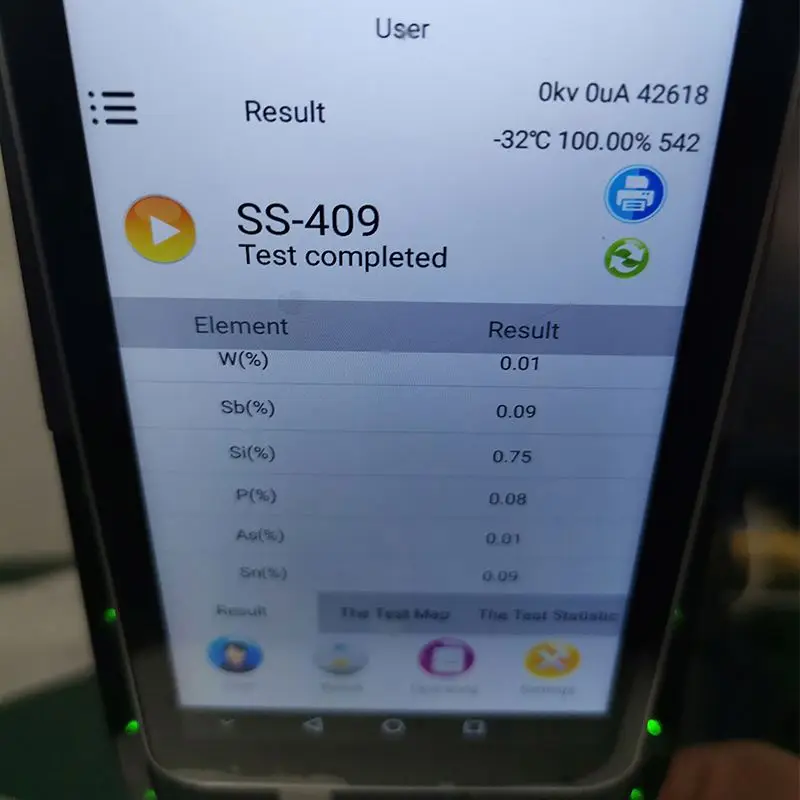

  • Professional software for easy operation


  • It is equipped with professional alloy analysis software. Combining FP with EC software, it is easy for operation and acquiring wider application fields.


  • Faster data transmission


  • Built-in system, HD touch screen (resolution 640*480), digital multi-channel technology, and SPI data transmission technology, effectively accelerate the data transmission and improve counting ability.


  • Multiple safety protection, caring for health


  • Automatically shut-down of X-ray light tube within 2 seconds with no sample in testing; the radiation level is far lower than the international safety standard; compliment away test safety cover.


  • Powerful battery & convenient charging


  • Compliment away two Lithium batteries (7800mAh), it can continuously work for 8 hours all together. It is convenient for charging because of wide voltage AC charger and Onboard charger.


  • Multiple protections


  • Waterproof and dustproof function provide the ability of working under high temperature and humidity. Its body is manufactured with high strength military material, which is moistureproof, shockproof, and pressure resistant.


  • An Introduction to Handheld XRF Gold Tester


  • Precious metals refer to the eight metal elements Au, Ag and Ru, Rh, Pd, Os, Ir, Pt in Pt family. Most of these metals have beautiful colors. They are normally unreactive as they have strong resistance to chemicals.






   GEN-1000 Technical parameters and indicators:





















































































































  NO.	Index	Description
  1	Measuring range	Mg to U
  2	Processor and RAM	CPU: 667MHz RAM:256M Maximum expanded storage: 32G Standard configuration: 2G , for storage of large amounts of data
  3	Analytical range:	ppm~99.99%
  4	Testing time	3-30 seconds
  5	GPS,WIFI:	Built-in GPS & WIFI system
  6	Battery	Chargeable lithium battery, with capacity of 7800mAh, continuously providing 8 working hours;Equip with wide voltage (110V-220V) general adapter
  7	Testing object	Solid, liquid, powder
  8	Detector:	25mm2, SDD
  9	Detector resolution	Minimum resolution:139eV
  10	Excitation source	Target: Ag High voltage: 5-40kv Tube current: 1-100 μA
  11	Collimator and filter	Collimator kinds: 2 (4.0 mm and 2.0mm diameter) Filter types: 6 Automatic switch: YES
  12	Video system	CMOS HD camera
  13	Screen	Semi-transmission & semi-reflection LCD touch screen, resolution 640*480
  14	Detection limit	Detection limit: ppm level
  15	Safety	Self-contained password manager mode
  16	Testing window	Φ12mm
  17	Gas charging system	Optional Helium charging system
  18	Operational environment	Humidity ≤90% Temperature: -20°C~+50°C
  19	Size	234×306×82mm(L×H×W)
  20	Weight	Net weight:1.6kg Battery: 0.3kg
