Metal Housing Night Vision IR 360 Under Water 5MP Ip Security CCTV Fisheye Panoramic Camera
- Category: >>>
- Supplier: Shenzhen Besview Security Limited
Share on (1600518266294):
Product Overview
Description
H.265/H.264 5MP IP/Network IR Mini Fisheye Lens Camera
Product Description

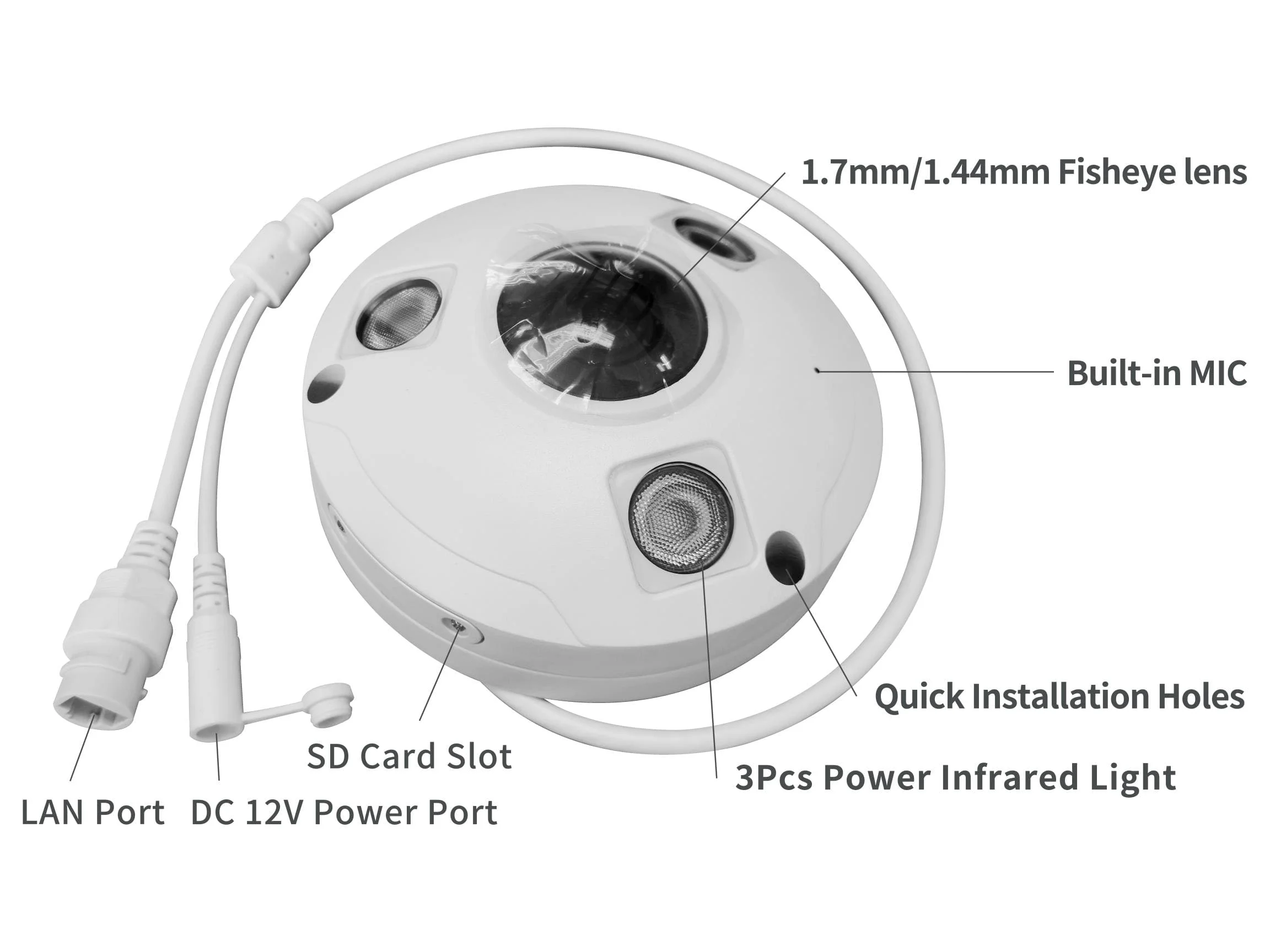

5MP Mini Fisheye Lens IP Camera Features:
- 5Mega Pixel Network Camera
- Water-proof: IP66
- 0.05 Lux ( BW Mode )
- Day & Night ( ICR )
- Supported PoE
- IR Distance : 3pcs Array IR Leds 15m IR
- 1.7mm Fisheye Lens
- Supported P2P ( QR Code Scan )
- 0.05 Lux ( BW Mode )
- Day & Night ( ICR )
- Supported PoE
- IR Distance : 3pcs Array IR Leds 15m IR
- 1.7mm Fisheye Lens
- Supported P2P ( QR Code Scan )
- 360° view angle

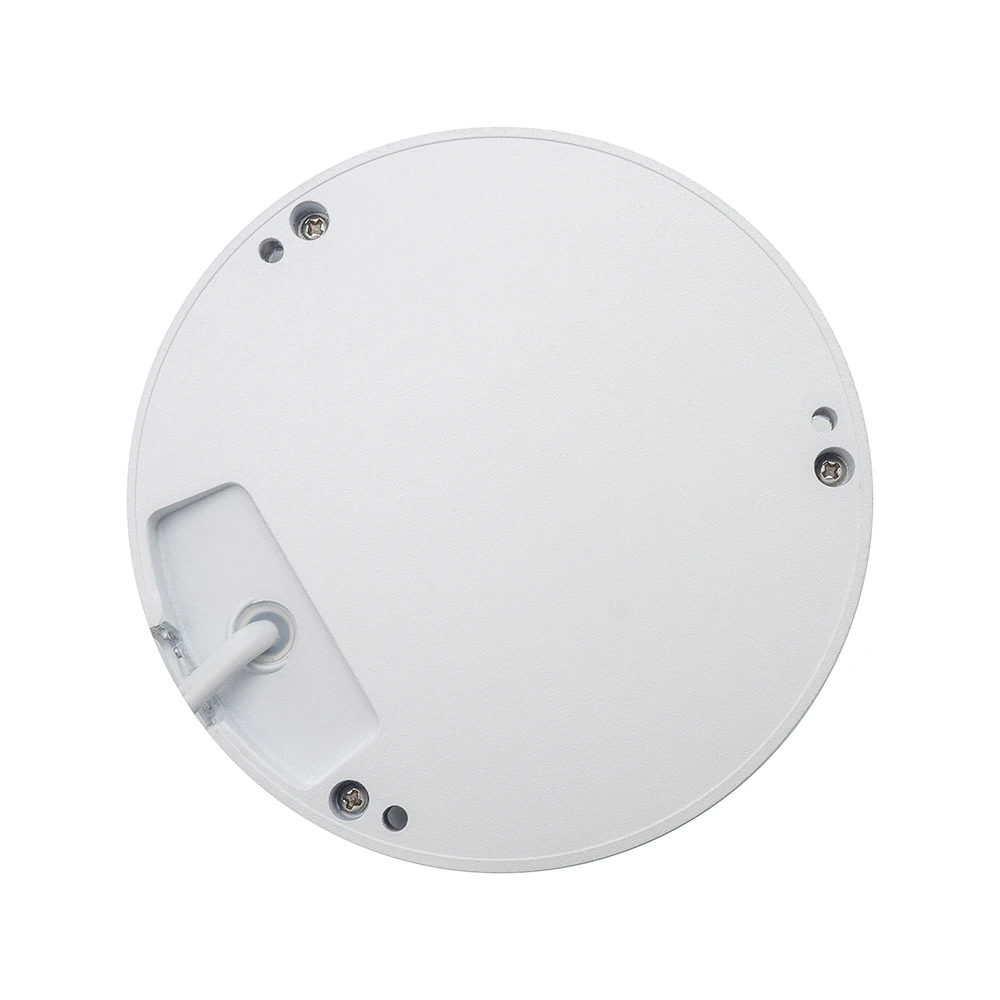

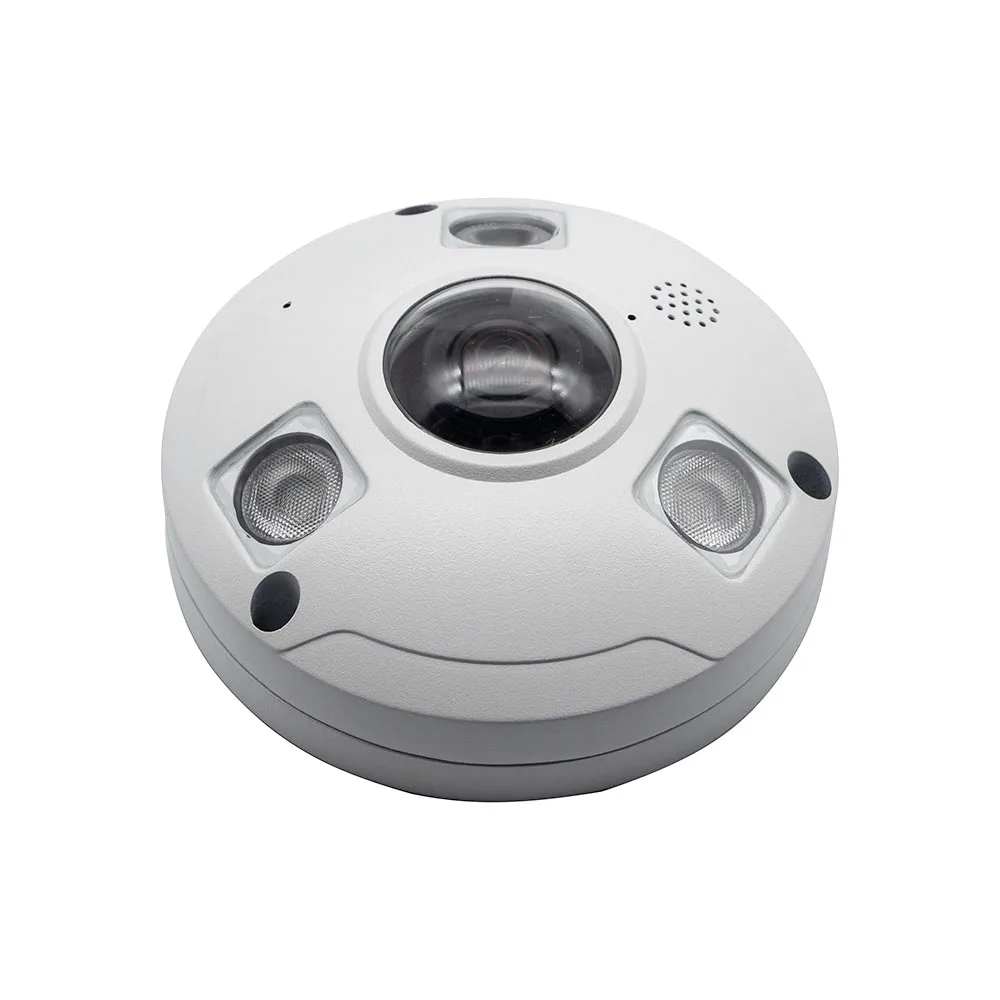

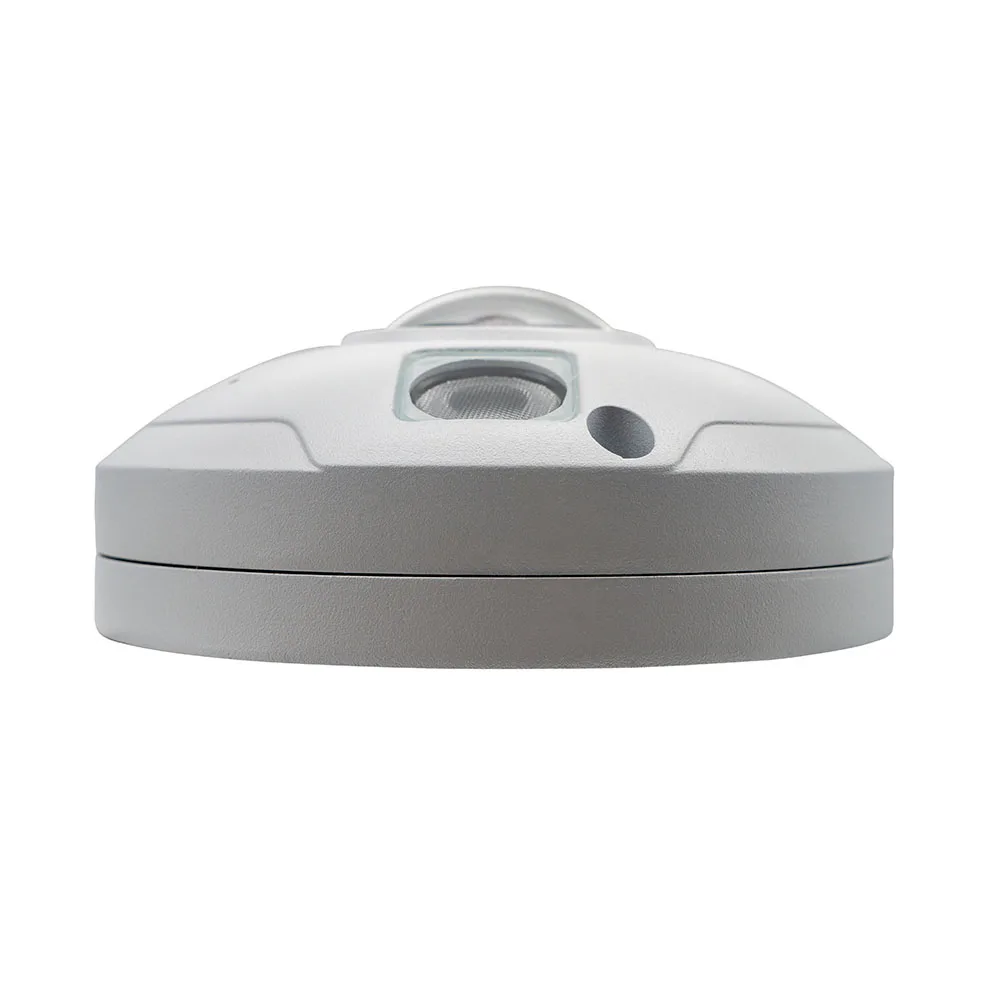

Metal Case:
Dimension Figure:
Related Products
Product Paramenters
Camera: | ||
Image Sensor: | 1/2.8'' Sony335 5MP CMOS | |
Signal System: | PAL/NTSC | |
Min. Illumination: | Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR | |
Shutter Time: | 1/25 s to 1/100,000 s | |
Lens: | 1.7mm/1.44mm Fisheye Lens | |
Image Enhancement: | BLC/3D DNR/D-WDR | |
Motion Detection | Support | |
Privacy Protection | Support(4 Self-customized Areas) | |
Wather-Proof: | IP66 | |
IR Range: | 3pcs Array IR Leds//15m IR | |
Compression Standard: | ||
Video Compression: | H.265/H.264/MJPEG | |
Video Bit Rate: | 32Kbps~12288Kbps(CBR/VBR Selectable) | |
Audio Compression: | G711U/G711A | |
Dual Streams: | Yes | |
Triple Streams: | No | |
Image: | ||
Max. Image Resolution: | 2592*1944@25fps(5MP) | |
Frame Rate: | 50/60Hz: Max.: 2592*1944@25fps | |
Sub Stream: | 50Hz/60Hz: Max. (800*488/704*576/640*360/352*288)@20fps | |
Third Stream(Mobile Stream): | / | |
Image Settings: | 3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App | |
Day/Night Switch: | Auto(Passive Mode)/Day/Night/Auto(Active Mode)/Time | |
Network: | ||
Network Protocols: | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Search(Support P6S IP camera, DVR, NVS etc.) | |
General Function: | Anti-Flicker, heartbeat, password protection, privacy mask, Watermark | |
System Compatibility: | ONVIF(2.4+ Media2)/P6S | |
On-line Viewing | Max. Support 6 Users Simultaneously | |
Interface: | ||
Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface | |
RCA Audio Interface: | RCA Audio input/output Interface (Optional) | |
DC Power Plug: | DC Power Femate Interface | |
General: | ||
Operating Conditions: | -10 °C ~ 60 °C | |
Humidity 95% or less (non-condensing) | ||
Power Supply: | 12 V DC ± 10%/PoE(Optional) | |
Power Consumption: | Max Power Comsumption Less than 8W (When the infrared lamps turn on) | |
Weight: | 0.65KG | |

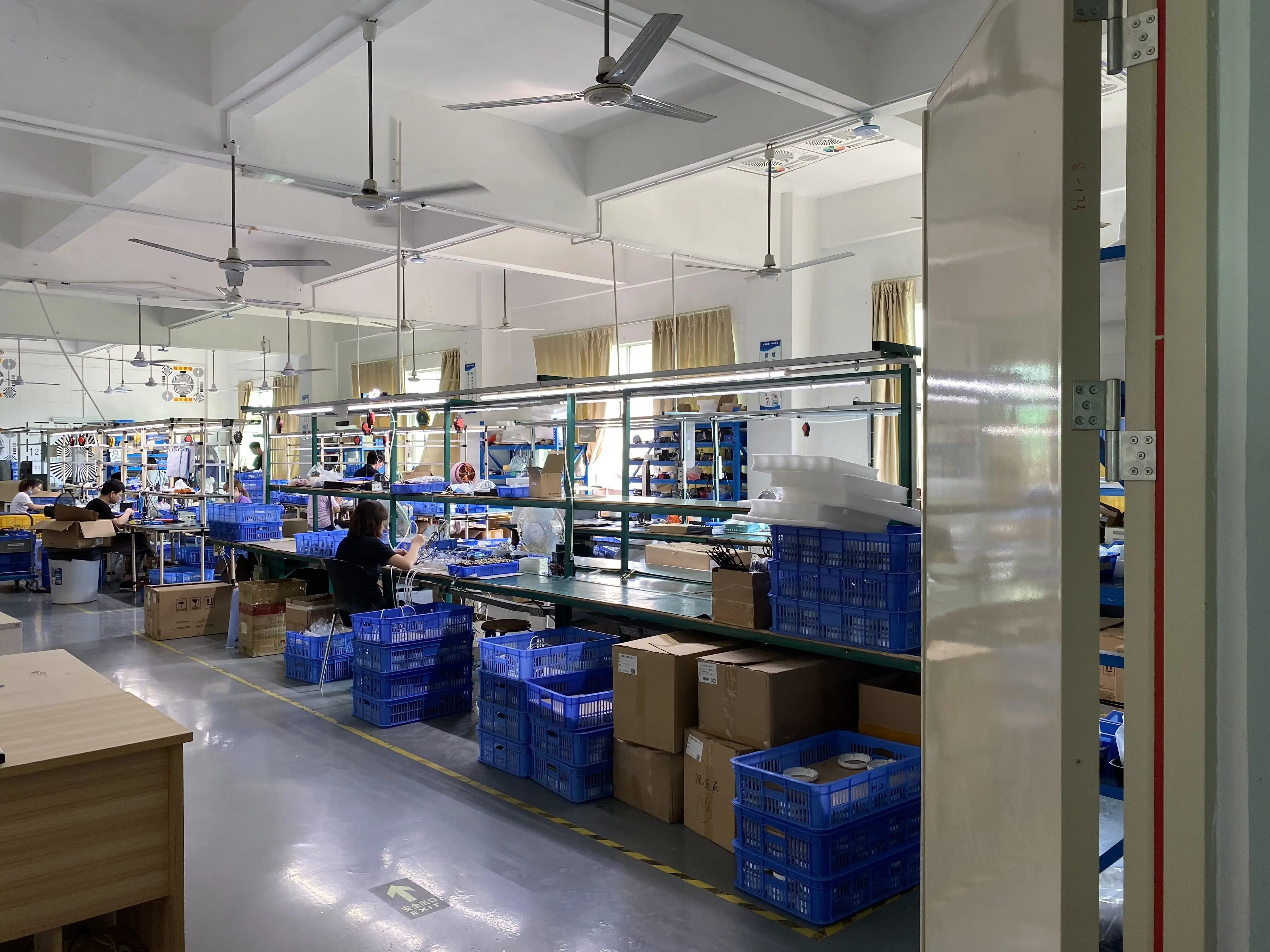

Our Company
Certifications
Payment&Shipping
1. 1-3 working days for samples; 2-3 weeks for bulk order;
2. If you have a shipping agent in China, we could ship the goods to your shipping agent;
3. For samples and small quantity order, we will suggest the low cost suitable shipping item for your order;
4. For large quantity order, we could help to arrange ocean shipment.
2. If you have a shipping agent in China, we could ship the goods to your shipping agent;
3. For samples and small quantity order, we will suggest the low cost suitable shipping item for your order;
4. For large quantity order, we could help to arrange ocean shipment.
Payment terms:
1. We accept 30% deposit before production and 70% balance before shipment;
2. If order value less than USD10000, we should get 100% payment before production.
1. We accept 30% deposit before production and 70% balance before shipment;
2. If order value less than USD10000, we should get 100% payment before production.
FAQ
Q: 1:Are you a factory or trading company?
A:We are a factory.
Q: 2:Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen City, Guangdong Province, China.You can fly to Shenzhen airport directly.All our clients,
from home or abroad, are warmly welcome to visit us!
Q: 3:What is the package of your products?
A: The package is neutral packing. We can also choose package as customers’requirement.
Q: 4. How long is your warranty?
A: Our cameras carry a 18-months guarantee.
Q: 5. MOQ?
A: Sample orders are welcome. The order quantity is depend on your needs.
Q: 6. How to order from you?
A: Please contact our sales online or send us email. After provide the model no. & quantity that you want to purchase, we will sendyou an invoice with total amount for confirmation.
A:We are a factory.
Q: 2:Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen City, Guangdong Province, China.You can fly to Shenzhen airport directly.All our clients,
from home or abroad, are warmly welcome to visit us!
Q: 3:What is the package of your products?
A: The package is neutral packing. We can also choose package as customers’requirement.
Q: 4. How long is your warranty?
A: Our cameras carry a 18-months guarantee.
Q: 5. MOQ?
A: Sample orders are welcome. The order quantity is depend on your needs.
Q: 6. How to order from you?
A: Please contact our sales online or send us email. After provide the model no. & quantity that you want to purchase, we will sendyou an invoice with total amount for confirmation.
Once receiving your payment, the order will be sent to the factory for production.
We will let you know when the goods are almost ready. After the goods are delivered, we will update the tracking number to you and help to follow it.
Q: 7. What kinds of customization services can you provide?
A: Logo/ Label/ Packing Box/ Manual/ Firmware
Q: 7. What kinds of customization services can you provide?
A: Logo/ Label/ Packing Box/ Manual/ Firmware
