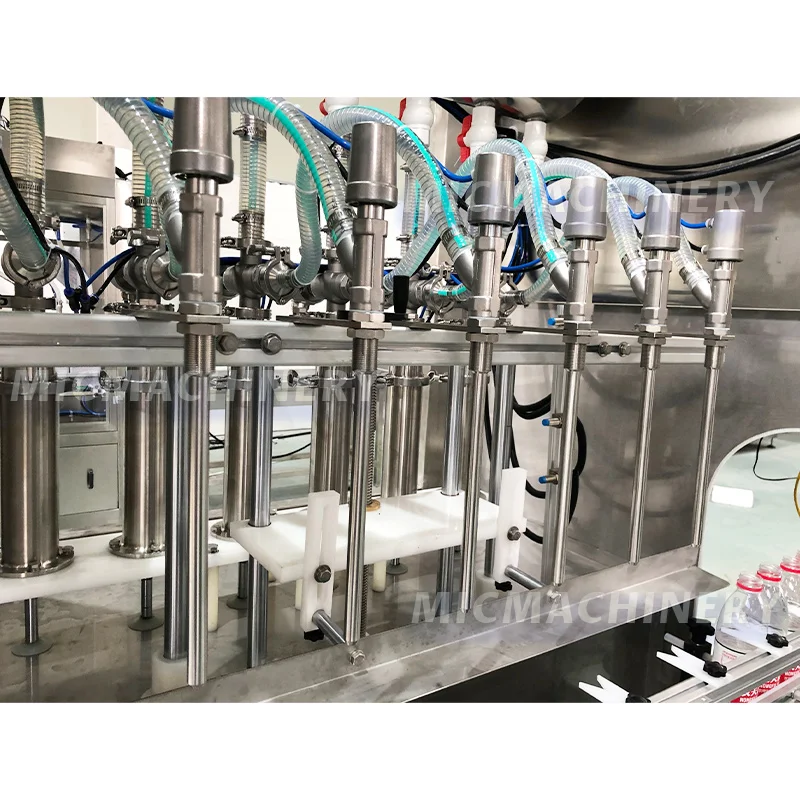

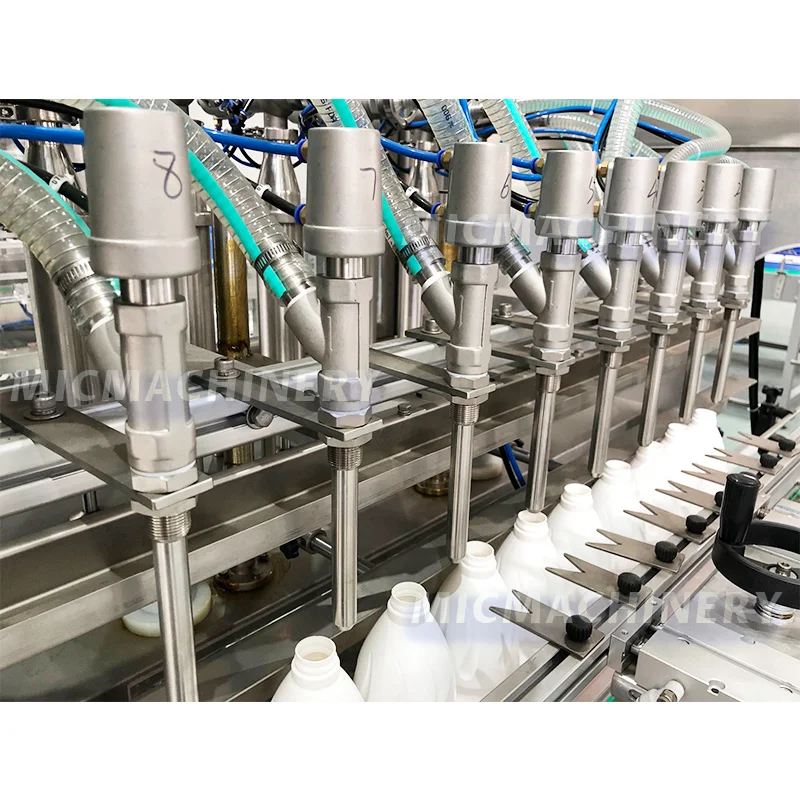

Automatic Soy Thick Bbq Fish Bottle Packing Tomato Mayonnaise Butter Chili Sauce Filling Machine
Automatic Soy Thick Bbq Fish Bottle Packing Tomato Mayonnaise Butter Chili Sauce Filling Machine
Automatic Soy Thick Bbq Fish Bottle Packing Tomato Mayonnaise Butter Chili Sauce Filling Machine
Automatic Soy Thick Bbq Fish Bottle Packing Tomato Mayonnaise Butter Chili Sauce Filling Machine
Automatic Soy Thick Bbq Fish Bottle Packing Tomato Mayonnaise Butter Chili Sauce Filling Machine
Automatic Soy Thick Bbq Fish Bottle Packing Tomato Mayonnaise Butter Chili Sauce Filling Machine
Automatic Soy Thick Bbq Fish Bottle Packing Tomato Mayonnaise Butter Chili Sauce Filling Machine

Automatic Soy Thick Bbq Fish Bottle Packing Tomato Mayonnaise Butter Chili Sauce Filling Machine

Share on (1600518275731):


Price:$10,000.00

Quantity:


Product Overview

Description







This machine adopt PLC touch screen Siemens control,It's adopt piston filling form. The machine material adopt USU304 and filling nozzle material tank and touches liquid part material is USU316 Teflon and POM.And it have proteation device that machine will stop and alarm when lack of materials . The machine is customized according to customer needs, different material viscosity can be set dive filling, vacuum filling, each filling head is independent can be controlled by touch screen filling alone.





Weight
700KG
Power
customized
Filling Volume
100-1000ml
Filling Error
≤3%
Suitable Filling Material
Oil,shampoo,detergent,sauce, honey, etc
Suitable Barrel Width
120-250mm
Dimension
2000*1300*2200mm
Power
1.5Kw
Filling nozzle
8 nozzles
Capacity
≤3000BPH
Suitable Barrel Length
180-330mm
Suitable Barrel Height
80-450mm

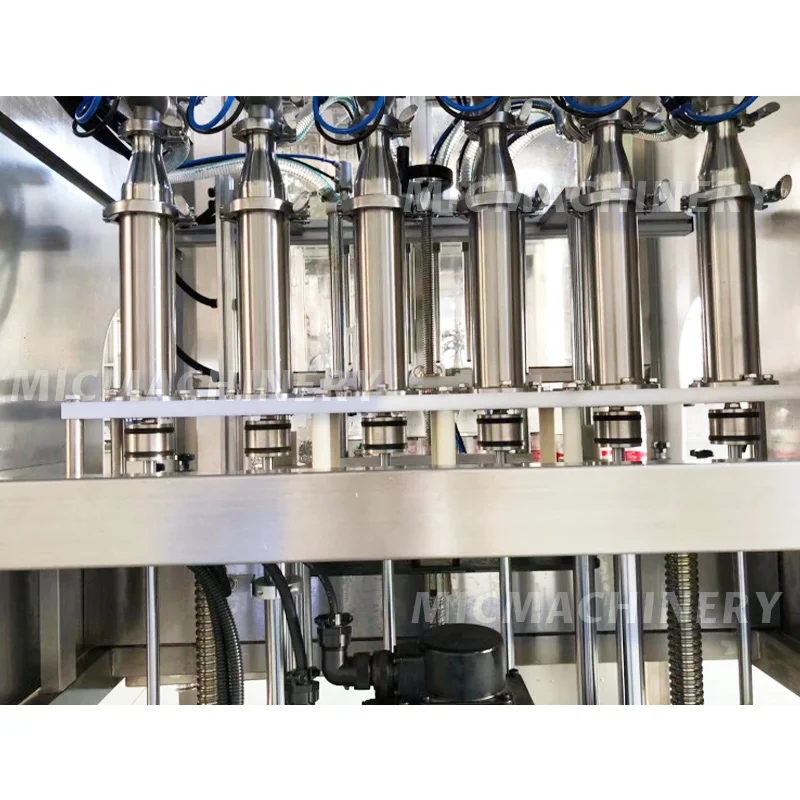

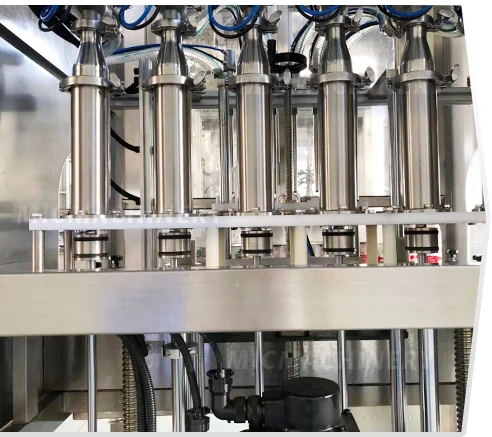

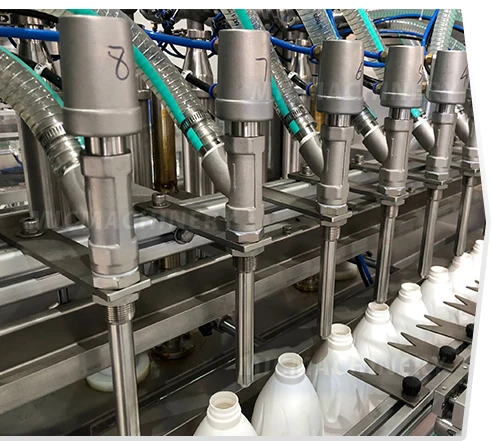

Filling Heads
Every filling head has anti-drop design. It promise do not waste the material. And diameter of filling head basis on the diameter of customer’s barrel’s mouth.

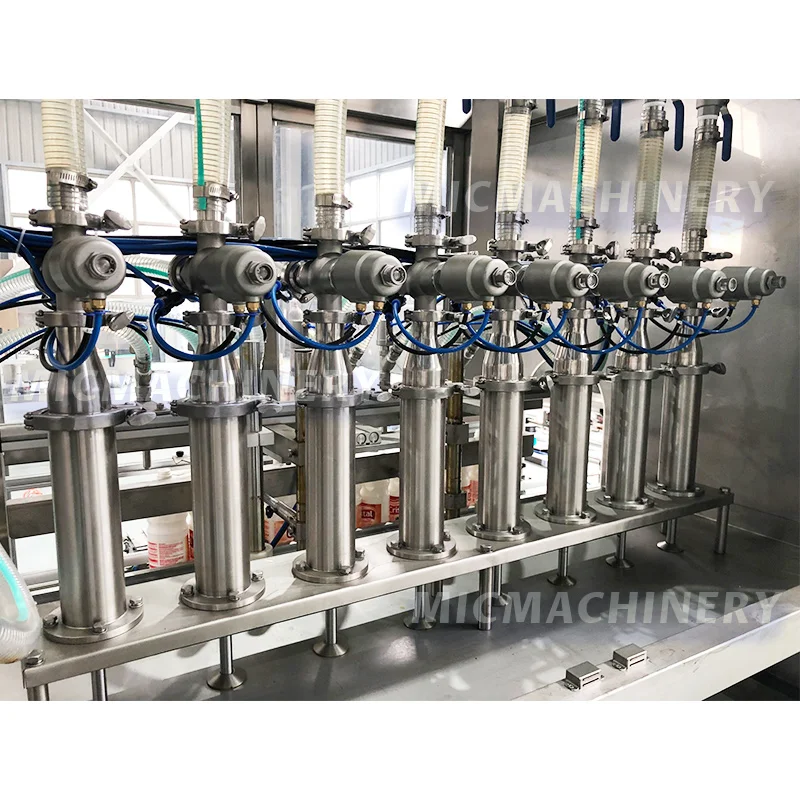

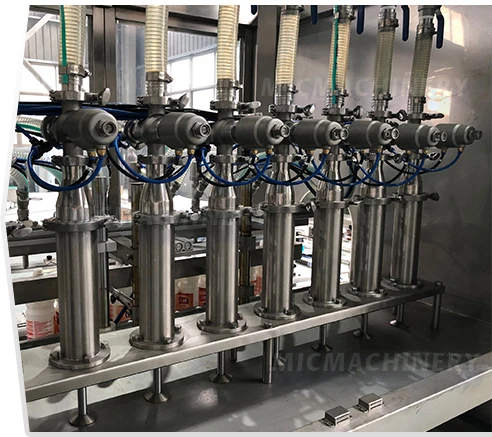

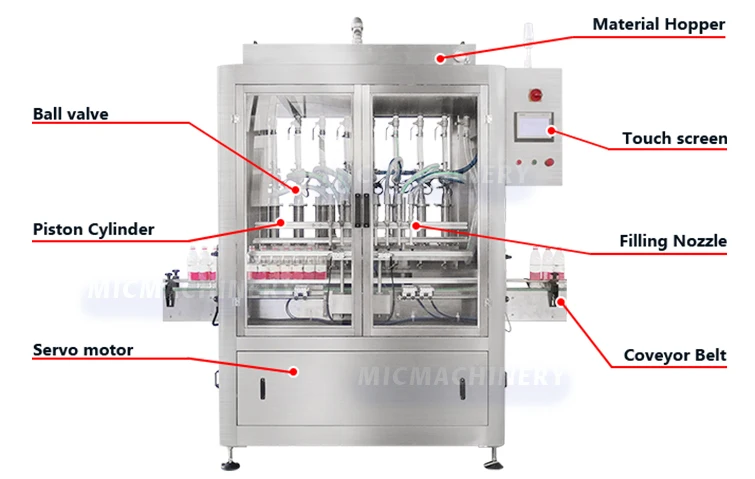

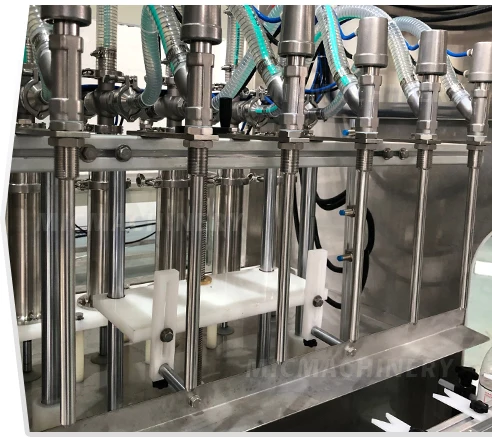

 Piston Cylinder
The piston is drawn back in its cylinder so that the product is sucked into the cylinder. A rotary valve then changes position so that the product is then pushed out of the nozzle instead of back into the hopper.

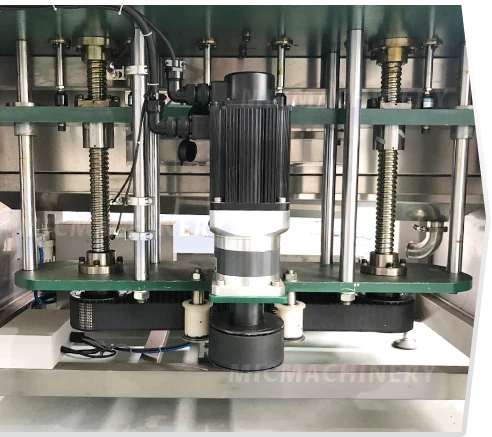

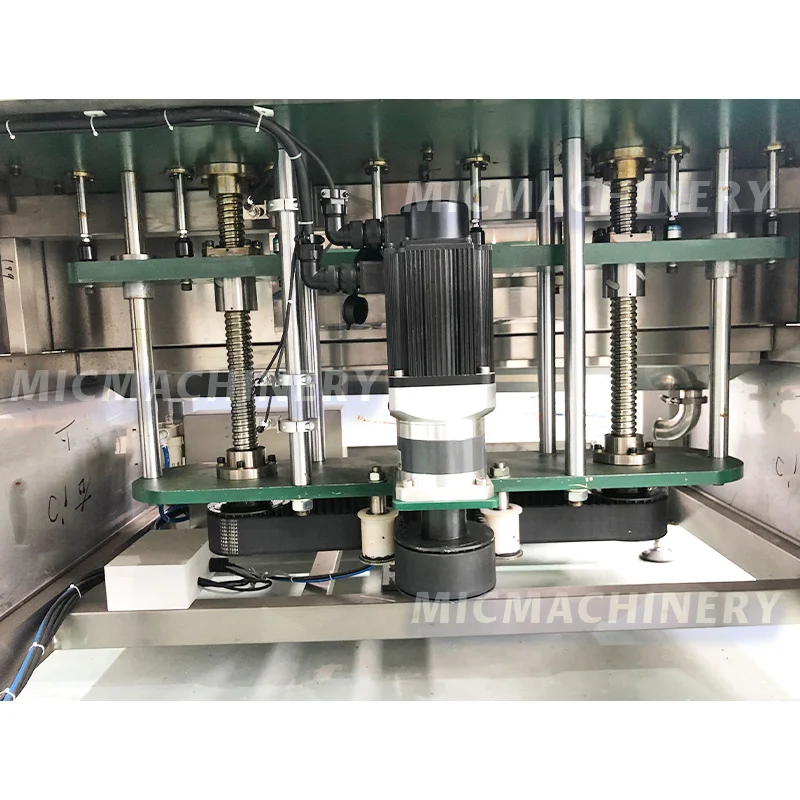

Servo Motor
Servo motor can control the filling more accurate and also it can realize the filling nozzle diving bottom-up filling. At the same time, the filling volume can be adjusted on the touch screen and has automatic fine turning function for each filling head.


Anti-dripping system
This function is for prevent material dripping on the bottle and conveyor. And there will be a flexible plate coming out and back to take the dripping materials


Take off piston cylinder cleaning
piston will take off from the cylinder automatically ,then it will clean the Remaining materials that remain in the material tank and cylinder
