Besview 5MP 5X Motor Lens Vandal Dome Surveillance PTZ CCTV Security System IP Network Camera
- Category: >>>
- Supplier: Shenzhen Besview Security Limited
Share on (1600518291091):
Product Overview
Description
H.265/H.264 5MP IP/Network IR Vandal Dome Camera
Product Description
5MP Vandal Dome IP Camera Features:
• Max. 2592*1944@20fps(50Hz/60Hz)
• Support RTSP(2.4+Media2 Version).Compatible with many third-party NVRs and CMS
• Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc.
• P2P Cloud service
• Free PC Client Software and Smartphone APP(P2P)
• Support Alarm Snapshot to Email and FTP
• Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT, D-WDR,Mirror, Image Flip etc. Functions
• Support RTSP(2.4+Media2 Version).Compatible with many third-party NVRs and CMS
• Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc.
• P2P Cloud service
• Free PC Client Software and Smartphone APP(P2P)
• Support Alarm Snapshot to Email and FTP
• Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT, D-WDR,Mirror, Image Flip etc. Functions

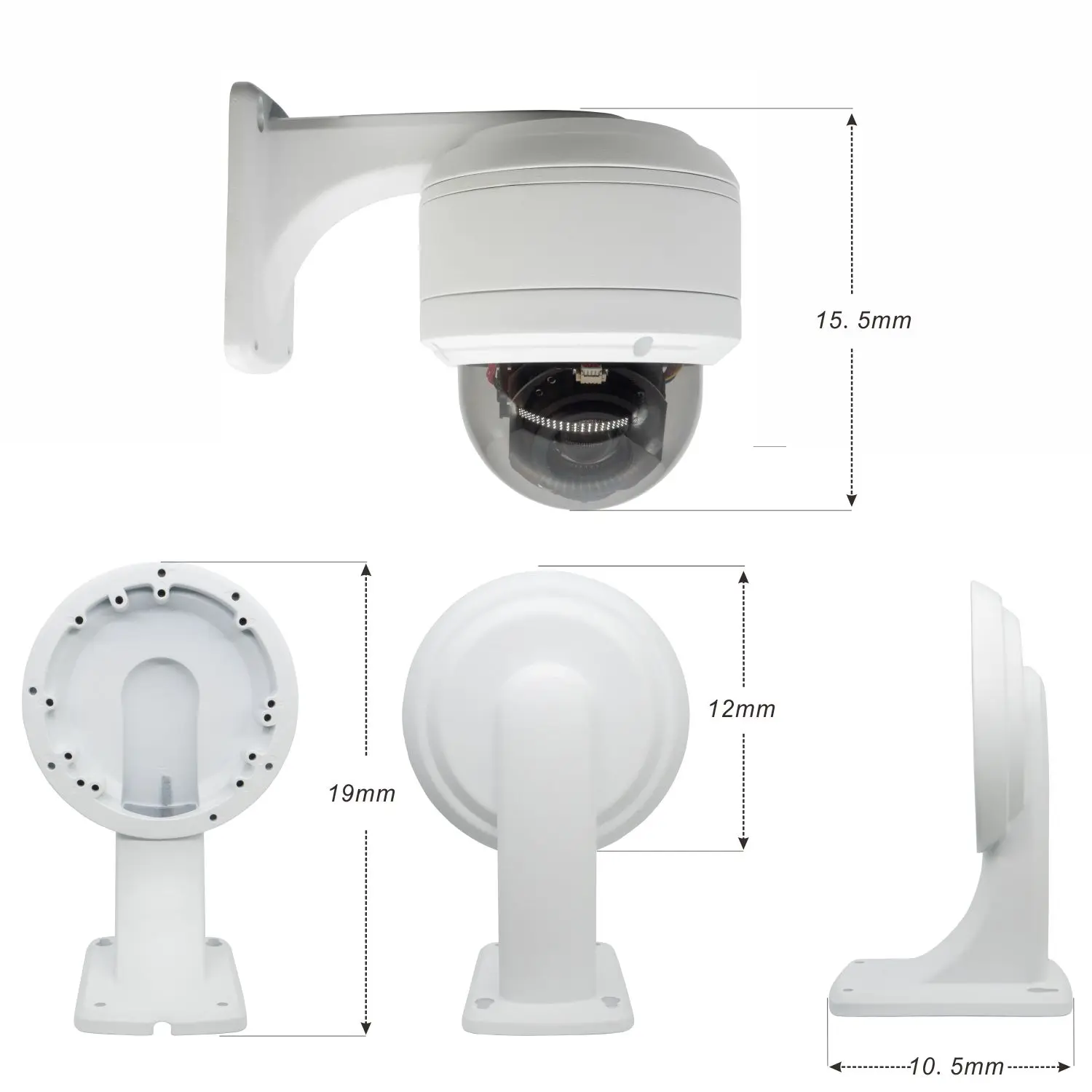

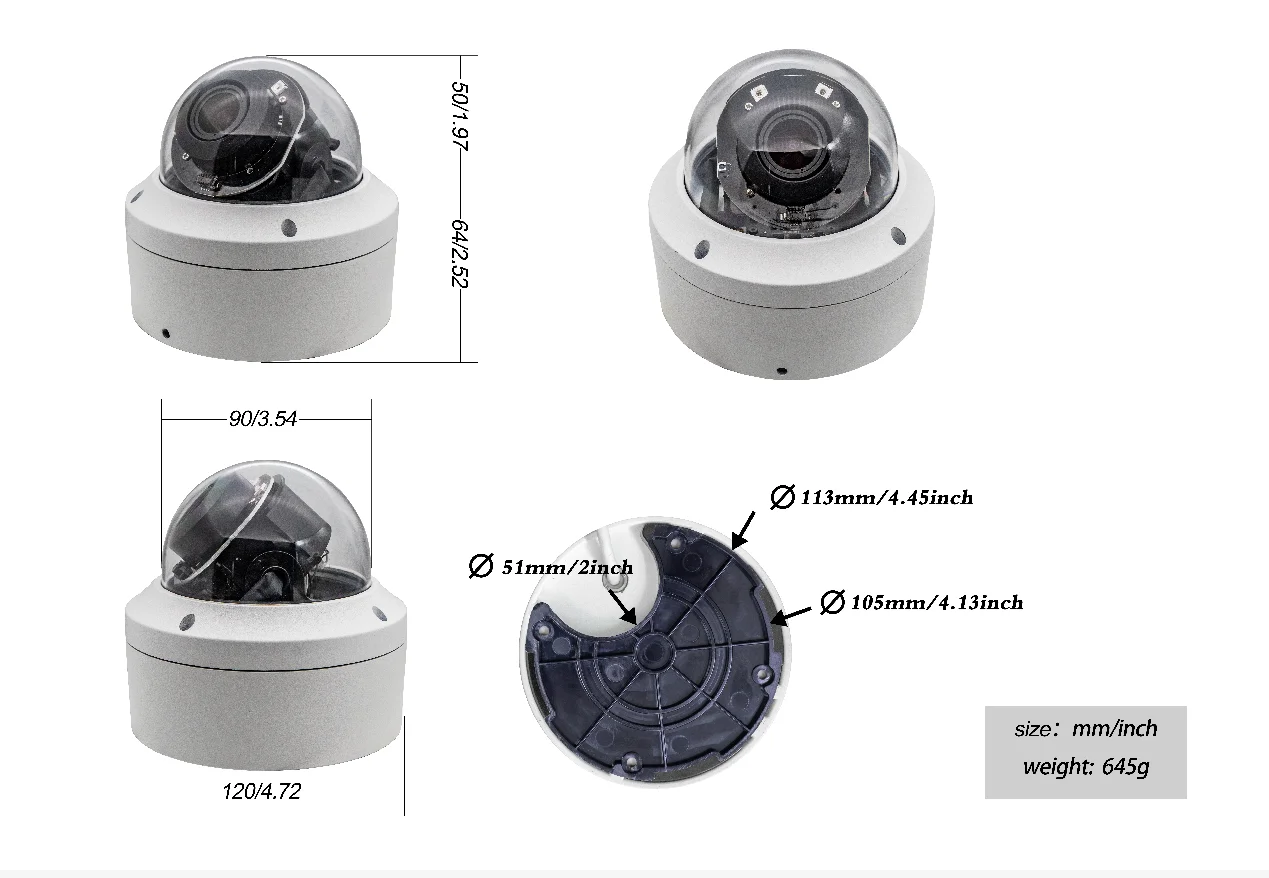

Dimension Figure:
(Quick installation Panel）
Related Products
Product Paramenters
Camera: | ||
Image Sensor: | Mstar337DE +1/2.8''Sony335 | |
Signal System: | PAL/NTSC | |
Min. Illumination: | Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR | |
Shutter Time: | 1/25 s to 1/100,000 s | |
Lens: | 5X 2.7-13.5mm Motor Lens | |
Day&Night: | IR cut filter with auto switch | |
Image Enhancement: | BLC/3D DNR/D-WDR | |
Motion Detection | Support | |
Privacy Protection | Support(4 Self-customized Areas) | |

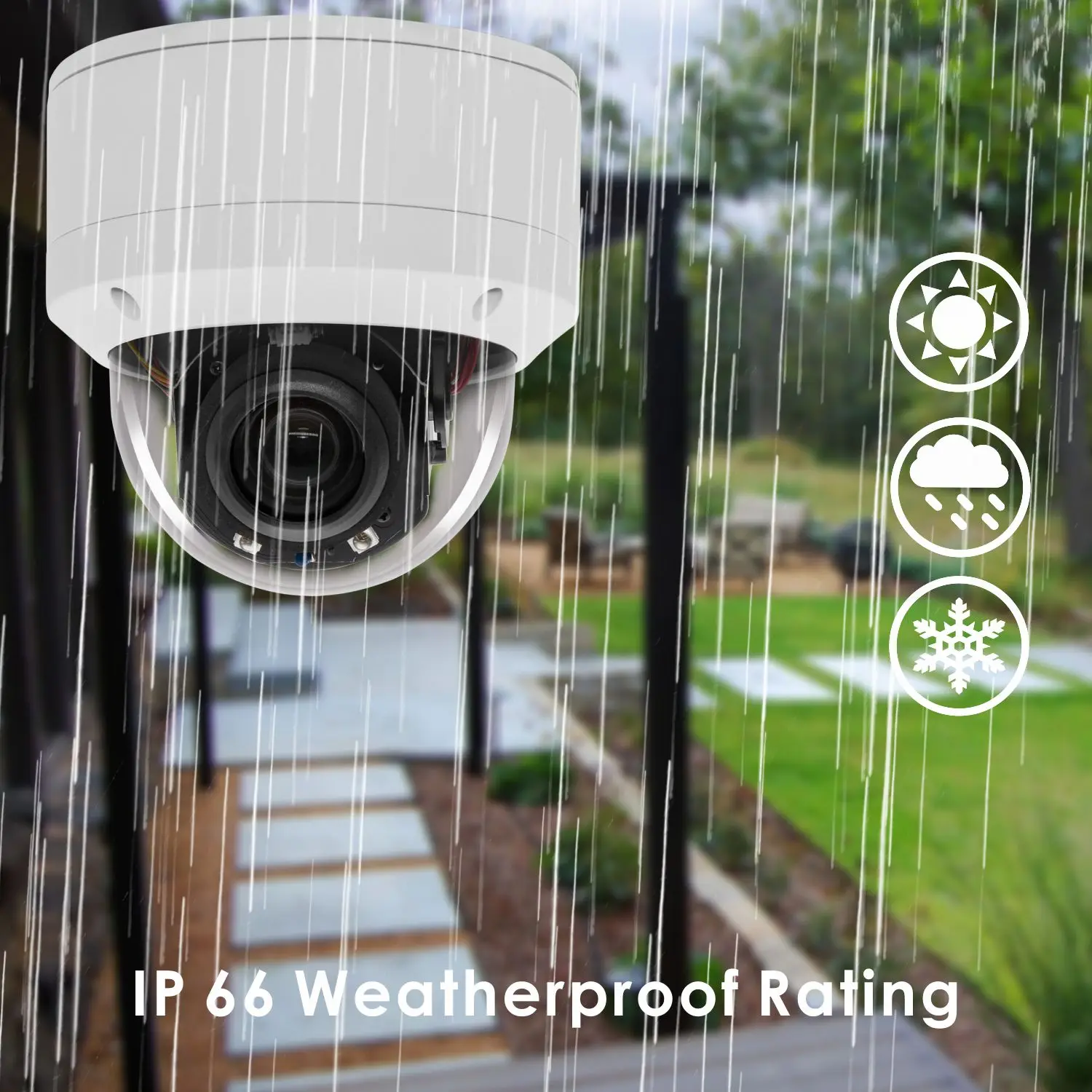

Wather-Proof: | IP66 | |
Illumination for Infrared Switching: | 0.5~3Lux | |
Infrared Wavelength: | 850nm | |
Mimimum Illumination: | 0 Lux(IR ON) | |
IR Range: | 4PCS LEDS//30m IR | |
Compression Standard: | ||
Video Compression: | H.265/H.264/MJPEG | |
Video Bit Rate: | 32Kbps~12288Kbps(CBR/VBR Selectable) | |
Audio Compression: | G711U/G711A | |
Dual Streams: | Yes | |
Triple Streams: | Yes | |
Image: | ||
Max. Image Resolution: | 2592*1944@20fps(5MP) | |
Frame Rate: | 50/60Hz: Max.: 2592*1944@20fps | |
Sub Stream: | 50Hz/60Hz: Max. (800*488/704*576/640*360/352*288)@20fps | |
Third Stream(Mobile Stream): | 50/60Hz: (1080P/720P/CIF)@5fps | |
Image Settings: | 3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App | |
Day/Night Switch: | Auto(Passive Mode)/Day/Night/Auto(Active Mode)/Time | |
Network: | ||
Network Protocols: | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Search(Support P6S IP camera, DVR, NVS etc.) | |
General Function: | Anti-Flicker, heartbeat, password protection, privacy mask, Watermark | |
System Compatibility: | ONVIF(2.4+ Media2)/P6S | |
On-line Viewing | Max. Support 6 Users Simultaneously | |
Interface: | ||
Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface | |
RCA Audio Interface: | RCA Audio input/output Interface (Optional) | |
DC Power Plug: | DC Power Femate Interface | |
General: | ||
Operating Conditions: | -10 °C ~ 60 °C | |
Humidity 95% or less (non-condensing) | ||
Power Supply: | 12 V DC ± 10%/PoE(Optional) | |
Power Consumption: | Max Power Comsumption Less than 8W (When the infrared lamps turn on) | |
Weight: | 0.45KG | |

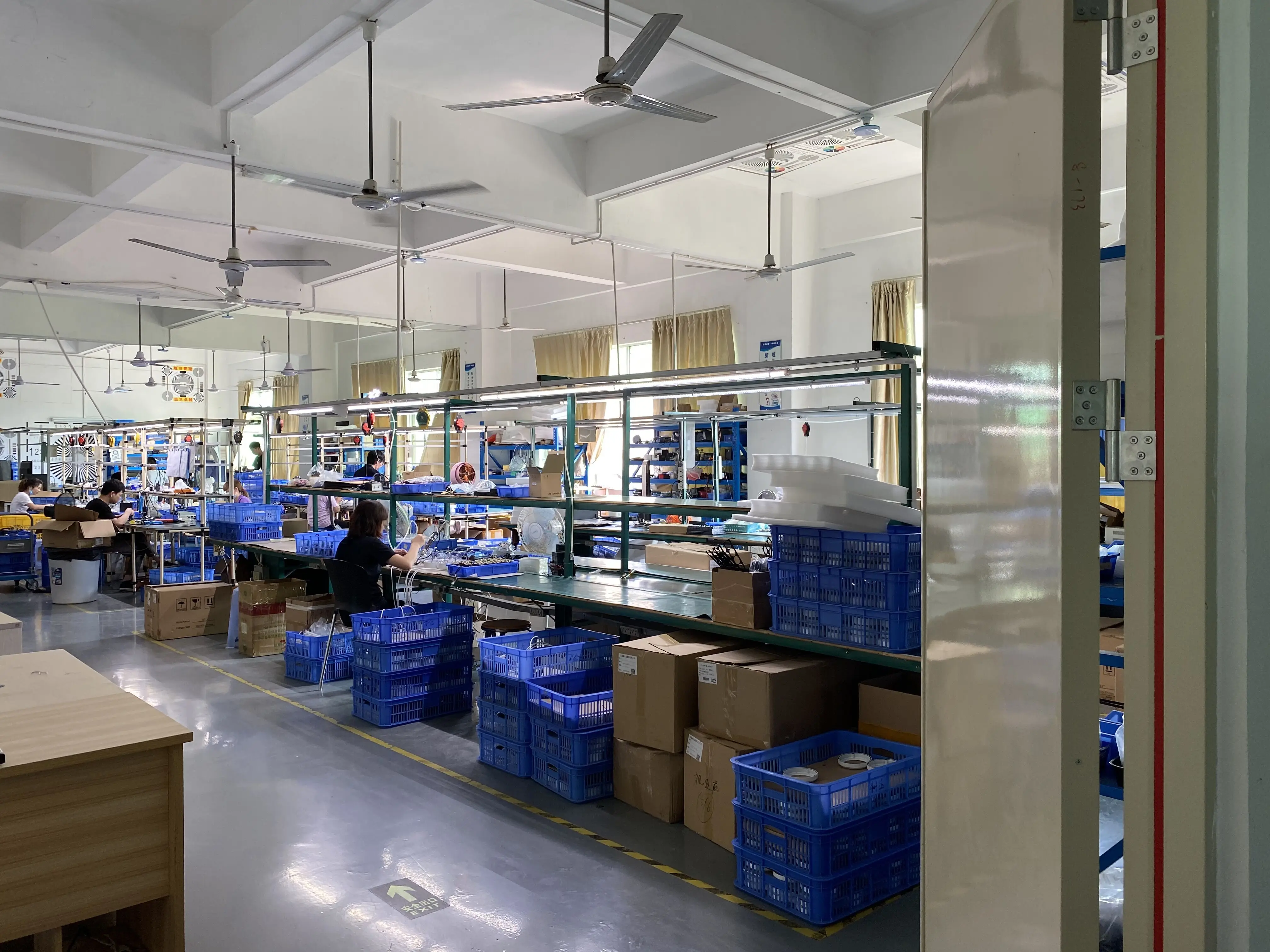

Our Company
Certifications
Payment&Shipping
1. 1-3 working days for samples; 2-3 weeks for bulk order;
2. If you have a shipping agent in China, we could ship the goods to your shipping agent;
3. For samples and small quantity order, we will suggest the low cost suitable shipping item for your order;
4. For large quantity order, we could help to arrange ocean shipment.
2. If you have a shipping agent in China, we could ship the goods to your shipping agent;
3. For samples and small quantity order, we will suggest the low cost suitable shipping item for your order;
4. For large quantity order, we could help to arrange ocean shipment.
Payment terms:
1. We accept 30% deposit before production and 70% balance before shipment;
2. If order value less than USD10000, we should get 100% payment before production.
1. We accept 30% deposit before production and 70% balance before shipment;
2. If order value less than USD10000, we should get 100% payment before production.
FAQ
Q: 1:Are you a factory or trading company?
A:We are a factory.
Q: 2:Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen City, Guangdong Province, China.You can fly to Shenzhen airport directly.All our clients,
from home or abroad, are warmly welcome to visit us!
Q: 3:What is the package of your products?
A: The package is neutral packing. We can also choose package as customers’requirement.
Q: 4. How long is your warranty?
A: Our cameras carry a 18-months guarantee.
Q: 5. MOQ?
A: Sample orders are welcome. The order quantity is depend on your needs.
Q: 6. How to order from you?
A: Please contact our sales online or send us email. After provide the model no. & quantity that you want to purchase, we will sendyou an invoice with total amount for confirmation.
A:We are a factory.
Q: 2:Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen City, Guangdong Province, China.You can fly to Shenzhen airport directly.All our clients,
from home or abroad, are warmly welcome to visit us!
Q: 3:What is the package of your products?
A: The package is neutral packing. We can also choose package as customers’requirement.
Q: 4. How long is your warranty?
A: Our cameras carry a 18-months guarantee.
Q: 5. MOQ?
A: Sample orders are welcome. The order quantity is depend on your needs.
Q: 6. How to order from you?
A: Please contact our sales online or send us email. After provide the model no. & quantity that you want to purchase, we will sendyou an invoice with total amount for confirmation.
Once receiving your payment, the order will be sent to the factory for production.
We will let you know when the goods are almost ready. After the goods are delivered, we will update the tracking number to you and help to follow it.
Q: 7. What kinds of customization services can you provide?
A: Logo/ Label/ Packing Box/ Manual/ Firmware
Q: 7. What kinds of customization services can you provide?
A: Logo/ Label/ Packing Box/ Manual/ Firmware
