2BE Series 220V Circulating Liquid Ring Vacuum Water Pump high quality
- Category: >>>
- Supplier: Shandong Vinson Machinery Co. Ltd.
Share on (1600518293451):
Product Overview
Description
Product Description
It is used to pump corrosive gases or corrosive liquids as working fluids. Widely used in paper, chemical, petrochemical, light industry, pharmaceutical, food, metallurgy, building materials, electrical appliances, coal washing, mineral processing,fertilizer and other industries.
Application scope and characteristics:
2BE3 series liquid ring vacuum pumps and compressors are designed and manufactured by our company integrating with the advanced technology abroad. They are not only can save energy, but also can work constantly for a long time.2BE3 series products are designed for pumping various gases. They are widely used in many industries, such as, the paper, mine, power station, chemical etc.
2BE3 series products can be driven with many different sets, such as, the V-belt, synchronal motor, gear box etc. In order to save space, more than two or at most four sets of the 2BE3 series pumps can be driven by one motor simultaneously.

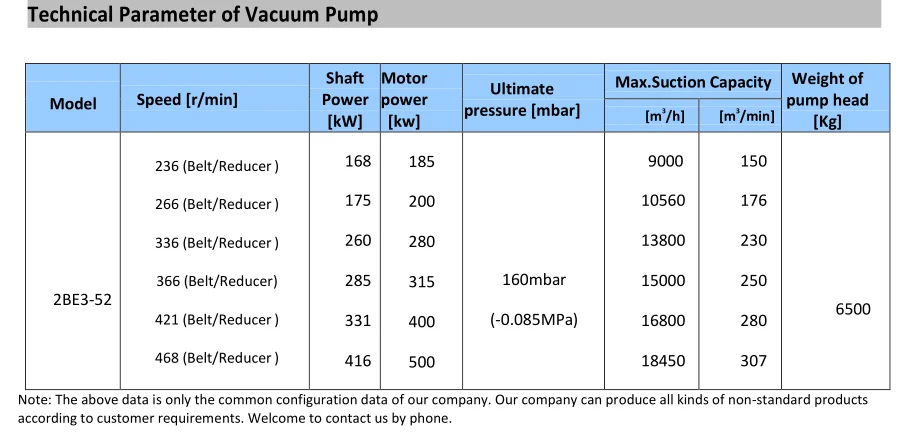

Specification
item | value |
Warranty | 12 months |
Customized support | OEM, ODM |
Brand Name | Vinson |
Place of Origin | Vinson |
Application | Other, Automotive Industry, Developing World Water Solutions, Drinking water treatment, Food and Beverage Industry, Industrial Boilers, Irrigation and Agriculture, Mining industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions |
Power Source | Electric |
Pressure | Low Pressure |
Structure | Vacuum Pump |
Voltage | Customized |
Power | 185-315KW |
Power | Electric |
Warranty | 1 year except wearing parts |
Pump speed(r.p.m) | 236-336rpm |
Certificate | ISO9001:2008 |
eight(kg) | 9730-12615KG |
Voltage | 220V/380V/400V/415V/460V |
Color | Requirements |
Name | 2BE3 520 vacuum pump |
Standard or Nonstandard | Standanrd |
2BE type water ring vacuum pump USES and features
This series of pump is single stage single function structure form, has the features of simple structure,
convenient maintenance, reliable operation, high efficiency and energy saving advantages.
Features: 2BE series water ring vacuum pump is used to pump or compress air or other noncorrosive gas not dissoluble in water and not containing solid particles. Application: It is widely used in the industries of
machinery, petroleum, chemical, pharmaceuticals, ceramics, sugar refining, dyeing and printing, metallurgy
and electronics.
convenient maintenance, reliable operation, high efficiency and energy saving advantages.
Features: 2BE series water ring vacuum pump is used to pump or compress air or other noncorrosive gas not dissoluble in water and not containing solid particles. Application: It is widely used in the industries of
machinery, petroleum, chemical, pharmaceuticals, ceramics, sugar refining, dyeing and printing, metallurgy
and electronics.
All our pumps are interchangeable with Siemens both in dimension and performance. Most our client are using our pump to replace their existed Siemens and Nash pump. Some clients are also buying our spare parts for original Siemens pump repair.
Packing & Delivery
Standard export packaging forLiquid ring vacuum pump wholesale 11KW 15kw water ring vacuum pump 2BE vacuum pump
Company Profile
Shandong Vinson Machinery Co., LTD is a green technology design, product development, sales and services for the integration of science and technology, environmental protection equipment manufacturing company;Companies to provide solid liquid separation technology equipment, services, successively developed DU series of vacuum belt hydroextractor, DI series belt vacuum filter, HVPF series full automatic vertical plate and frame filter press, TC series ceramic vacuum filter and other solid-liquid separation and a number of solid-liquid separation of proprietary technology.Mainly engaged in environmental protection, mining, chemical industry, metallurgy of solid-liquid separation in the field of engineering design, manufacture, installation, debugging and technical advisory services.
Company actively introduces foreign advanced technology, with the domestic and foreign many universities and research institutes have close relations of cooperation.Good cooperation greatly promote the company's product development level;R&d strength and sufficient technical reserve, which can meet the various needs of customers, make the products remain the foreign advanced technology;Cooperation with British sunny group, in the field of wet FGD gypsum dewatering equipment - the popularization and application of the advanced technology of vacuum belt hydroextractor was a great success, has widely applied in nearly more than 160 power plant FGD projects at home and abroad.
Company actively introduces foreign advanced technology, with the domestic and foreign many universities and research institutes have close relations of cooperation.Good cooperation greatly promote the company's product development level;R&d strength and sufficient technical reserve, which can meet the various needs of customers, make the products remain the foreign advanced technology;Cooperation with British sunny group, in the field of wet FGD gypsum dewatering equipment - the popularization and application of the advanced technology of vacuum belt hydroextractor was a great success, has widely applied in nearly more than 160 power plant FGD projects at home and abroad.
FAQ
1. who are we?
We are based in Shandong, China, start from 2013,sell to Mid East(20.00%),Eastern Asia(15.00%),Domestic Market(10.00%),North America(10.00%),South Asia(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(5.00%),Northern Europe(5.00%),Southern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Environmental Protection Equipment,Mining Machinery Equipment,Fluid Handling Equipment,Mechanical Equipment,Mechanical Transmission Equipment
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Russian
We are based in Shandong, China, start from 2013,sell to Mid East(20.00%),Eastern Asia(15.00%),Domestic Market(10.00%),North America(10.00%),South Asia(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(5.00%),Northern Europe(5.00%),Southern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Environmental Protection Equipment,Mining Machinery Equipment,Fluid Handling Equipment,Mechanical Equipment,Mechanical Transmission Equipment
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Russian
