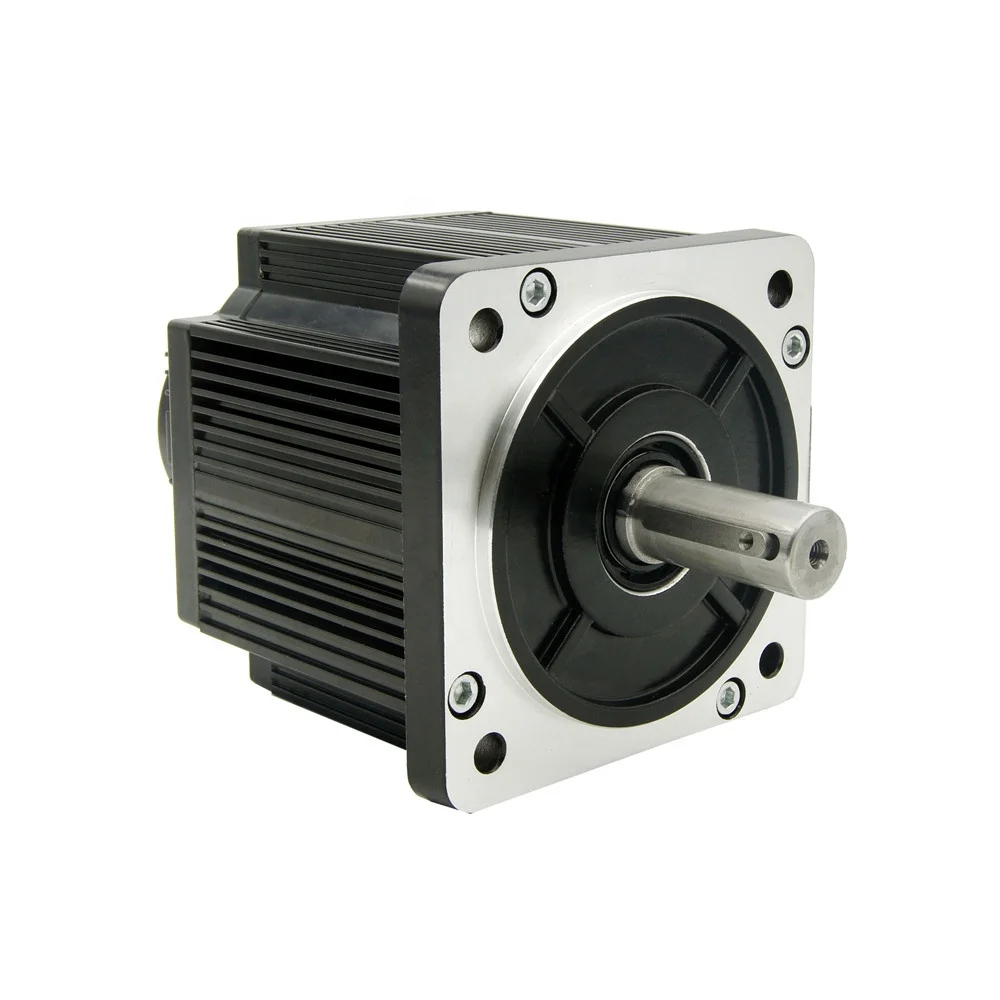

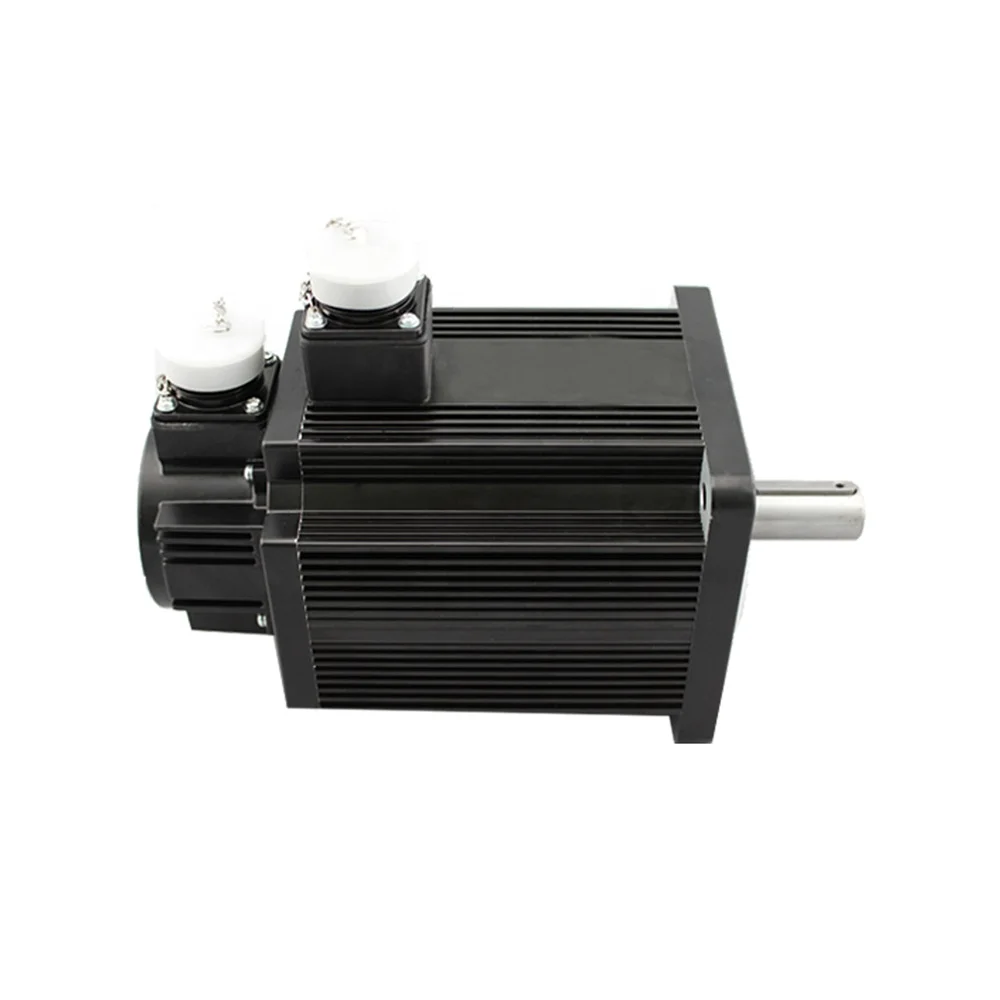

130mm 2.3KW AC Servo Motor 15nm 220V 130ST M15015 3phase CNC Servo Motor Ie 3 50/60hz Three phase Drip proof 2500ppr

Product Overview

Description



If you need 3D model of the motor, please give us your email address and we will email you it.







Motor model	Rated power(KW)	Rated voltage(V)	Rated torque(N.m)	Rated speed(RPM)	Length (L:mm)	Shaft diameter(D:mm)
130ST-M04025	1.0	220	4	2500	166	22
130ST-M05025	1.3	220	5	2500	171	22
130ST-M06025	1.5	220	6	2500	179	22
130ST-M07725	2.0	220	7.7	2500	192	22
130ST-M10010	1.0	220	10	1000	213	22
130ST-M10015	1.5	220	10	1500	213	22
130ST-M10025	2.6	220	10	2500	209	22
130ST-M15015	2.3	220	15	1500	241	22
130ST-M15025	3.8	220	15	2500	231	22





The motor can be assembled with brake, gearbox and absolute encoder as required.







Installation Dimension: unit=mm









 Specifications







Precautions :

1. When installing/removing parts to the end of the motor shaft, do not hit the shaft hard to prevent the encoder at the other end of the shaft from being knocked bad.

2. Striving to keep the shaft seat from vibration to prevent bearing from being damaged.
