Hydraulic cylinder RACH 1002 100T highly cost effective single acting aluminum center hole hydraulic ram
- Category: >>>
- Supplier: Jiangsu Feiyao Machinery Manufacturing Co. Ltd.
Share on (1600518300396):
Product Overview
Description

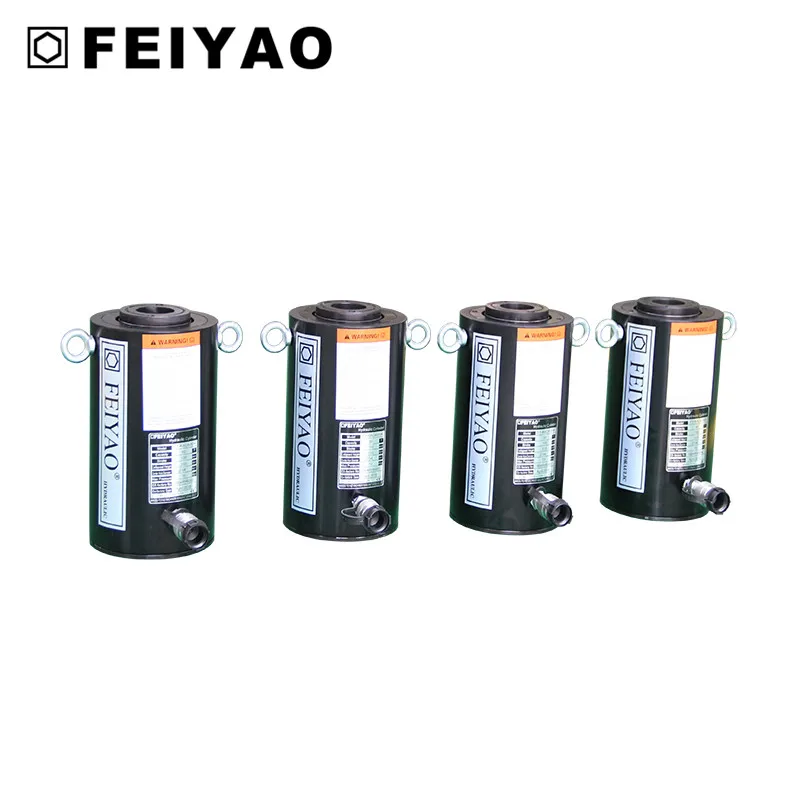

Product Display
Hydraulic cylinder RACH-302 highly cost effective single acting aluminum hollow plunger hydraulic jack prices for sale

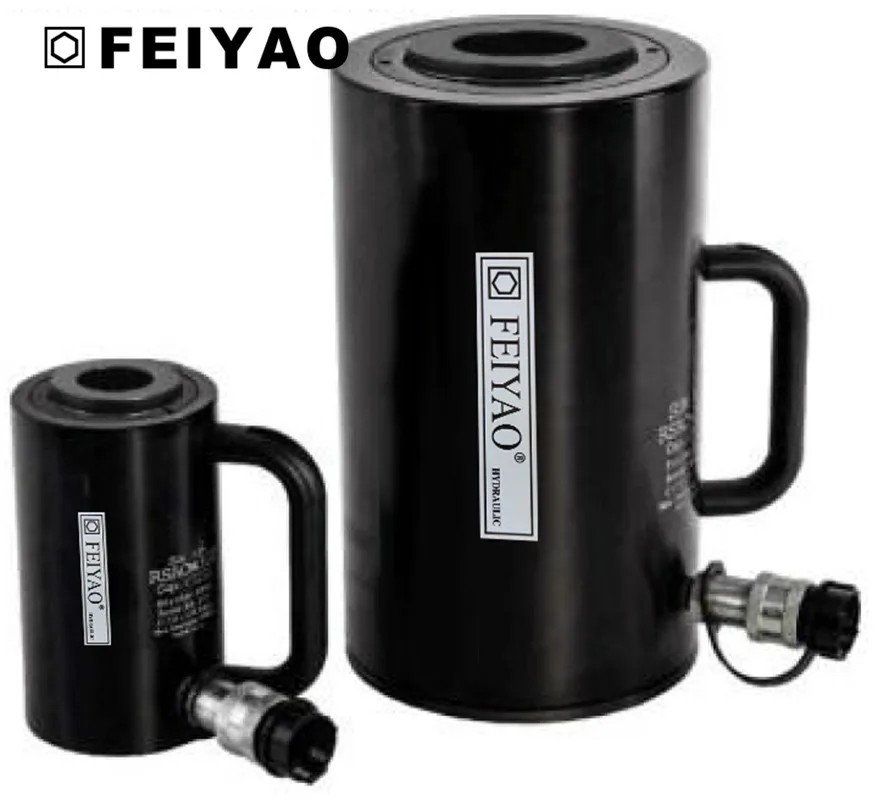

Product Display
Features:
1.Single acting aluminumhollow hydraulic jack is the preferred light
cylinder for tensioning and testing.
2.Hollow plunger design allows for both pull and push forces.
3.Composite bearings increase cylinder life and prevent side-load .
4.Hard coat finish on all surfaces resists damage and extending cylinder life.
5.All models are equipped with aluminium alloy handles.
cylinder for tensioning and testing.
2.Hollow plunger design allows for both pull and push forces.
3.Composite bearings increase cylinder life and prevent side-load .
4.Hard coat finish on all surfaces resists damage and extending cylinder life.
5.All models are equipped with aluminium alloy handles.
6.Hollow suspension vacuum tube increases seal life.
7.Steel base plate and saddle for protection against load-induced damage.
7.Steel base plate and saddle for protection against load-induced damage.
8.Integral stop ring prevents plunger over-travel and is capable ofwithstanding the full cylinder capacity.
9.High-strength return spring for rapid cylinder retraction.
9.High-strength return spring for rapid cylinder retraction.
10.3/8 "- 18NPT coupler and dust cap included on all models.
Product Parameter
| Model | Capacity (T) | Max.Working Pressure (Mpa) | Closed Height A (mm) | Stroke (mm) | Oil Capacity (cm³) | Outside Diameter D (mm) | Bore Diameter E (mm) | Weight (kg) |
| FY-RACH-202 | 20 | 70 | 188 | 50 | 164 | 100 | 27 | 5.2 |
| FY-RACH-204 | 251 | 100 | 327 | 6.1 | ||||
| FY-RACH-206 | 315 | 150 | 491 | 7.1 | ||||
| FY-RACH-208 | 378 | 200 | 654 | 8 | ||||
| FY-RACH-2010 | 442 | 250 | 818 | 9 | ||||
| FY-RACH-302 | 30 | 70 | 208 | 50 | 256 | 130 | 34 | 8 |
| FY-RACH-304 | 267 | 100 | 511 | 9.5 | ||||
| FY-RACH-306 | 333 | 150 | 766 | 11.2 | ||||
| FY-RACH-308 | 395 | 200 | 1022 | 12.9 | ||||
| FY-RACH-3010 | 458 | 250 | 1277 | 14.5 | ||||
| FY-RACH-602 | 60 | 70 | 251 | 50 | 423 | 180 | 54 | 16.2 |
| FY-RACH-604 | 315 | 100 | 847 | 19.5 | ||||
| FY-RACH-606 | 380 | 150 | 1270 | 22.8 | ||||
| FY-RACH-608 | 445 | 200 | 1694 | 26 | ||||
| FY-RACH-6010 | 510 | 250 | 2117 | 29.6 | ||||
| FY-RACH-1002 | 100 | 70 | 258 | 50 | 823 | 250 | 79 | 33.8 |
| FY-RACH-1004 | 325 | 100 | 1646 | 39.8 | ||||
| FY-RACH-1006 | 391 | 150 | 2487 | 46.2 | ||||
| FY-RACH-1008 | 459 | 200 | 3291 | 52.2 | ||||
| FY-RACH-10010 | 527 | 250 | 4114 | 58.8 | ||||
| FY-RACH-1502 | 150 | 70 | 280 | 50 | 1129 | 275 | 79 | 48.9 |
| FY-RACH-1504 | 360 | 100 | 2258 | 55.7 | ||||
| FY-RACH-1506 | 430 | 150 | 3387 | 63 | ||||
| FY-RACH-1508 | 500 | 200 | 4517 | 70.1 | ||||
| FY-RACH-15010 | 570 | 250 | 5646 | 77.2 |
Company Introduction
Company Introduction
Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.
Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe “service” is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE; 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.
Factory Show
Factory Show
Quality Control
Quality Control
Technical Support
Successful Project
Packaging & Shipping
Packaging & Shipping
 |  |
FAQ
Q1: How to contact sales?
A1: Please email export5 at js-feiyao dot com or call: +86-132-7079-5135 for pre-sales.
Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it only takes 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.
