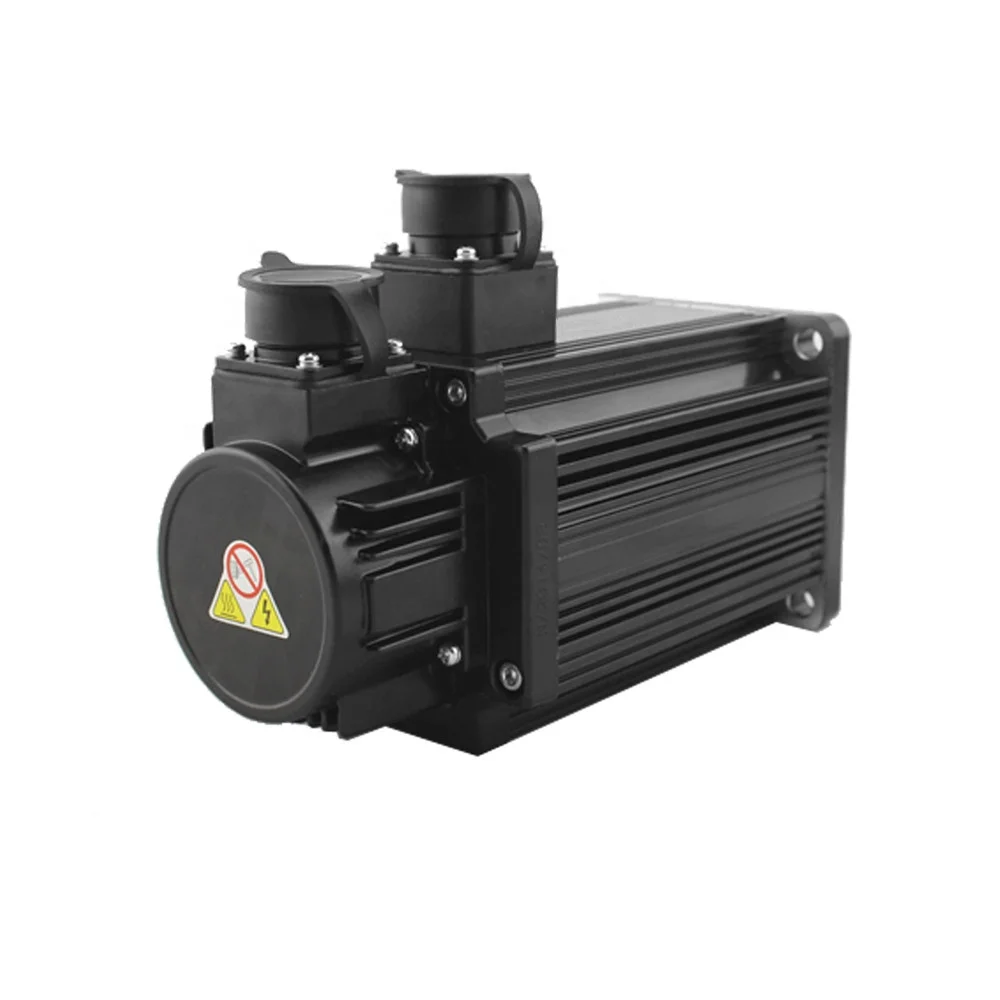

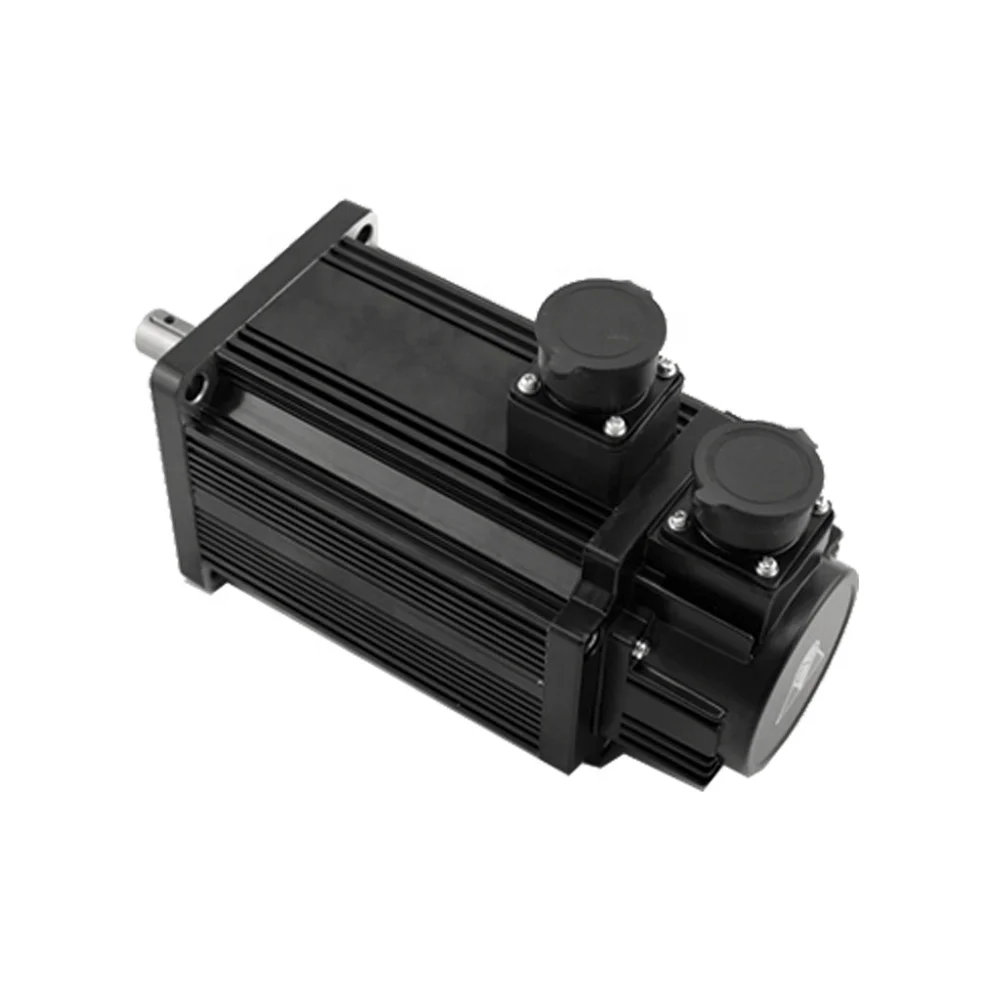

110mm 1.8kw AC Servo Motor 2500ppr CNC Embroideries Machine Synchronous Motor Servo 220V 3phase Ie 3 50/60hz Three phase

Product Overview

Description



If you need 3D model of the motor, please give us your email address and we will email you it.







Motor model	Rated power(KW)	Rated voltage(V)	Rated torque(N.m)	Rated speed(RPM)	Length (L:mm)	Shaft diameter(D:mm)
110ST-M02030	0.6	220	2	3000	159	19
110ST-M04020	0.8	220	4	2000	189	19
110ST-M04030	1.2	220	4	3000	189	19
110ST-M05030	1.5	220	5	3000	204	19
110ST-M06020	1.2	220	6	2000	219	19
110ST-M06030	1.8	220	6	3000	219	19





The motor can be assembled with brake, gearbox and absolute encoder as required.

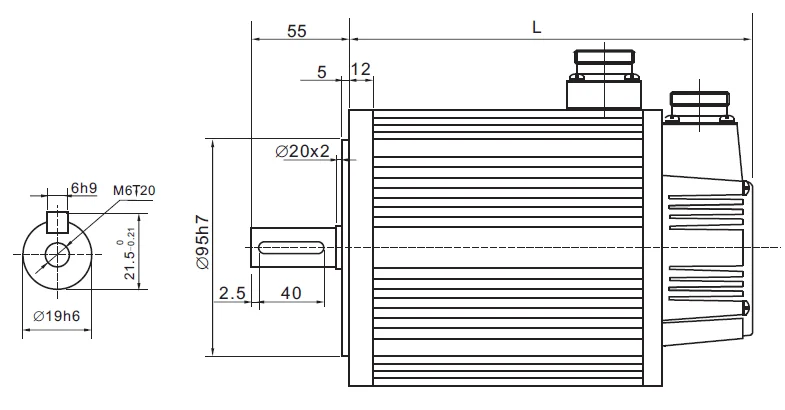

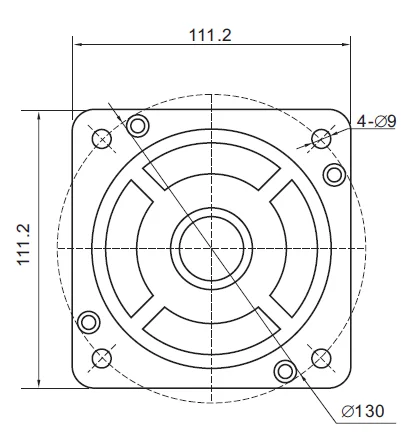

Installation Dimension: unit=mm

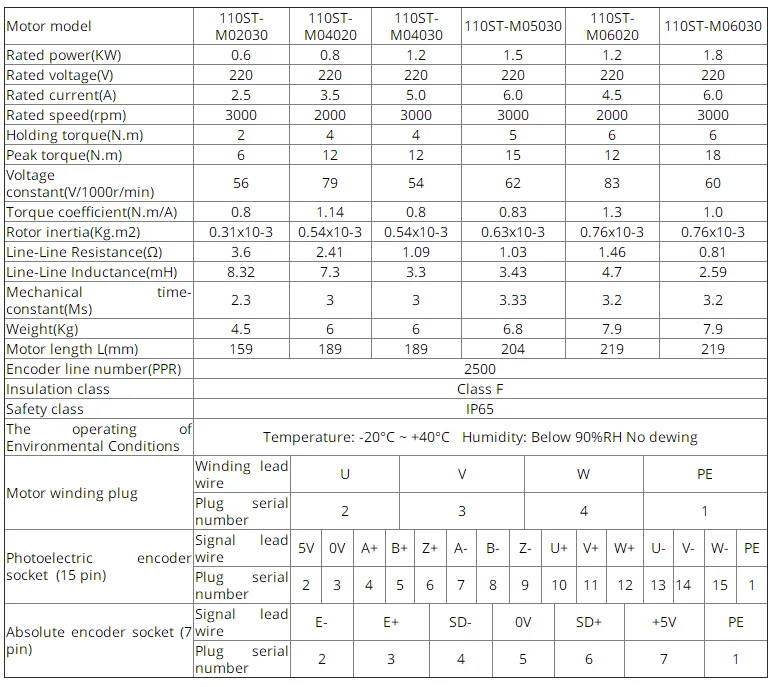

 Specifications







Precautions :

1. When installing/removing parts to the end of the motor shaft, do not hit the shaft hard to prevent the encoder at the other end of the shaft from being knocked bad.

2. Striving to keep the shaft seat from vibration to prevent bearing from being damaged.
