Multifunction dress apparel pearl and riveting machine
US $1200-$3500
Garment Factory Automatic Apparel Machinery Automatic Fabric Spreading Machine
- Category: Other Apparel Machines >>>
- Supplier: Shishi,Zhicheng,Garment,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

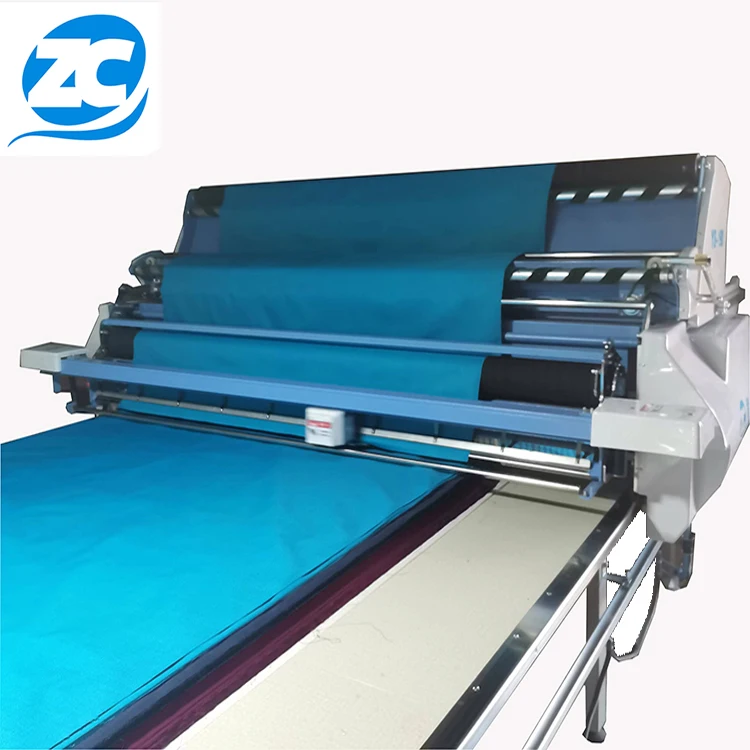

Automatic Fabric Spreading Machine
Spreading machine offers an effective solution to various fabrics. The machine will shut down and return back to original position once the fabric runs empty, and the machine power will automatically shut off upon 5 minutes idle. The most important is that the fabric won't be tragged during emergency stop. It is easy to operate and help to improve production efficiency.
Product Features
Automatic Fabric Spreading Machine
1.Machine returns back to original position once fabric runs empty
2.The machine power will automatically shut off upon 5 minutes idle
3.The spread laid fabric is not pulled when the emergency stop triggers
4.The streamline shape can reduce the wind disturbance, noise and vibration
5.Automatic fabric expanding system
6.PLC touch panel, user friendly operation system
7.Non-tension spreading
8.Simple operation increases production efficiently and also ensures the best quality
PRODUCT SPECIFICATIONS
Model | ZC-DCP-160 | ZC-DCP-190 | ZC-DCP-210 | ZC-DCP-260 | ZC-DCP-310 | ||||
Fabric Width(max) | 1600mm | 1900mm | 2100mm | 2600mm | 3100mm | ||||
Diameter of Fabric Roll | 600mm max | ||||||||
Weight of Fabric Roll | 80KG max | ||||||||
Travel Speed(m/min) | 96 max | ||||||||
Spreading Height | 250mm max | ||||||||
Power | 1P 220V /1.5KW | ||||||||
Width of Table | 1830mm | 2130mm | 2330mm | 2830mm | 3330mm | ||||
LxWxH Dimensions(mm) | 1890*1500*900 | 2190*1500*900 | 2390*1500*900 | 2890*1500*900 | 3390*1500*900 | ||||
PRODUCT CONFIGURATION
Air Floating Table with Air Pump
Auto Edge Device of Electric Eye
Movable Catcher
Sensor
Auto Cutting Device
Roll Fabric Loader
Product packaging
SIMILAR PRODUCTS
Company Profile
Shishi Zhicheng Garment Machinery Co., Ltd. is a professional manufacturer of various garment automation equipment and specializes in the research and manufacture of garment pre-sewing equipment. Our fully automatic spreading machine not only introduces advanced technology and experience from Europe, America & Japan, but also keeps innovating the machines in order to meet the latest demands of our customers.
With the business concept of "ensure product quality, improve enterprise efficiency and serve customers with integrity", we are committed to providing the best products and services to our customers.Scientific management and automatic production. In this well-developed information society, all enterprises are taking high-efficiency as business objective, especially labor-intensive enterprises who pay much more attention to it. Any carelessness will turn the surplus into the deficit. Thus, it is a vital and necessary task for modern business managers to improve administrative efficiency by scientific management and reduce the dependence on human by automatic production then finally achieving increased productivity.
With the business concept of "ensure product quality, improve enterprise efficiency and serve customers with integrity", we are committed to providing the best products and services to our customers.Scientific management and automatic production. In this well-developed information society, all enterprises are taking high-efficiency as business objective, especially labor-intensive enterprises who pay much more attention to it. Any carelessness will turn the surplus into the deficit. Thus, it is a vital and necessary task for modern business managers to improve administrative efficiency by scientific management and reduce the dependence on human by automatic production then finally achieving increased productivity.
FAQ
1. Are you a trading company or manufacturer?
We are a manufacturer, our factory is located in Shishi city, Fujian province ,China. We are looking forward to having you visit our factory.
2. How many years does your factory work on the spreading machine?
We have been started in production, development & research in 2014.
We are a manufacturer, our factory is located in Shishi city, Fujian province ,China. We are looking forward to having you visit our factory.
2. How many years does your factory work on the spreading machine?
We have been started in production, development & research in 2014.
3.What about the warranty?
One year from the date of installation.
4.How about the installation?
We provide after-sales service by video and chat. We can also send engineers to customers' country.
5.How long it takes to deliver machines?
Generally machines will be shipped within 15 days, if the goods are in stock. Or it will takes 30 day if the goods are not in stock. It depends on the order quantity..
