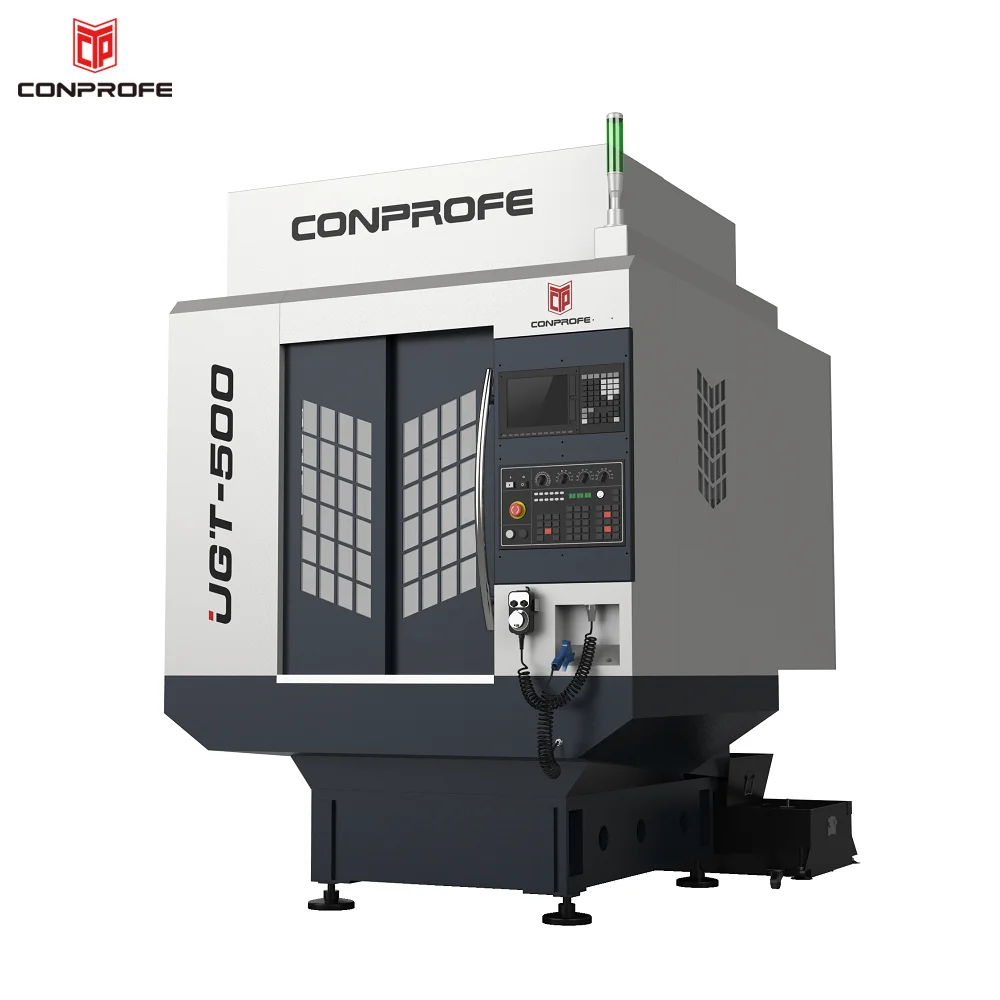

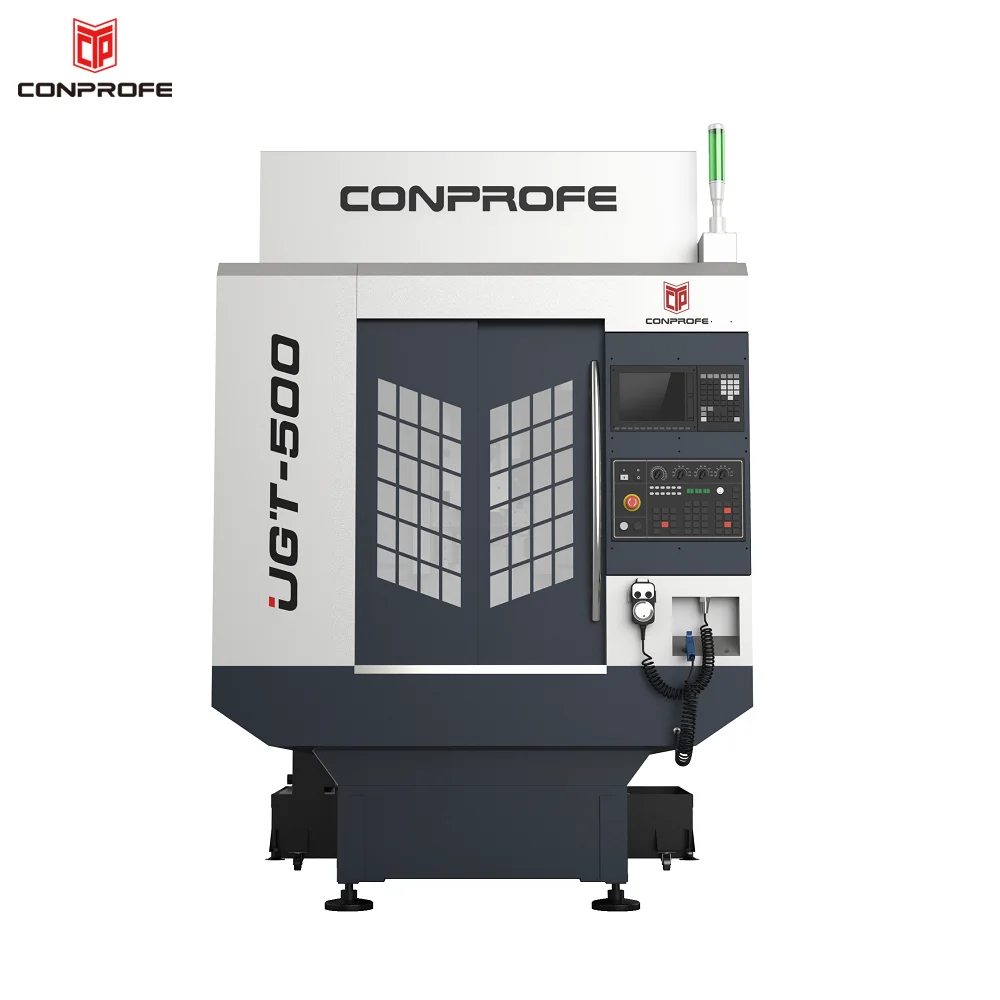

Ultrasonic CNC Small Vertical Machining Center Vmc650 VMC 650 CNC Mini Milling Machine
- Category: >>>
- Supplier: Conprofe Technology Group Co. Ltd.
Share on (1600518336746):
Product Overview
Description
Products Description
UGT-500 | ||||
Worktable | ||||
Worktable Dimensions / Max. Load (mm/kg) | 650x400/250 | |||
T-slot (No. x Width x Distance) (pcs x mm x mm) | 3x14x125 | |||
Travel | Standard | Optional | ||
X/Y/Z Axis Travel (mm) | 500x400x360 | |||
Spindle Nose to Table (mm) | 200-560 | 270-630 / 340-700 | ||
Spindle Center to Z Axis Cover (mm) | 375 | |||
Accuracy | ||||
X/Y/Z Positioning Accuracy (mm) | 0.005 | |||
X/Y/Z Repeatability Accuracy (mm) | 0.003 | |||
Accuracy Grade | UP | |||
Feed Rate | ||||
X/Y/Z Axis Rapid Speed (m/min) | 48/48/36 | |||
X/Y/Z Axis Motor Power (kW) | 1.5/1.5/3.0 | |||
Miscellaneous | ||||
Power Supply | Three-Phase AC, 380V/50Hz | |||
Power Capacity (kVA) | 15 | |||
Required Air Pressure (MPa) | 0.5-0.7 | |||
Total Air Consumption (L/min) | ≥200 (ANR) | |||
Total Weight (Including Accessories) (kg) | 2,300 | |||
Machine Size (L x W x H) (mm) | 1,600×2,155×2,565 | |||
Warranty (months) | 12 | |||
