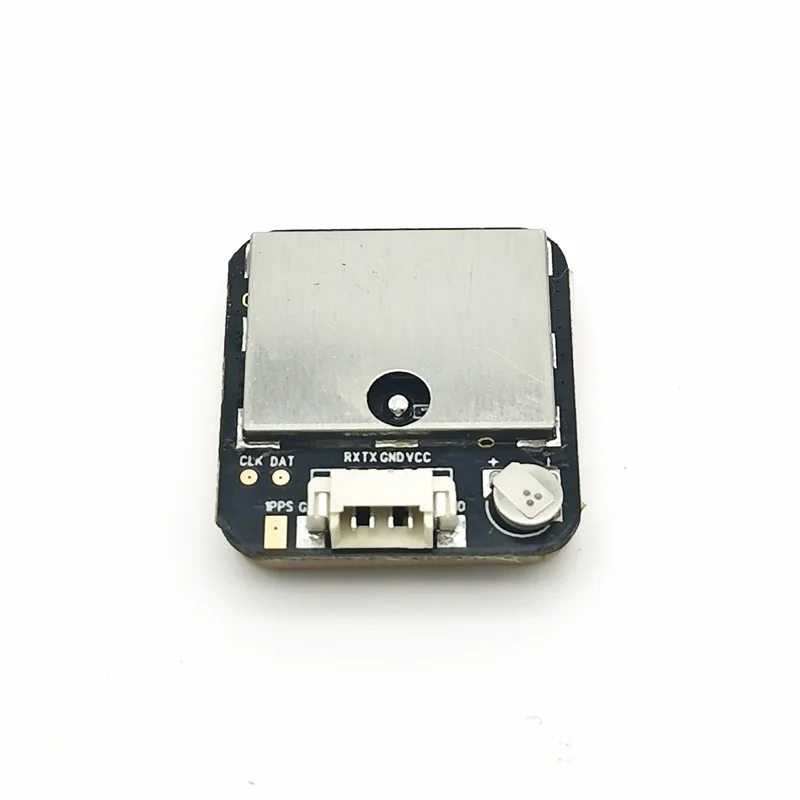

UBX M10050 KB Solution TTL NMEA0183 Gnss GPS Receiver Low Power GPS Module With Antenna
- Category: >>>
- Supplier: Shenzhen Bainianxing Technology Co. Ltd.
Share on (1600518342033):
Product Overview
Description
Product Description
♦ Features：
● Build on the latest excellent performance and accuracy, low-power consumption u-blox UBX-M10050-KB chipset
● Build on the latest excellent performance and accuracy, low-power consumption u-blox UBX-M10050-KB chipset
● Maximum position availability with concurrent reception of 4 GNSS
● Exceptional sensitivity and acquisition times for all L1 GNSS systems
● Low power consumption: 17mA @3.3V
● Higher position accuracy: 1.5m CEP
● Ultra-high sensitivity: -167dBm
● Extremely fast TTFF at the low signal level
● Built-in high gain LNA
● Exceptional sensitivity and acquisition times for all L1 GNSS systems
● Low power consumption: 17mA @3.3V
● Higher position accuracy: 1.5m CEP
● Ultra-high sensitivity: -167dBm
● Extremely fast TTFF at the low signal level
● Built-in high gain LNA
● Support Standard NMEA 0183（4.11) and UBX binary protocol.
● Communication type: TTL level
● Wire interface type: 1.25mm 4 pin
● RoHS compliant (Lead-free)
● Communication type: TTL level
● Wire interface type: 1.25mm 4 pin
● RoHS compliant (Lead-free)
Product Paramenters
● The GPS Module going to ship is based on the default parameters in the table below.
● For your customized requirements on the GPS receiver module, like chip,baudrate,connector type,cable length,pin assignment,ect,please kindly contact us before purchasing,thank you!
Item | Description | ||
Spec of Chip | Chip | UBX-M10050-KB | |
Receiving mode | Support GPS, GLONASS, Beidou, Galileo, QZSS, SBAS, default GPS+Galileo | ||
Frequency | GPS L1 C/A QZSS L1 C/A/S, GLONASS L10F, BeiDou B1I/B1C, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN | ||
Sensitivity | Tracking | -167dBm | |
Reacquisition | -161dBm | ||
Cold start | -148dBm | ||
Hot start | -157dBm | ||
Accuracy | Horizontal accuracy | 1.5m CEP | |
Velocity | 0.1m/s 95%(SAoff) | ||
Timing | 60ns | ||
Cold start | 24s | ||
Warm start | 2s | ||
Hot start | 1s | ||
Baud rate | Default 38400bps | ||
Communication type | TTL Level | ||

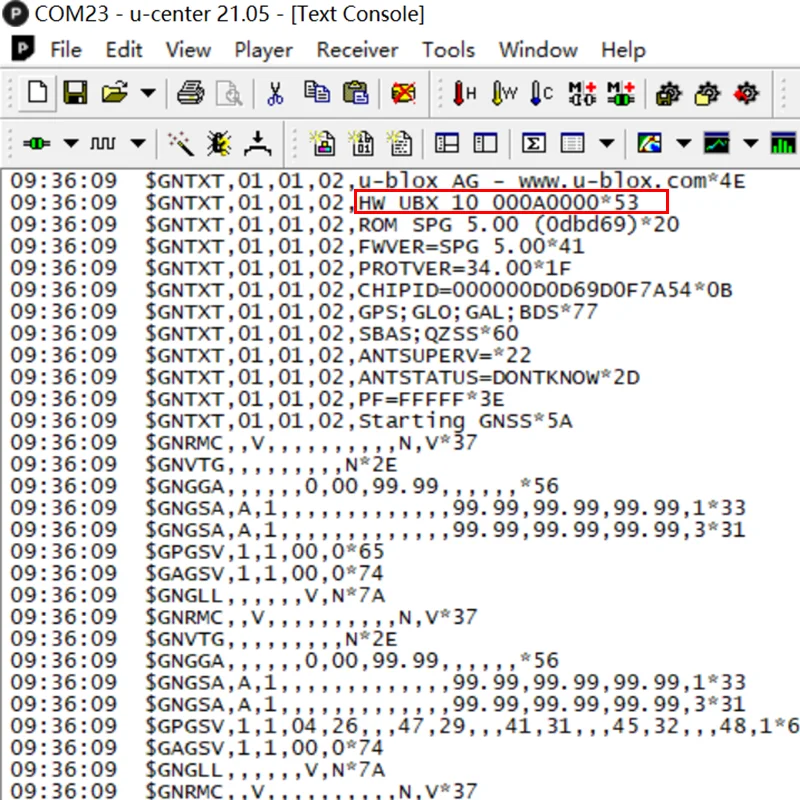

Output protocol | NMEA-0183 protocol | ||
Single GNSS | Up to 10Hz | ||
Standard GNSS | Default 1Hz | ||
Work Limit | Altitude | 80000m Max | |
Velocity | 515m/s | ||
Gravitational Acceleration | 4g Max | ||
Power Consumption | Voltage | 5.0V | |
Current | Normal 70mA 5.0V | ||

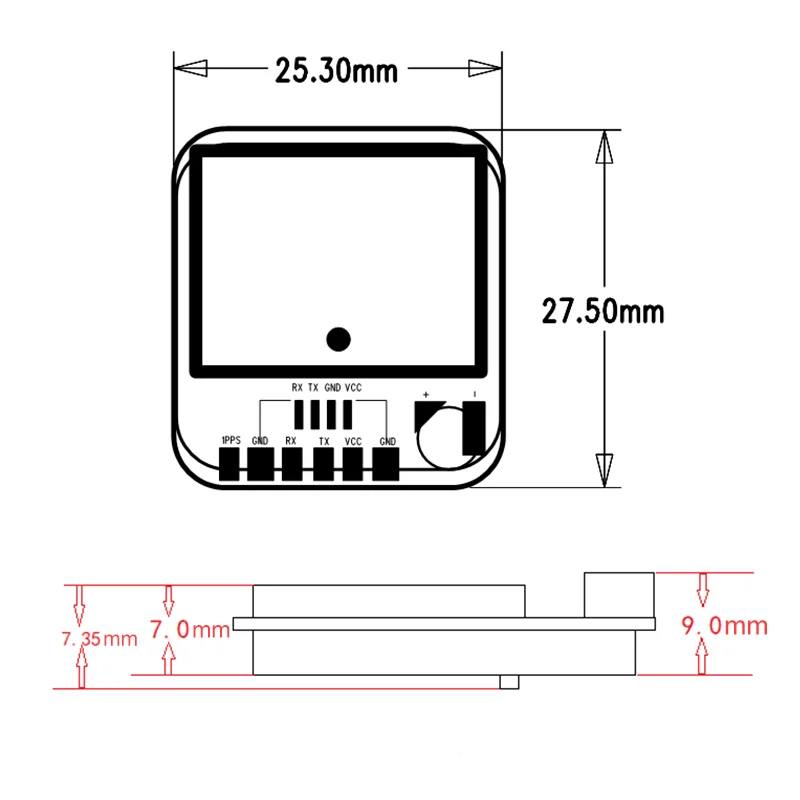

Physical Parameters | Size | 27.5mm*25.3mm*7.5mm | |
Weight | 8g | ||

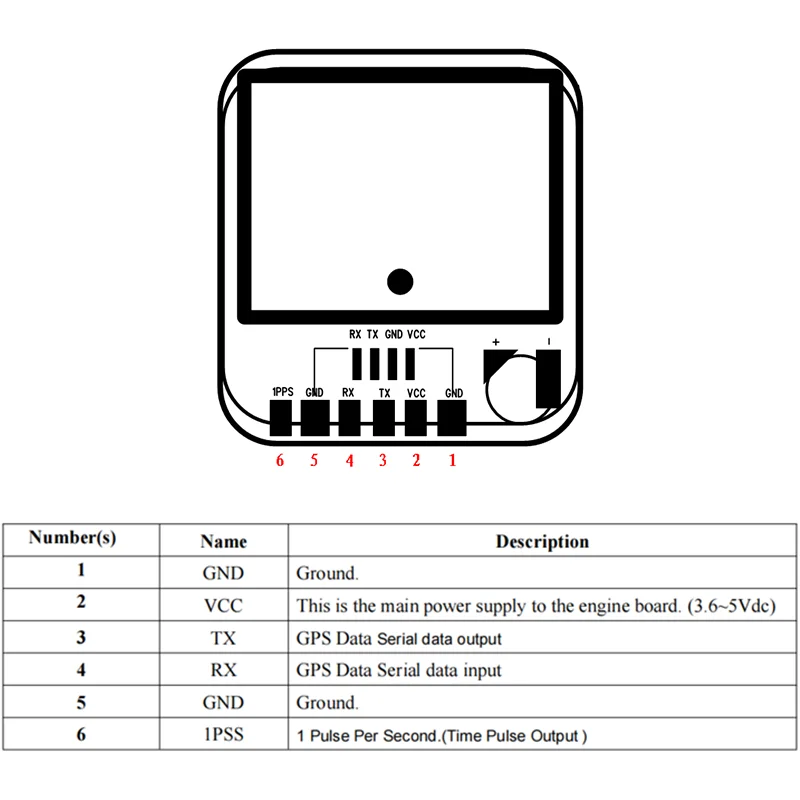

Connector type | 1.25mm 4Pin(RX,TX,GND,VCC) | ||

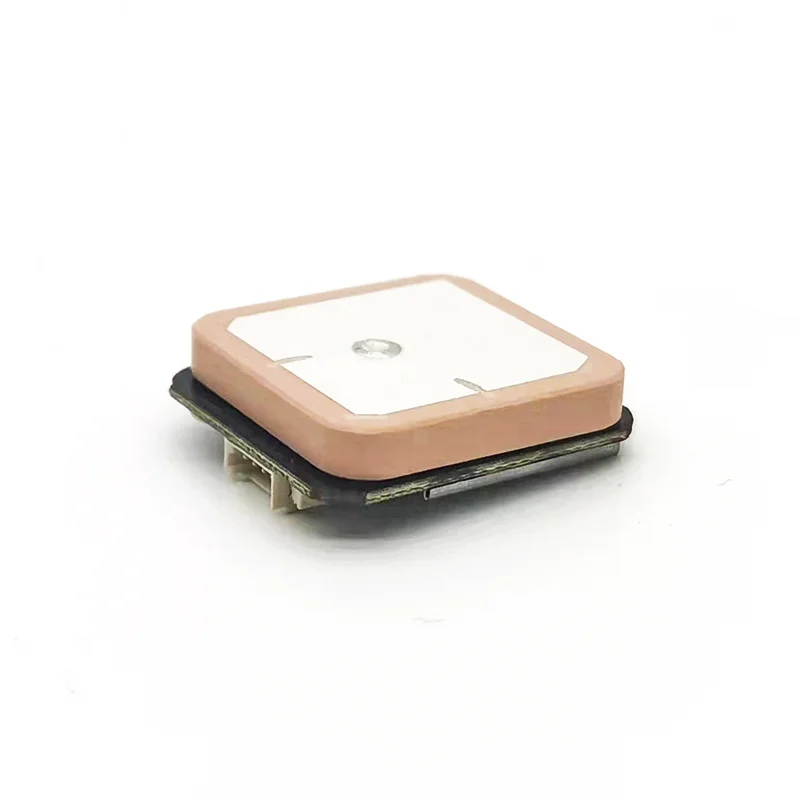

Antenna | Antenna | Built in ceramic antenna 25mm*25mm*4mm | |
Output Protocol | Default Protocol | RMC,VTG,GGA,GSA,GSV,GSV,GLL | |
Environment | Operating temperature | -40℃ to +85℃ | |
Storage temperature | -40℃ to +85℃ | ||
♦ Applications：
● Car DVR
● Car RearView Mirror
● Car Tracker
● LBS (Location Based Service)
● PND (Portable Navigation Device)
● Computer
● PND (Portable Navigation Device)
● Computer
● Outdoor Equipment
● Handheld GPS Device. ect.
Higher positioning precision and accuracy in complex urban environment:

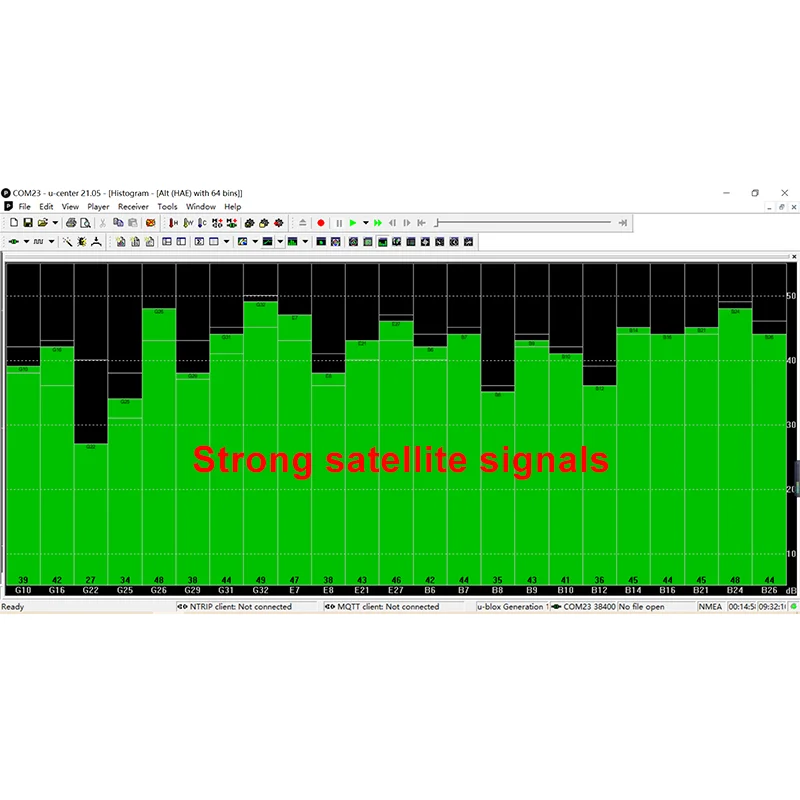

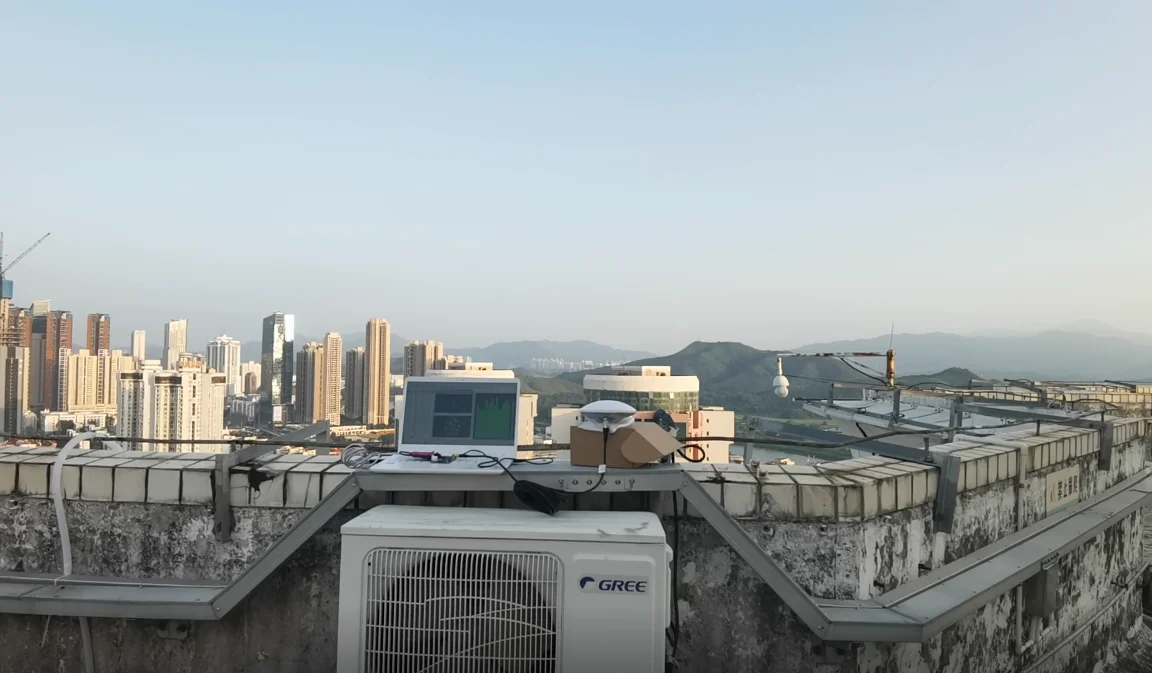

♦ Signal testing sample:
Testing environment:Open Sky,stationary
