Product Overview
Description
Professional original CNC controller manufacturer and has a warehouse in the USA
Products Description
The EC300-V5 version is the newest upgraded 6axis CNC Motion controller for Stepper or Servo Systems, with pulse and direction interfaces & LED indicators, support 3/4/5 6 channels motor control systems, 300Khz pulse output for every axis, 2ms control cycle, the highest division is 256 and the highest current is 6A..etc. Has strong anti-interference ability, excellent design and convenient operation.
The EC300-V5 is a high-performance ethernet breakout board for Mach 3 software, through Ethernet connection with Computer of Mach3 Software. Compatible with MPG input, support standard MPG & the digital display MPG of our company.
The EC300V5 motion controller adopts the ARM design framework. Multi-Functional support the Mach3 software. With 12-channel optical coupler isolates common digital input interface, 10-channel optical coupler isolates common
digital output interface, 1 channel 0-10v spindle speed regulating analog output interface which can be modified into PWM output.
digital output interface, 1 channel 0-10v spindle speed regulating analog output interface which can be modified into PWM output.
Brand: | Digital Dream | Warranty: | 1Year | ||
Item: | EC300 | Axis Optional: | 3Axis / 4Axis / 5Axis / 6Axis | ||
MOQ: | 1pc | Stock: | Rich | ||

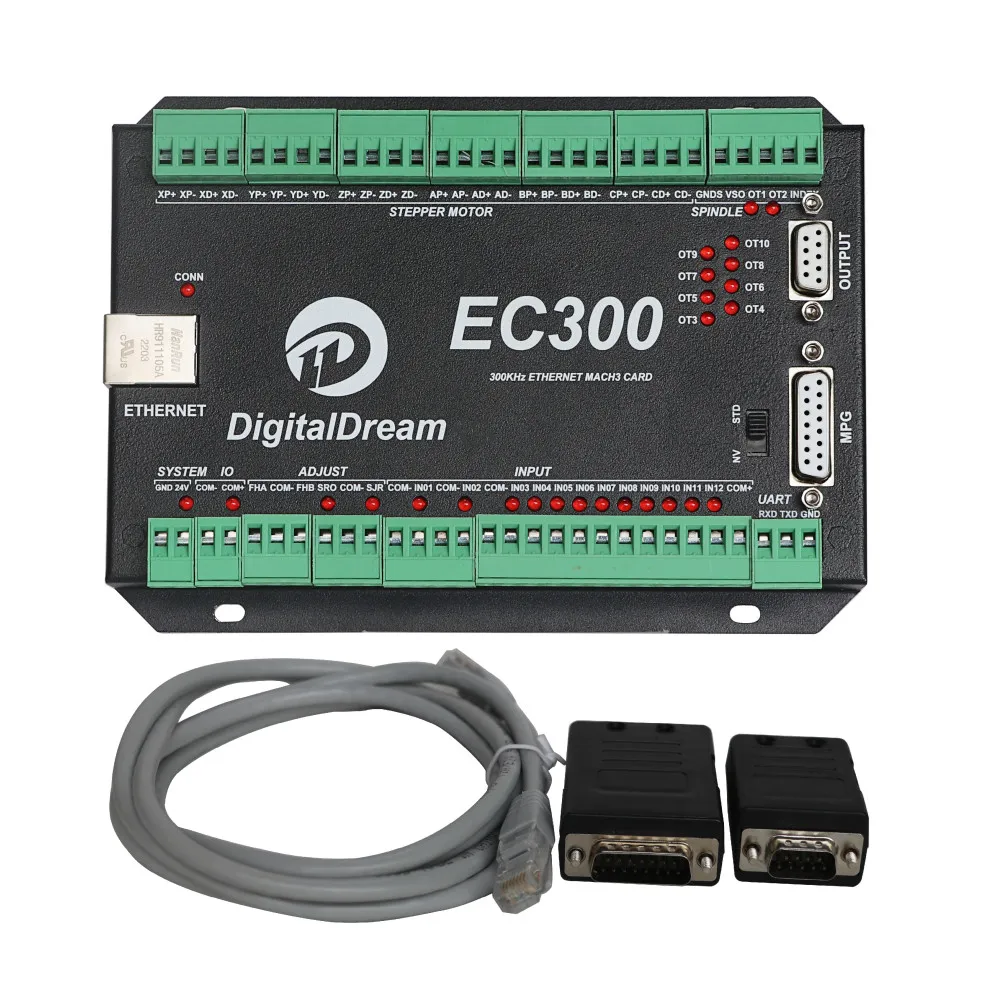

Package Includes: | * 1 x EC300 Motion Control Breakout Board (3/4/5/6 axis optionals) * 1 x Standard Ethernet cable * 2 x Terminals (The User manual and DLL file will be provided) | ||||

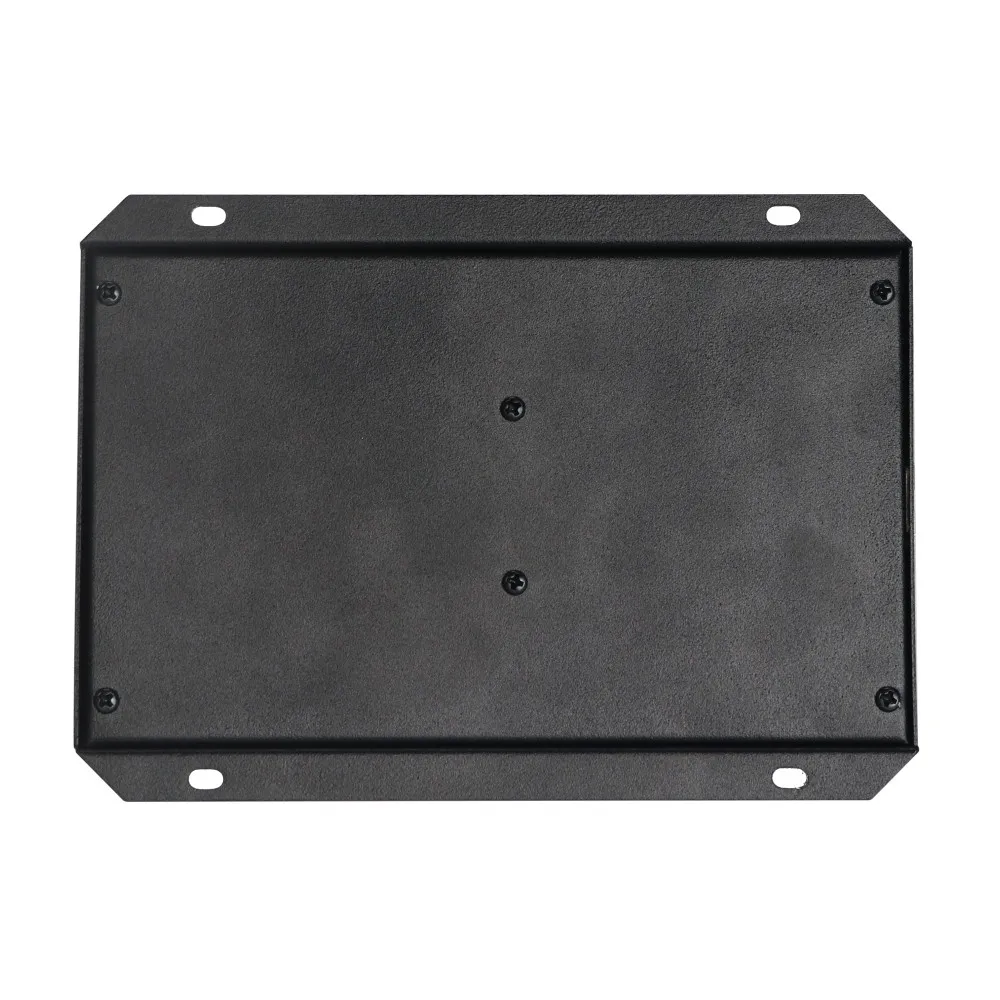

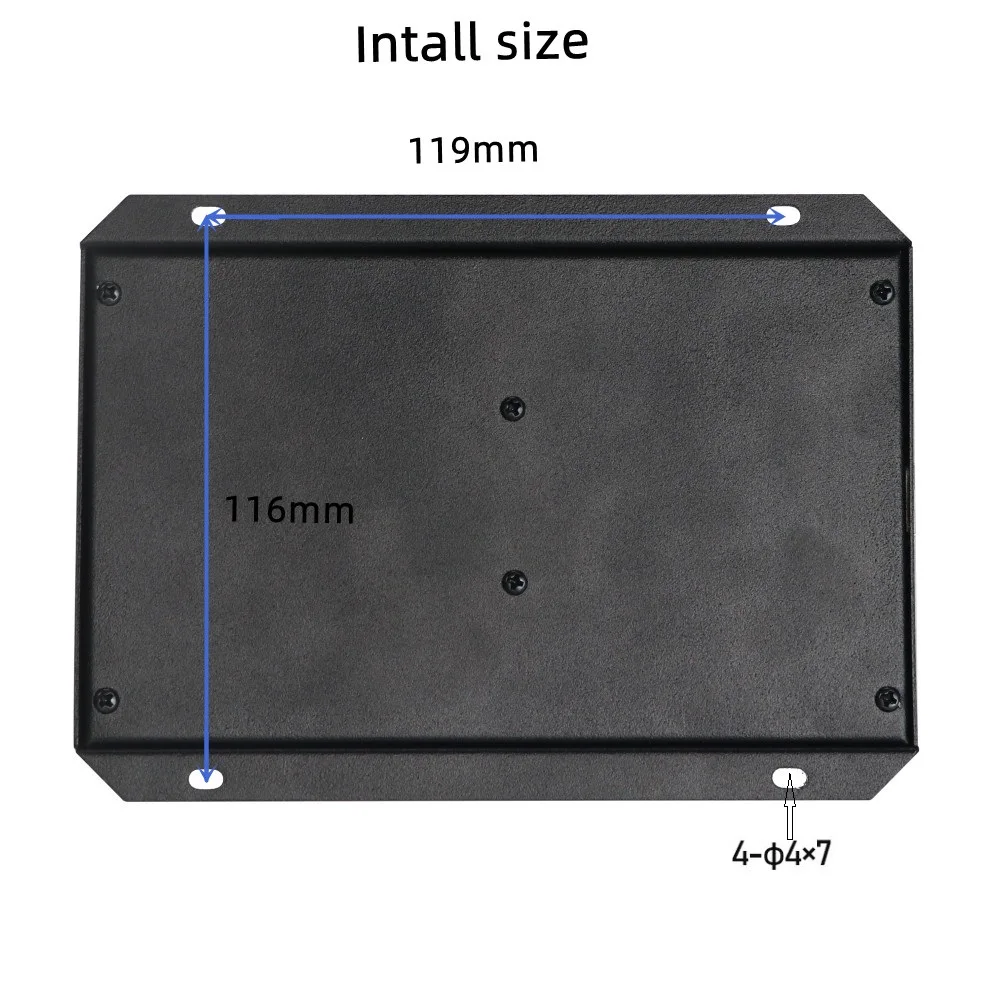

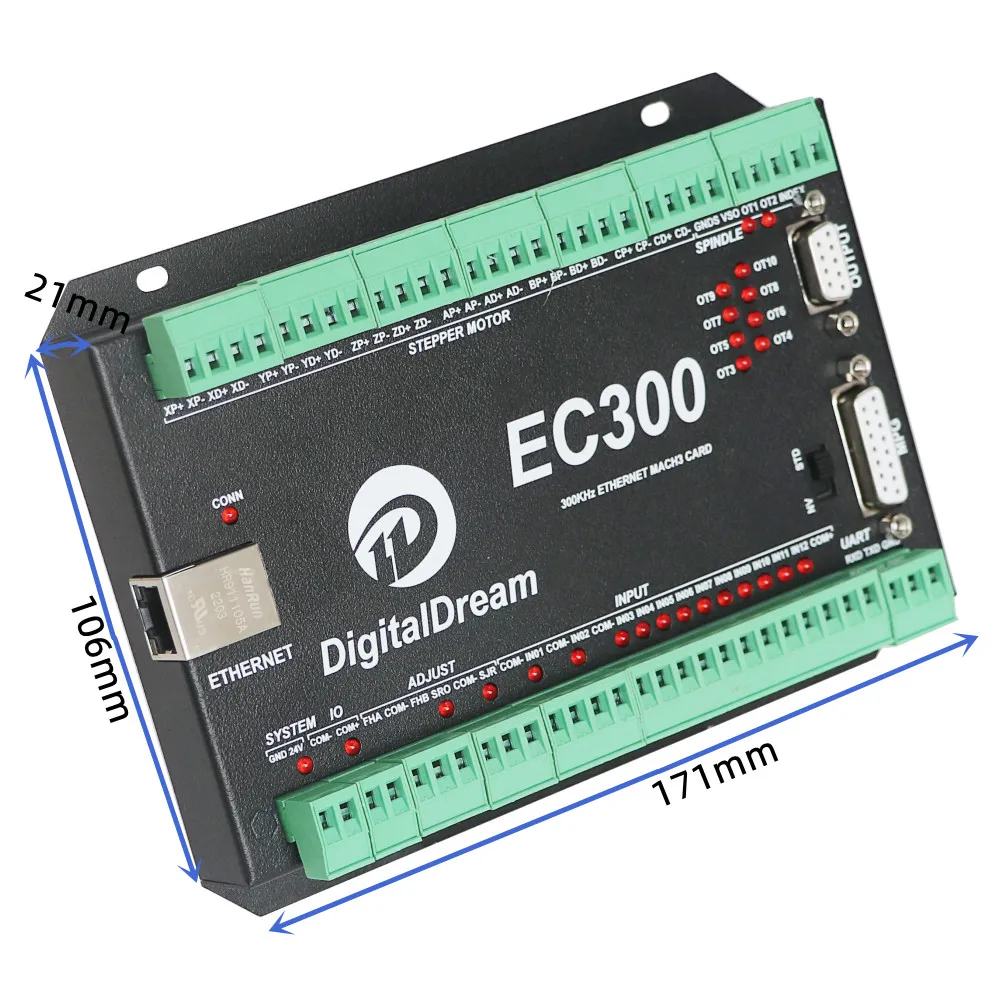

The EC300 motion controller is with the sealed shell structure, with 4pcs mounting holes around the controller. We can fix 4pcs 4mm diameter holes at the cabinet, and install the controller into the cabinet.

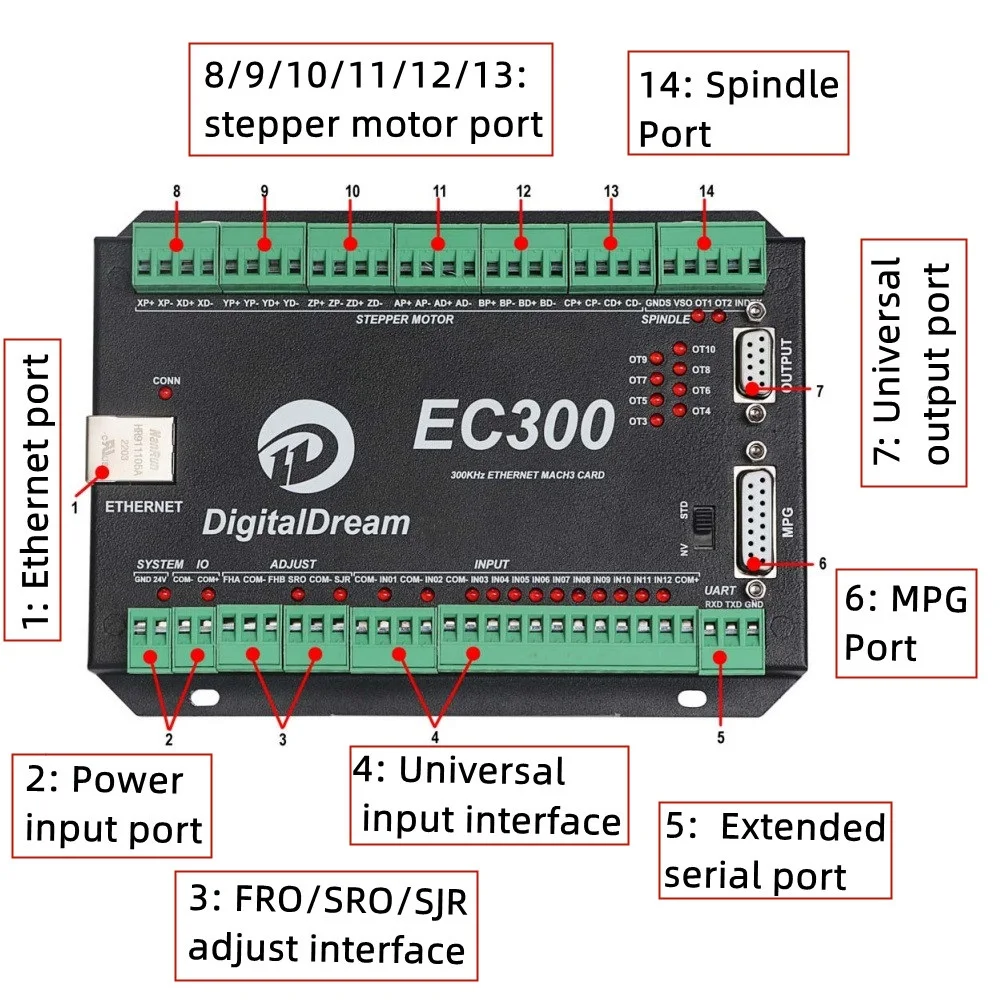

EC500 Wiring board define, the connection method Please check on the manual.

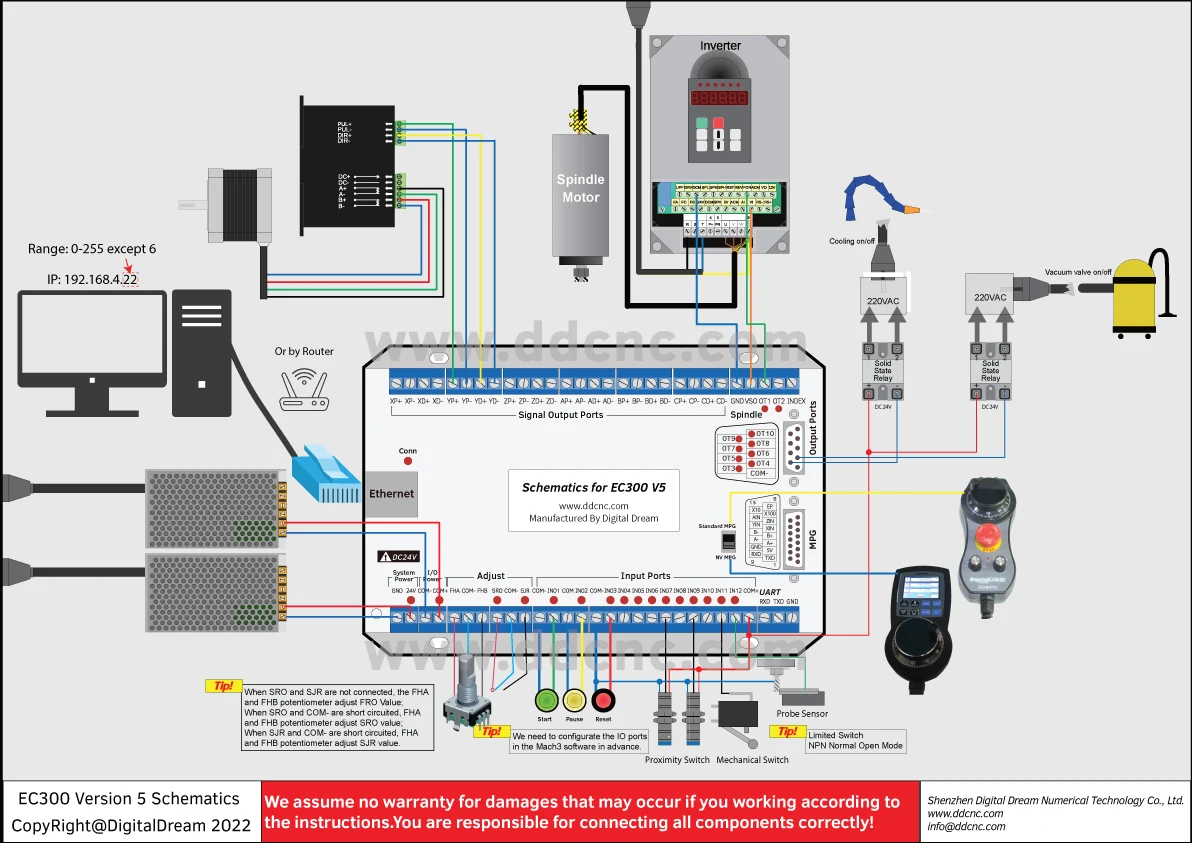

EC300 Wiring instruction
EC300 Power supply solution

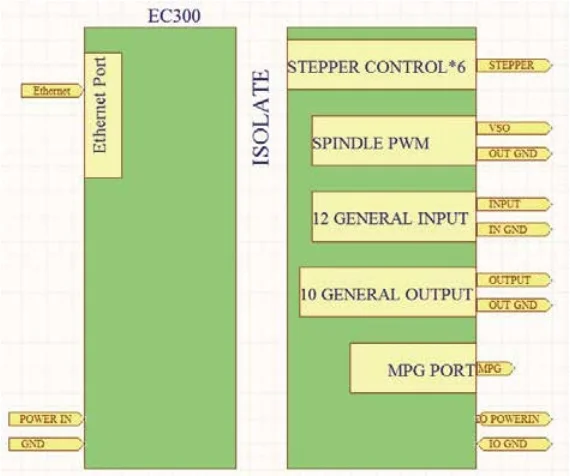

The power supply solution in the field of the Industrial automation is always very complicated, there is a lot of the GND, now we describe the structure of the power structure as below iamge-----Power supply input and Ethernet port share common GND, stepper control module, Input & Output module, Spindle control module and MPG Port share common GND. Between the two sector there is photoelectric isolation, inside of the board, there is GND as common-, no need to connect external power supply.
Warm Notice: Our Mach3 controllers do not support update for the moment, so please do not press " update" when you are using it.Or not, your controller may work not properly . Also, we do not support Mach 4 software.
Company Profile
China Manufacturer----Digital Dream has a 10 years history in the numerical control industry, specializing in the research,
development and production of various CNC (Computer Numerical Control) systems. DigitalDream aims to combine high quality and high reliability with affordability. We produce 1 axis to 6 axes CNC system.
Thank you for choosing digital dream’s motion controllers.
development and production of various CNC (Computer Numerical Control) systems. DigitalDream aims to combine high quality and high reliability with affordability. We produce 1 axis to 6 axes CNC system.
Thank you for choosing digital dream’s motion controllers.
Packaging & Shipping

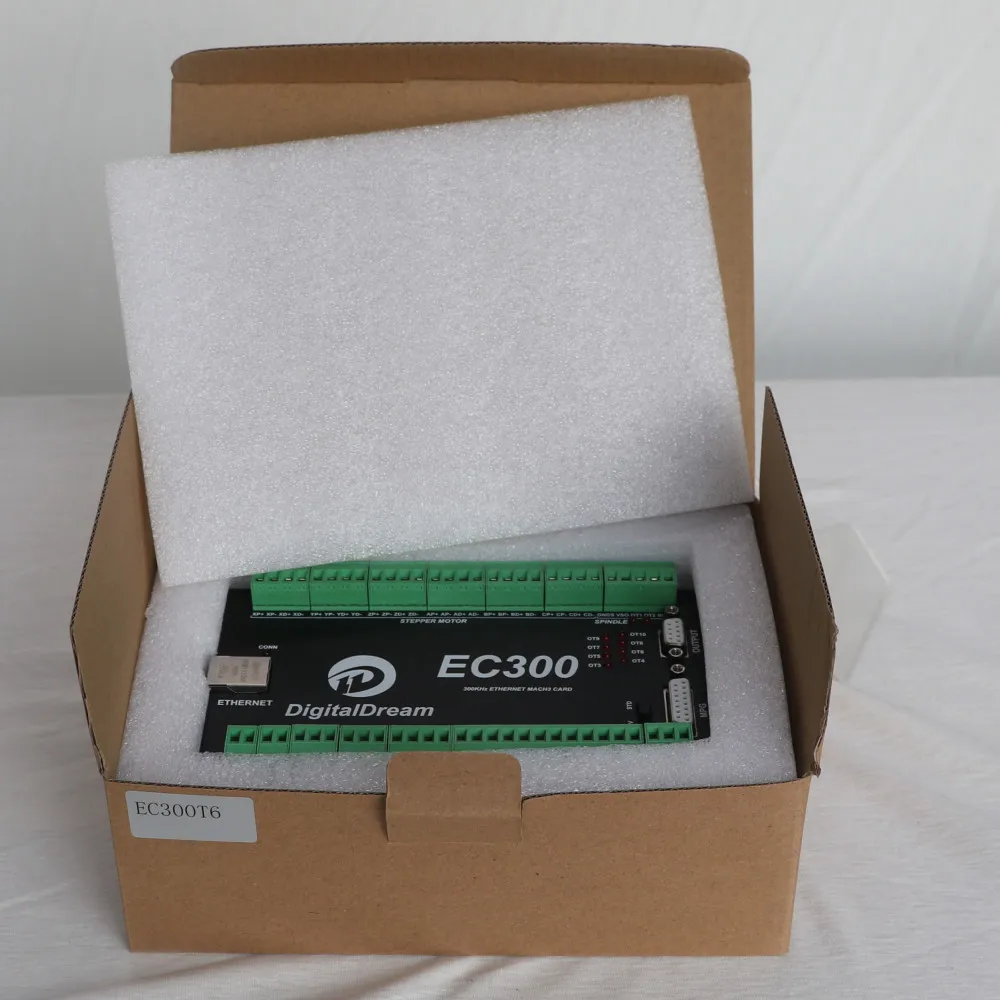

Packaging----Normally we use the standard exporting packaging. We also can according to clients' request .
