TQA 4050 unique mechanical design heat transfer machine with CE spare parts
- Category: >>>
- Supplier: Shenyang Shicheng Printing Machinery Co. Ltd.
Share on (1600518357879):
Product Overview
Description
Technical Paramenters

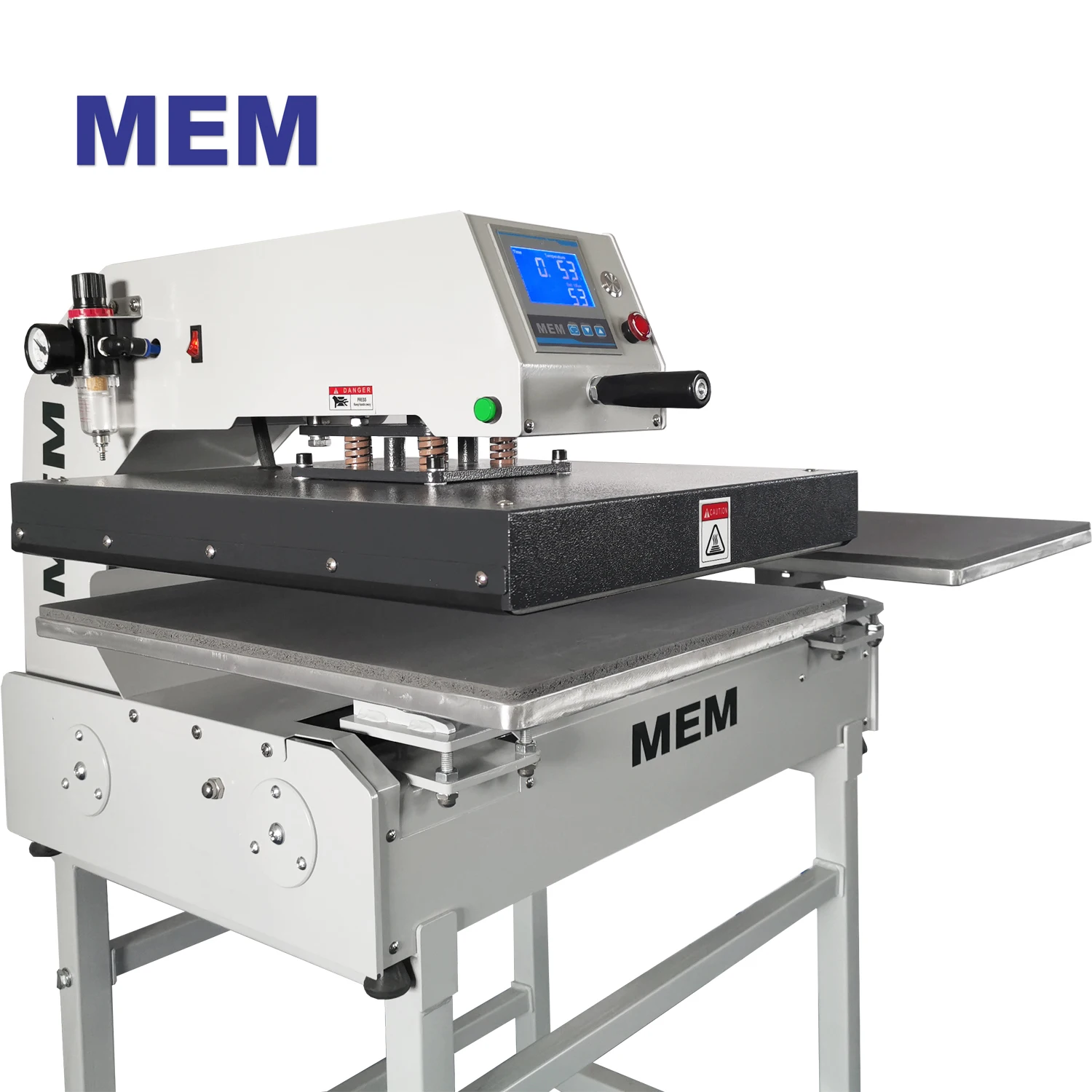

Short overview MEM TQA-4050 heat press
-Pneumatic double station transfer press for medium and large batches.
-Pressure balancing system on heat plate and bottom plate.
-Operates in semi-automatic or manual modes.
-Adjustable air pressure by air reducing valve with water separator.
-Two-hand operation for safety use.
-CE certificated and RoHS certificated.
-Lifetime factory on-line service.
-Pressure balancing system on heat plate and bottom plate.
-Operates in semi-automatic or manual modes.
-Adjustable air pressure by air reducing valve with water separator.
-Two-hand operation for safety use.
-CE certificated and RoHS certificated.
-Lifetime factory on-line service.

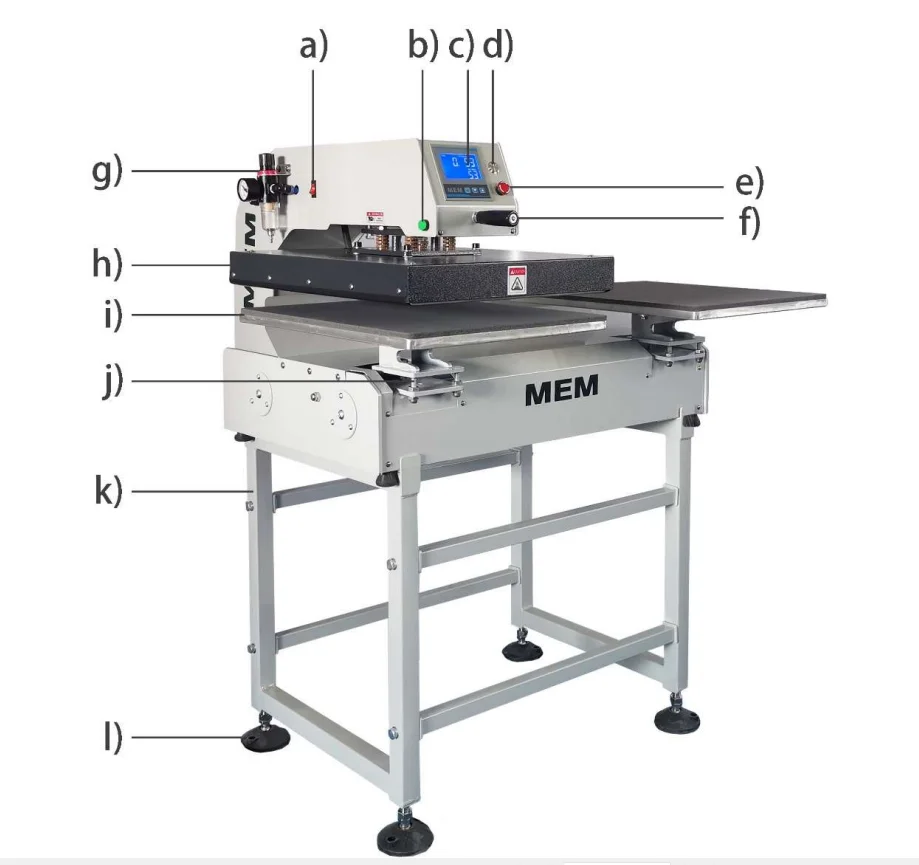

TQA 4050 pneumatic heat press machine
a . Power switch
b . Two hand control press buttons ( works on manual mode)
c . Temperature controller
d . Manual/automatic switch button
e . Emergency stop button
f . Handle
g . Air reducing valve
h . Heat plate
I . Bottom platen
j . Bottom pressure balancing system
k . Stand
l . Height adjustable foot
b . Two hand control press buttons ( works on manual mode)
c . Temperature controller
d . Manual/automatic switch button
e . Emergency stop button
f . Handle
g . Air reducing valve
h . Heat plate
I . Bottom platen
j . Bottom pressure balancing system
k . Stand
l . Height adjustable foot
Model | TQA 4050 |
Voltage and powder | 220V(2700W) or 110V(1800W) Check voltage at back side of the head |
Time Range | 0-999 sec. |
Max. Temp. | 260 C/ 500 F |
Heat plate size | 40x50 cm(16"x20") |
Dimensions(L*W*H) | 1080x730x590mm(42"*28"*23") |
Shipping dimensions(L*W*H) | 1230x770x650mm(49"*31"*28") |
Shipping weight | 145kgs(320lbs) |
Max. press thickness | 40mm |
Products Description

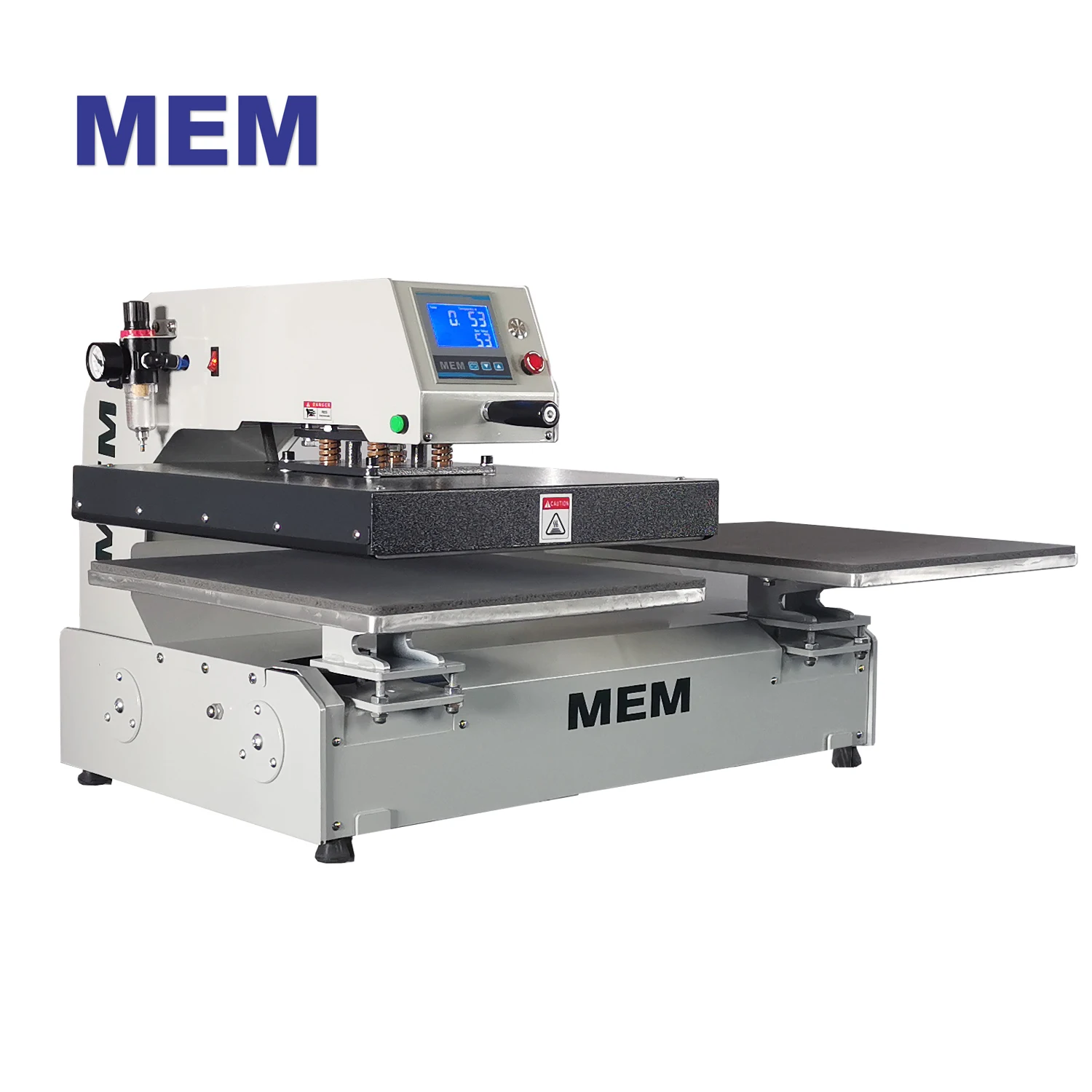

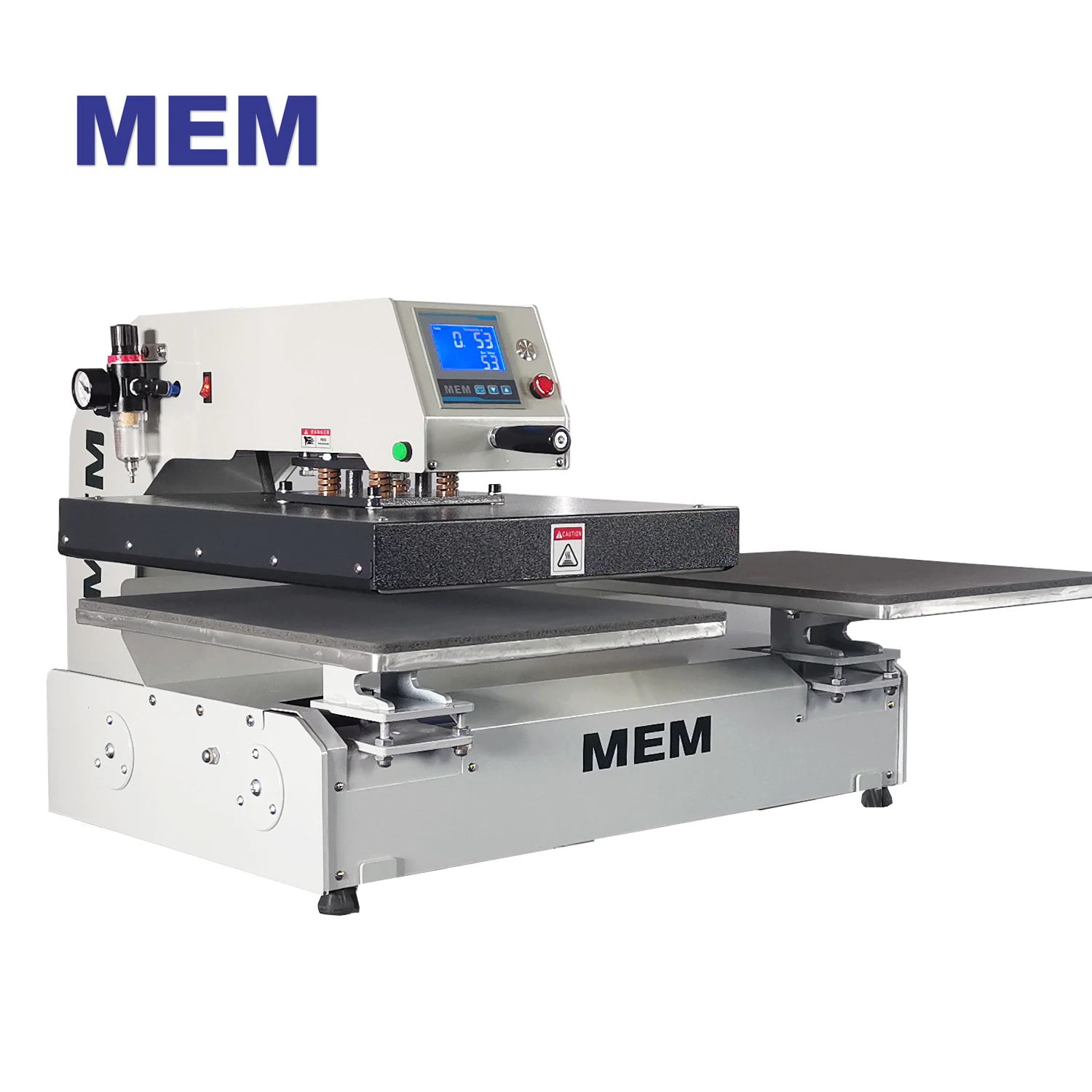

MEM TQA-4050 pneumatic double station heat press
The design of the MEM double station presses combines a heavy-duty solid industrial grade pressing framework with high quality electric components. This provides the operator with the best possible features and equipment needed for today's various heat transfer applications.
Using the MEM TQA-4050 double station heat press, all common heat transfer processes (flock, flex,
sublimation, transfer, Inkjet-flex etc.) can be conducted professionally and with highest productivity. The desired settings can be set easily with the temperature controller. The pneumatic pressure can be regulated smoothly with the air reducing valve. With the restriction valve on the solenoid valve, the press and lift speed could be adjusted.
sublimation, transfer, Inkjet-flex etc.) can be conducted professionally and with highest productivity. The desired settings can be set easily with the temperature controller. The pneumatic pressure can be regulated smoothly with the air reducing valve. With the restriction valve on the solenoid valve, the press and lift speed could be adjusted.

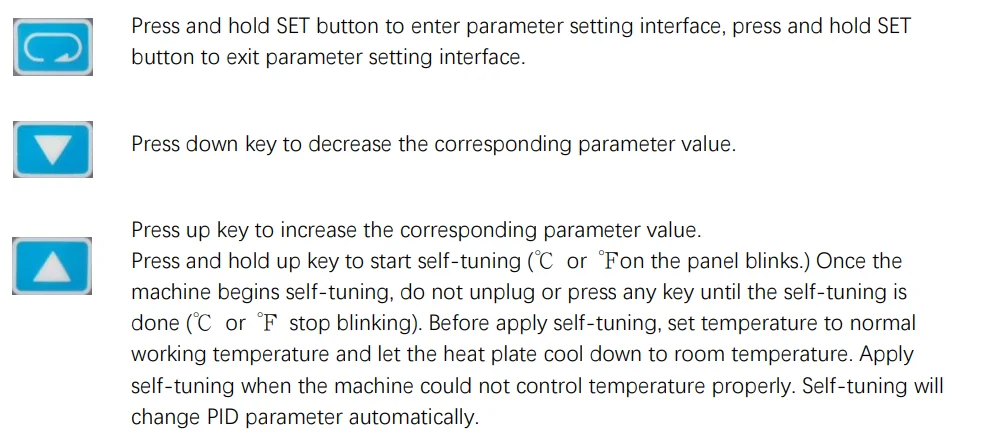

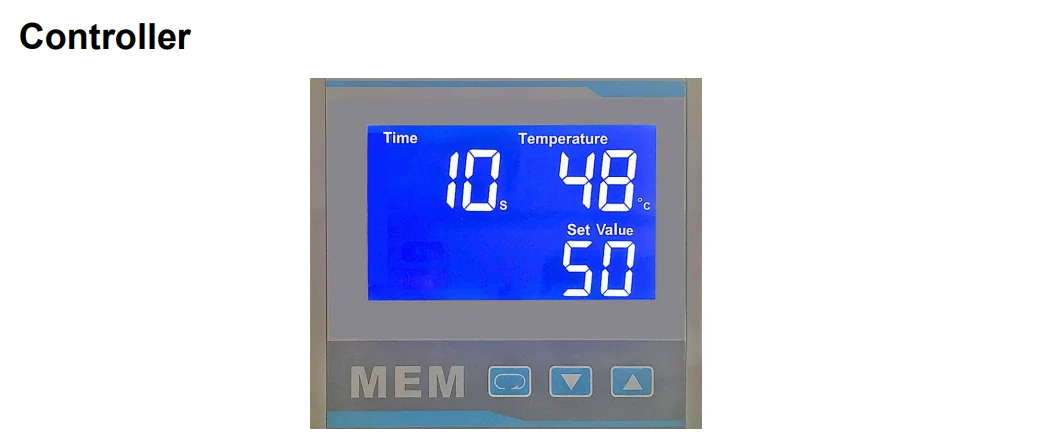

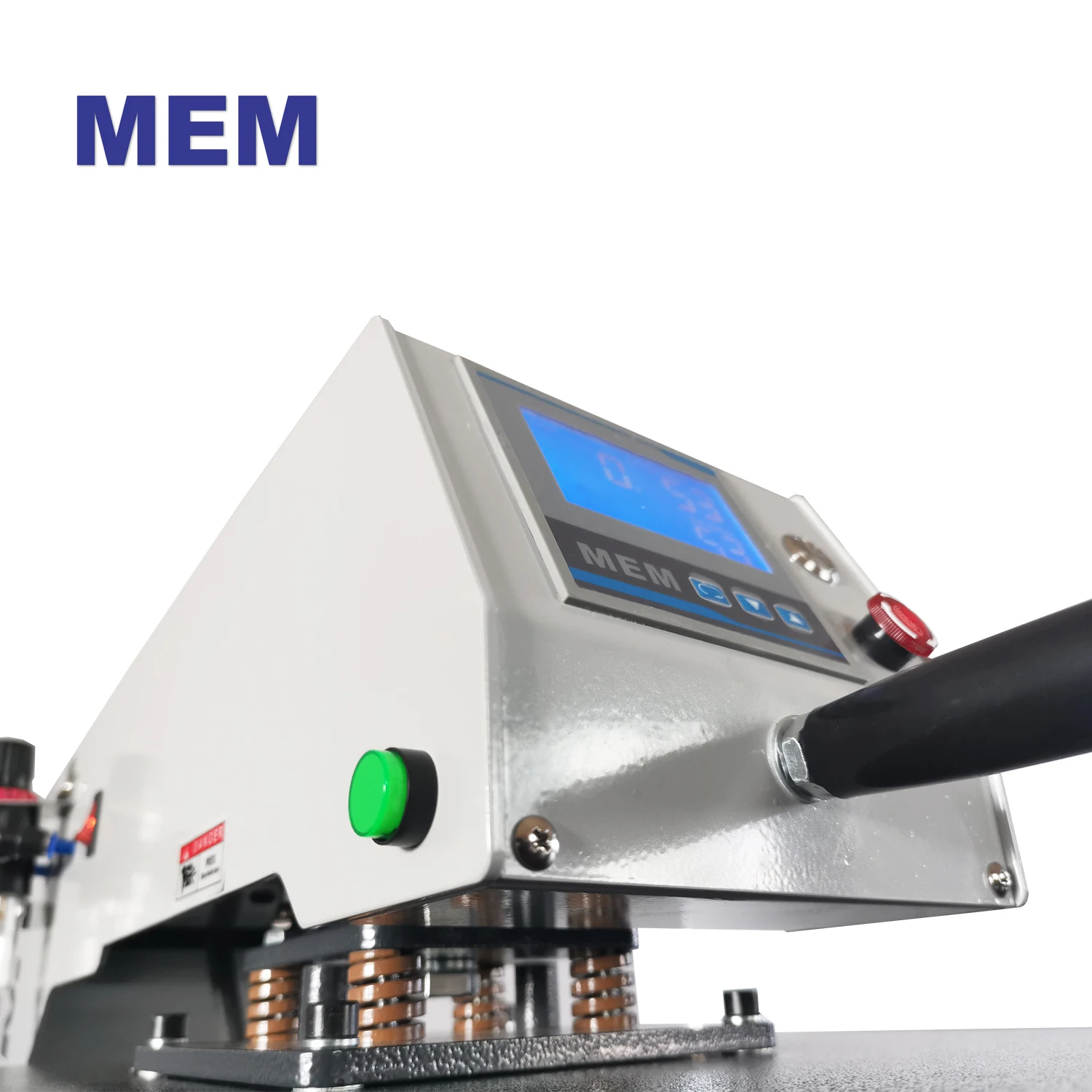

With the temperature controller, temperature (°C and °F) and pressing time can be adjusted. The Set Value are showing the setting value, the Temperature digits are showing the actual value. Counter (reset after power off) function that counts the number of transfers that have already been made during the current session could be enabled, contact MEM for counter function enable instruction.

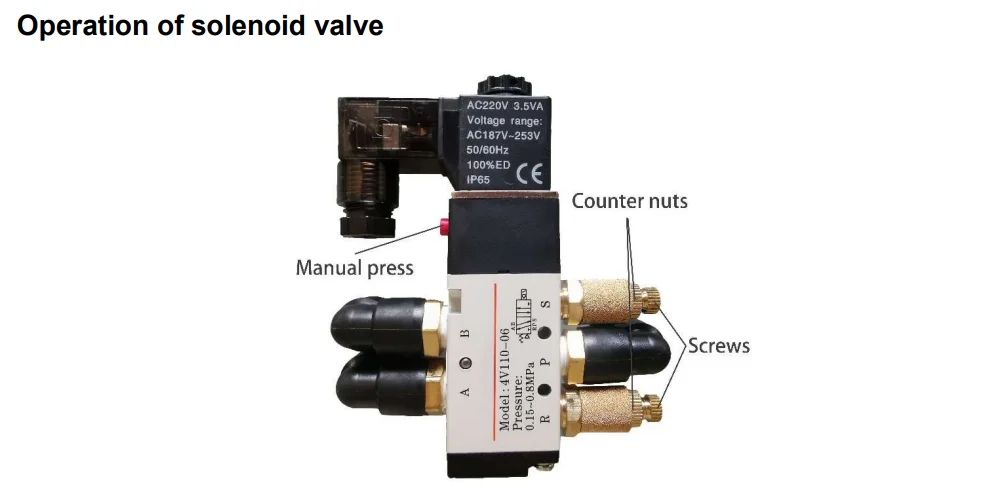

On the side of the solenoid valve there are two silver/golden screws which restricting the air flow speed of the cylinder.
If the screws are screwed out, it accelerates up/down process of the cylinder.
When the screws are screwed in, it slows down up/down process of the cylinder
Fix the respective setting with the corresponding counter nuts by tightening them by hand.
If the screws are screwed out, it accelerates up/down process of the cylinder.
When the screws are screwed in, it slows down up/down process of the cylinder
Fix the respective setting with the corresponding counter nuts by tightening them by hand.

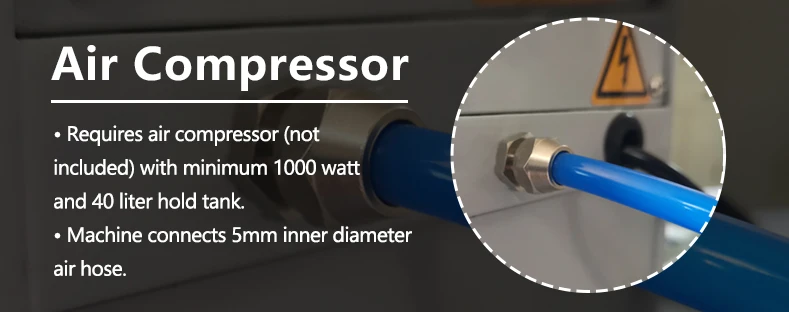

Air compressor
minimum 800w (1 hp) and 30L (8 gallon) hold tank.
Connect 5mm inner diameter (usually 8mm outer diameter) air hose
Connect 5mm inner diameter (usually 8mm outer diameter) air hose
Charge the compressor to 0.6-0.7 Mpa, up to 0.8 Mpa (120 psi) if possible.
Details Images
Packing & Delivery
Standard export wooden case packing to make sure the machine safety during the transportation. Customer can be rest assured.
Company Profile
FAQ
1. Is your company manufacturer or trading company?
We are manufacturer, we design and manufacture heat press machines, tunnel tryers and screen printing machines in Shenyang, China. We have more than 20 years experiences in printing field.
2. Do you provide OEM service?
Yes, we could do OEM and print your logo on the machines.
We are manufacturer, we design and manufacture heat press machines, tunnel tryers and screen printing machines in Shenyang, China. We have more than 20 years experiences in printing field.
2. Do you provide OEM service?
Yes, we could do OEM and print your logo on the machines.
3. Are the machines CE Approved?
All our machines have CE certification.
4. Our country's voltage and plug are different. How do you solve it?
We will customize the voltage and plug type for you.
5. Do you inspect finished products?
Yes. Each step of production will be inspected by our QC department.
6. How about the guarantee?
Warranty is 1 year including all the parts.
All our machines have CE certification.
4. Our country's voltage and plug are different. How do you solve it?
We will customize the voltage and plug type for you.
5. Do you inspect finished products?
Yes. Each step of production will be inspected by our QC department.
6. How about the guarantee?
Warranty is 1 year including all the parts.
