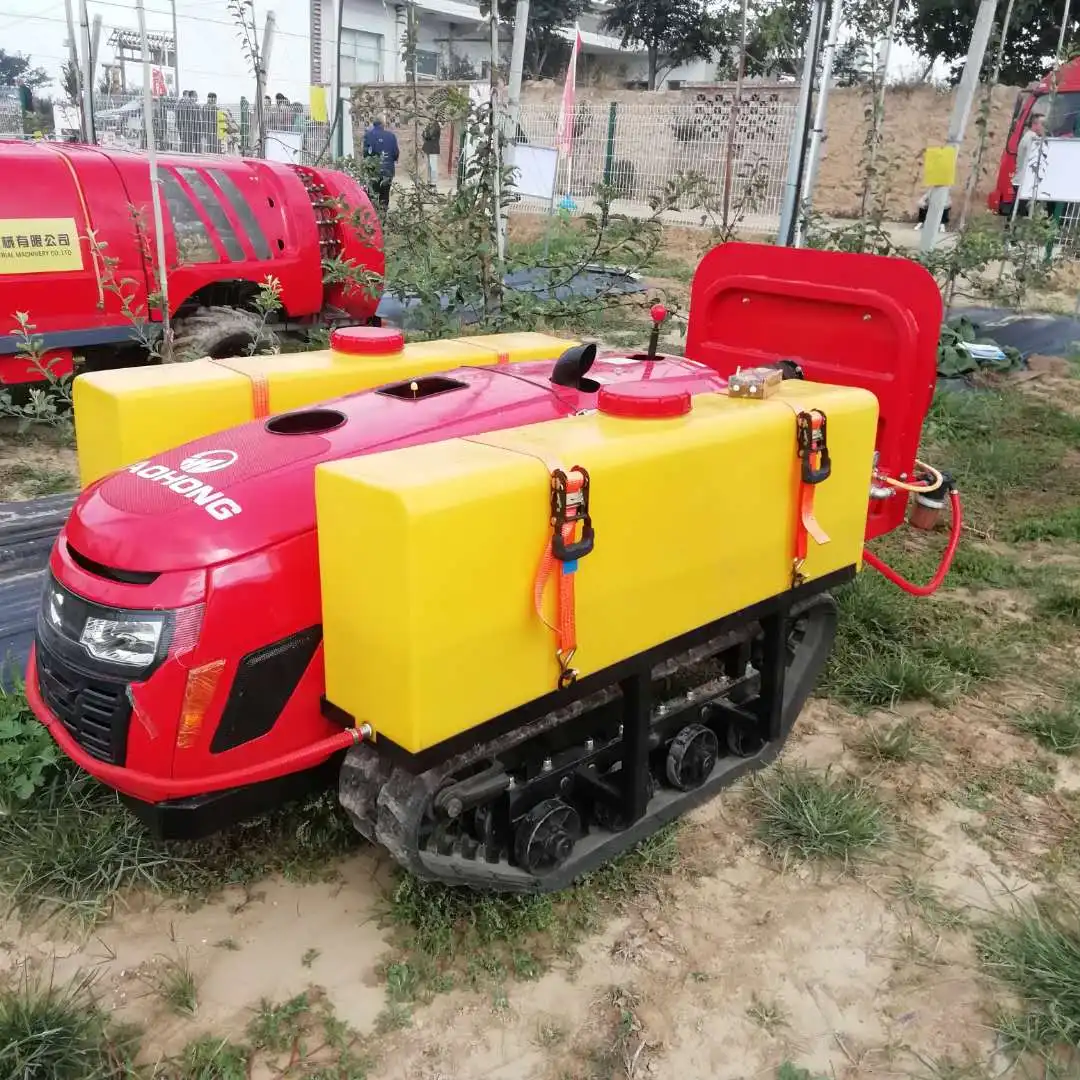

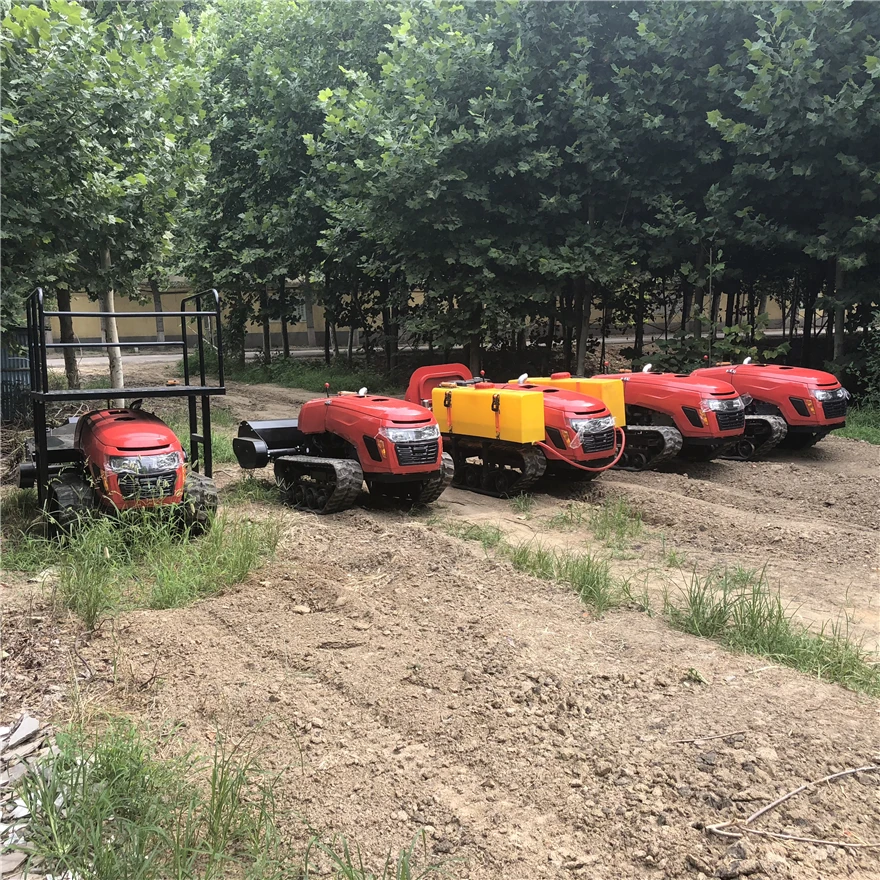

Hot sale agricultural self propelled sprayer 32hp/36hp tiller robot
- Category: >>>
- Supplier: Shandong Haohong Machinery Manufacturing Co. Ltd.
Share on (1600518368877):
Product Overview
Description

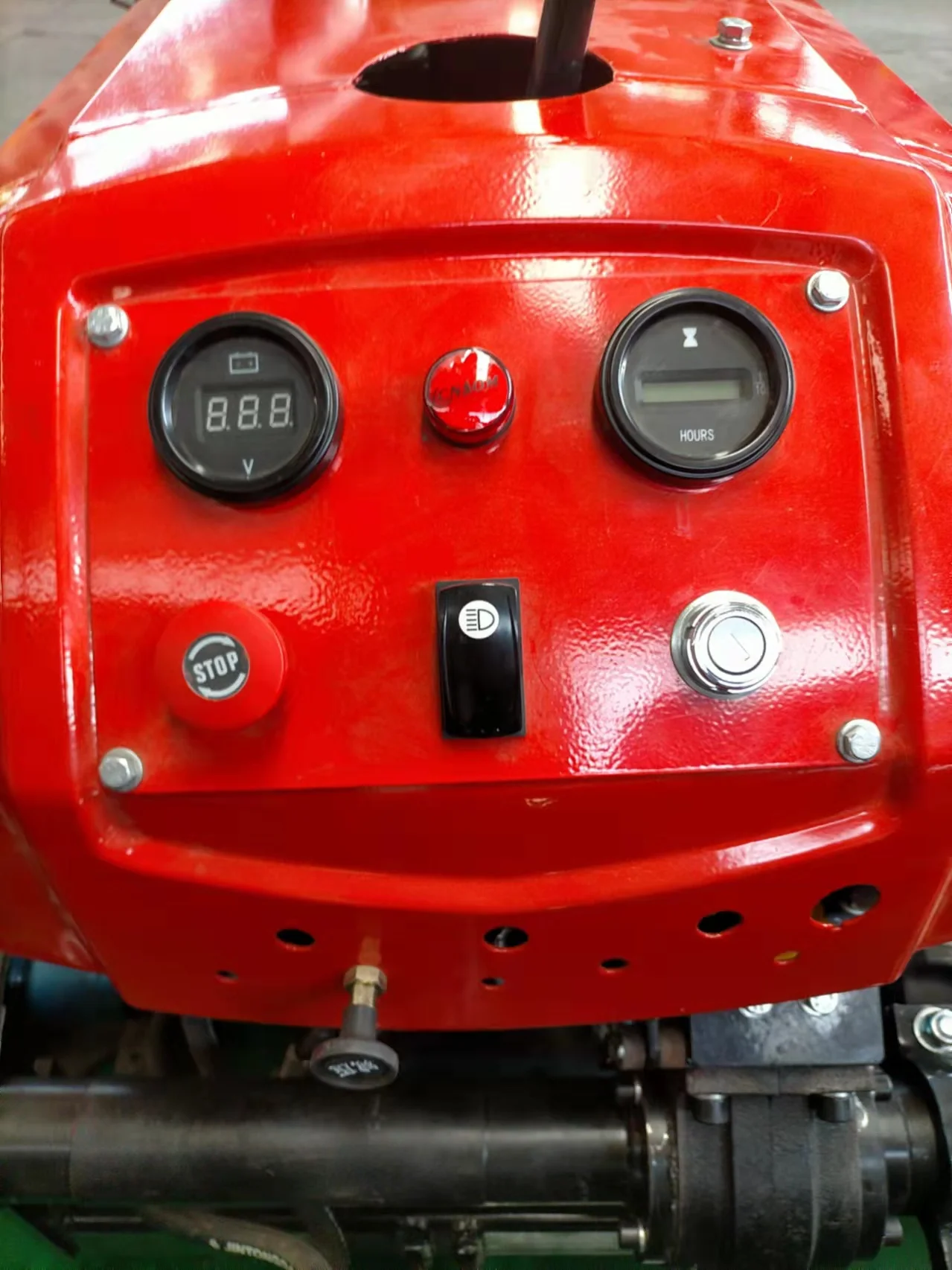

Detailed Images
Host parameter | ||

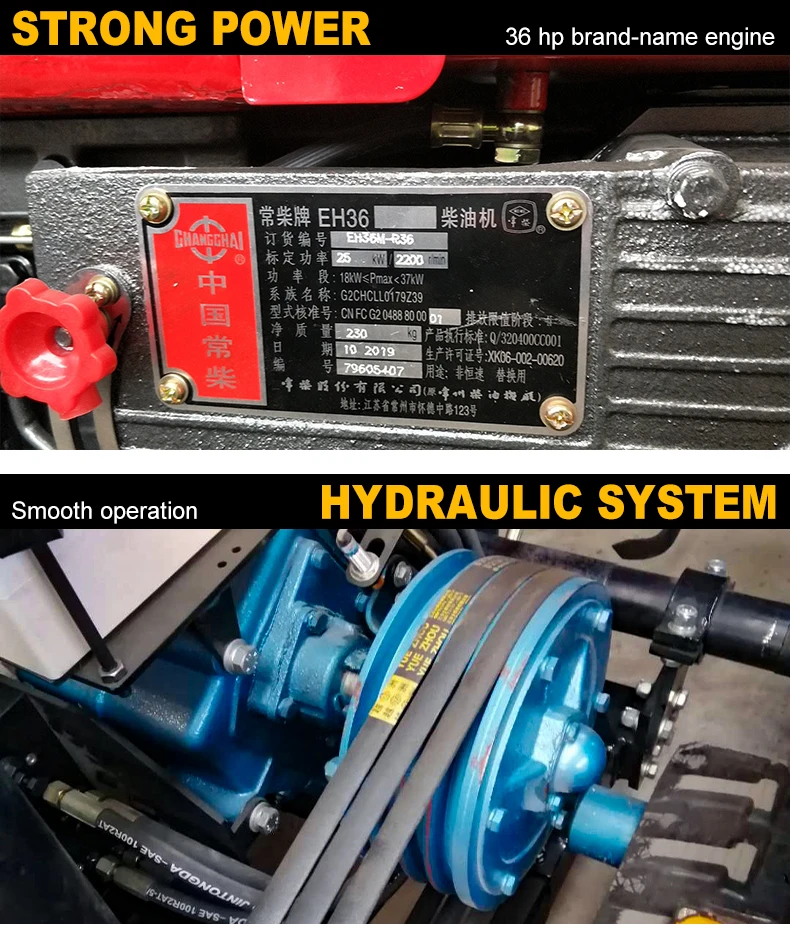

Engine | Changchai/32HP | |
Gear position | Ahead 3/Back 1 | |

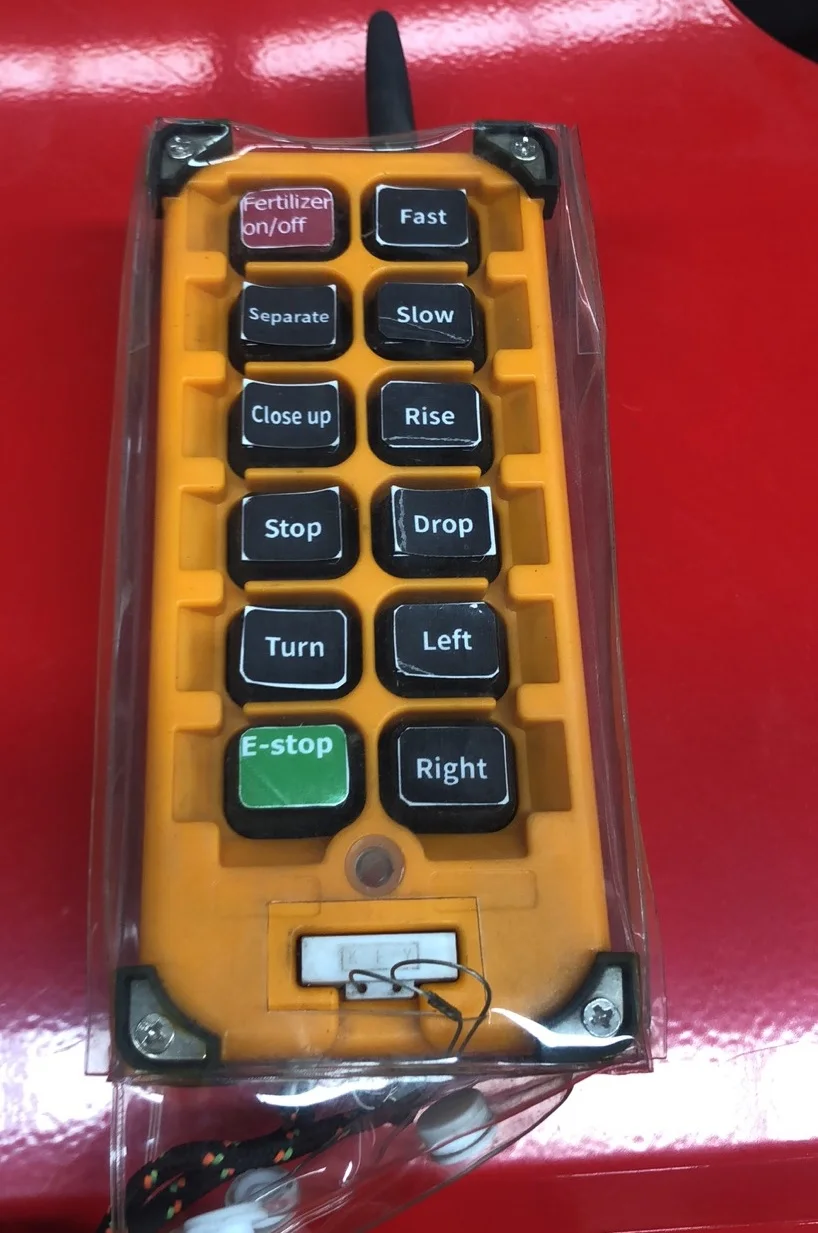

Remote control distance | 100m | |
Weight | 900kgs | |
Size | 2800*1200*1200(The size includes rotary tillage) | |
Tiller parameters | ||
Rotary tillage depth | 15cm | |
Rotary tillage width | 1.2m | |
Work efficiency | 1400m²/h | |
Knife shaft speed | 300rpm/min | |
Weight | 150kgs | |
Trencher parameters | ||
Trench depth | 30-35cm | |
Trench width | 30cm | |
Work efficiency | 500-600m/h | |
Cutter disc speed | 300rpm/min | |
Type | Cutter disc type | |
Lawn mower parameters | ||
Cutter grass width | 1.2m | |
Stubble height | 3-5cm | |
Work efficiency | 1500m²/h | |
Cutter shaft speed | 950rpm/h | |
Type | flail mower | |

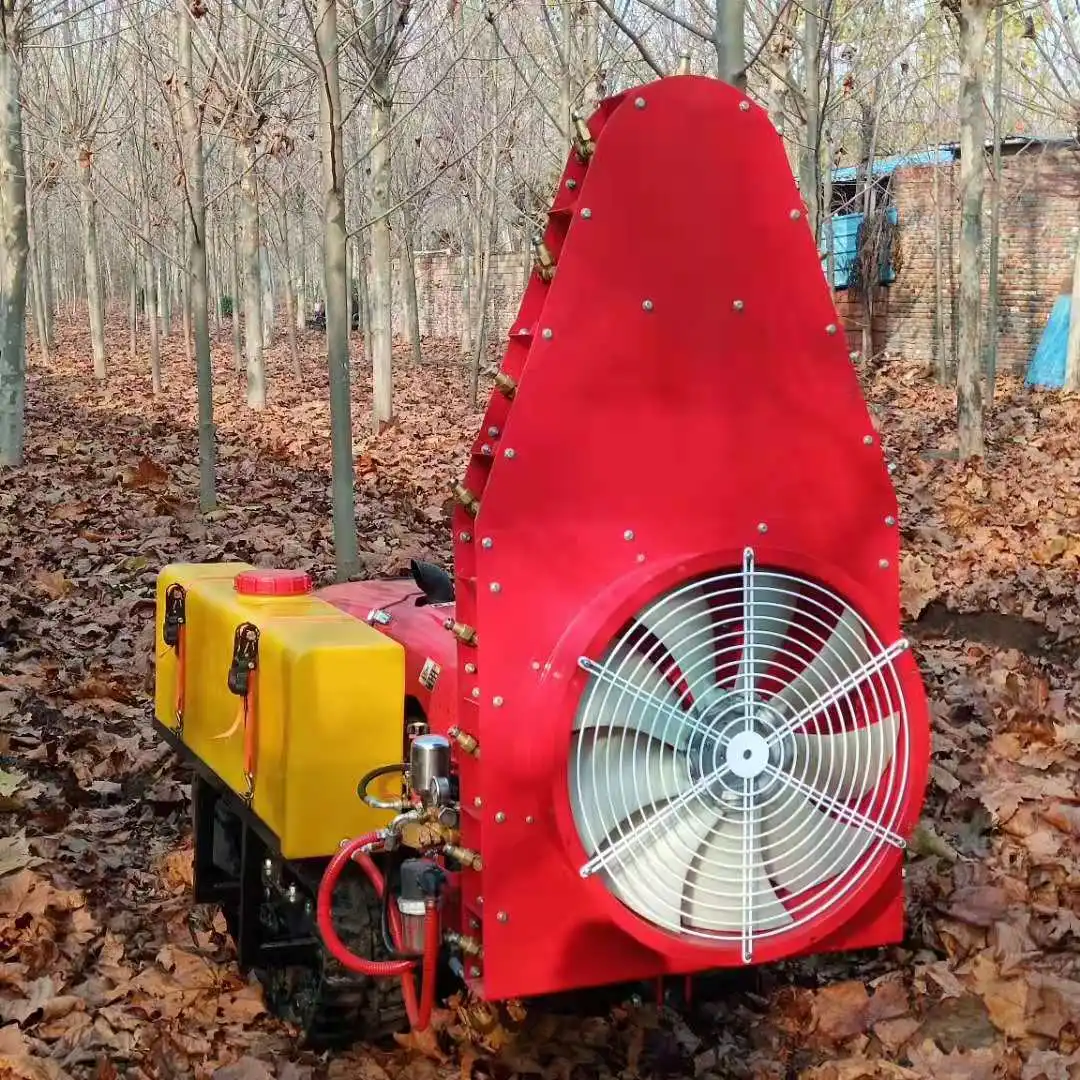

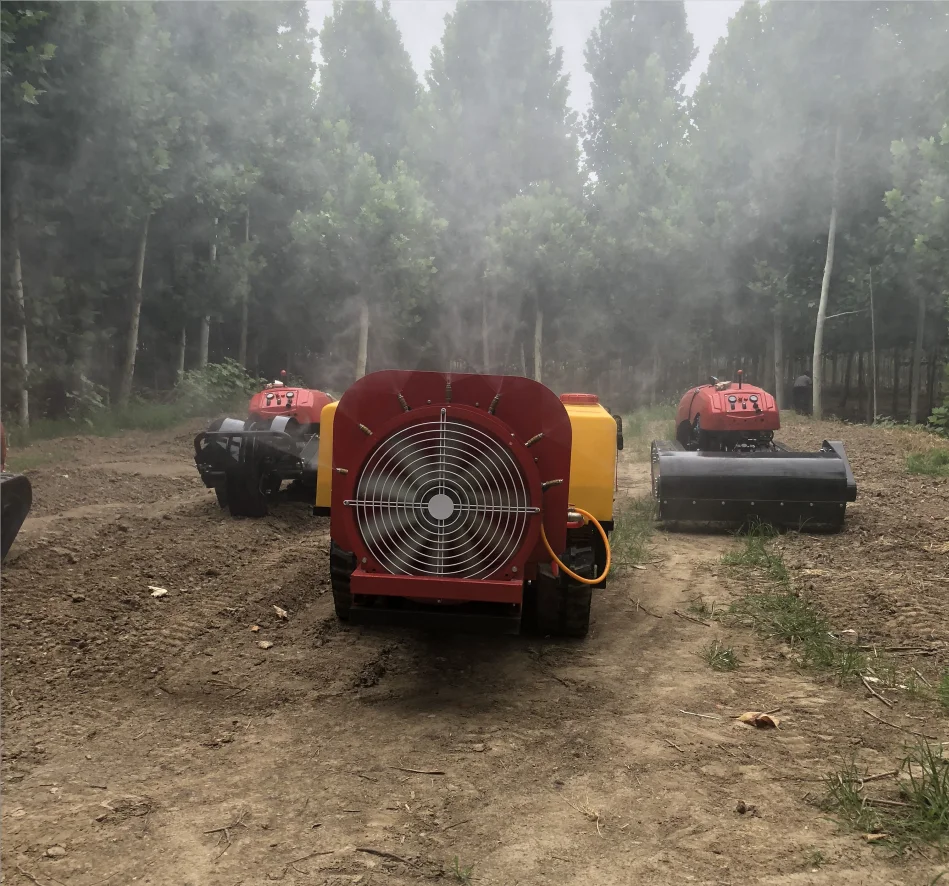

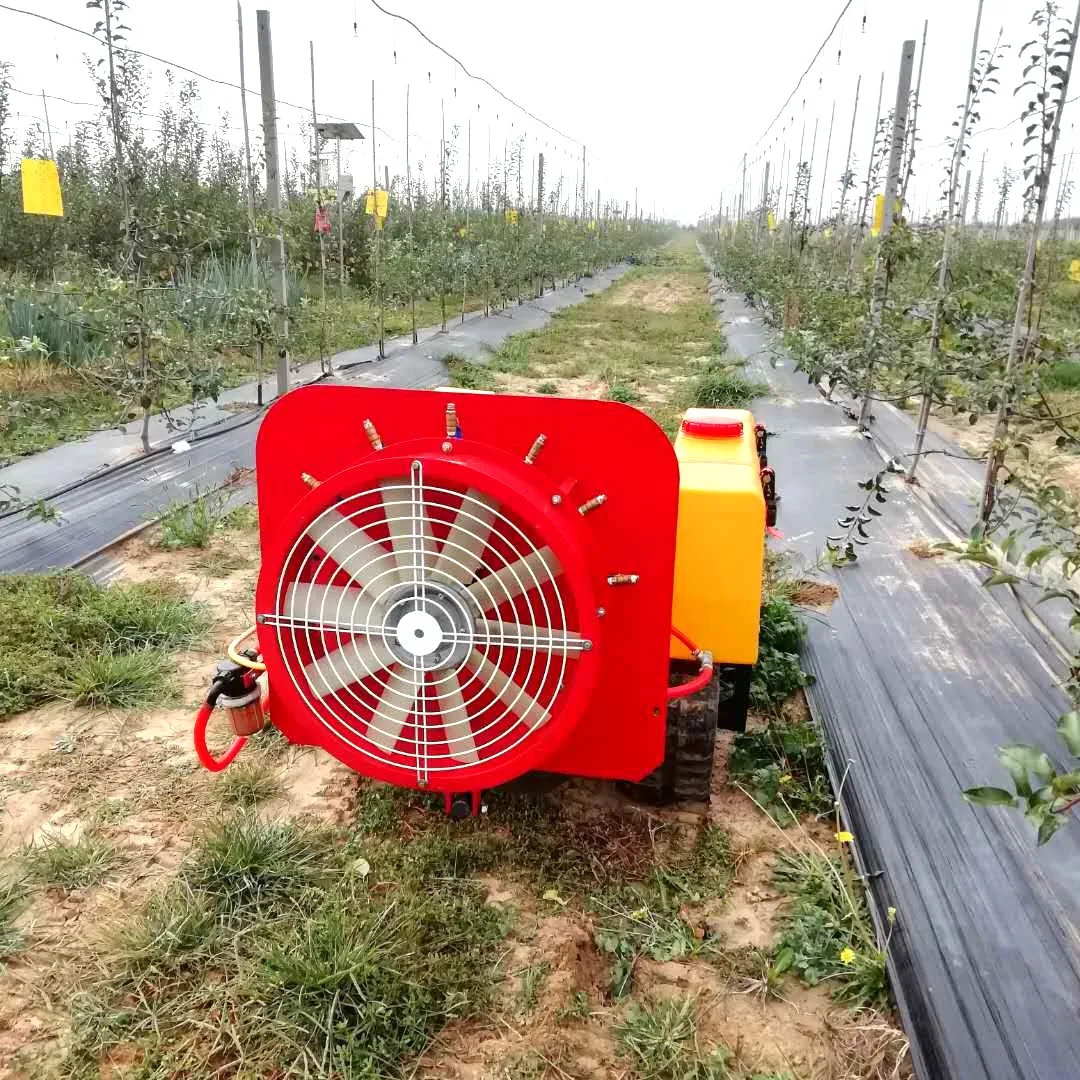

Sprayer parameters | ||
Spray nozzle | 7pcs | |
Tank capacity | 160L*2 | |
Spray height | 5-6m | |
Spray width | 10-12m | |
Size | 2800*1200*1100mm | |
Fertilizer drill parameters | ||
Fertilization depth | 15-20cm | |
Tank volume | 150L | |
Type | Ditching, fertilizing and covering multi-function | |
Ridging parameters | ||
Ridge height | 20cm | |
Ridge bottom width | 70cm | |
Ridge width | 40cm | |
Ditch width | 30cm | |
Unilateral width | 25cm | |
Back fill parameters | ||
Backfill width | 110cm | |
Spindle speed | 550rpm/min | |
Type | Spiral type | |

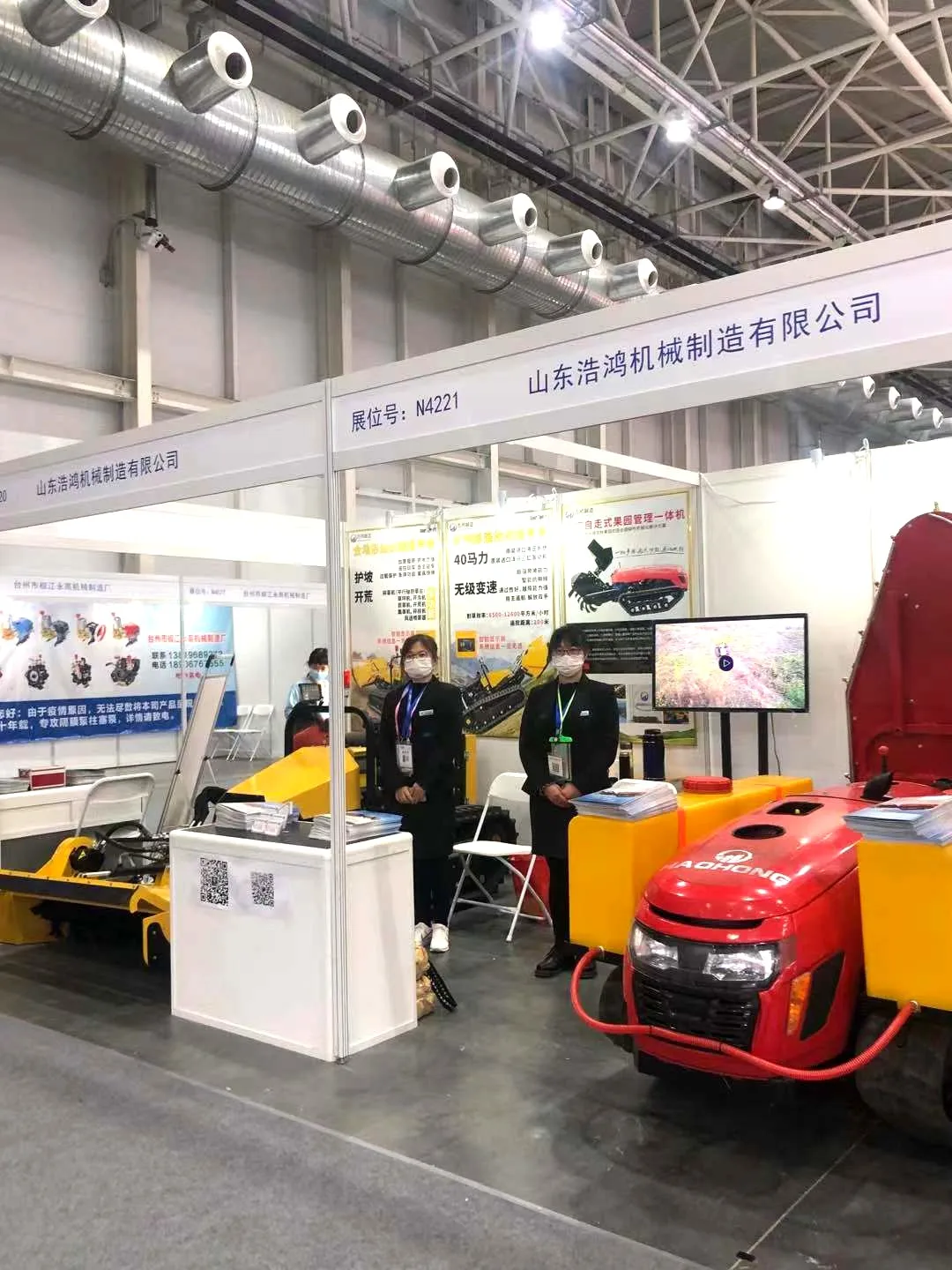

Exhibition

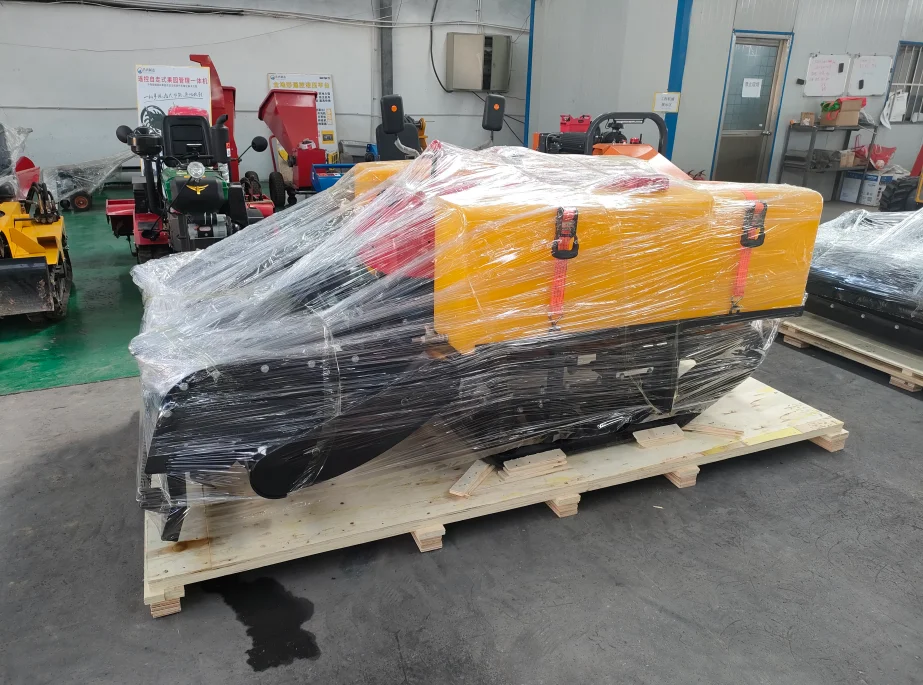

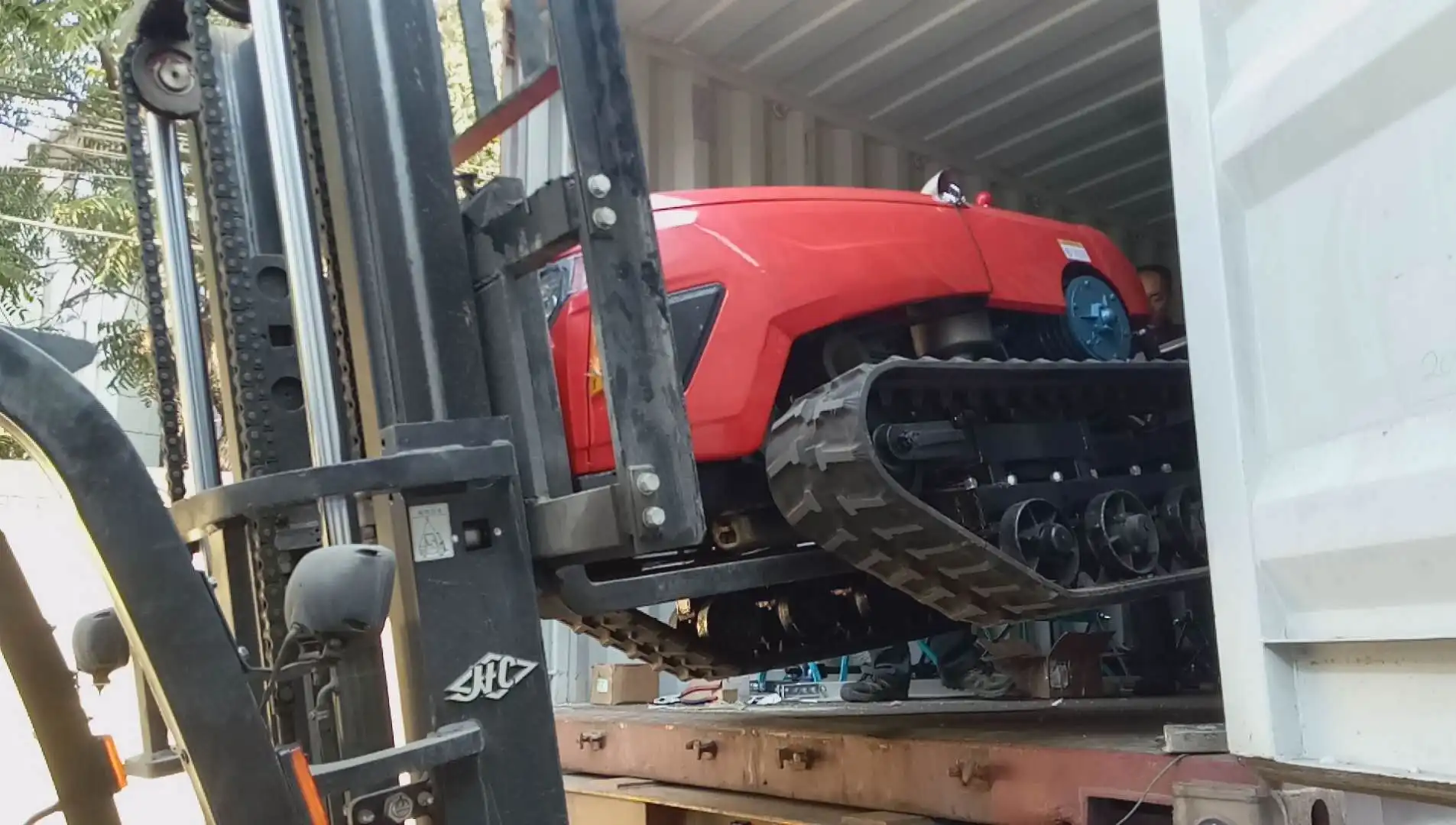

Packing&Shipping
