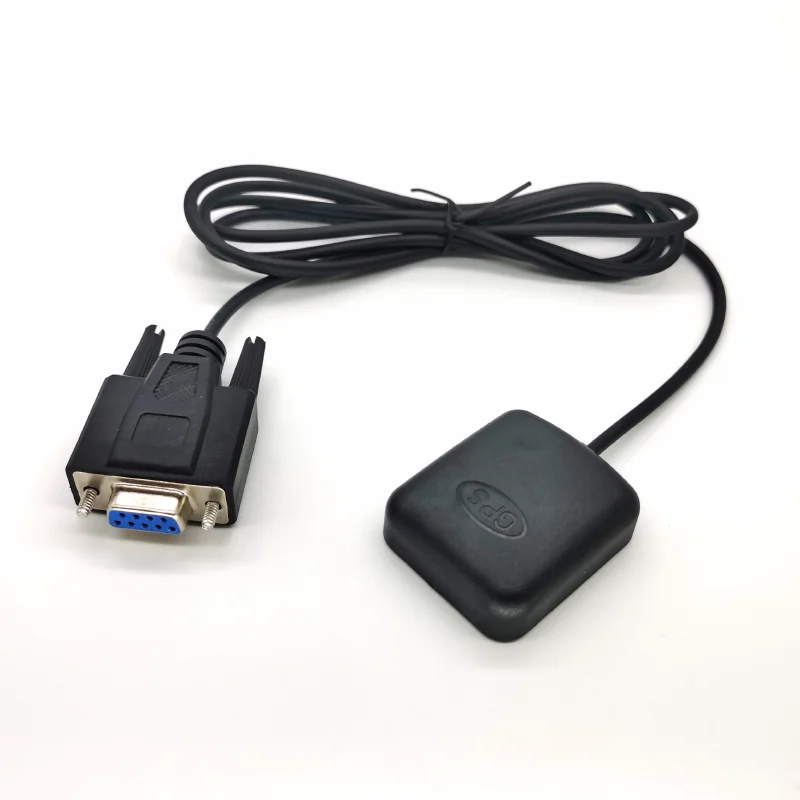

UBX M10050 KB GNSS RS232 GPS Receiver Antenna NMEA 0183 Dual mode waterproof DB9 GPS Mouse
- Category: >>>
- Supplier: Shenzhen Bainianxing Technology Co. Ltd.
Share on (1600518379500):
Product Overview
Description
Product Description
♦ Features：
● Build on the latest excellent performance and accuracy, low-power consumption u-blox UBX-M10050-KB chipset
● Build on the latest excellent performance and accuracy, low-power consumption u-blox UBX-M10050-KB chipset
● Maximum position availability with concurrent reception of 4 GNSS
● Exceptional sensitivity and acquisition times for all L1 GNSS systems
● Low power consumption: 17mA @3.3V
● Higher position accuracy: 1.5m CEP
● Ultra-high sensitivity: -167dBm
● Extremely fast TTFF at the low signal level
● Built-in high gain LNA
● Extremely fast TTFF at the low signal level
● Built-in high gain LNA
● Support Standard NMEA 0183（4.11) and UBX binary protocol.
● Communication type: RS232 level

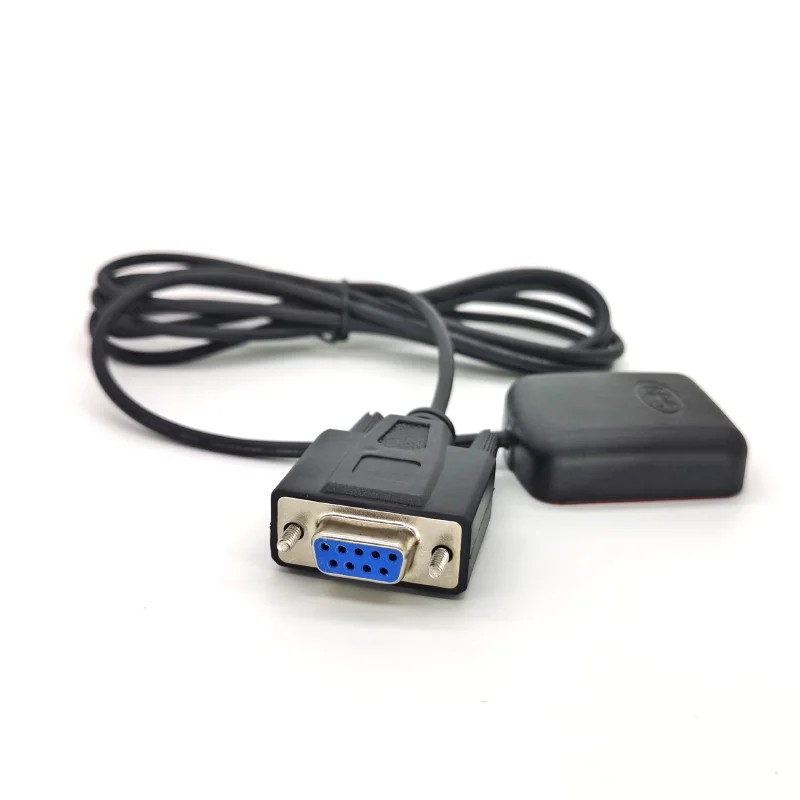

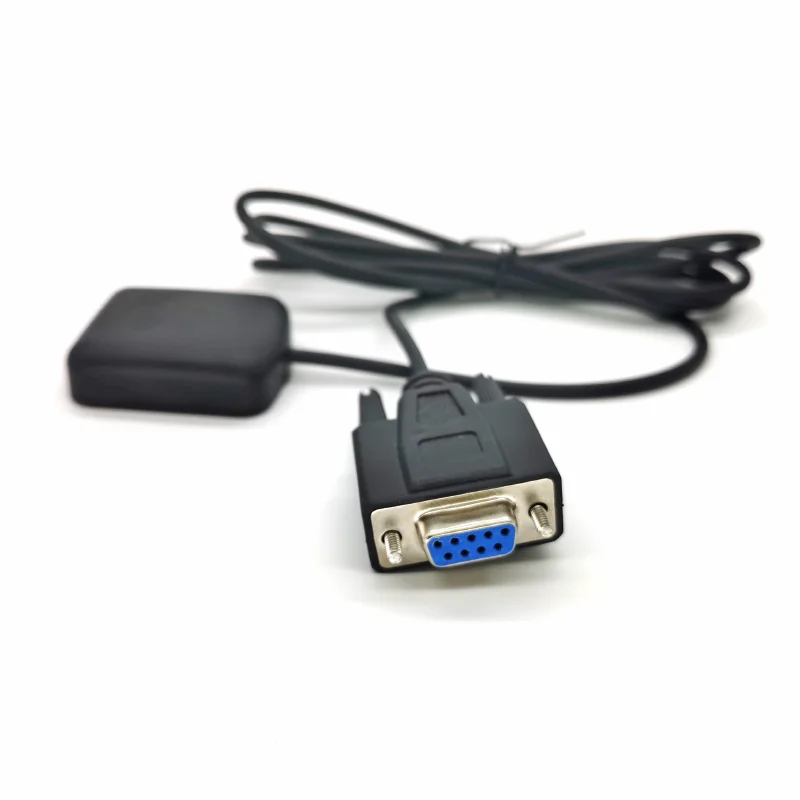

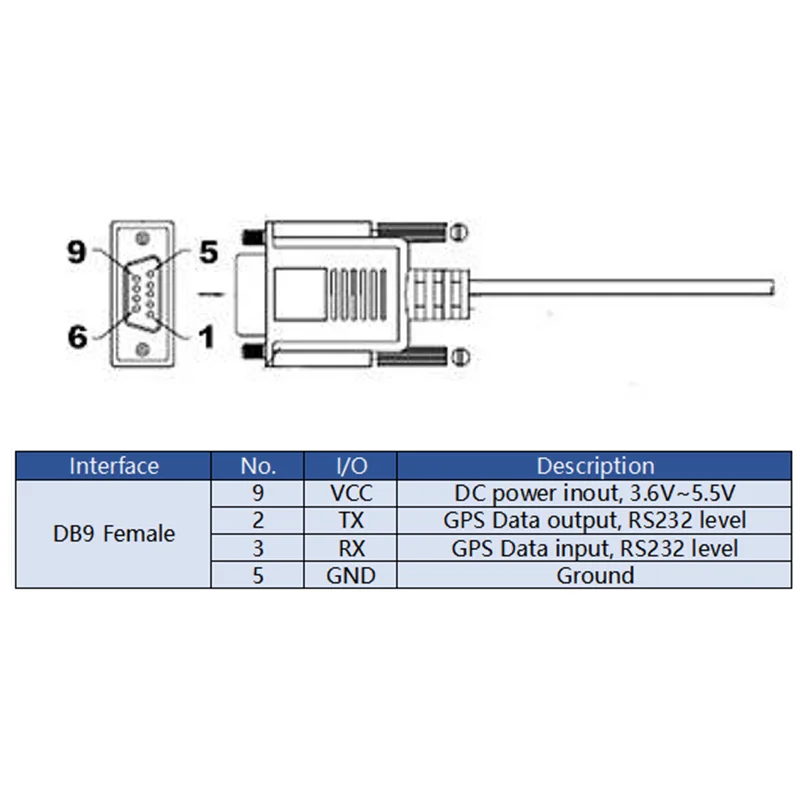

● Wire interface type: DB9 female port, L=1.5 meters
● RoHS compliant (Lead-free)
● Communication type: RS232 level
● Wire interface type: DB9 female port, L=1.5 meters
● RoHS compliant (Lead-free)
Product Parameters
● The GPS Receiver going to ship is based on the default parameters in the table below.
● For your customized requirements on the GPS receiver module, like chip,baud rate,
● For your customized requirements on the GPS receiver module, like chip,baud rate,
connector type,cable length,pin assignment,ect, please kindly contact us before purchasing,
thank you!
Item | Description | ||
Spec of Chip | Chip | UBX-M10050-KB | |
Receiving mode | Support GPS, GLONASS, BeiDou, GaliLeo, QZSS and SBAS, default GPS+Galileo | ||
Frequency | GPS L1 C/A QZSS L1 C/A/S, GLONASS L10F, BeiDou B1I/B1C, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN | ||
Sensitivity | Tracking | -167dBm | |
Reacquisition | -161dBm | ||
Cold start | -148dBm | ||
Hot start | -157dBm | ||
Accuracy | Horizontal accuracy | 1.5m CEP | |
Velocity | 0.1m/s 95%(SAoff) | ||
Timing | 60ns | ||
Cold start | 24s | ||
Warm start | 1s | ||
Hot start | 1s | ||
Baud rate | Default 38400bps | ||
Communication type | RS232 level | ||
Output protocol | NMEA 0183 (4.11) | ||
Single GNSS | Up to 10Hz | ||
Standard GNSS | Default 1Hz | ||
Work Limit | Altitude | 80000m Max | |
Velocity | 515m/s | ||
Gravitational Acceleration | 4g Max | ||
Power Consumption | Voltage | 5.0V | |
Current | Normal 23mA 5.0V | ||
Physical Parameters | Size | 48mm*35mm*13.5mm | |
Weight | 80g | ||
Cable length | Default 1.5m | ||
Connector type | DB9 female port | ||
Antenna | Antenna | Built in active antenna | |
Output Protocol | Default Protocol | RMC, VTG, GGA, GSA, GSV, GLL | |

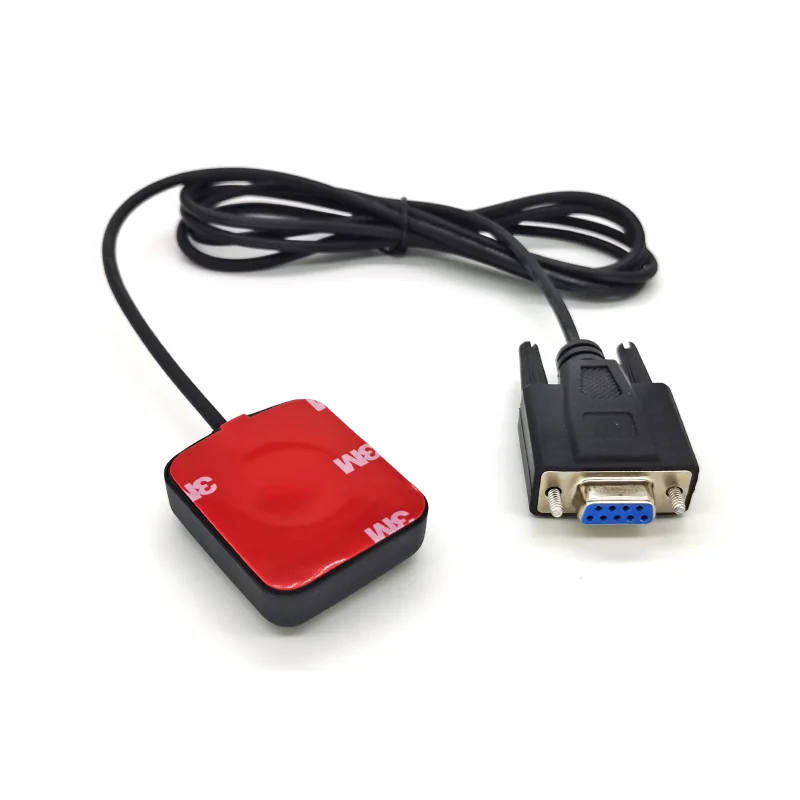

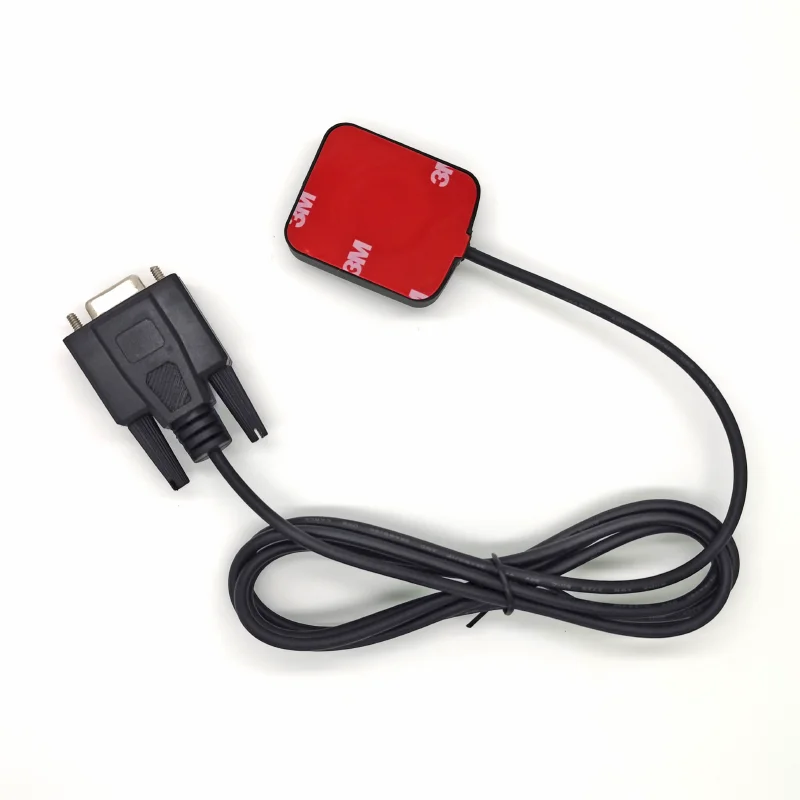

Fixation | adhesive tape/magnet | 3M double-sided adhesive tape by default | |
Environment | Operating temperature | -40℃ to +85℃ | |
Storage temperature | -40℃ to +100℃ | ||
♦ Applications：
● Car DVR
● Car RearView Mirror
● Car Tracker
● LBS (Location Based Service)
● PND (Portable Navigation Device)
● Tablet
● PND (Portable Navigation Device)
● Tablet
● Outdoor Equipment
● Handheld GPS Device. ect.
Higher positioning precision and accuracy in complex urban environment:

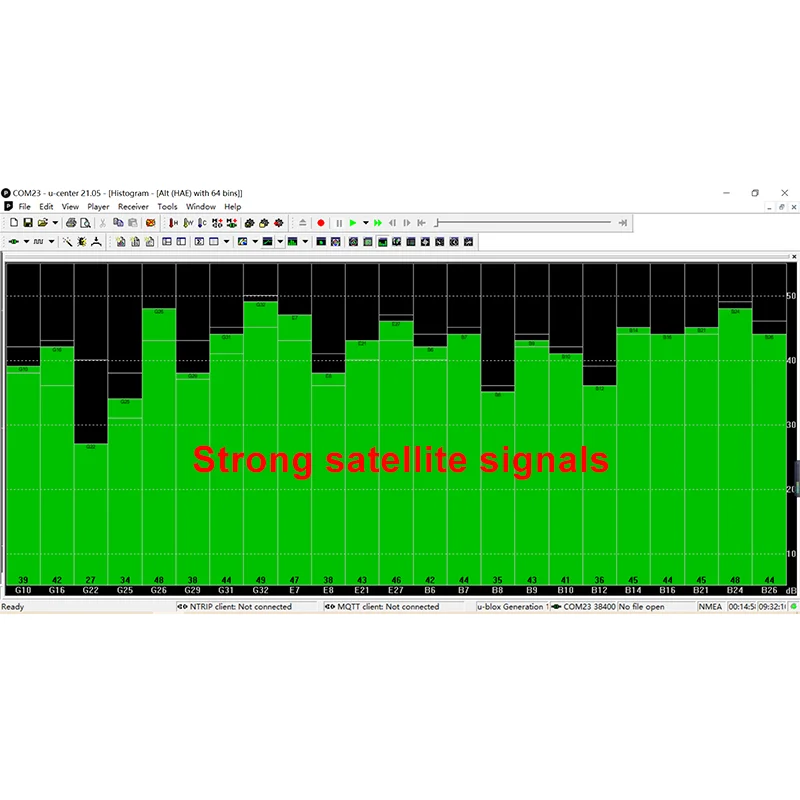

♦ Signal testing sample:
Testing environment:Open Sky,stationary
