3 Layers Plastic PP PE HDPE PPR Hot Cold Water supply Conduit Gas Pipe Tube Extruder Making Machine
- Category: >>>
- Supplier: Qingdao Hanhai Plastic Machinery Co. Ltd.
Share on (1600518380462):
Product Overview
Description
Product Description
HDPE Water And GasTube PPR Pipe Making Machine
This production line developed by Hanhai company is featured of unique structure, high degree of automatic, easy operation and stable reliable continuous manufacture performance. It consists of the following seven parts:
NO. | Name | Quantity |
1 | Single screw extruder (with automatic feeding system) | 1set |
2 | Mould | 1set |
3 | Vacuum calibrating tank | 1set |
4 | Water cooling tank | 1set |
5 | Haul-off machine | 1set |
6 | Cutting machine | 1set |
7 | Bracket | 1set |
HDPE PPR Pipe Making Machine produced by our machine has the moderate rigidity&strength, good flexibility, creep resistant,environmental stress crack resistance and favorable hot melting property.
Extruder Model | Pipe Diameter (mm) | Production Capacity (kg/h) | Total Power (kw/h) |
SJ50 | 16~63 | 100~150 | 75 |
SJ65 | 75~160 | 300~350 | 160 |
SJ75 | 200~400 | 600~700 | 280 |
SJ90 | 450~630 | 800~850 | 350 |
SJ120 | 710~1200 | 1200~1300 | 700 |
SJ150 | 1200~2000 | 1400~1500 | 1000 |
Detailed Images

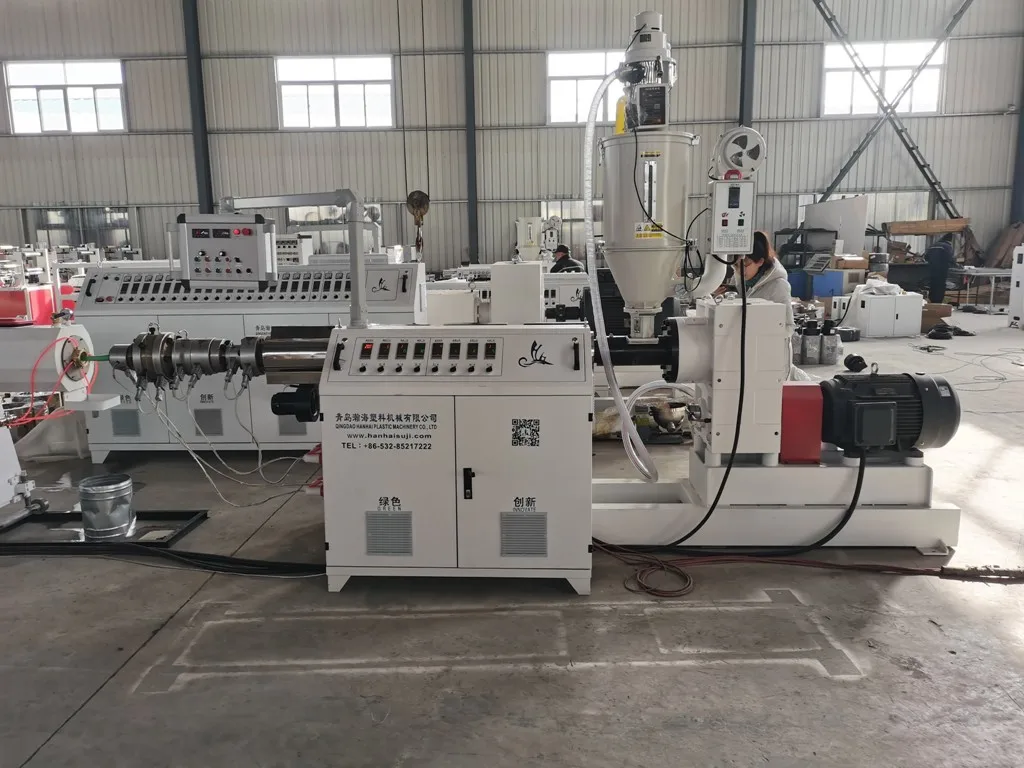

1.HDPE PPR Pipe Making Machine Single screw extruder
(with automatic feeding system)
(with automatic feeding system)
(1) Motor: Siemens
(2) Inverter: ABB/Delta
(3) Contactor: Siemens
(4) Relay: Omron
(5) Breaker: Schneider
(6) Heating method: Cast aluminum heating
(6) Heating method: Cast aluminum heating
(7) Material of screw and barrel: 38CrMoAlA.

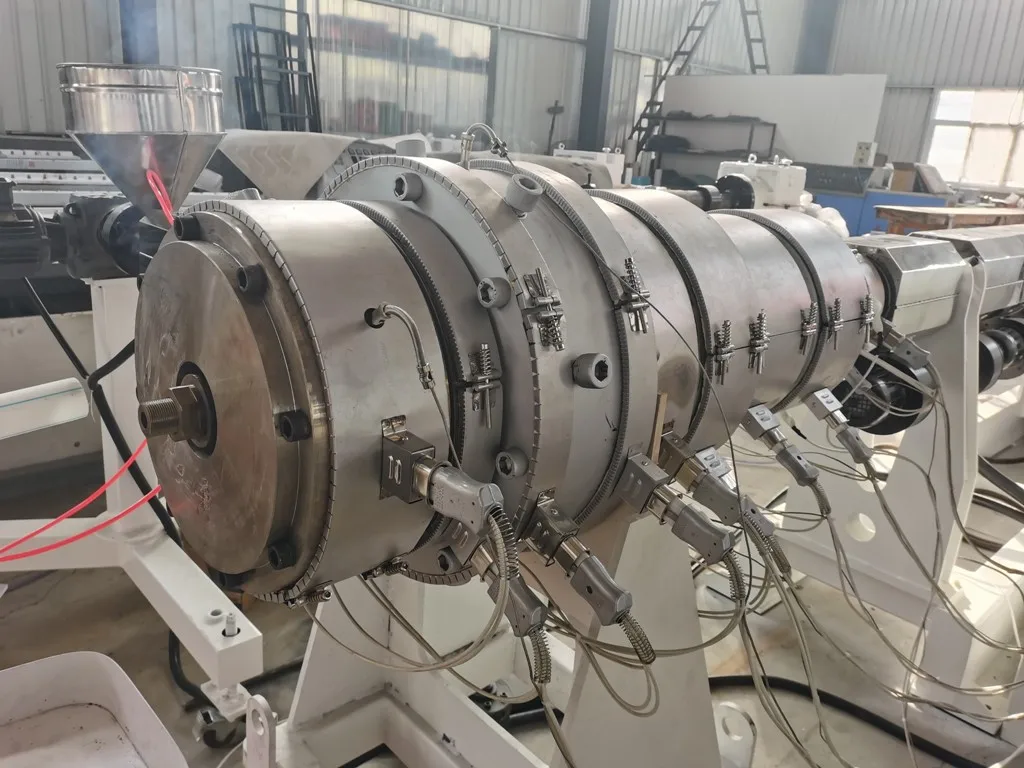

2.HDPE PPR Pipe Making Machine Mold
(1) Material: 40GR
(2) Size: Customized

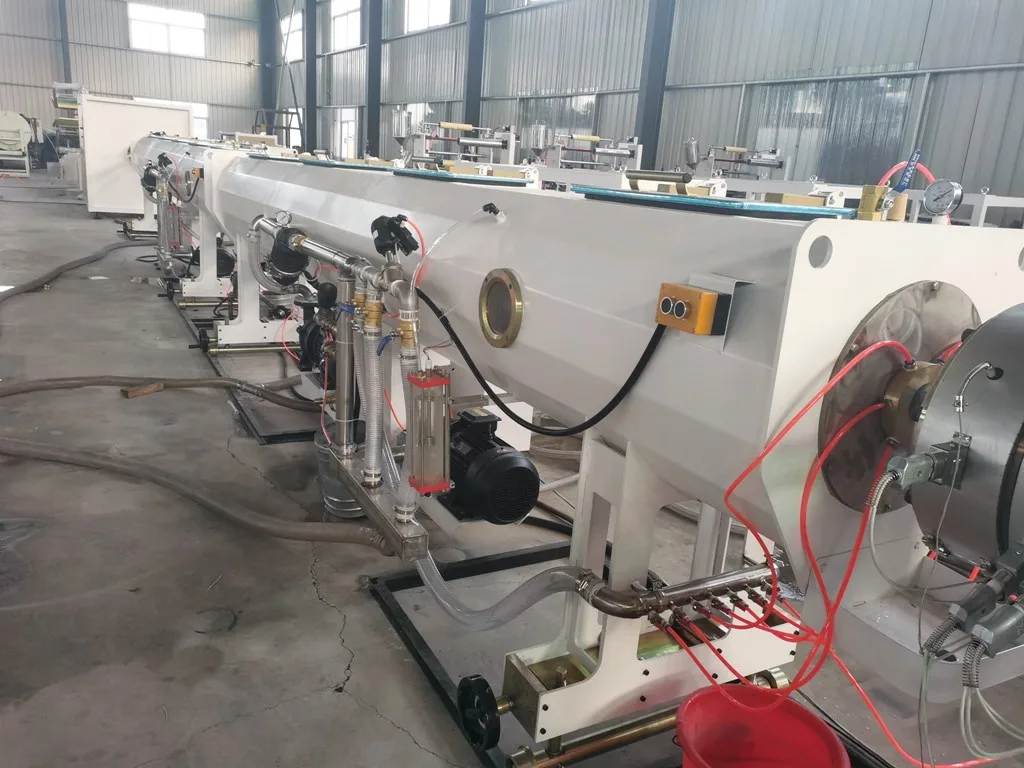

3.HDPE PPR Pipe Making Machine Vacuum calibrating tank
(1) Vacuum pump power : 5.5 kw
(2) Material: Stainless steel
(3) Diameter: Customized
(4) Length: 6 m
4.HDPE PPR Pipe Making Machine Water cooling tank
(1) Water pump power: 4 kw
(2) Material: Stainless steel
(3) Method: Enforced spraying
(4) Length of tank: 6 m

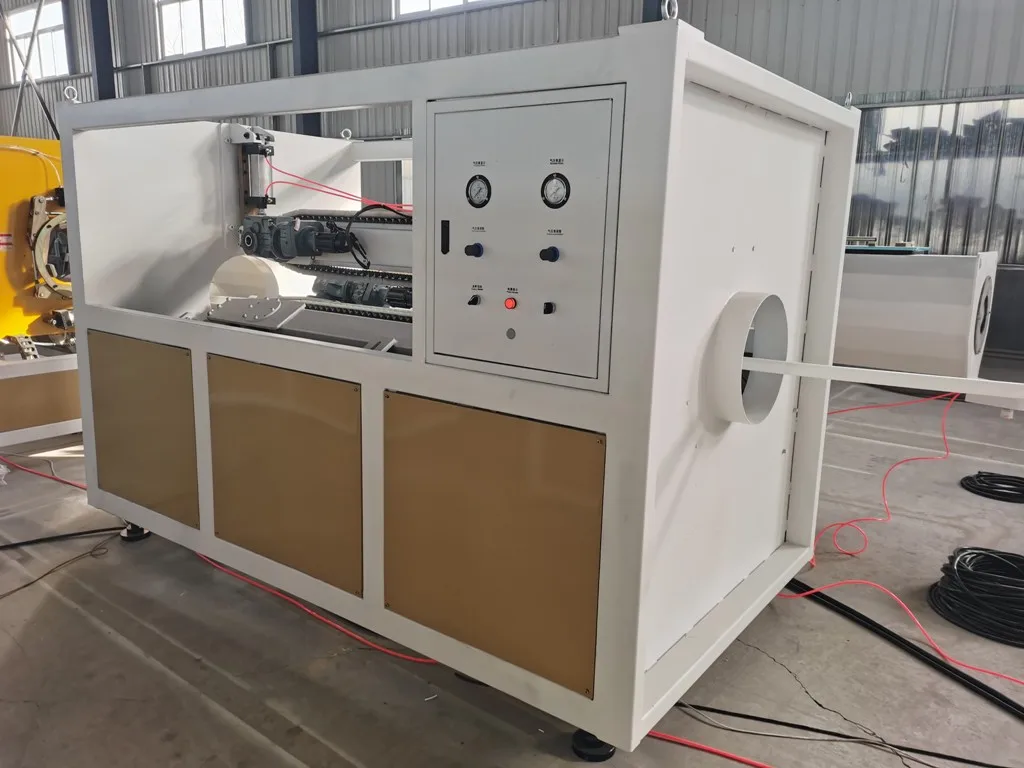

5.HDPE PPR Pipe Making Machine Haul-off machine
(1) Driving motor power: 2.2 kw
(2) Transducer: Siemens transducer
(3) hauling track type：110 plastic block
(4) Pressing method: Pneumatic pressing
(2) Transducer: Siemens transducer
(3) hauling track type：110 plastic block
(4) Pressing method: Pneumatic pressing
(5) Effective clamping length:1800 mm

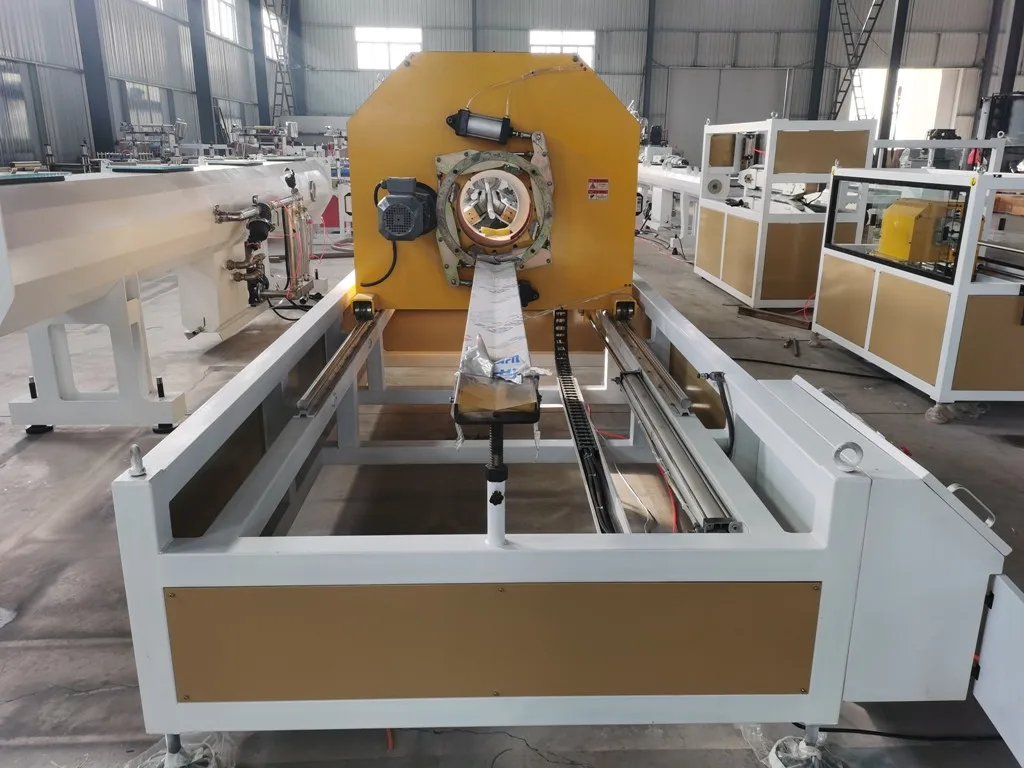

6.HDPE PPR Pipe Making Machine Cutting machine
(1) Motor power: 3 kw
(2) Method: Saw cutting
(3) Cutting scope: Customized
(3) Cutting scope: Customized
(4) PLC control system, using meter counter or sensor switch for the setting of desired length.
7.HDPE PPR Pipe Making Machine Bracket
(1) Length: 12 m
(2) Material: Stainless steel
(3) Unloading method: Pneumatic unloading
Final products
HDPE PPR Pipe Making Machine You just tell me what machine you want，let us do the rest work:
1. Design and manufacture suitble machine for you.2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers; (3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
3. Delivery.
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers; (3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
Reviews by customers
Certificates
Cooperation Brands
FAQ
1.Are you manufacturer or trading company?
We are manufacturer.
2.Why choose us?
We have 20 years experience for producing machine.We can arrange for you to visit our local customer's factory.
3.Delivery time:
30 days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C（at sight).
5.After-sales service:
Free Spare Parts ;
We are manufacturer.
2.Why choose us?
We have 20 years experience for producing machine.We can arrange for you to visit our local customer's factory.
3.Delivery time:
30 days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C（at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty:
1 year.
Video/Online technical support.
6.Warranty:
1 year.
