Price:$4,820,000.00

Quantity:


Product Overview

Description



Product Description

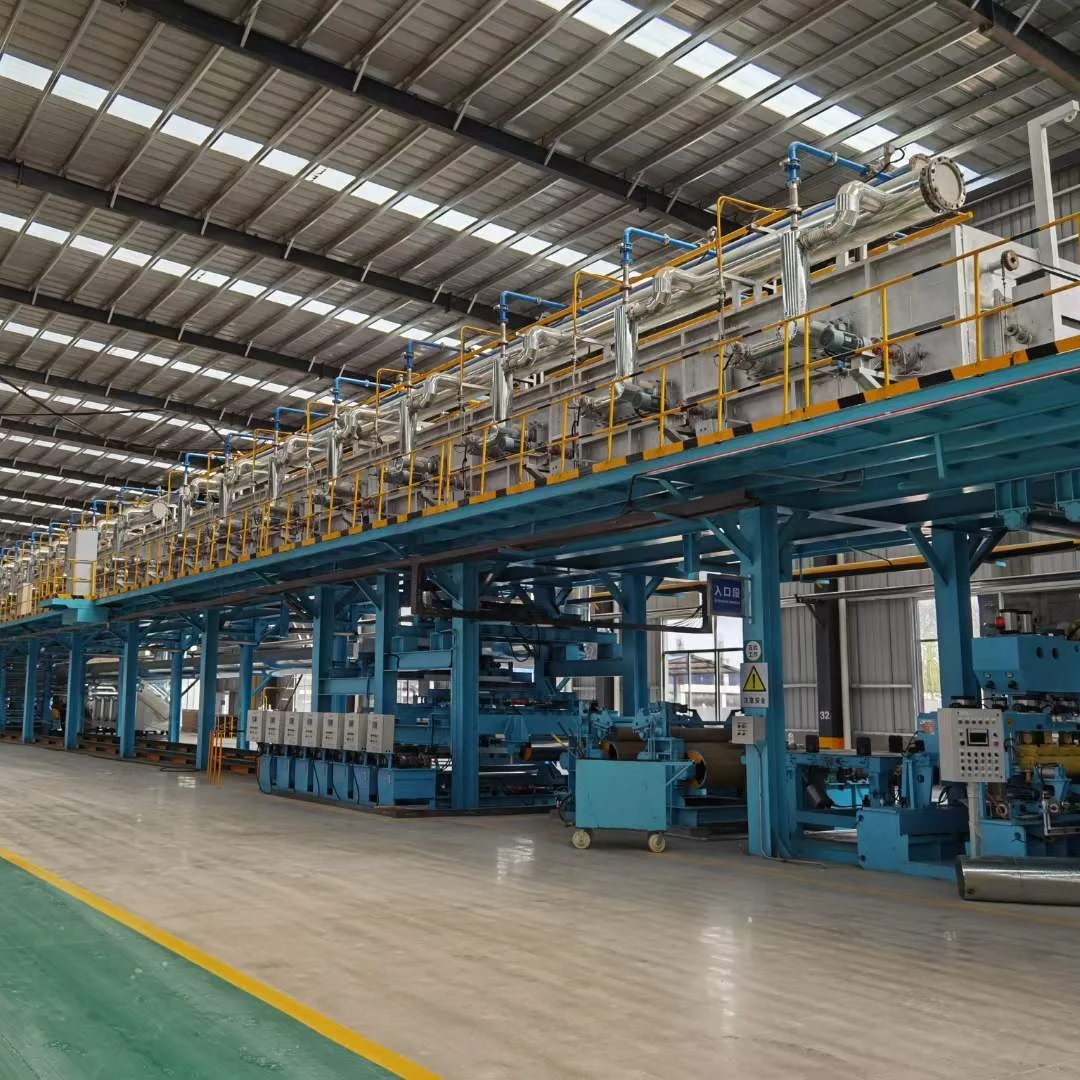

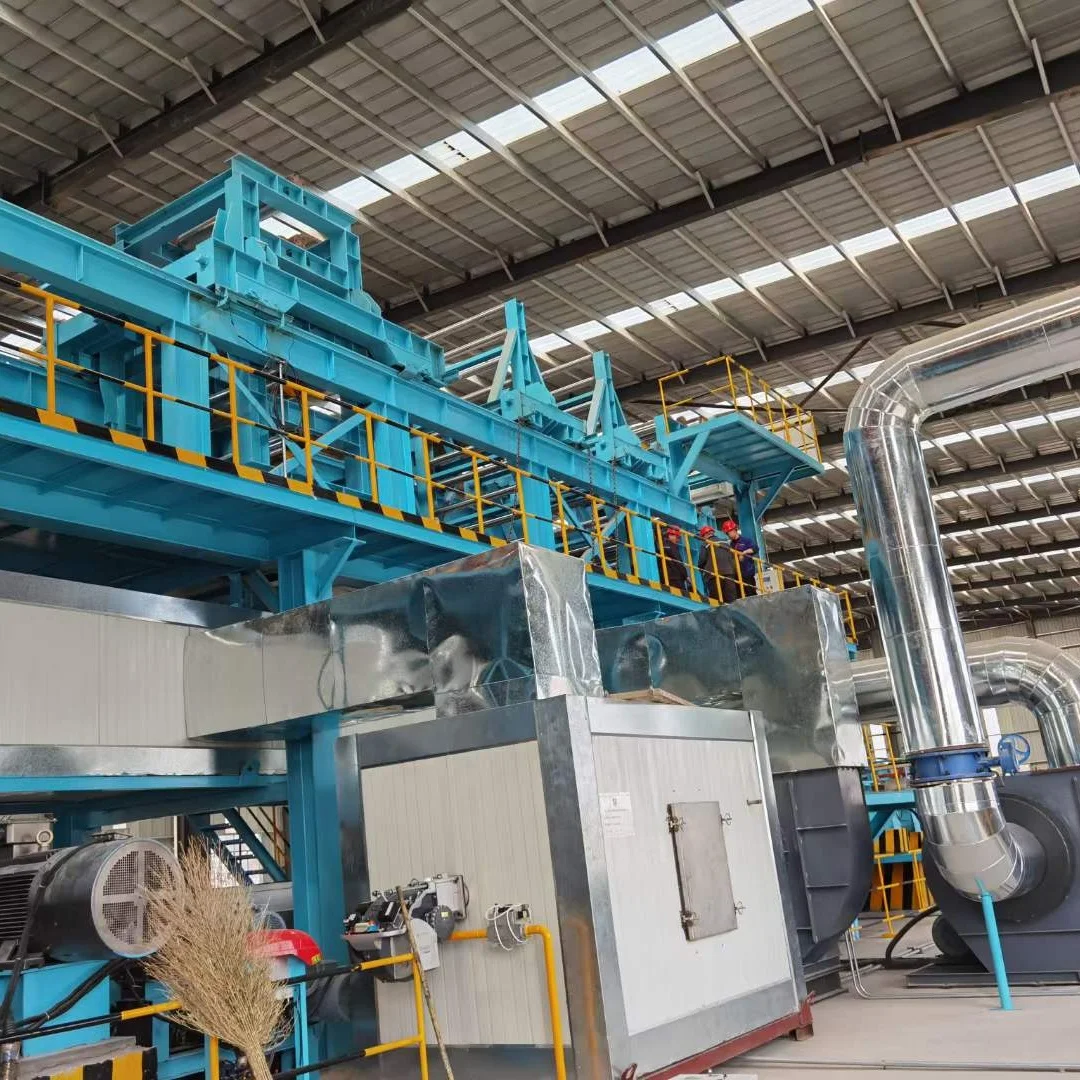

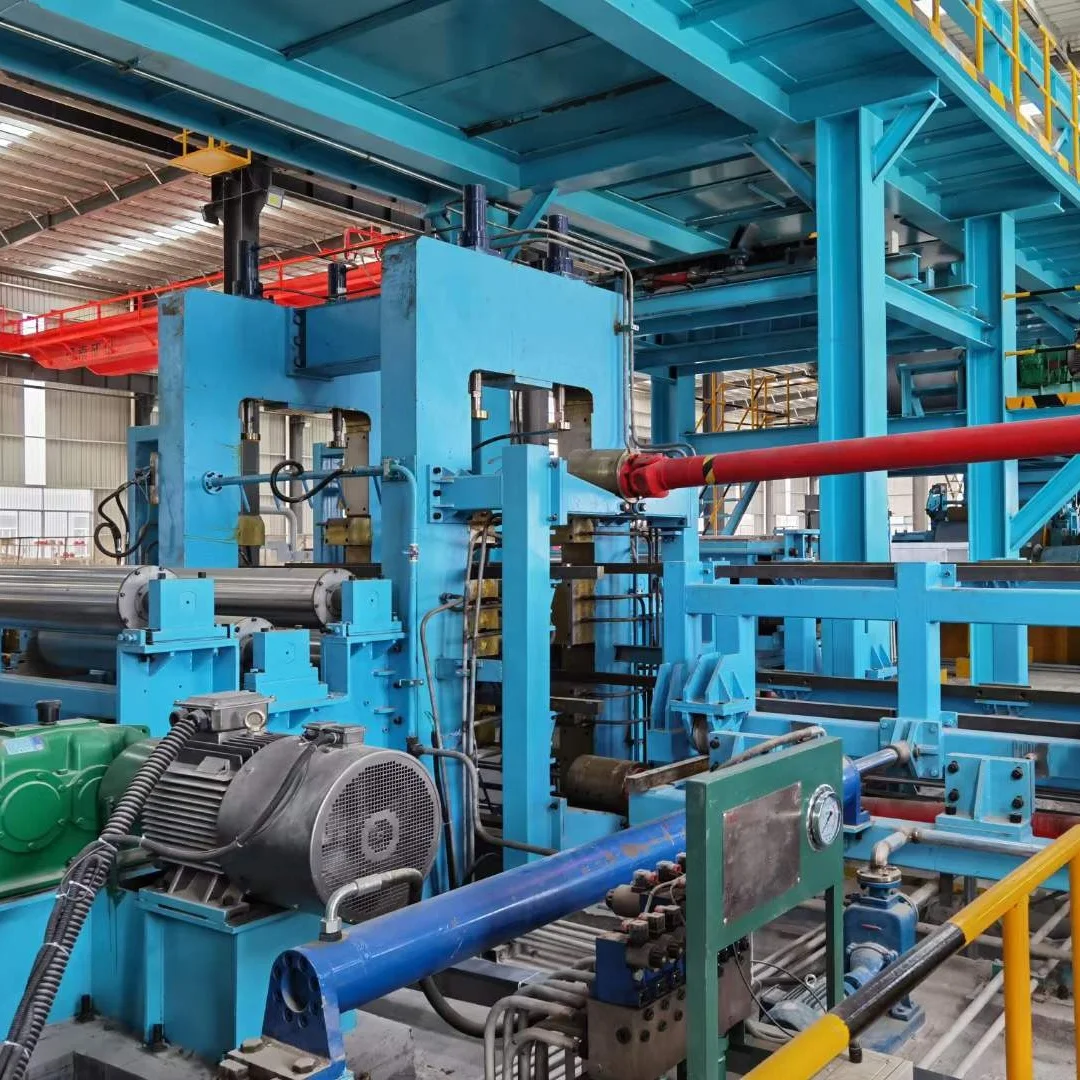

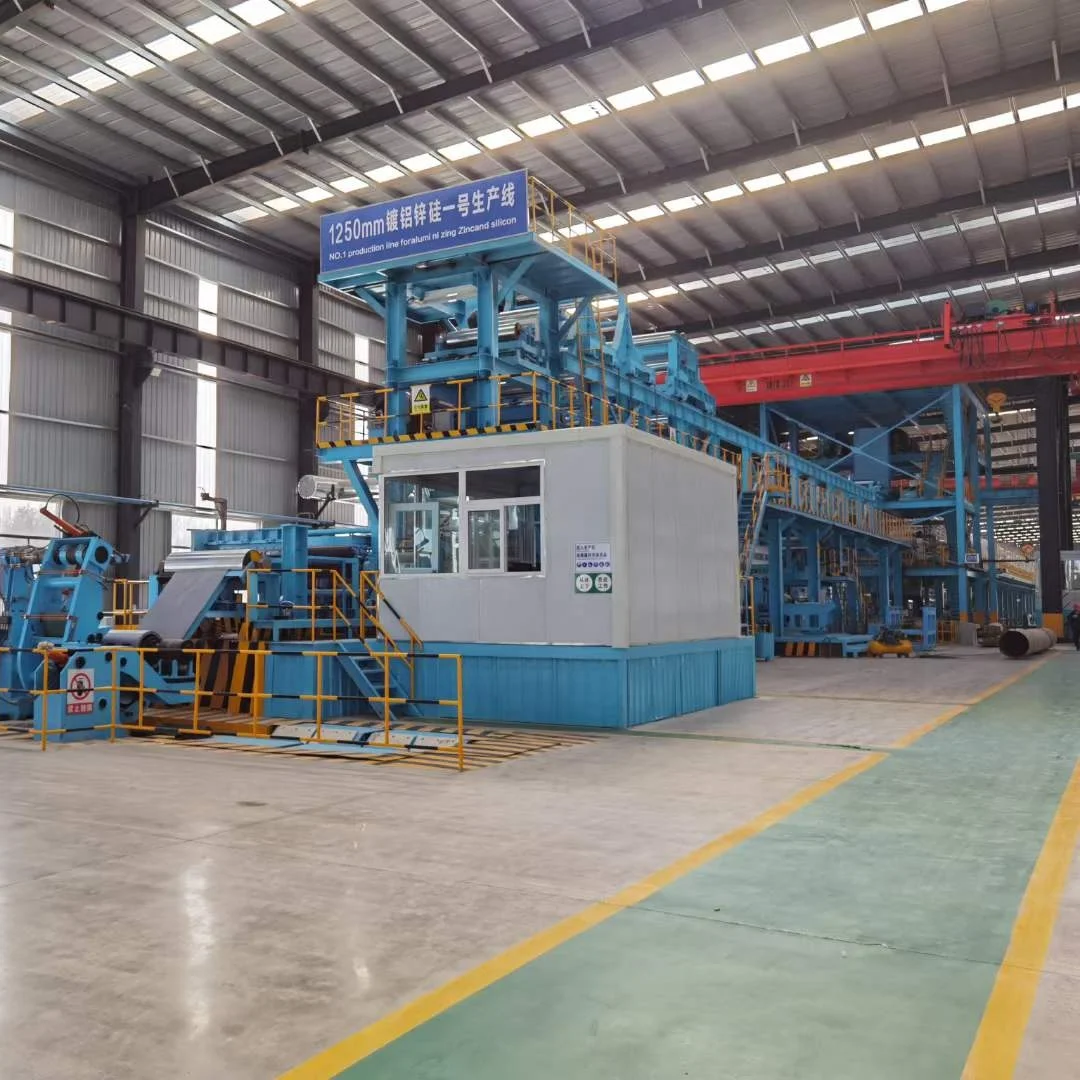

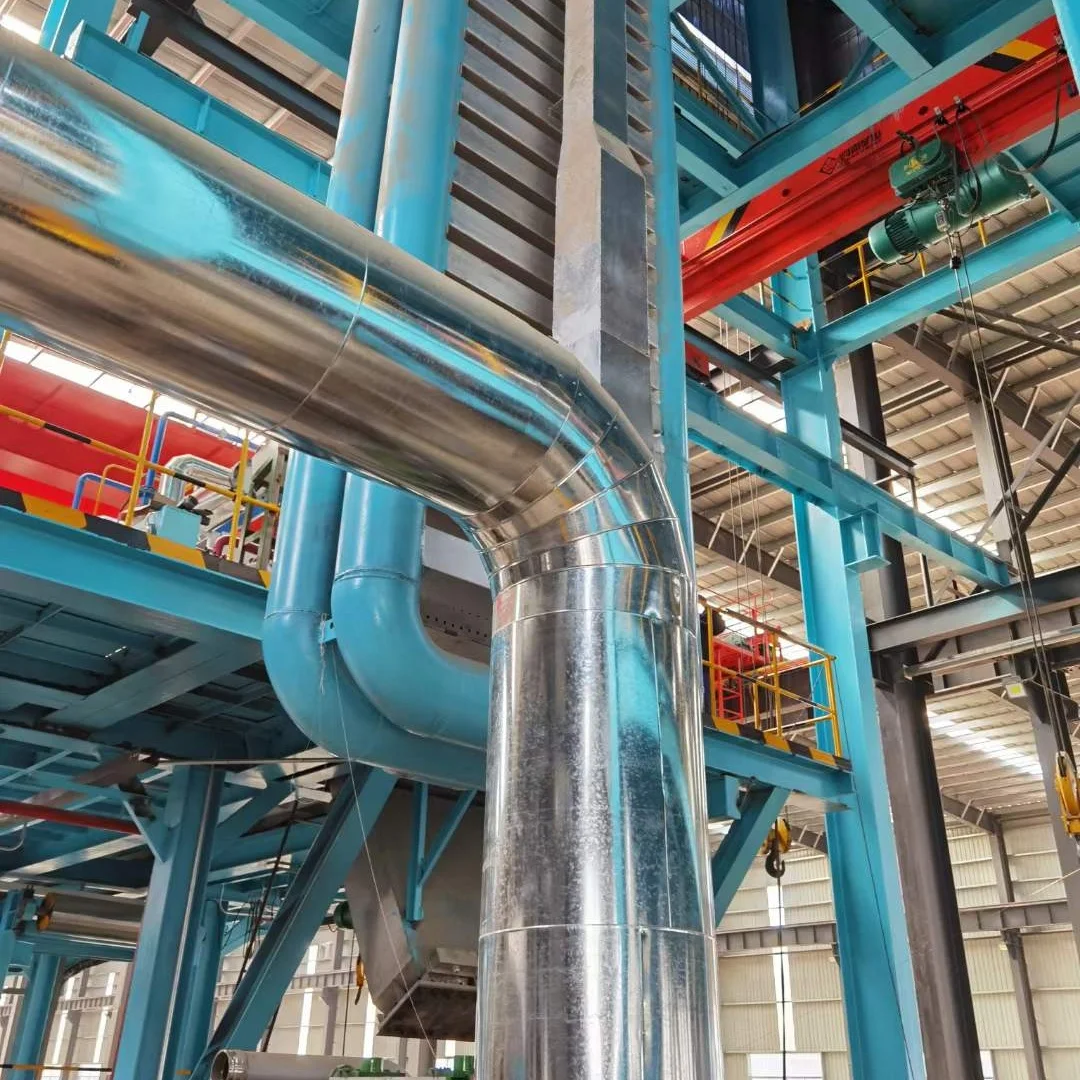

Continuous Hot Dip Galvanizing Line for Cold Rolled Strip Steel Annealed

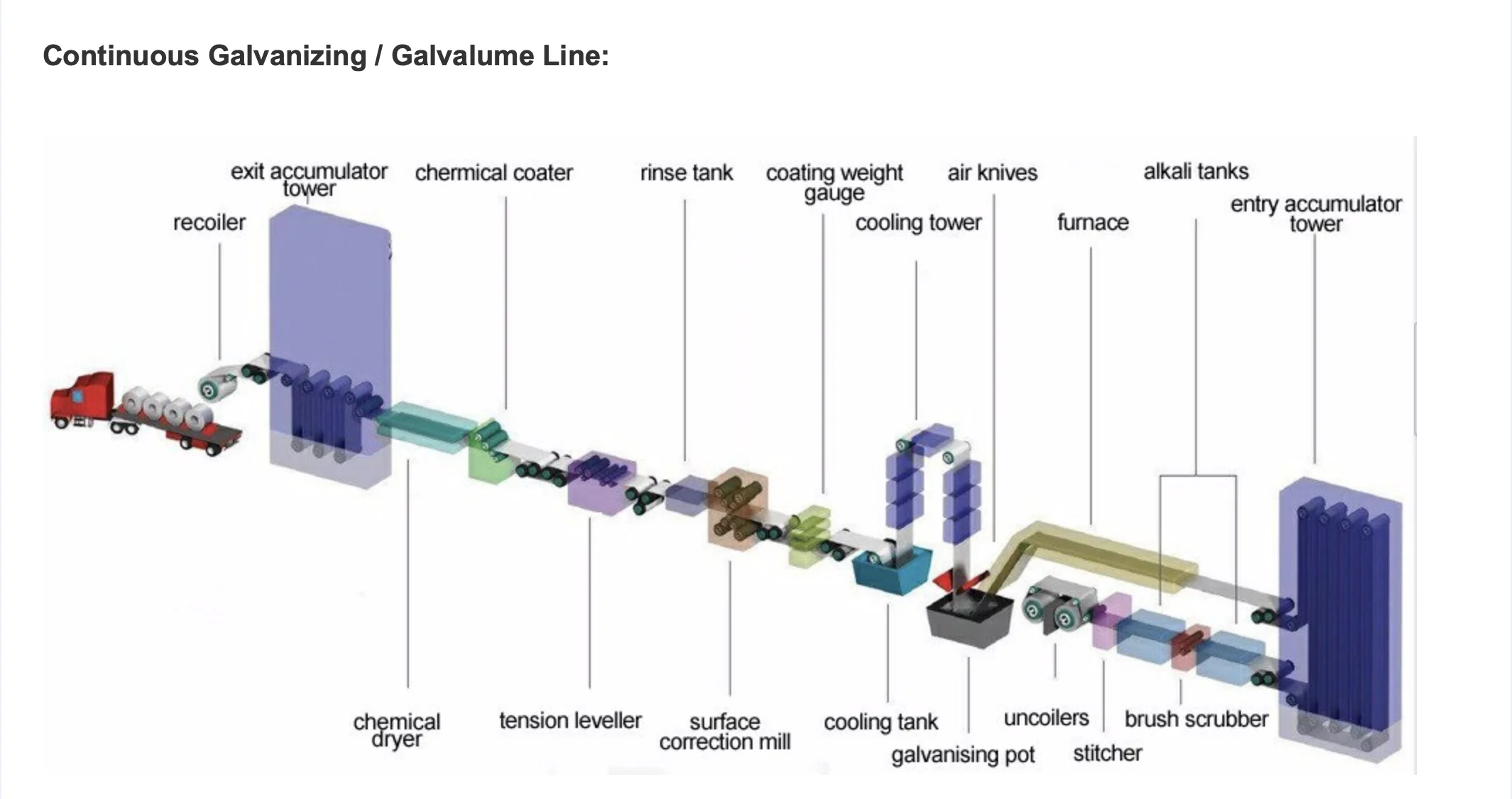

The continuous hot - dip galvanizing/galvalume line is a set of equipments that plating a layer of zinc or aluminum alloy on the strip while in high temperature. The production line was composed of uncoiler, welder, storage tank, degreasing section equipments, continuous annealing furnace, zinc pot, air knife, skin pass, tension leveler, oiler, shear, recoiler and other equipments.




Raw Material:
Cold-rolled hard-state steel coil, SPCC, SPCD
Thickness:
0.1-2.5mm
Width:
650-1650mm
Coating weight:
60-275g / m2 (double-side) ± 5g / m2 adjustable
Steel Coil weight:
Max 25 tons
Product grade:
CQ, DQ, DDQ
Capacity:
100,000-300,000 MT/Y
Energy saving:
Heat recovery system from waste gas
Function:
Annealing reduction, galvanizing, finishing, straightening








Packing & Delivery






1. Export standard wooden cases packed in suitable container.
2. Cooperate with reliable shipping company to ensure the delivery time.
3. Customized Packing is allowed.


About us


REACHFLY ENVIRONMENT TECHNOLOGY CO., LTD.
We are manufacturer of metal strip coils processing equipment.
We can supply and install (turnkey project):
1.Coils Color Coating Line - CCL
2.Continuous Galvanizing/ Galvalume Coating Line - CGL
3.Slitting Line
4.Tension leveler Line
5.Skinpass Mill Line




Pre Sales Service
1) The Machine Layout will be designed according to your factory conditions.
2) Providing a Sample Project for customer to visit.
3) Machine Manufacturing progress (with some photos).
After Sales Service
1) Tracking the running condition of machine.
2) Provide 12 months guarantee as well as full spare parts for free.
3) Life long technical support.
4) Installation and training service (Optional).




FAQ


1. Do you offer custom service?
● Of course, most of our machines are built according to customers specifications, using top brand name components.


2. How to ensure the quality?
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years.
● After all the equipment are completed, we will assembling all the machines and run parts testing for at least 12 hours to ensure the stable running in customers' factory.


3.Do you provide after-sales service?
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● We will arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.


YOU ARE WELCOME TO OUR FACTORY AT ANY TIME!
