Product Overview
Description
Product Overview

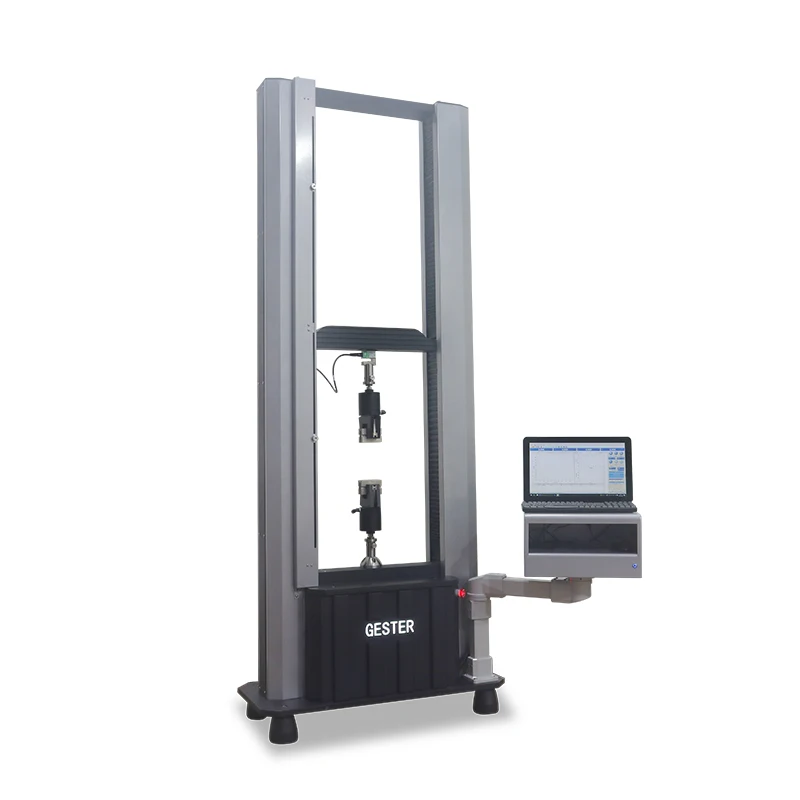

Universal Material Testing Machine Universal Tensile Strength Tester For Sale
Universal Material Testing Machine Universal Tensile Strength Tester For Sale is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.
Standard
ISO13934-1, 13934-2, 13935-1, 13935-2, 13936-1, 13936-2, 13936-3, 13937-2, 13937-3, 13937-4, 1421, 2411, 2062, 4674-1, 5082, 9073.3, 9073.4, 9073.18
ASTM D 434, D751, D885 , D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735 .
BS 2543, 2576, 3320, 3424, 4303 ,
M&S P11, P12, P13, P14
JIS L1096
ISO13934-1, 13934-2, 13935-1, 13935-2, 13936-1, 13936-2, 13936-3, 13937-2, 13937-3, 13937-4, 1421, 2411, 2062, 4674-1, 5082, 9073.3, 9073.4, 9073.18
ASTM D 434, D751, D885 , D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735 .
BS 2543, 2576, 3320, 3424, 4303 ,
M&S P11, P12, P13, P14
JIS L1096
FEATURE
Universal Material Testing Machine Universal Tensile Strength Tester For Sale
1.The power system: servo motor and servo drivers and worm gear and rod reducer and ball screw.
2.Control system: adopting Pulse Command control method, it will be more accuracy and easy to control.
3.The speed control range: 0.001-1000 - mm/min.
4.The intermediate plate adjustment is both fast coarse and slow fine-tuning.
5.it will return to original site and save automatically ater testing.
6.Data transmission mode: RS232 transmission.

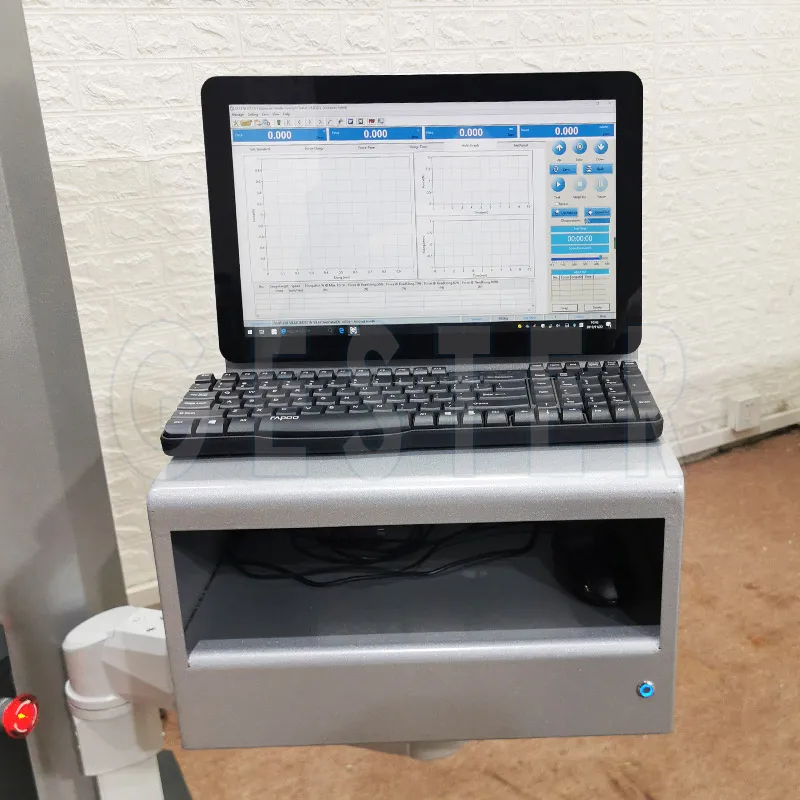

7.Display mode: computer screen display.
8.This instrument can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control
mode which can meet the test requirements of the ordinary.
9.Testing space: test width is 410 mm (standard)
10.The entire displacement: the encoder is 1800 P/R, it can improve 4 times accuracy
11.Using the LINE DRIVE encoder strong anti-interference ability displacement resolution 0.001 mm.
12.Safety device: overload emergency stop device, up and down stroke limit device, leakage automatic blackout system, automatic
breakpoint stop function.
2.Control system: adopting Pulse Command control method, it will be more accuracy and easy to control.
3.The speed control range: 0.001-1000 - mm/min.
4.The intermediate plate adjustment is both fast coarse and slow fine-tuning.
5.it will return to original site and save automatically ater testing.
6.Data transmission mode: RS232 transmission.
7.Display mode: computer screen display.
8.This instrument can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control
mode which can meet the test requirements of the ordinary.
9.Testing space: test width is 410 mm (standard)
10.The entire displacement: the encoder is 1800 P/R, it can improve 4 times accuracy
11.Using the LINE DRIVE encoder strong anti-interference ability displacement resolution 0.001 mm.
12.Safety device: overload emergency stop device, up and down stroke limit device, leakage automatic blackout system, automatic
breakpoint stop function.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | GT-C01-1A | GT-C01-1B | ||
Max. Capacity | 5KN | 10KN | ||
Dimensions(WxDxH) | 820x630x1800mm | 820x630x1600mm | ||
Display | Computer Display Mode | |||
Force Resolution | 1/100,000 | |||
Force Accuracy | ≤+/-0.2% | |||
Stroke Resolution | 0.001 mm | |||
Test Speed | 0.01-1000mm/min, Can Set by Computer | |||
Stroke Space | 1400mm | |||
Gantry Structure Width | 400mm | |||
Stop Mode | Overload Stop, Emergency Stop Button, Specimen Damage Automatic Stop, Upper & Lower Limit Set Automatic Stop, Automatic Return F unction | |||
Machine Drive | Servo Motor Drive, Synchronous Wheel and Precision Ball Screw Drive | |||
Power Supply | AC 220V 50/60HZ 10A | |||
Weight | 140kg | |||

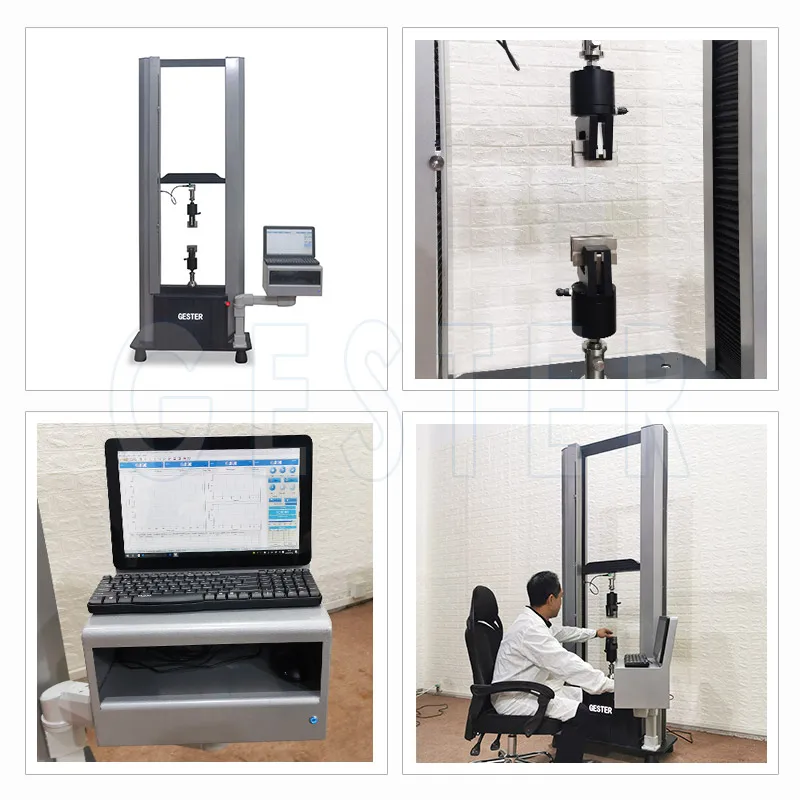

PRODUCT DETAILS IMAGE
