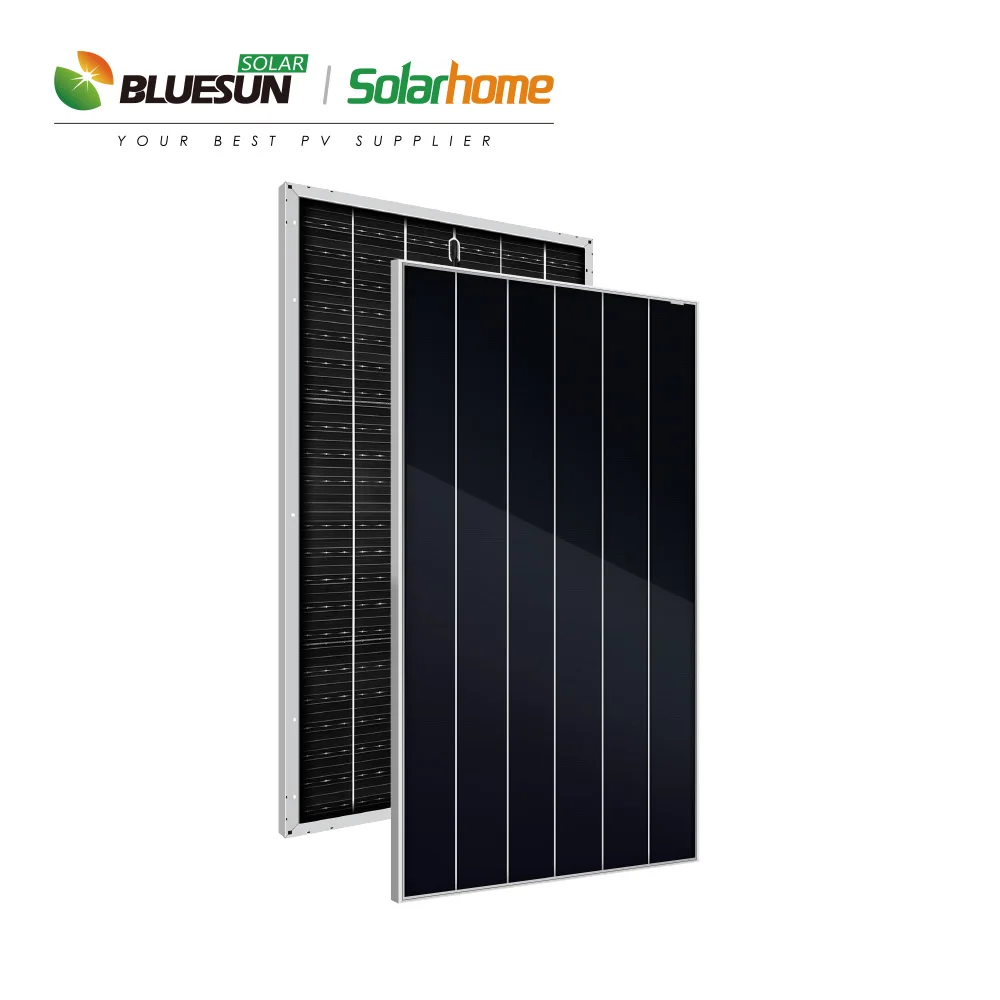

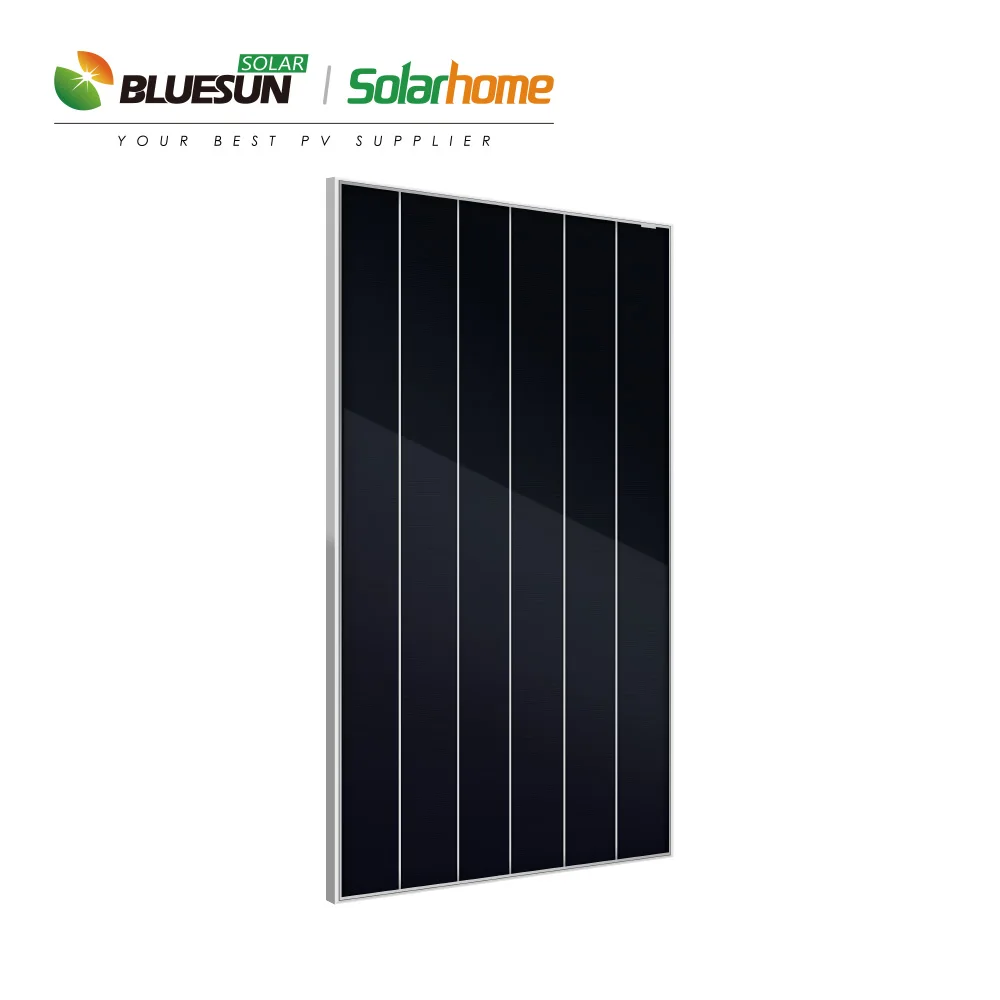

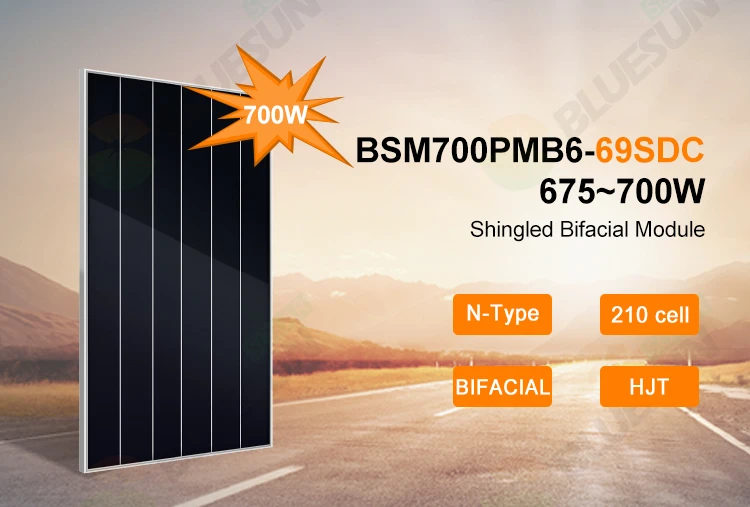

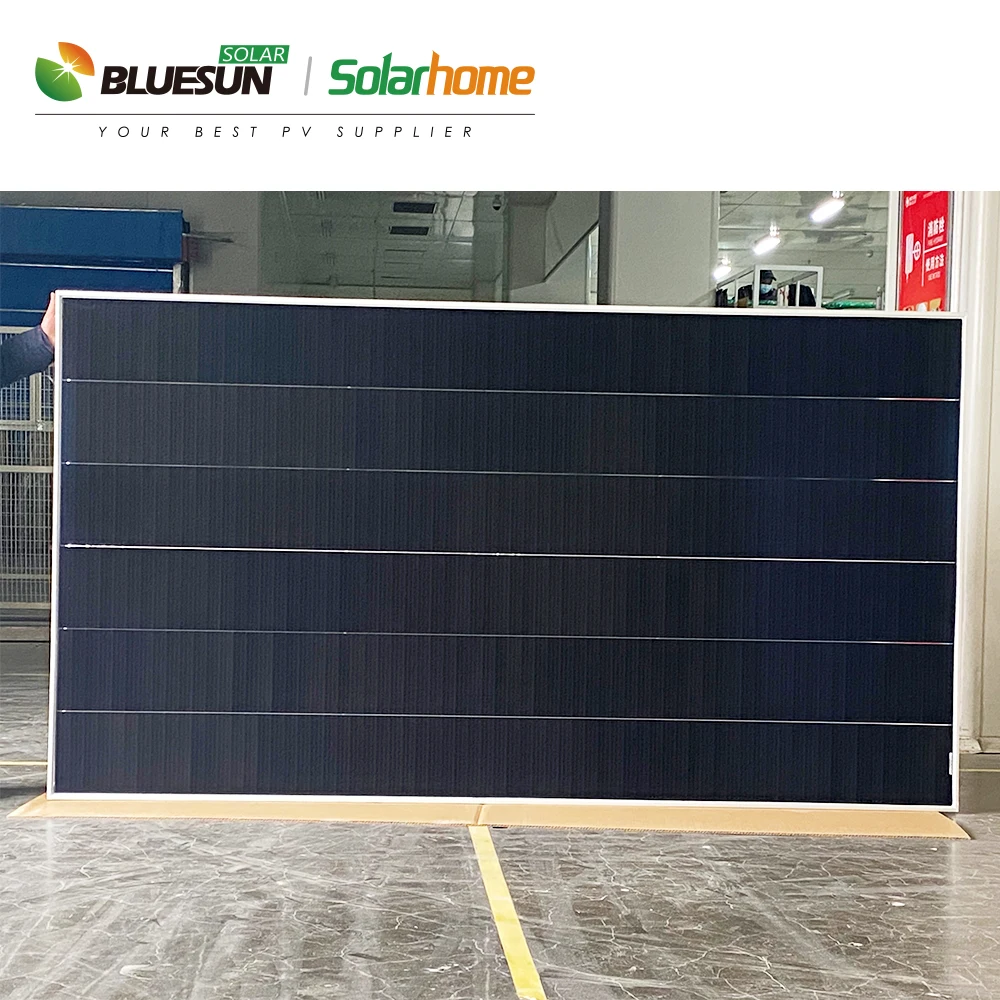

Bluesun Bificial solar panels 700w solar panel 700w monocrystalline solar panel N type
- Category: >>>
- Supplier: Bluesun Solar Co. Ltd.
Share on (1600518396899):
Product Overview
Description
Products Description
Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.
Bifacial Shingled Solar Panel Specification | ||||||||||||
Module Type | BSM675PMB6-69SDC | BSM680PMB6-69SDC | BSM685PMB6-69SDC | BSM690PMB6-69SDC | BSM695PMB6-69SDC | BSM700PMB6-69SDC | ||||||
STC | STC | STC | STC | STC | STC | |||||||
Maximum Power | 675 | 680 | 685 | 690 | 695 | 700 | ||||||
Operating Voltage (Vmpp/V) | 39.20 | 39.30 | 39.40 | 39.50 | 39.60 | 39.70 | ||||||
Operating Current (Impp/A) | 17.23 | 17.32 | 17.41 | 17.49 | 17.57 | 17.65 | ||||||
Open-Circuit Voltage (Voc/V) | 47.20 | 47.30 | 47.40 | 47.50 | 47.60 | 47.70 | ||||||
Short-Circuit Current (Isc/A) | 18.32 | 18.41 | 18.50 | 18.59 | 18.68 | 18.77 | ||||||
Module Efficiency n（%） | 21.90 | 22.10 | 22.30 | 22.50 | 22.60 | 22.80 | ||||||
STC: Irradiance 1000W/㎡ , Cell Temperature 25°C, Air Mass AM1.5 | ||||||||||||
Advantages Of Shingled Module
*Under the load of IEC 5400Pa, shingled has no new micro-cracks, although both shingled module and half-cell module passed the test(attenuation < 5%).
*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.

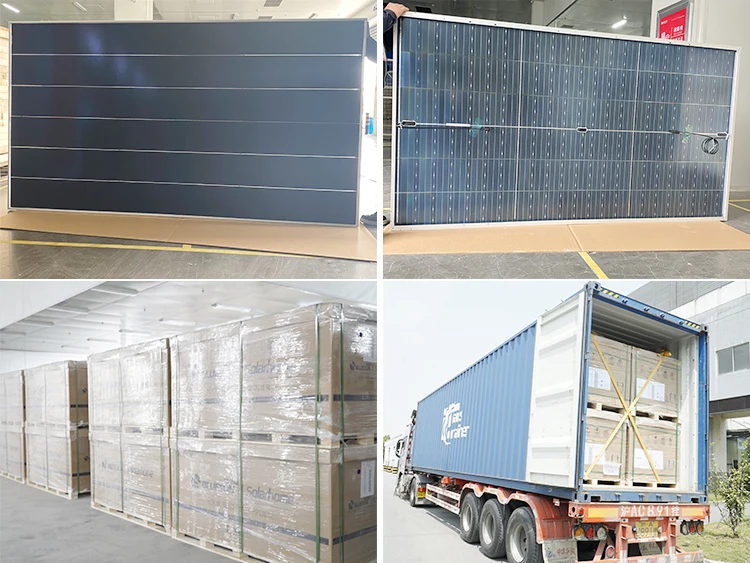

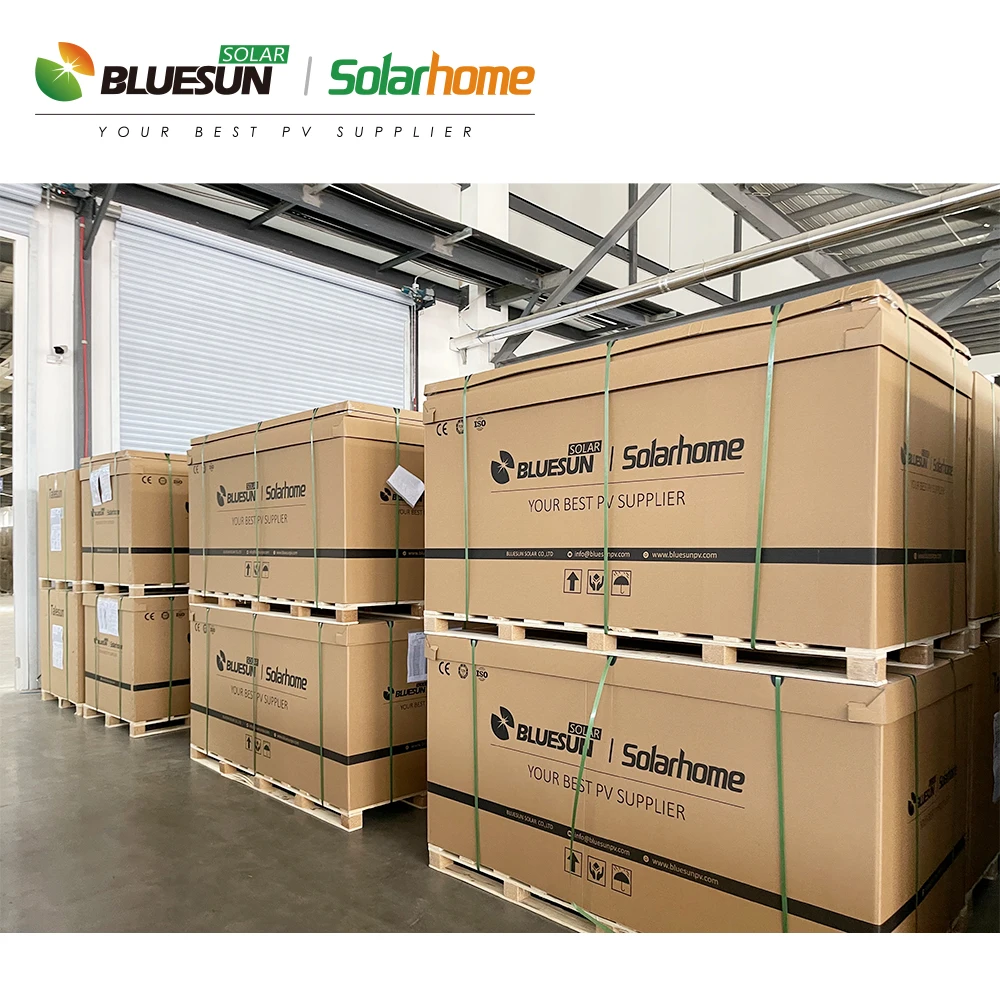

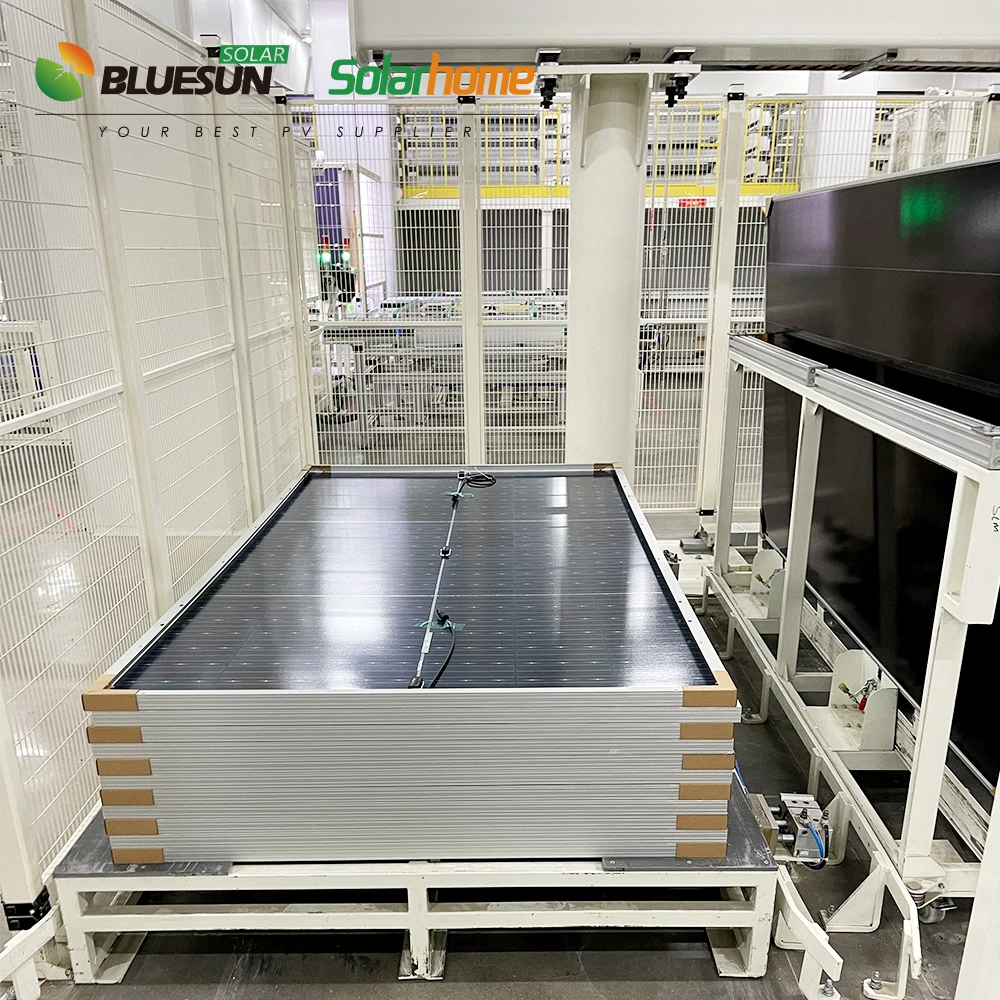

Packaging

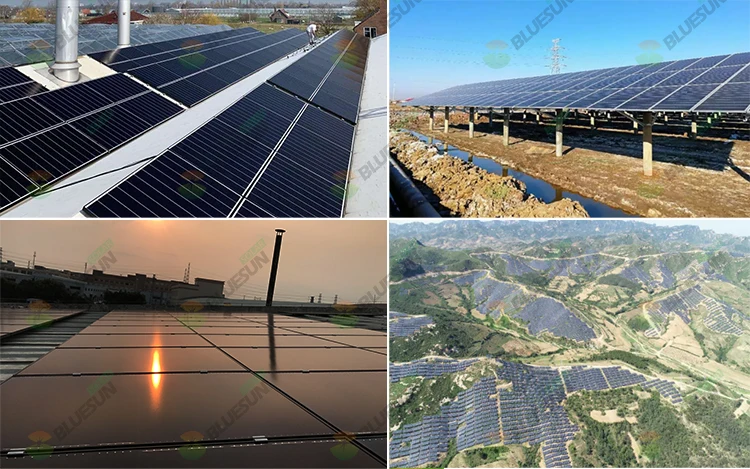

Project

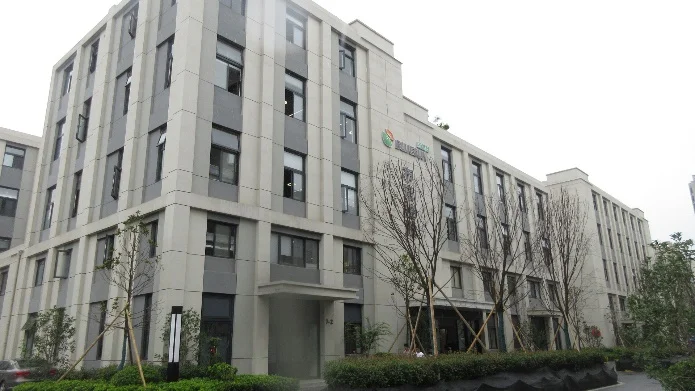

Company Profile
