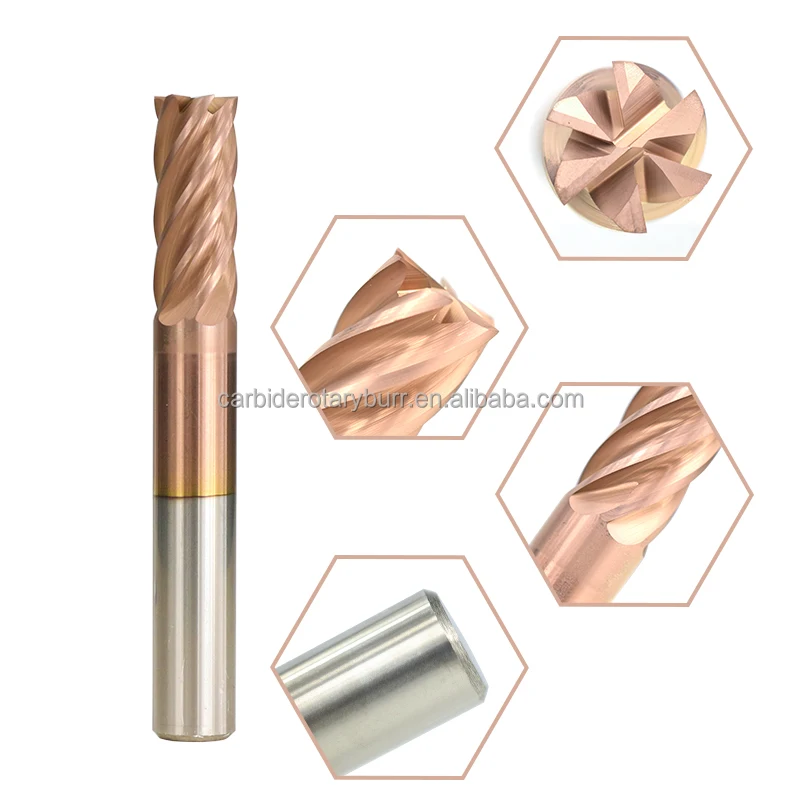

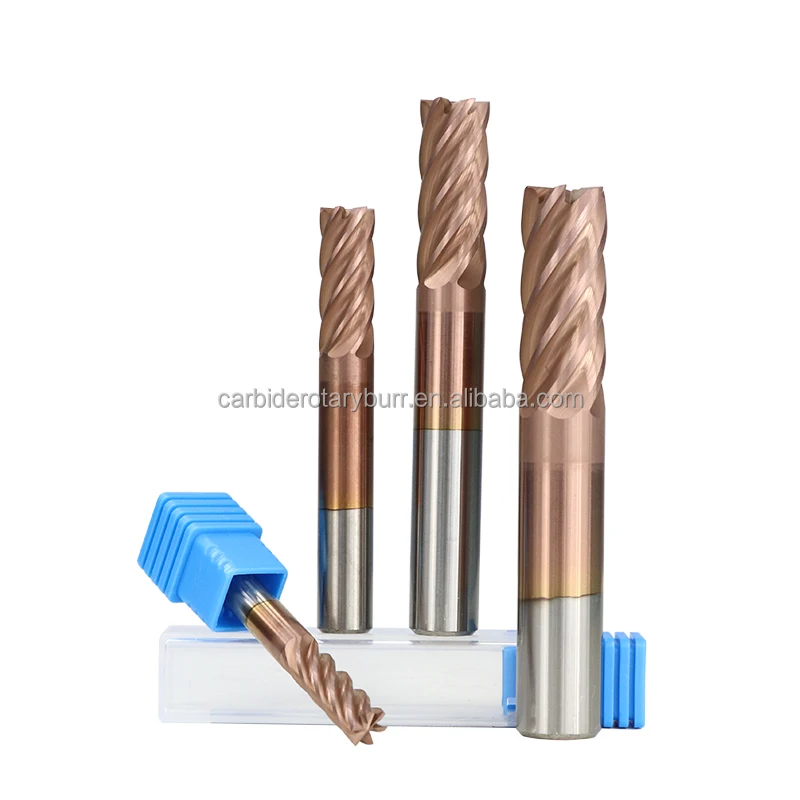

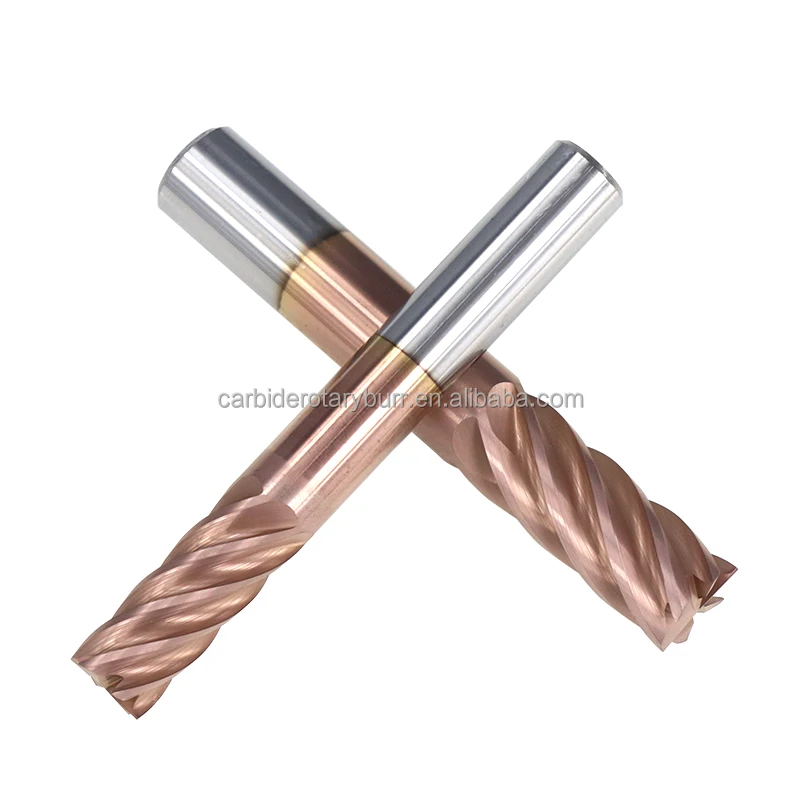

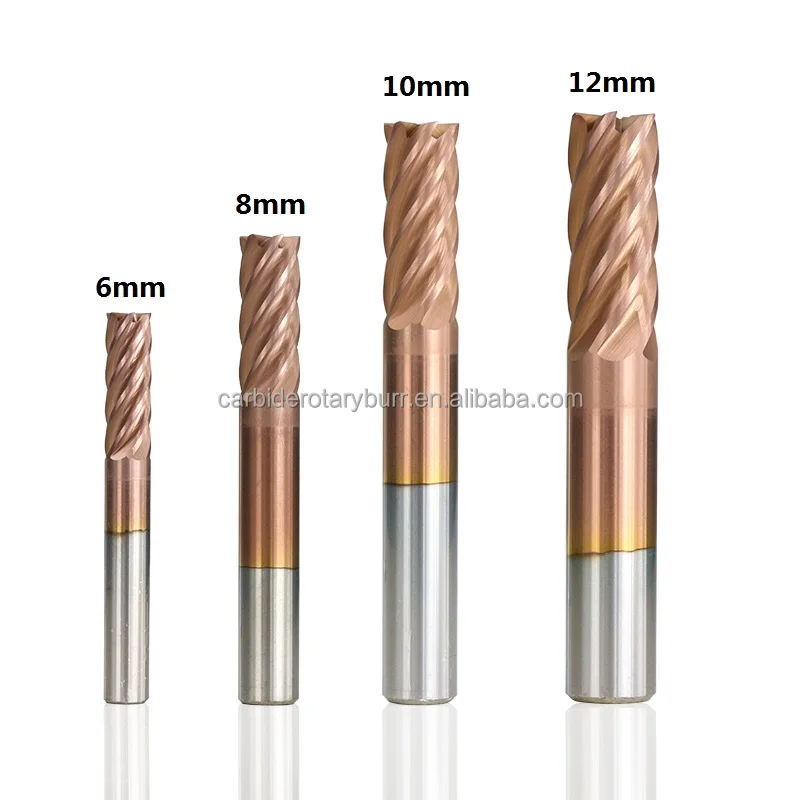

100% New Raw Material Tungsten Carbide Milling Cutter 6 Flutes Cnc Router Bit Ticn Coating Hrc 55 End Mill 6/8/10/12mm End Mills
- Category: >>>
- Supplier: Chengdu Joint Carbide Co. Ltd
Share on (1600518412830):
Product Overview
Description
Products Description
Product Name | carbide end mill cutter | ||||||
Material | 100% New raw material carbide | ||||||
Flute | 1/2/4/6/8 flute | ||||||
HRC | 45/55/60/65 HRC | ||||||
Coating thickness | 2-4um | ||||||
Overall length | 50-200mm | ||||||
Surface | high polished | ||||||
Used | building industry machinery | ||||||

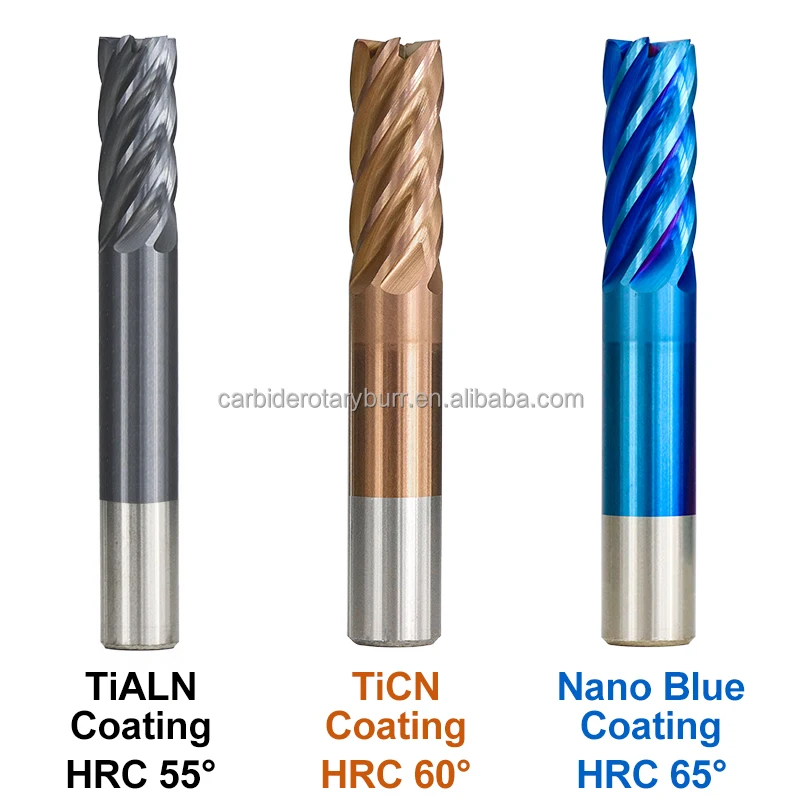

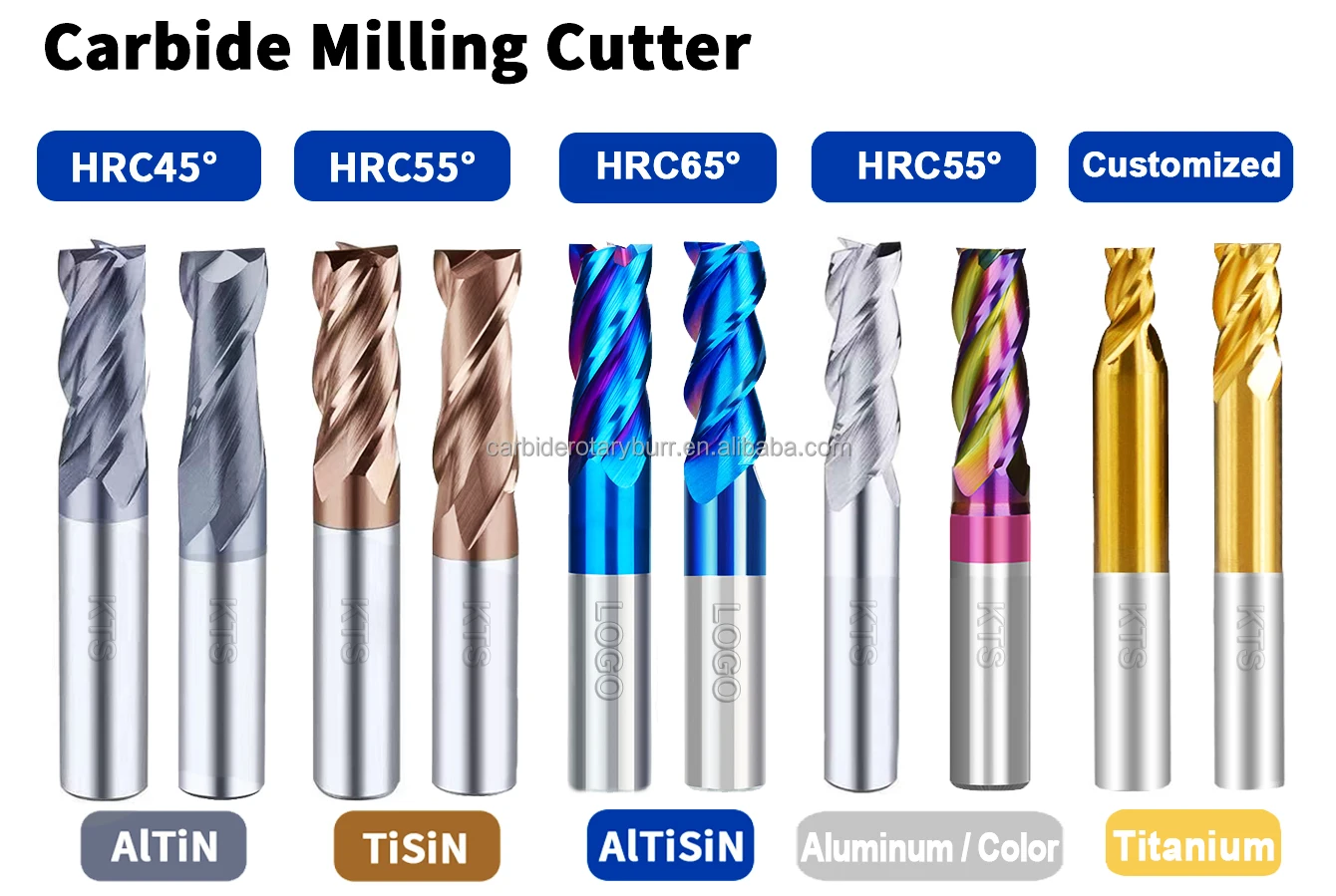

Endmill Grade | Coating Name | Color | Hv | μm | Friction | The MaxºC | Application | |||||||
HRC45 coating | AlTiN | black | 3300 | 0.6 | 0.7 | 850ºC | Suitable for General Steel | |||||||
HRC55 coating | TiSiAlN | bronzed | 3400 | 0.5 | 0.7 | 900ºC | General Steel,cast cast iron | |||||||
HRC60 coating | AlCrSiN | black | 4000 | 0.4 | 0.35 | 1100ºC | High Hard Material, steel, cast iron, etc | |||||||
HRC65 coating | nACo 3 Blue | blue | 4500 | 0.4 | 0.45 | 1200ºC | Titanium Alloy, High-temperature Alloy,material, etc | |||||||
Other Models / Size Please Contact Us | ||||||||||||||
Product Details
Specification：
Name：END MILLS
Material: 100% raw material carbide
Metrial: Tungsten Carbide
Coating: TiALN HRC: 55
Coating: TiALN HRC: 55

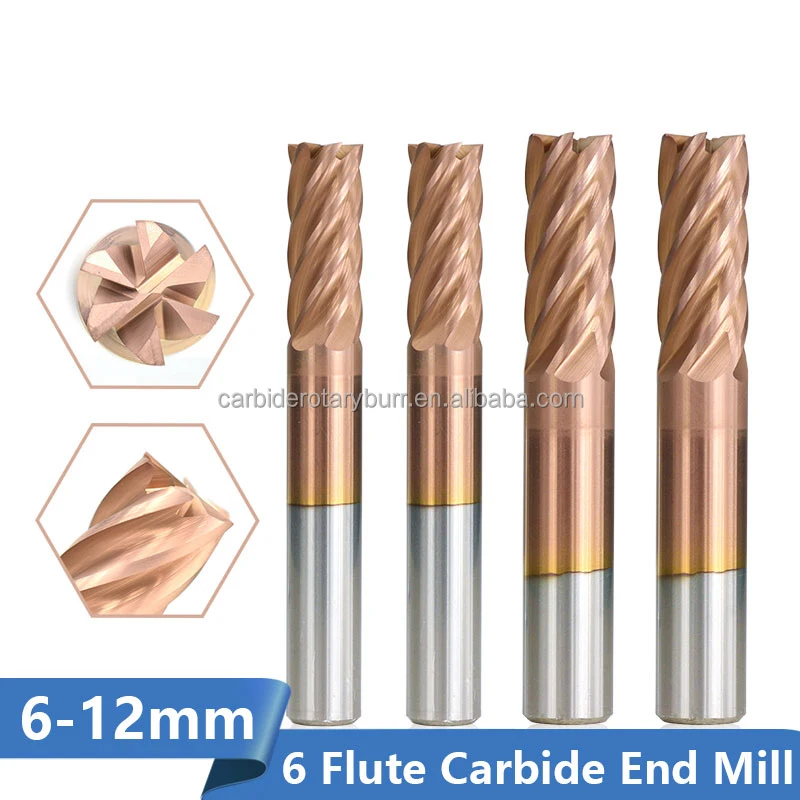

Flute：6 Flute End Mills
Package Including:1pcs radius cutter
Free sample: Contact us
Characteristics：
1. Round handle, chamfering, easy to use, performance stability.
2. Tough and wear resistant.
3. high strength and hardness.
4. durable in use.
5.Using new ultra-fine fine tungsten steel bar grinding, high rigidity and toughness.
Why Choose Us?
account the rigidity of the tool and chip removal performance, make the cutting tool and chip more stable.
Application:
1、Used for half finishing, plain flank, groove, slope can be processed. Suitable for milling Cooper, Cast Iron,Carbon Steel, Mold Steel, 2、Used in Milling Machine.,CNC,Drill press,Engraving machine. Metal, Carbon Steel, Mold Steel, etc.woodworking, alloy steel, stainless steel, etc. High rigidity, widely used in shallow slot, profile milling, and finish machining.
Other uses: contact us
Standard size
Diameter: 1-20mm
Overall Length: 50-150mm
Support customization: contact us6 flutes flat square end mills can be used for half finishing, plain flank, groove, slopeall can be processed.
Other models / size please Contact Us

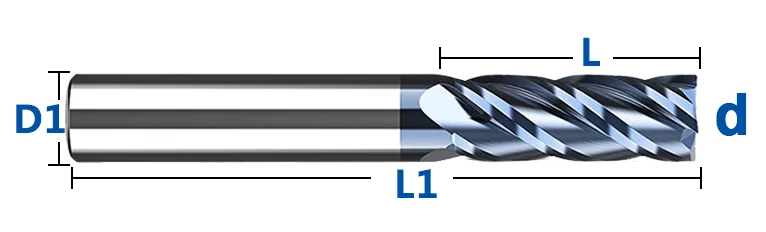

Product Size
D1 (Diameter of cut) | d (Shank Diameter) | L (Flute Length) | L1 (Overall Length) |
1mm | 4mm | 3mm | 50mm |
1.5mm | 4mm | 4mm | |
2mm | 4mm | 6mm | |
2.5mm | 4mm | 8mm | |
3mm | 3mm | 8mm | |
3mm | 4mm | 8mm | |
3.5mm | 4mm | 11mm | |
4mm | 4mm | 11mm | |
1mm | 6mm | 3mm | |
1.5mm | 6mm | 4mm | |
2mm | 6mm | 6mm | |
2.5mm | 6mm | 8mm | |
3mm | 6mm | 8mm | |
3.5mm | 6mm | 11mm | |
4mm | 6mm | 11mm | |
4.5mm | 6mm | 13mm | |
5mm | 5mm | 13mm | |
5mm | 6mm | 13mm | |
6mm | 6mm | 15mm | |
7mm | 8mm | 20mm | |
8mm | 8mm | 20mm | |
9mm | 10mm | 25mm | 75mm |
10mm | 10mm | 25mm | |
12mm | 12mm | 30mm | |
14mm | 14mm | 45mm | 100mm |
16mm | 16mm | 45mm | |
18mm | 18mm | 45mm | |
20mm | 20mm | 45mm |
Company Profile
Chengdu joint carbide co.,ltd
was established on January 21, 2019, as a sales branch established by Zigong joint carbide co.,ltd in Chengdu. Our company was established in 2007, covering an area of nearly 20,000 square meters. It is a high-tech enterprise integrating research, development, production and sales of cemented carbide products and cemented carbide rotary burrs (certificate number: GR201951000516). The highest industry standard, the German horse ring PFERD, matches and surpasses it.
Packing & Shipping
FAQ
Q1: Are you a factory or a trading company?
A1: We are the source of the largest cemented carbide factory in China, a supplier integrating R&D, production and sales, with more than 23 years of production and R&D experience.
Q2: What products do you sell?
A2: Main sales:milling cutter, tungsten carbide rotary file burr, blank, tire file, tungsten carbide semi-finished product, bar,
A2: Main sales:milling cutter, tungsten carbide rotary file burr, blank, tire file, tungsten carbide semi-finished product, bar,
A3: All products will adopt double quality inspection before shipment: 100% inspection by human + robot, provide high-quality products, and also shoot video or pictures to send to you.
A4: We will arrange a one-to-one quotation from the sales manager within 2 hours after receiving your inquiry.
A5: Contact us, we can provide you with free samples for grinding test, you can choose any model.
A6: Supply for major e-commerce platforms, such as: Amazon, eBay, AliExpress, Google website, etc.
A7: According to the weight of the goods, we can transfer by express, air and sea, including DHL, UPS, TNT and FEDEX.
Q8: What are your contact information?
A8: WhatsApp: +86 18302839165 WeChat: 18302839165 Email: Kts@groupKts.com
If there is no reply to you in the first time, it is recommended to contact us on Alibaba
A8: WhatsApp: +86 18302839165 WeChat: 18302839165 Email: Kts@groupKts.com
If there is no reply to you in the first time, it is recommended to contact us on Alibaba
