SML DIN EN877 Epoxy Pipe Fittings

Product Overview

Description

Epoxy Pipe Lining-BeiSai

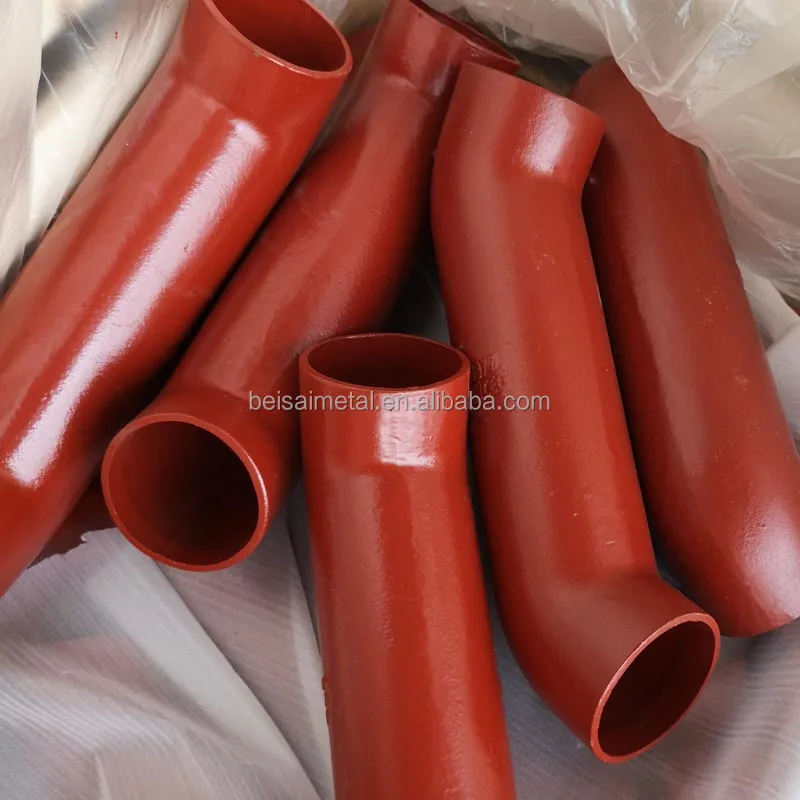

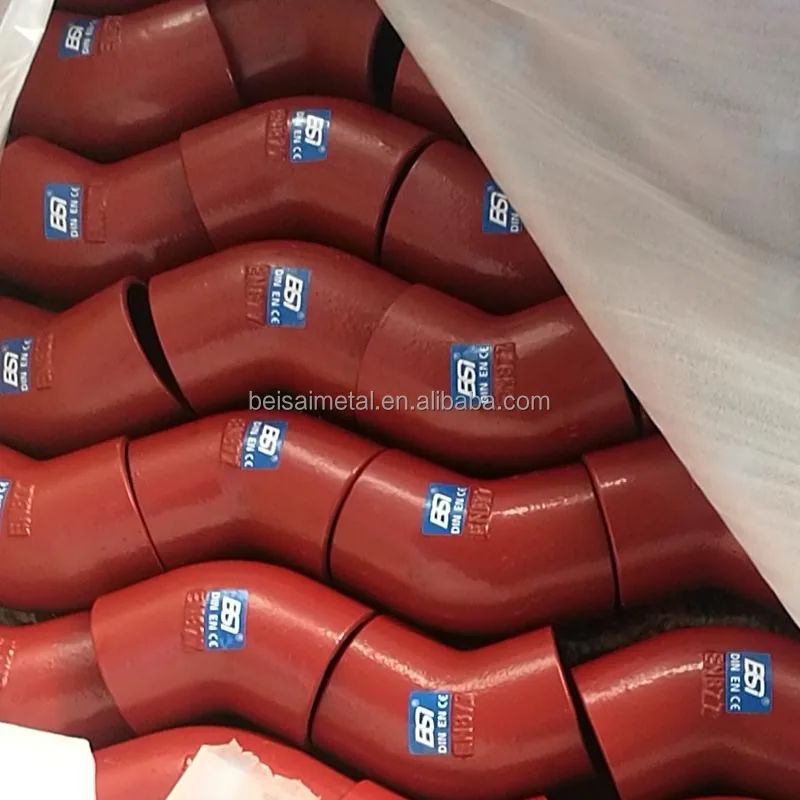

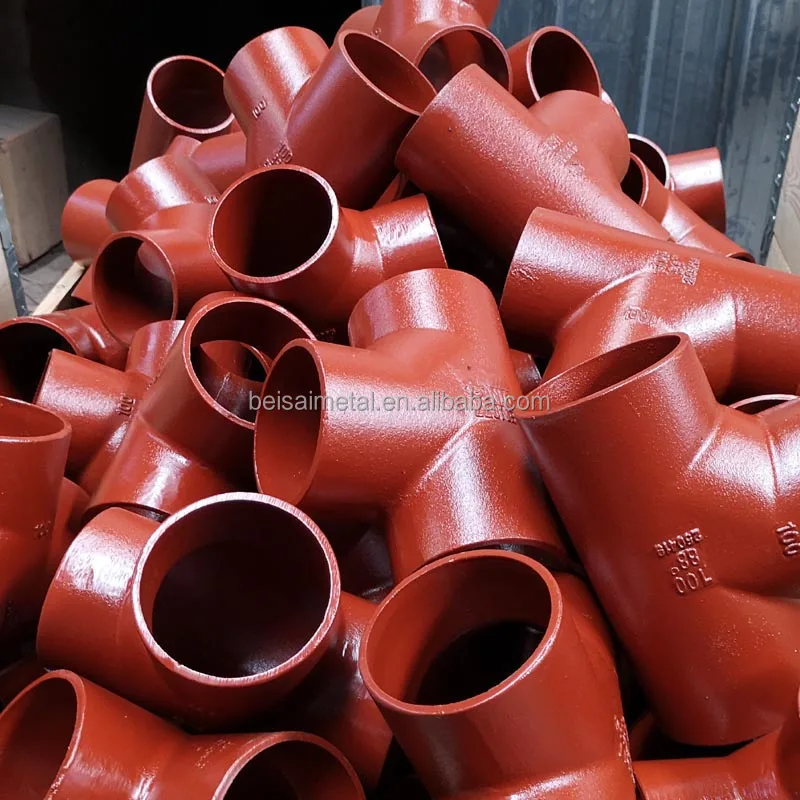

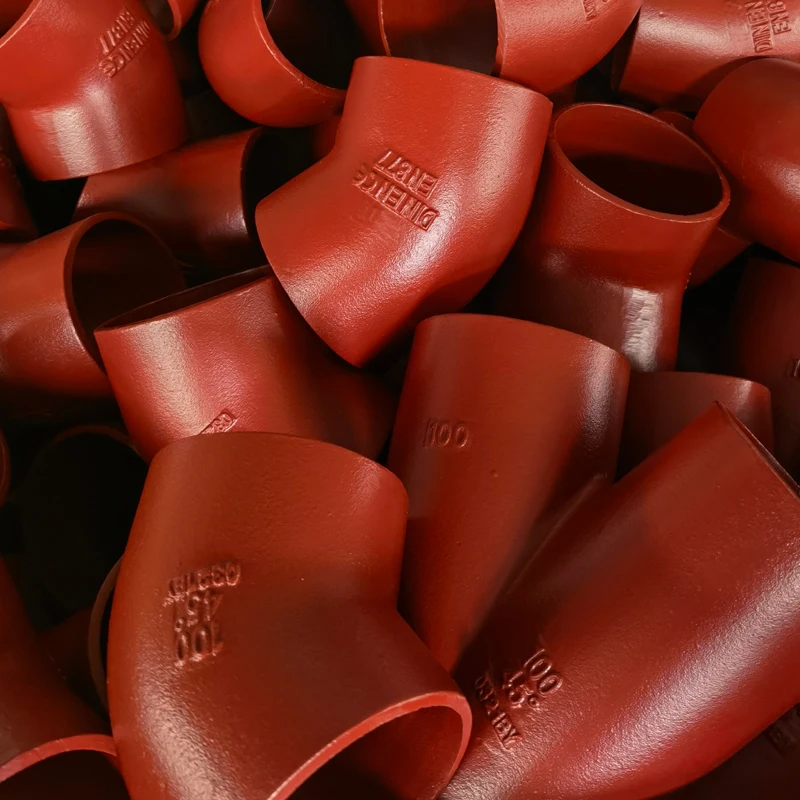

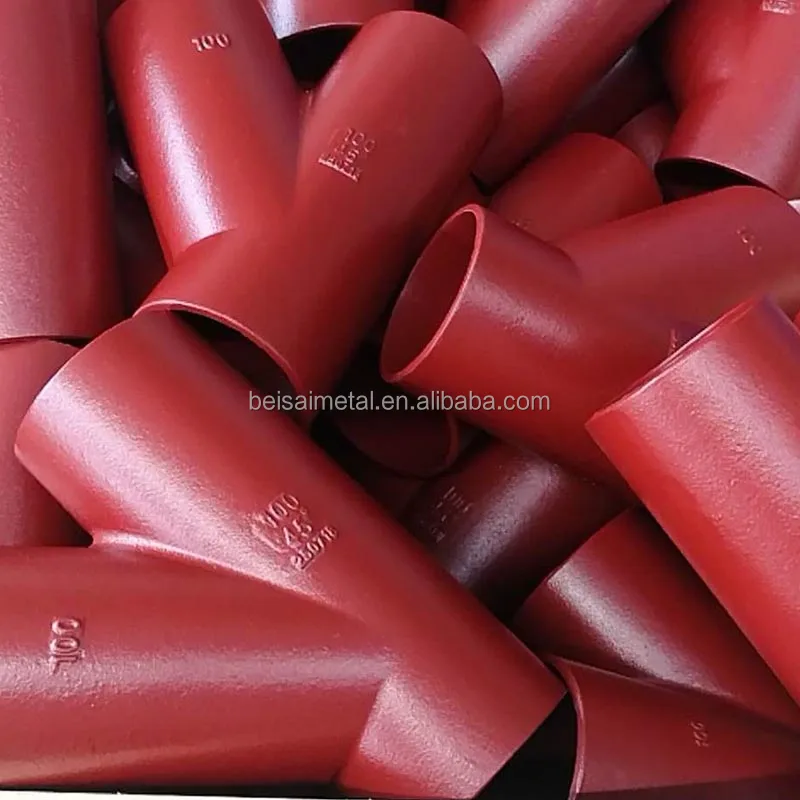

Cast Iron Epoxy Pipe Fittings conforming to DIN19522/EN877/BS EN877/ISO6594

Material:Cast Iron with flake graphite

Qualilty:GJL-150 according to EN1561

Coating: SML,KML,BML,TML

Size:DN40-DN300

The pipe fittings produced by our company have smooth surface,high density,no white,High strength, light weight,environmental protecting, strength corrosion-resistant coating,reasonable design in structure which are used in the drain,waste, vent and rainwater system of  high buildings



SML  Two-component epoxy resin painting fittings

----Liquid epoxy resin coating fittings

Internal and external painting: Two-component epoxy resin painting, with an average dry thickness of 40-80 microns

----Epoxy powder coating fittings

Internal and external painting: Epoxy resin powder coating fittings, with an average dry thickness of 100-400 microns.

KML  epoxy powder coating fittings

Internal and external painting: Epoxy  powder coating fittings, with an average dry thickness of 250 microns.

BML Two-component epoxy resin painting fittings

Internal and external painting: Zinc layer (approx. 40 um)   +  double component epoxy  (approx. 80 um)  --grey color
