AF2000 02 G1/8 G1/4 Air Combination SMC Pneumatic Air Filter AF2000 01D AF2000 02D
- Category: >>>
- Supplier: Hangzhou Chenming Automation Technology Co. Ltd.
Share on (1600518426570):
Product Overview
Description

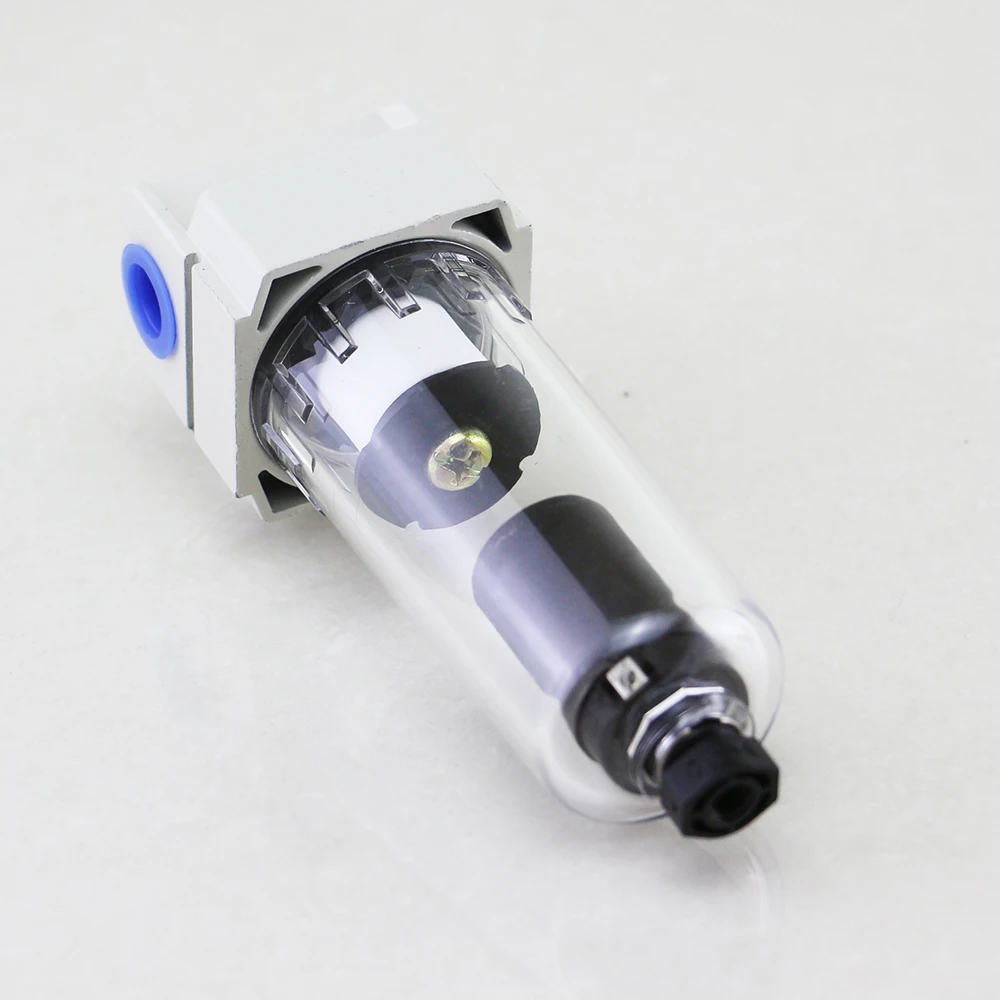

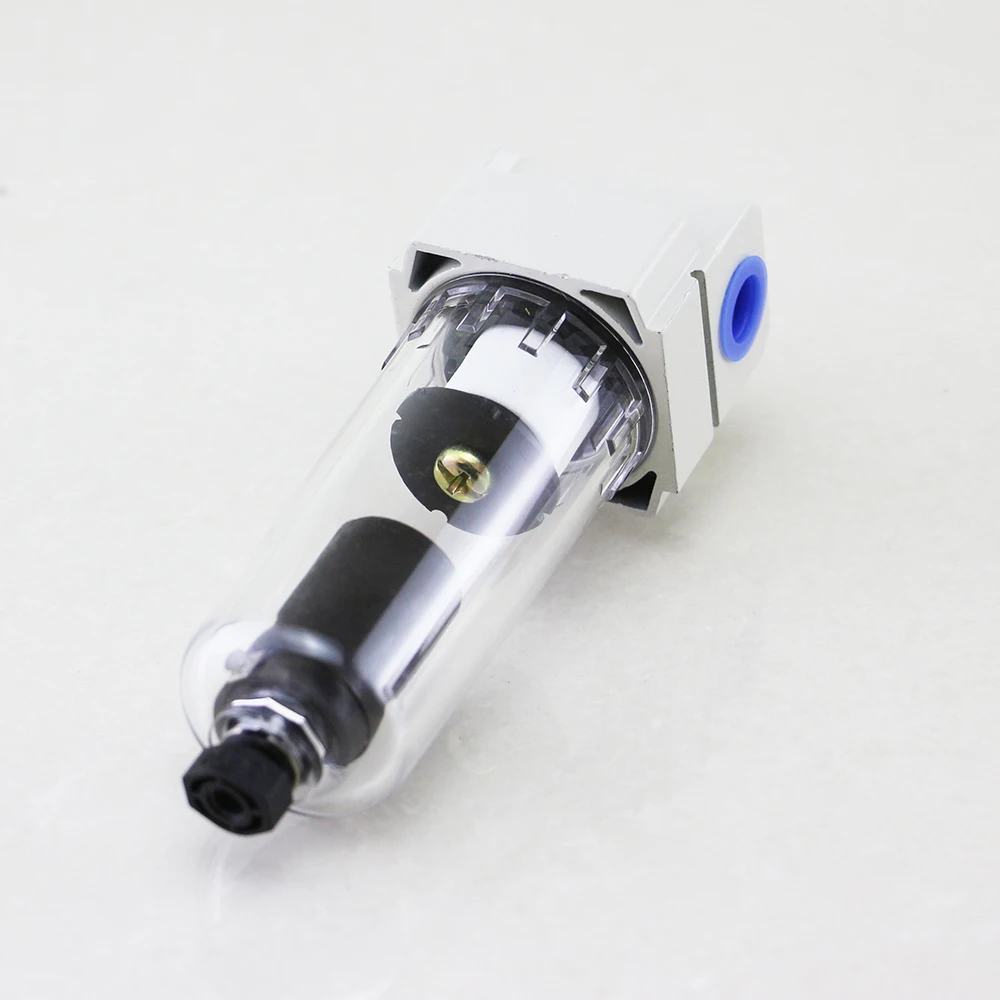

AF2000 G1/8 G1/4 Air Combination SMC Pneumatic Air Filter AF2000-01D AF2000-02D

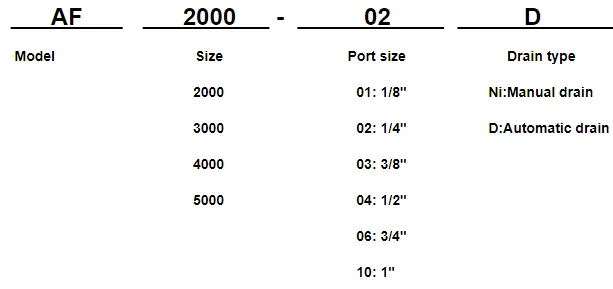

Ordering Code:
Specification
Model | AF2000-01(D) | AF2000- 02(D) | AF3000- 02(D) | AF3000- 03(D) | AF4000- 04(D) | AF4000- 06(D) | AF5000- 06(D) | AF5000- 10(D) | |||||||||
Port size RC(PT) | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 3/4'' | 1'' | |||||||||
Capacity of bowl(cm²) | 15 | 15 | 20 | 20 | 45 | 45 | 130 | 130 | |||||||||
Flow rate(L/Min) | 750 | 750 | 1500 | 1500 | 4000 | 6000 | 7000 | 7000 | |||||||||
Fluid | Air | ||||||||||||||||
Proof pressure | 1.5Mpa(15.3kgf/cm²) | ||||||||||||||||
Max.operating pressure | 1.0Mpa(15.3kgf/cm²) | ||||||||||||||||
Main parts material | Body | Aluminum alloy | |||||||||||||||
Bowl | PC | ||||||||||||||||
Bowl guard | AF2000:without AF3000~AF5000:with(lron) | ||||||||||||||||

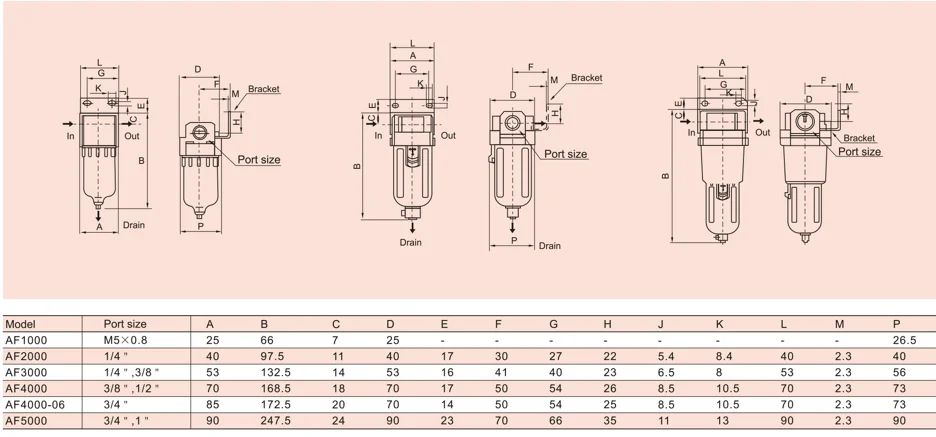

Dimension
More Product:
Other type for you to choose
Other pneumatic part for you to choose
Main Products:
Why Choose Us:
FAQ:
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each F.R.L by one box packing with protection.
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
A: 5pcs for MOQ.
Q: What is your packing?
A: Each F.R.L by one box packing with protection.
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
