300kw Fully Automatic Two-Stage LPG Gas Industrial burner Natural Gas Burner for Boiler
Product Description
1. This burner can have three kinds of flame modes, one-stage fire, two-stage fire and proportion adjustment.
2. Select appropriate type according to different production process requirements.

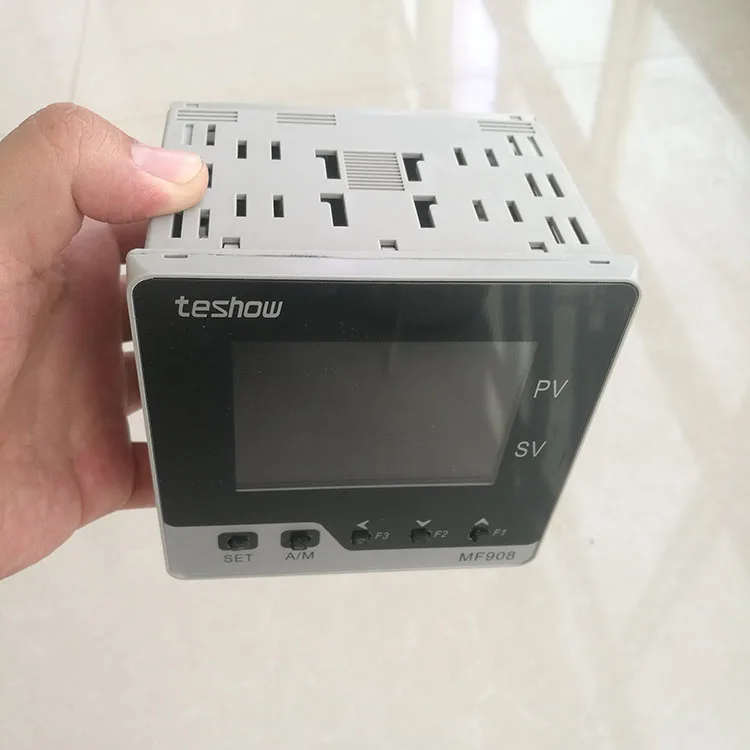

3. The proportion adjustment type can only be realized with the ratio adjustment instrument.
| Technical Parameters | |||||||
| Model | JH-5-Q | JH-10-Q | JH-15-Q | JH-30-Q | JH-40-Q | JH-60-Q | |
| Output power | KW | 23-70 | 46-116 | 81-174 | 116-302 | 174-464 | 232-696 |
| 104Kcal/h | 2-6 | 4-10 | 7-15 | 10-30 | 15-40 | 20-60 | |
| Control mode | Fully automatic single stage flame control | Fully automatic two-stage flame control | |||||
| Applicable fuel | Nature gas | ||||||
| Fuel consumption | m³ | 5.9 | 11.8 | 17.6 | 35.3 | 47.1 | 70.6 |
| Adaptable pressure range | mbar | 30-50 | 50-150 | ||||
| Design fuel calorific value | Kcal/Nm³ | 35.53(8500Kcal/Nm³) | |||||
| Adapt to ambient temperature | ℃ | -15~60 | |||||
| Applicable power supply | AC220V/50Hz/1O | AC380V/50Hz/3O | |||||
| Motor power | KW | 0.08 | 0.18 | 0.18 | 0.55 | 0.75 | 1.1 |
| Safety Protection Level | IP | 55(The protection level can be improved according to the order requirement.) | |||||
| Flange Installation Form | Sliding adjustable flange | ||||||
| Fuel access port size | DN15 | DN15 | DN20 | DN20 | DN25 | DN40 | |
| Main Body Size of Burner (Length * Width * Height) | mm | 400*350*450 | 560*400*350 | 560*400*350 | 750*550*550 | 1150*760*500 | 1280*860*500 |
| Burner weight | kg | 6.1 | 15 | 15.7 | 21 | 44.5 | 64 |

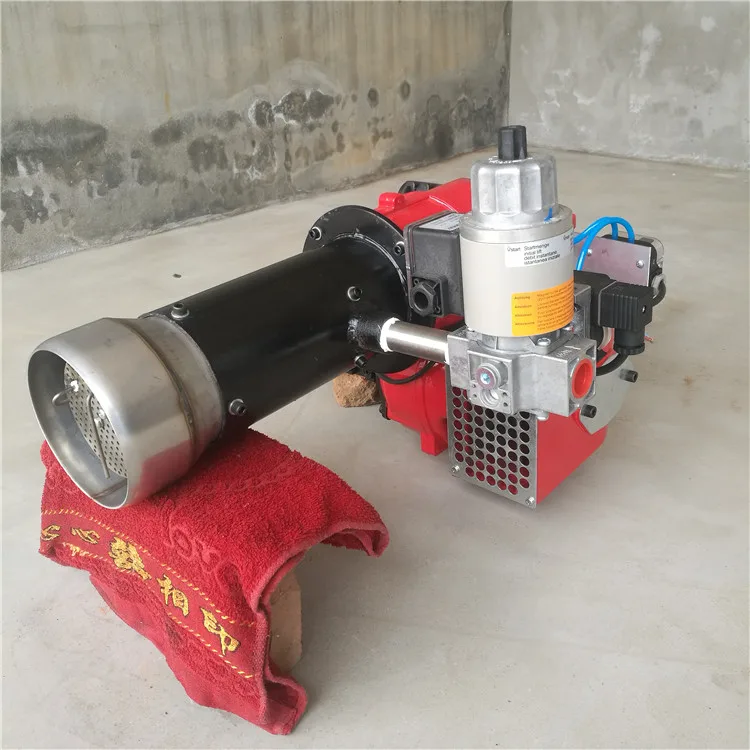

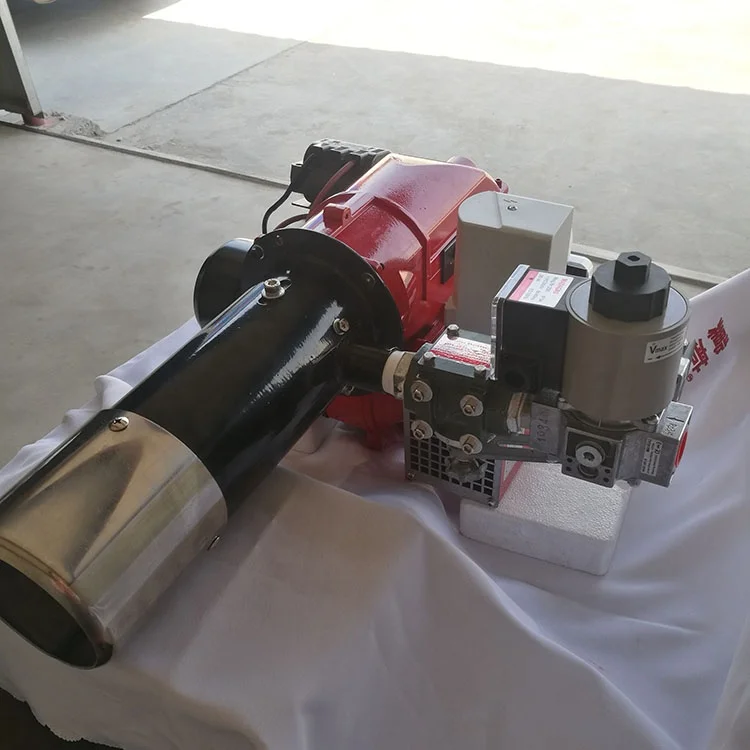

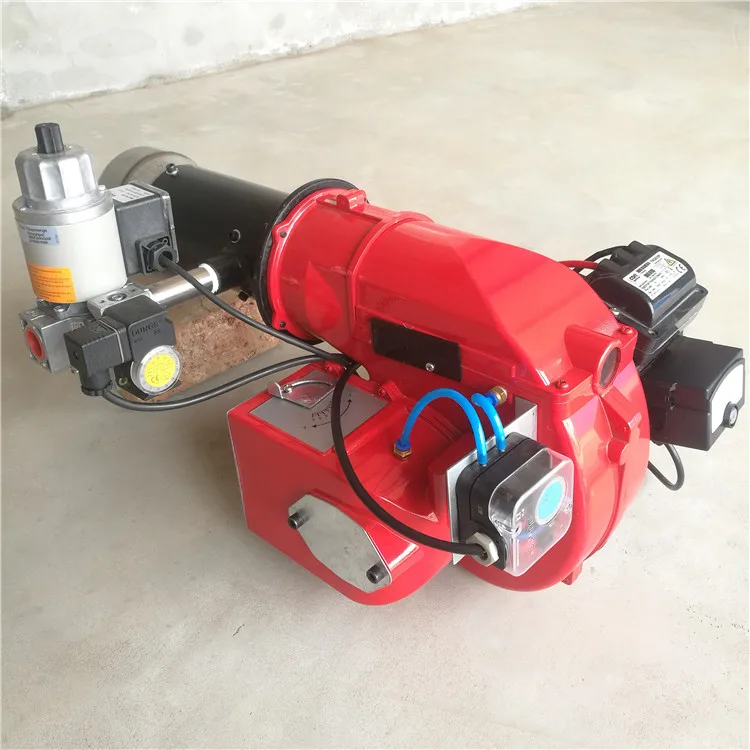

Product Picture

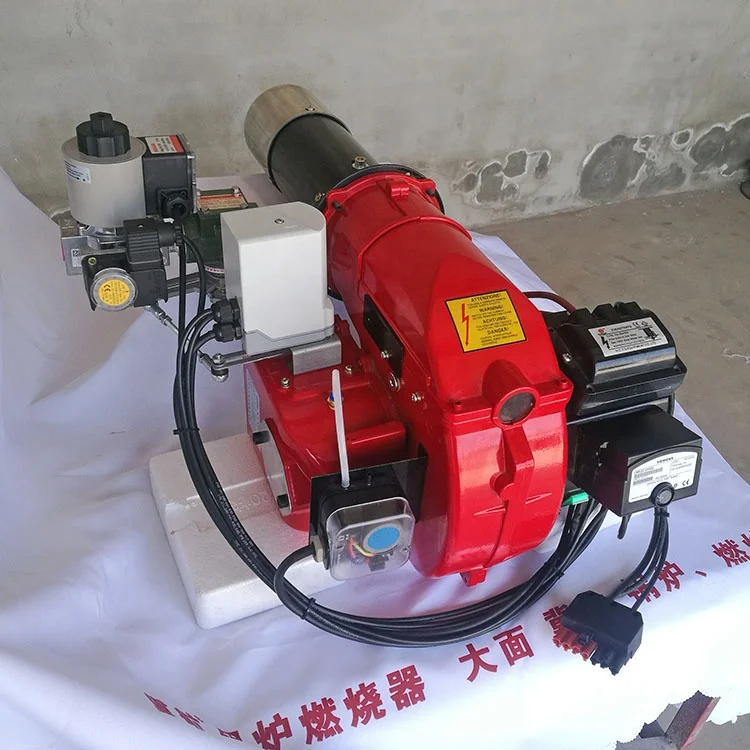

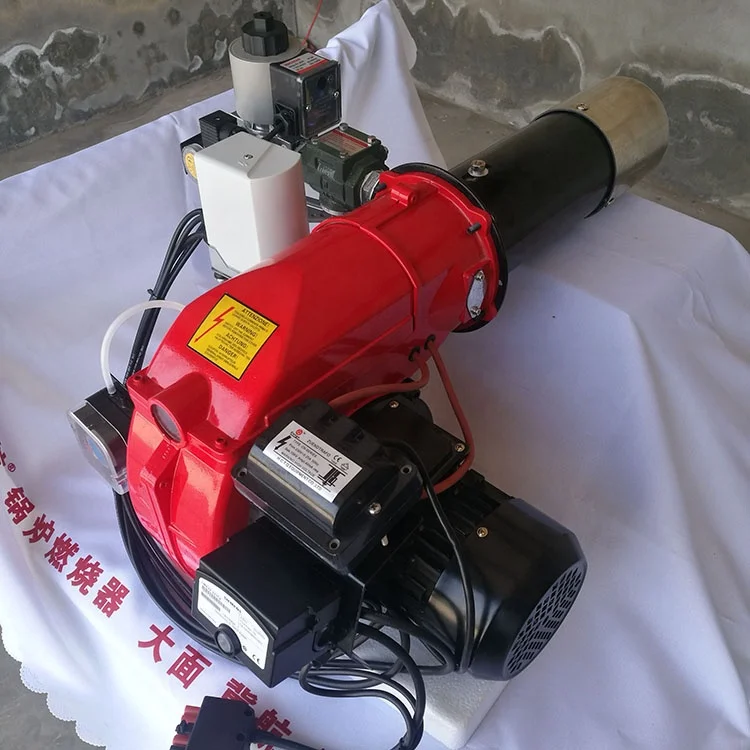

JH-30-Q Two-stage and proportion adjustment

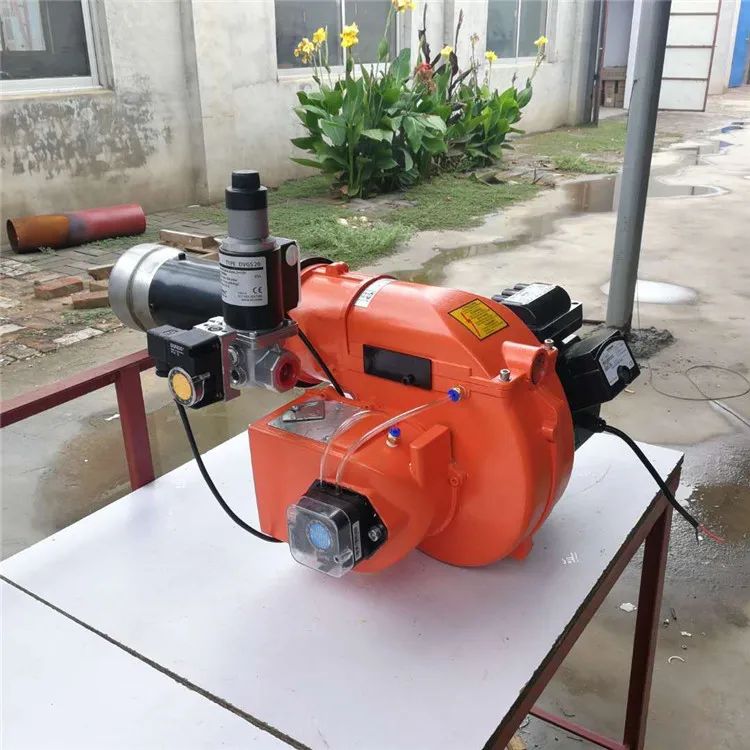

JH-30-Q One-stage
Packaging & Shipping
Company Information
FAQ
1.Is your company a manufacturer or a distributor?
Answer: our company is a manufacturer with a complete sales, production, technology and after-sales service team.
2.What are the payment methods?
Answer: orders less than $500 can be remitted by Western Union, but only by international express, such as DHL, Fex, UPS, etc. large orders support T / T payment, and the final payment is settled before shipment.
