touch screen automatic control biology laboratory turnkey system industrial 10 liter rotary evaporator
- Category: >>>
- Supplier: Nanbei Instrument Limited
Share on (1600518454835):
Product Overview
Description
Products Description
touch screen automatic control biology laboratory turnkey system industrial 10 liter rotary evaporator
The touch screen automatic control rotary evaporator is the necessary basic instrument for chemical industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .
We can provide one-stop instrument procurement services, contact us to learn more

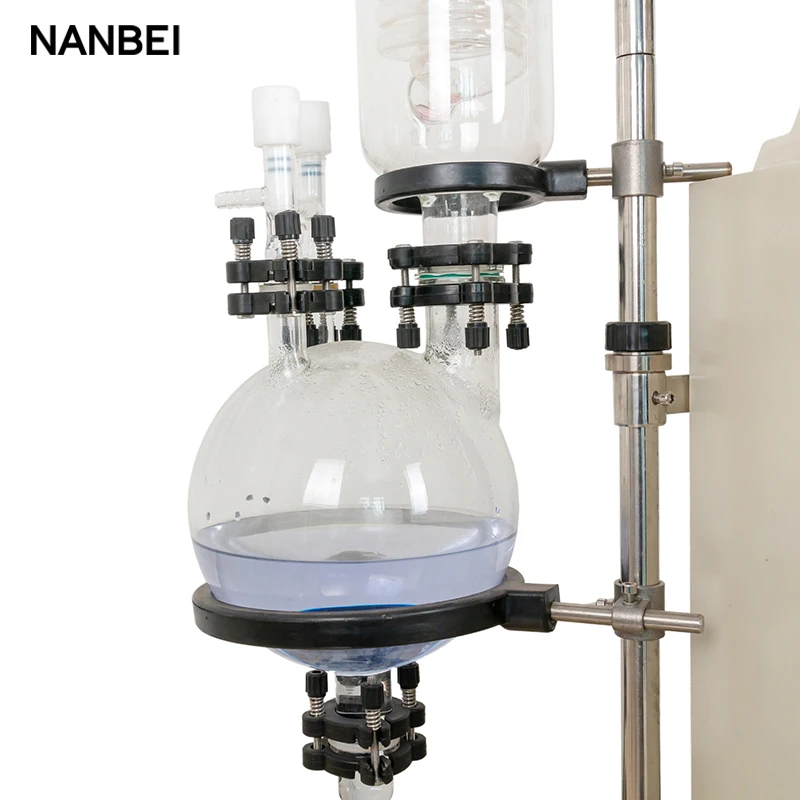

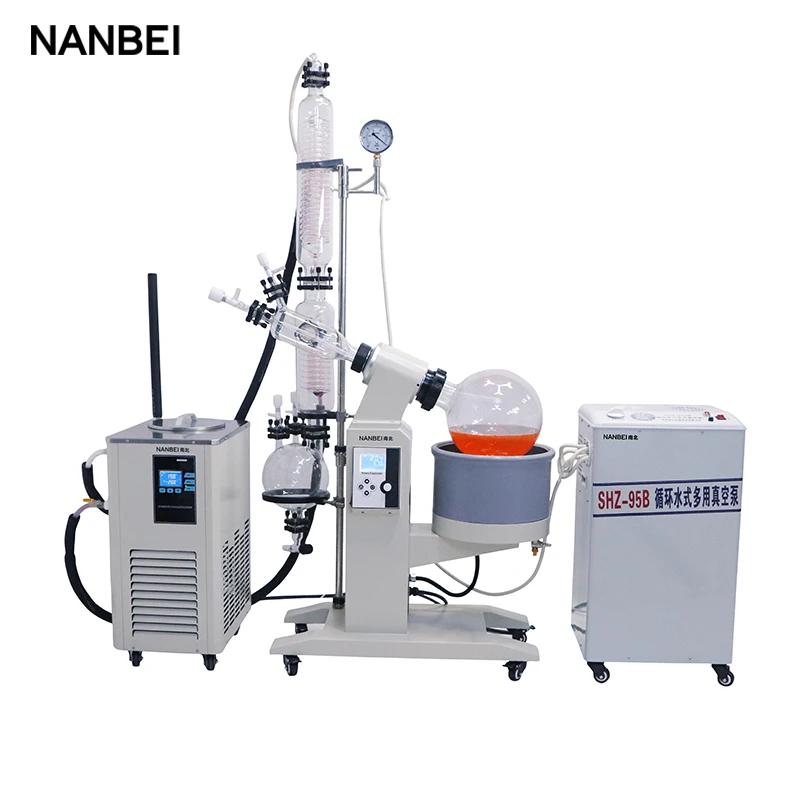

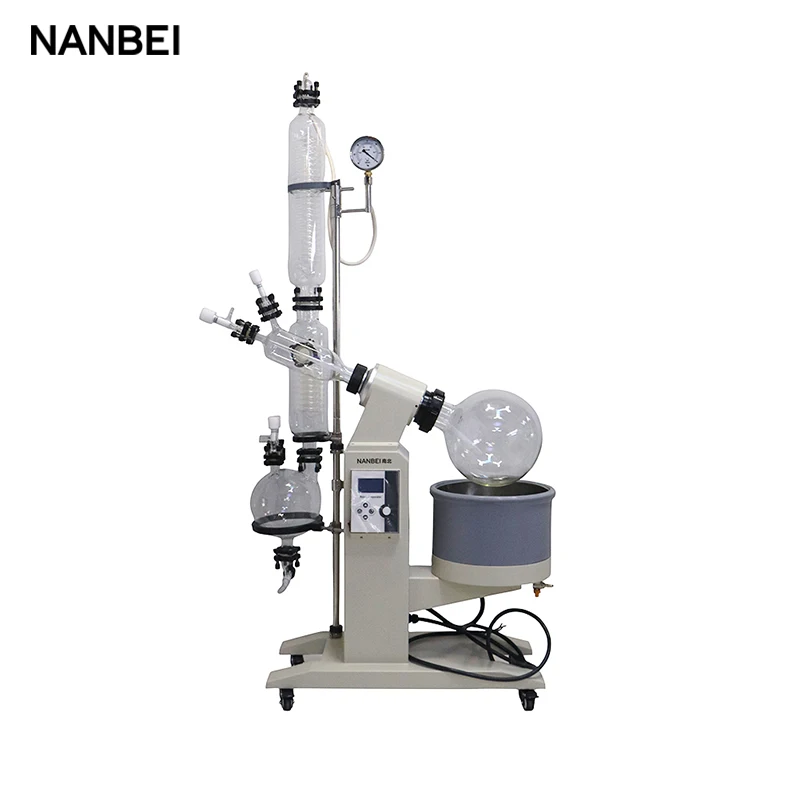

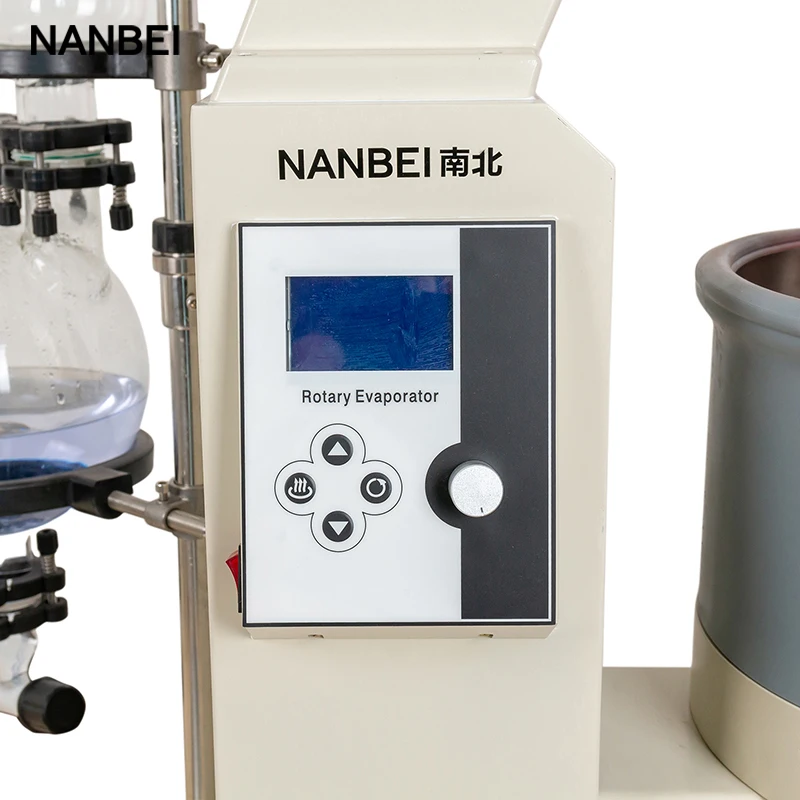

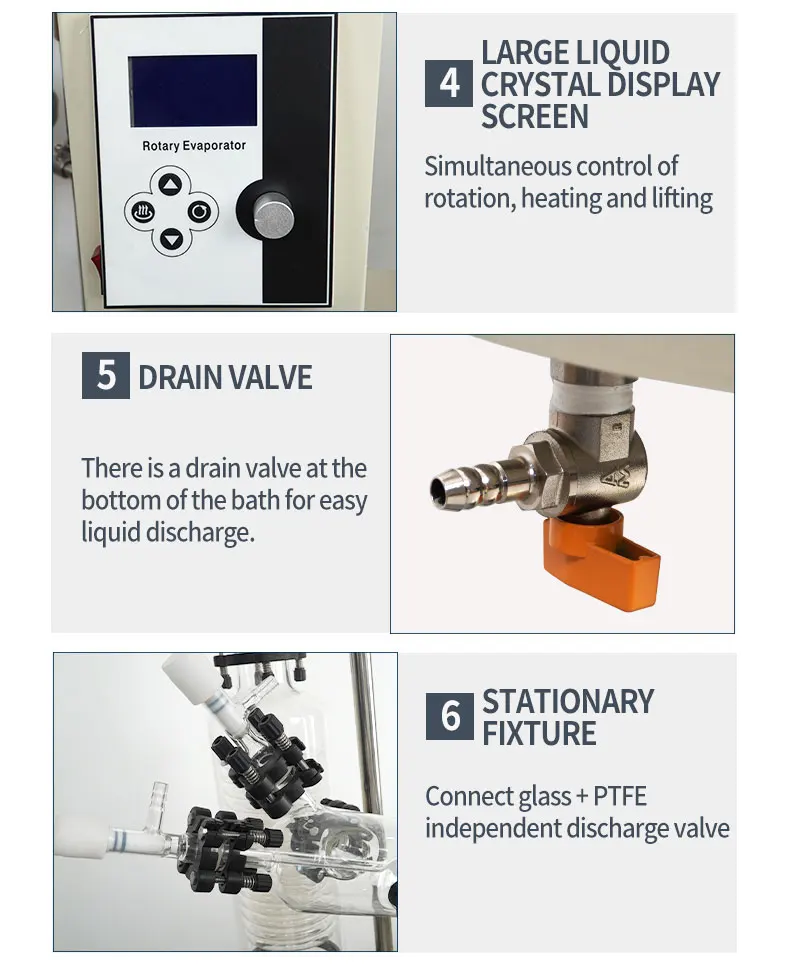

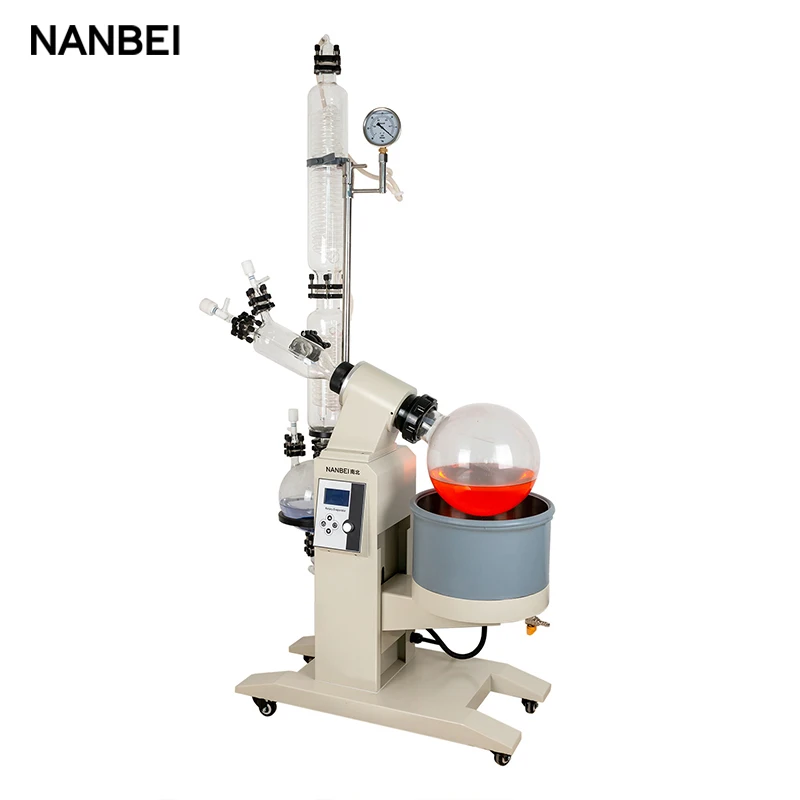

Details Images
Specification
Model | 2L | 3L | 5L |
Glass meterial | GG-17 | GG-17 | GG-17 |
Holder material | Stainless steel | Stainless steel | Stainless steel |
Pot shell Material | aluminium alloy 270*270*195mm | aluminium alloy 270*296*240mm | aluminium alloy 310*320*240mm |
Pot bravery | Stainless steel 250*140mm | Stainless steel 255*170mm | Stainless steel 280*170mm |
Plate size | 280*330mm | 350*330mm | 350*330mm |
Evaporator flask | 2L flange mouth:Φ50mm | 3L flange mouth:Φ50mm | 5L flange mouth:Φ50mm |
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Rotary speed | 0-120RPM | 0-120RPM | 0-120RPM |
Rotary power | 30W | 40W | 40W |
Heating power | 1.5KW | 2KW | 2KW |
Heating temp. | 0-400C | 0-400C | 0-400C |
Temp. accuracy | -1 | -1 | -1 |
Lifting stroke | 120mm | 120mm | 120mm |
Voltage | 220/110V 50/60HZ | 220/110V 50/60HZ | 220/110V 50/60HZ |
Packing size (mm) | 590*460*460 | 1000*460*450 | 1040*620*410 |
Packing weight | 21kg | 38kg | 38kg |
Model | 10L | 20L | 30L |
Glass meterial | GG-17 | GG-17 | GG-17 |
Holder material | Stainless steel | Stainless steel | Stainless steel |
Pot shell Material | Spray anti-corrosion 490*430*540mm | Spray anti-corrosion 630*534*638mm | Spray anti-corrosion 710*620*700mm |
Plate size | 474*474mm | 350*330mm | 350*330mm |
Evaporator flask | 10L flange mouth:Φ95mm | 20L flange mouth:Φ95mm | 30L flange mouth:Φ125mm |
Collect flask | 5L flange mouth:Φ50mm | 10L flange mouth:Φ60mm | 20L flange mouth:Φ60mm |
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Rotary speed | 0-110RPM | 0-110RPM | 0-110RPM |
Rotary power | 120W | 120W | 180W |
Heating power | 3KW | 5KW | 8KW |
Heating temp. | 0-400C | 0-400C | 0-400C |
Temp. accuracy | ±1 | ±1 | ±1 |
Lifting stroke | 180mm | 180mm | 180mm |
Voltage | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Dimension (mm) | 970*480*1950 | 1170*540*2200 | 1520*620*2470 |
Packing weight | 100kg | 123kg | 170kg |
Related Products
Customer concerns
FAQ
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2: OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2: OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
