explosion solenoid Ex proof solenoid valve coil reversing valve for steam and water supply system
explosion solenoid Ex-proof solenoid valve coil reversing valve for steam and water supply system
explosion solenoid Ex-proof solenoid valve coil reversing valve for steam and water supply system
explosion solenoid Ex-proof solenoid valve coil reversing valve for steam and water supply system
explosion solenoid Ex-proof solenoid valve coil reversing valve for steam and water supply system
explosion solenoid Ex-proof solenoid valve coil reversing valve for steam and water supply system
explosion solenoid Ex-proof solenoid valve coil reversing valve for steam and water supply system

explosion solenoid Ex proof solenoid valve coil reversing valve for steam and water supply system

Share on (1600518471154):


Price:

Quantity:


Product Overview

Description



Product Overview


Product features

High life span,can work without oil
The installation direction can be chosen at will
Two three passs/two five passageways can be interchanged.(Patent Design)
Low temperature environment is optional.
High temperature environment is optional.
The two three links are self-respiration designed(which can be used in high dust and strong acid and alkali gas environments).(Patent Design)
0.3 W low power option.
It can be connected with a large-caliber gas control valve without a pipe.




Specifications

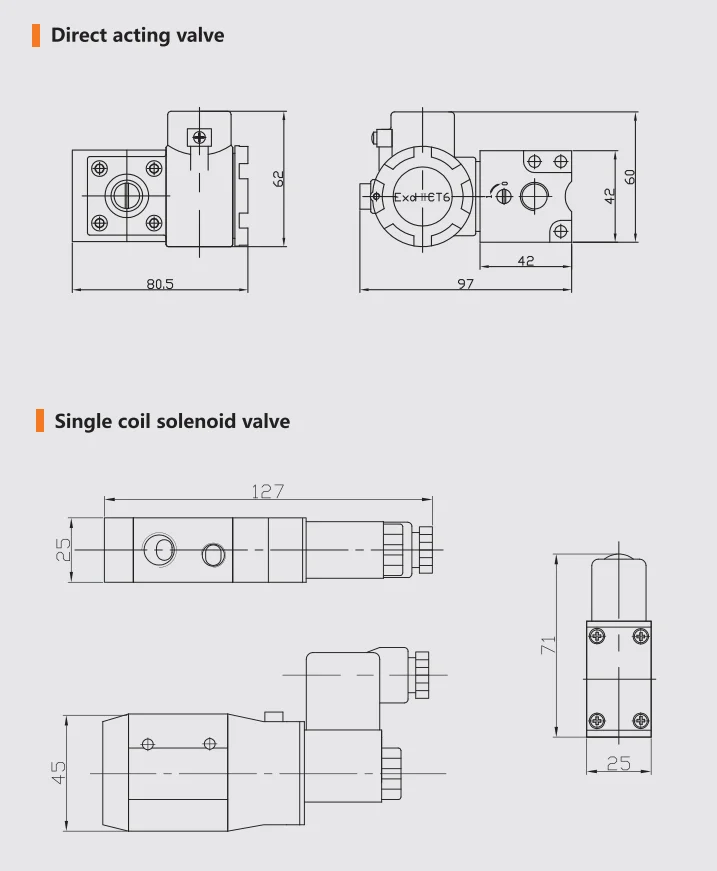

Direct-Acting Product number：RV
Model
Acting type
Switching Method
Voltage
Explosion Proof type
Air connection
Conduit entry
Ambient Temp
Surface treatment
RV
Direct-Acting
Return Type
AC 48V
Non-explosionProof
G1/4
for ordinarysolenoid valves
-25℃~60℃
Aluminium Alloy
AC 110V
EExmbII T5
NPT1/4
NPT1/2
（full series）
-45℃~70℃
Stainless steel
AC 240V
ExiaIICT6
M20x1.5
（full series）
Ceram
AC 220V
Ex d IIC T5/T6
DC 24V
DC 220V
Special

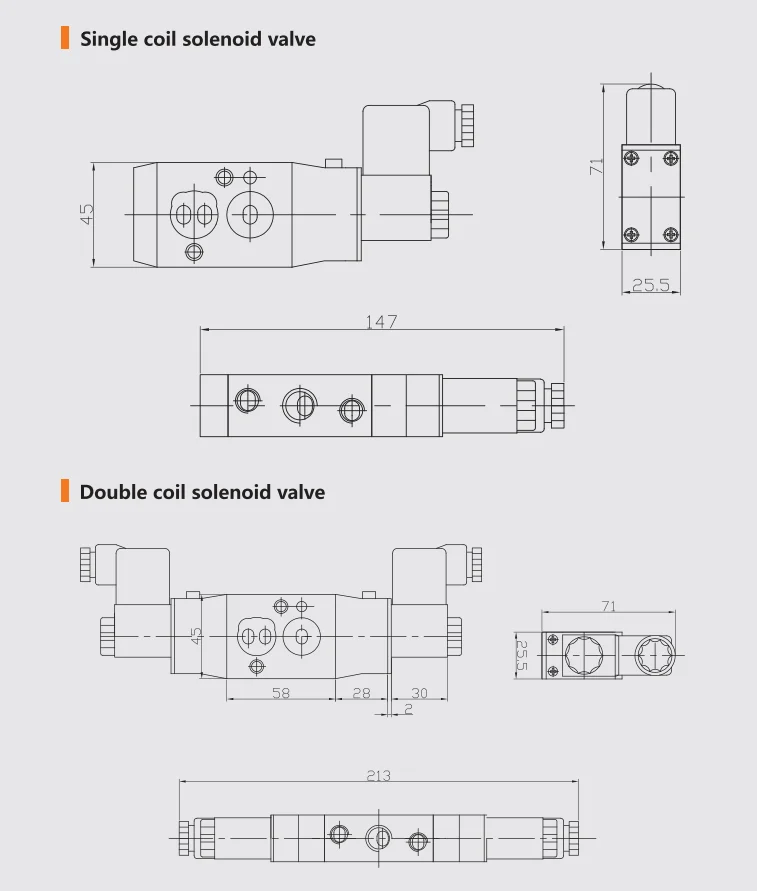

Pilot-Operated Type Product number：RV
Acting type
Switching Method
Voltage
Explosion Proof type
Mounting Type
Air connection
Conduit entry
Ambient Temp
Surface treatment
3/2 Way
Return Type
AC 48V
Non-explosionProof
pipe connection
G1/4
for ordinarysolenoid valves
-25℃~60℃
Aluminium Alloy
5/2 Way
Detent Type
AC 110V
EExmbII T5
NAMUR
NPT1/4
NPT1/2
（full series）
-45℃~70℃
Stainless steel
5/3 Way
AC 240V
ExiaIICT6
G1/2
M20x1.5
（full series）
Ceram
AC 220V
Ex d IIC T5/T6
NPT1/2
DC 24V
0.3W DC 24V
0.8W DC 24V
1.2W DC 24V


Arguments
Body Material
316L SS 316L
Aluminium alloy
Finishing
electrochemical polishing
Hard anodizing
Seal
NBR
HNBR
Material in contact with fluid
POM SS316. NBR,POM
HNBR
Function and CV value
5/2 及 3/2 NC,CV=1.4
CV=0.8；CV=2.1
Port size
G1/4”; NPT1/4
G1/4”; NPT1/4；G1/2 ；NPT1/2
Mount standard
24x32NAMUR and pipe connection
Fix screws
Stainless steel
Protection class
IP65/NEMA4,4X
Ex-proof class
NO
Working temperature
“ －25°C~65°C”
-45℃~70℃
Working pressure
1~8 bar
Working medium
≤25um）dry and lubricated air
Life cycles
10millions


Solenoid specification
Voltage
24VDC-3W（50/60HZ)
110/220VAC-4VA 240VAC-4.1VA
ExiaIICT6 1.6W
Coil cover
Stainless steel 316
Aluminium alloy
Cable plug
M20x1.5 BSPP
NPT 1/2
insulation grade
H Class Coil
dielectric strength
1000V
Duty cycles
100%ED
Protection class
IP66
Ex-proof class
ExdIICT6 DIPA20 TA,T6
ExiaIICT6
Working temperature
-45°C~70°C
Working current
ExdIICT6 0.125ADC
ExiaIICT6 0.195ADC
