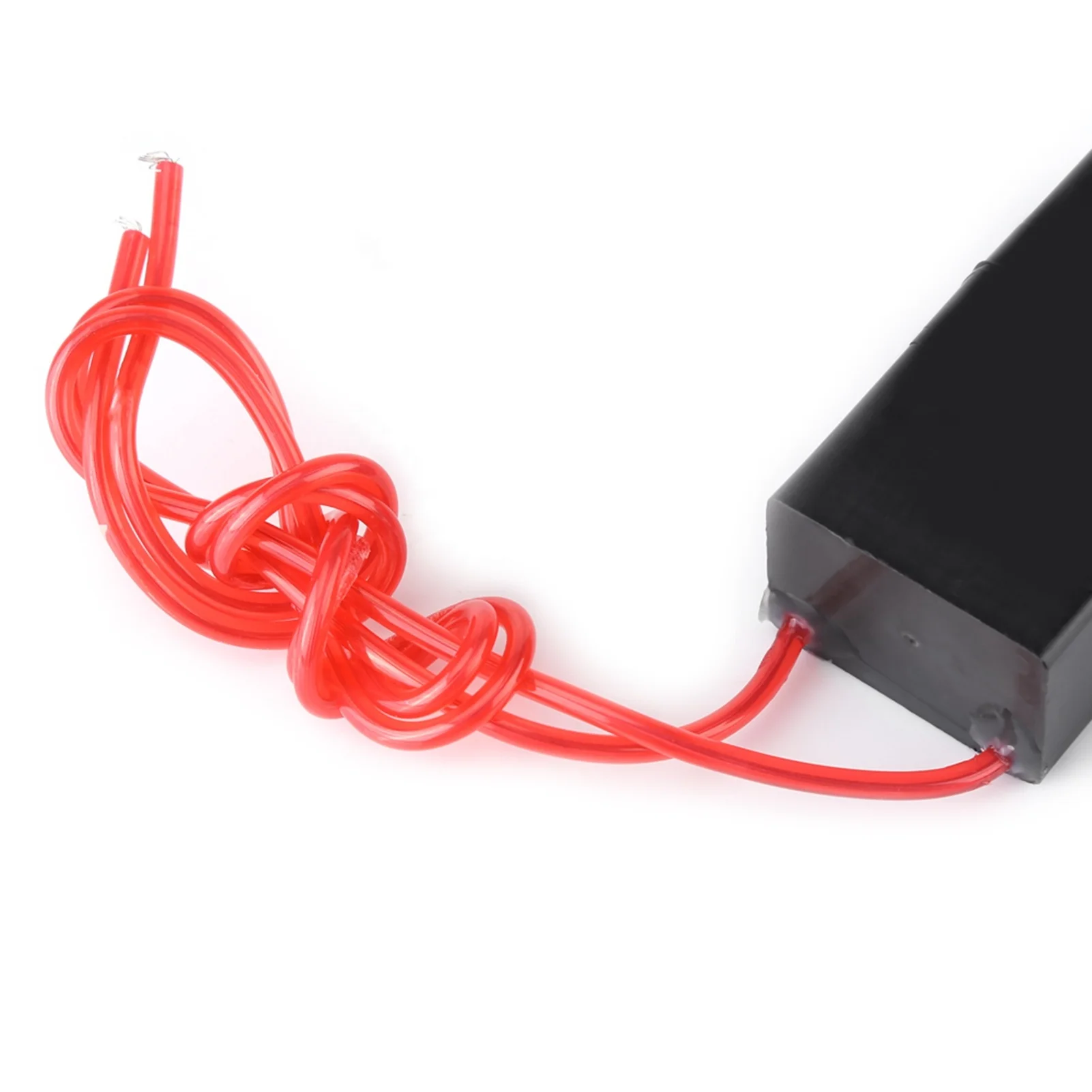

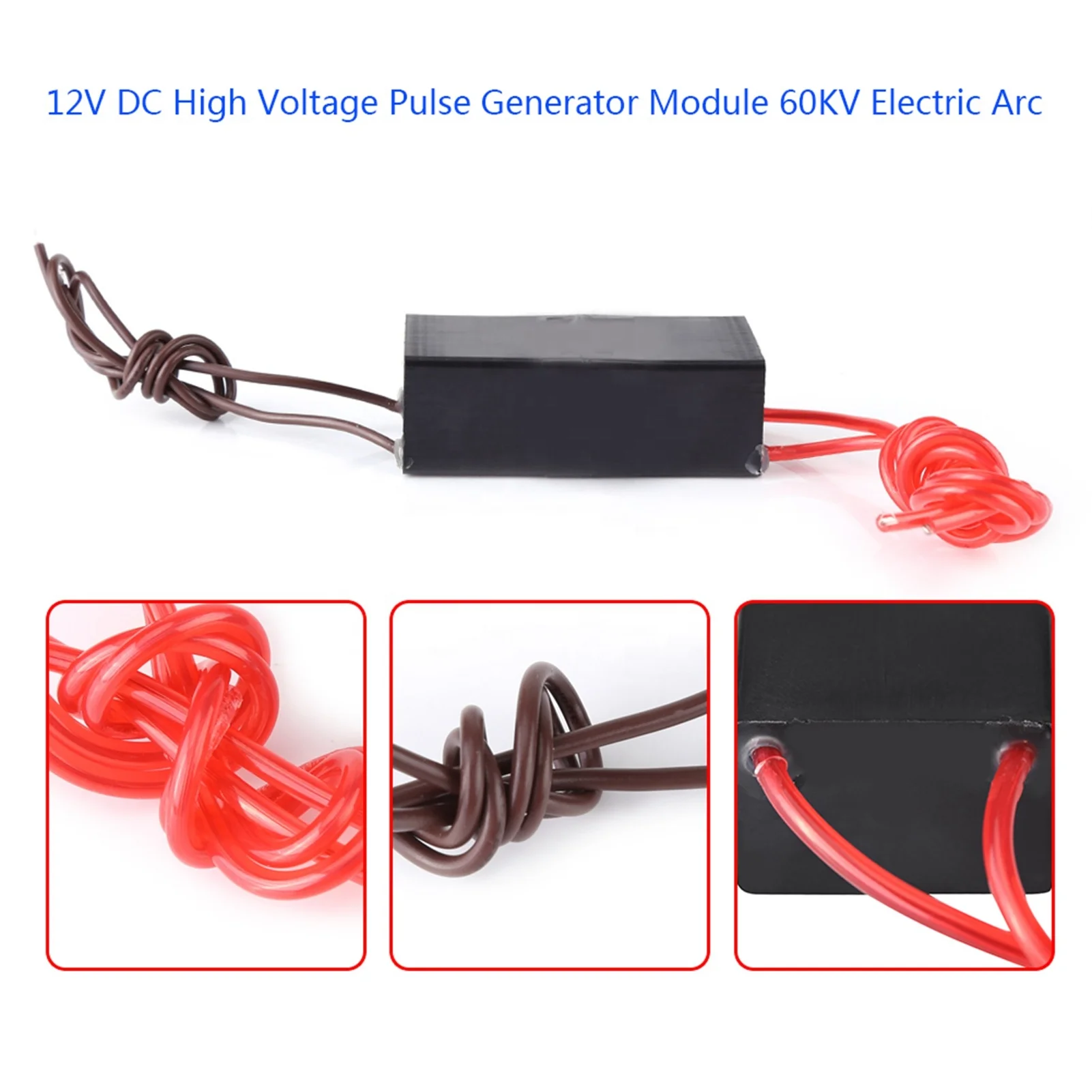

DC 12V High Voltage Pulse Generator 60KV Super Arc Ignition Coil Module
- Category: >>>
- Supplier: Shenzhen Lanqi Technology Co. Ltd.
Share on (1600518472125):
Product Overview
Description
Details Images
Products Description

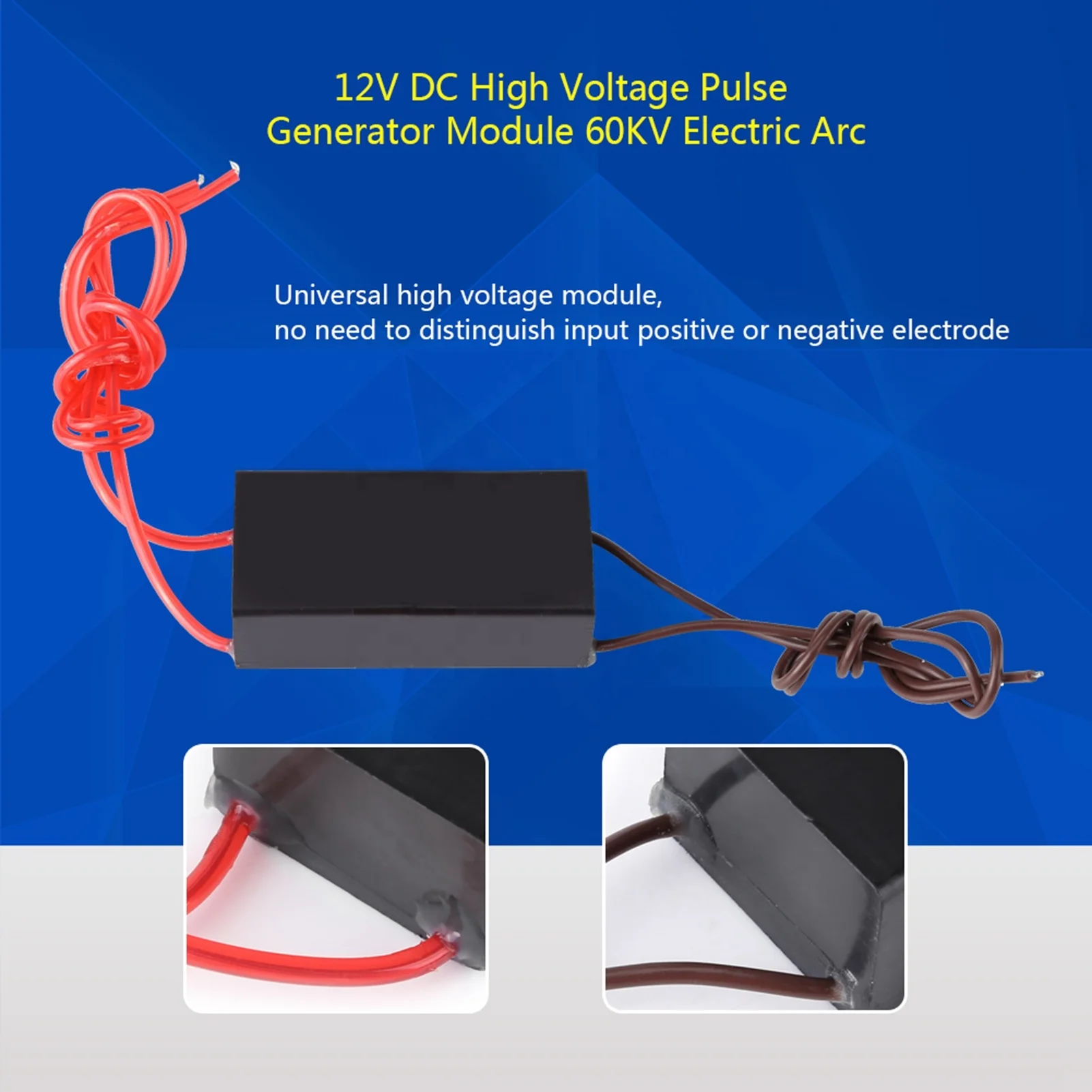

Features | * The module can output high voltage pulse current, small size and high efficiency. * This module is the finished module of transformer for small scientific production. * The input voltage is DC 6V to 12V and will output tens of thousands DC high voltage. * It can be used as high voltage power source in high school science experiment, electronic instrument, anion generator. * The peripheral circuit is simple, simply connect the switch and battery, and the discharge intensity is great. * Input wires are thinner, shorter; output wires are red and thicker; no need to distinguish positive or negative polarity. |

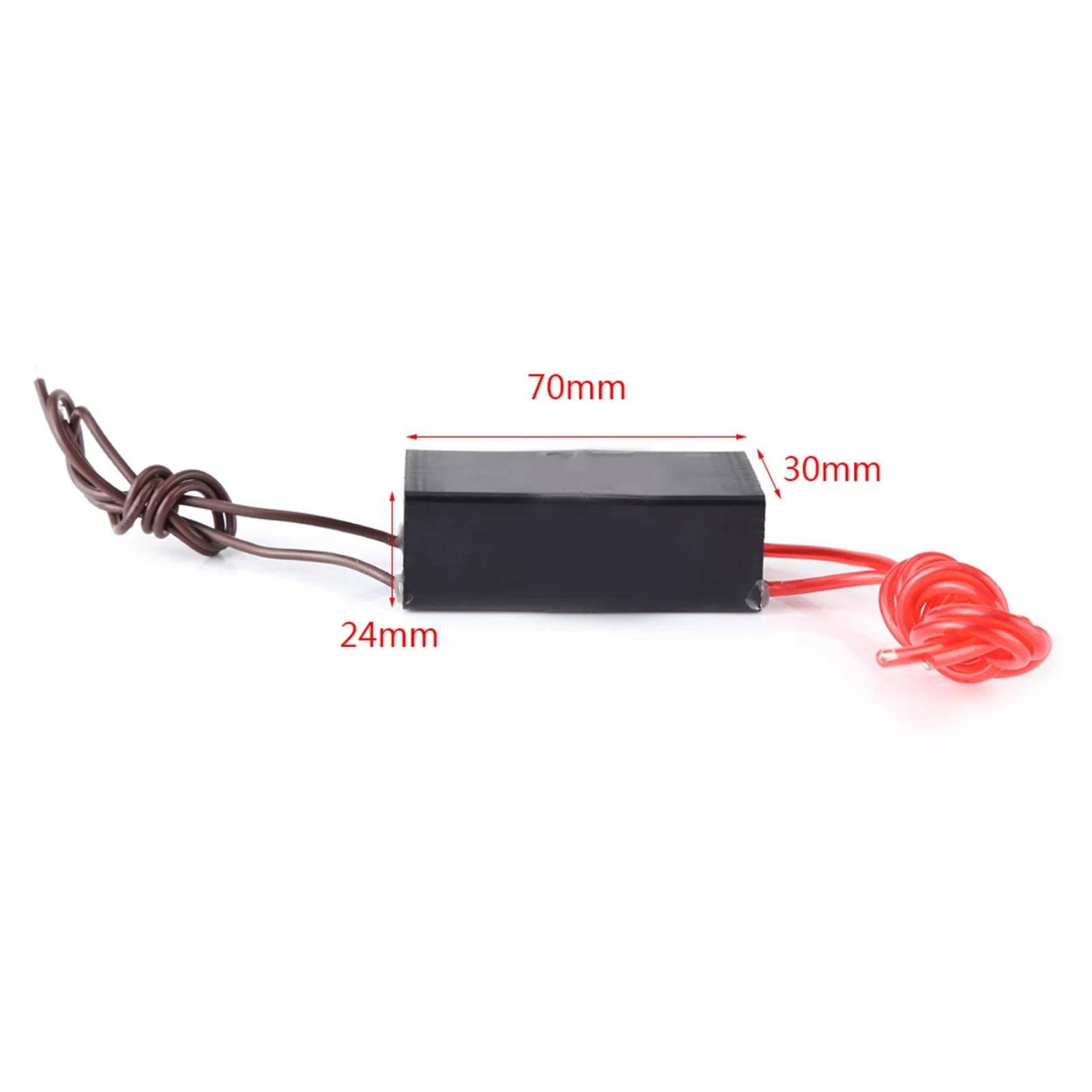

Specifications | Size: 70*30*24mm/2.75*1.18*0.94" Input Voltage: 6V-12V DC Input Current: 0.5A-1A Input Cable Length: Approx. 26cm/10.23" High Voltage Type: Pulse DC Output Voltage: About 60KV Output Current: 0.5A-1A Output Cable Length: Approx. 48cm/18.89" Arc Discharge Distance: 1.5cm/0.59" to 2cm/0.78" Power Supply: Ni-Cd/Ni-mh battery pack, 6V or 12V lead-acid battery(12V is better) |
Note | 1, Output ends of cable should be adjusted properly before power on, and the arc distance depends on battery voltage and capacity. 2, The arc distance should be from short to long, do not produce a longest arc at first or the module might be damaged easily. 3, The module has high power and inner heat is not easily dissipated, so it can not work for long time. 4, The way to judge if a battery capacity is enough to output maximum power is to measure the battery voltage when producing arc. It the measured voltage is about 6V, then it can do the trick. |
Package Includes | 1 x High Voltage Generator |
Company Profile
Shenzhen Lanqi Technology Co., Ltd. is headquartered in Shenzhen, with branches in Wuhan, Chengdu, Dongguan, Cixi, and cooperative business organizations in North America, Europe, Japan, Australia and other places. It is the development of cross-border e-commerce industry in South China. One of the faster companies. Since its establishment, the company has continuously increased investment in scientific research and promoted business development with technological innovation. Over the years, it has successfully integrated multi-platform, multi-category and multi-channel business through its self-developed e-commerce ecosystem, and constantly armed itself with technology. , forming unique technical barriers. The company will be committed to bringing high-quality and cheap Chinese products to the world, focusing on building a cross-border e-commerce technology enterprise in China.
FAQ
1. Can I buy one as sample?
A: Sure, pls contact us then we will arrange the sample order for you asap.
2. How can I get the quotation?
A: Leave us message with your purchase requirements and we will reply you within one hour on working time. And you may contact us directly by Trade Manager.
3. Can I customize the product?
A: Yes, please contact us for details.
2. How can I get the quotation?
A: Leave us message with your purchase requirements and we will reply you within one hour on working time. And you may contact us directly by Trade Manager.
3. Can I customize the product?
A: Yes, please contact us for details.
