AR SMC Regulator AR3000 02 AR3000 03 G1/4' G 3/8' Air Pressure Regulator
- Category: >>>
- Supplier: Hangzhou Chenming Automation Technology Co. Ltd.
Share on (1600518521498):
Product Overview
Description

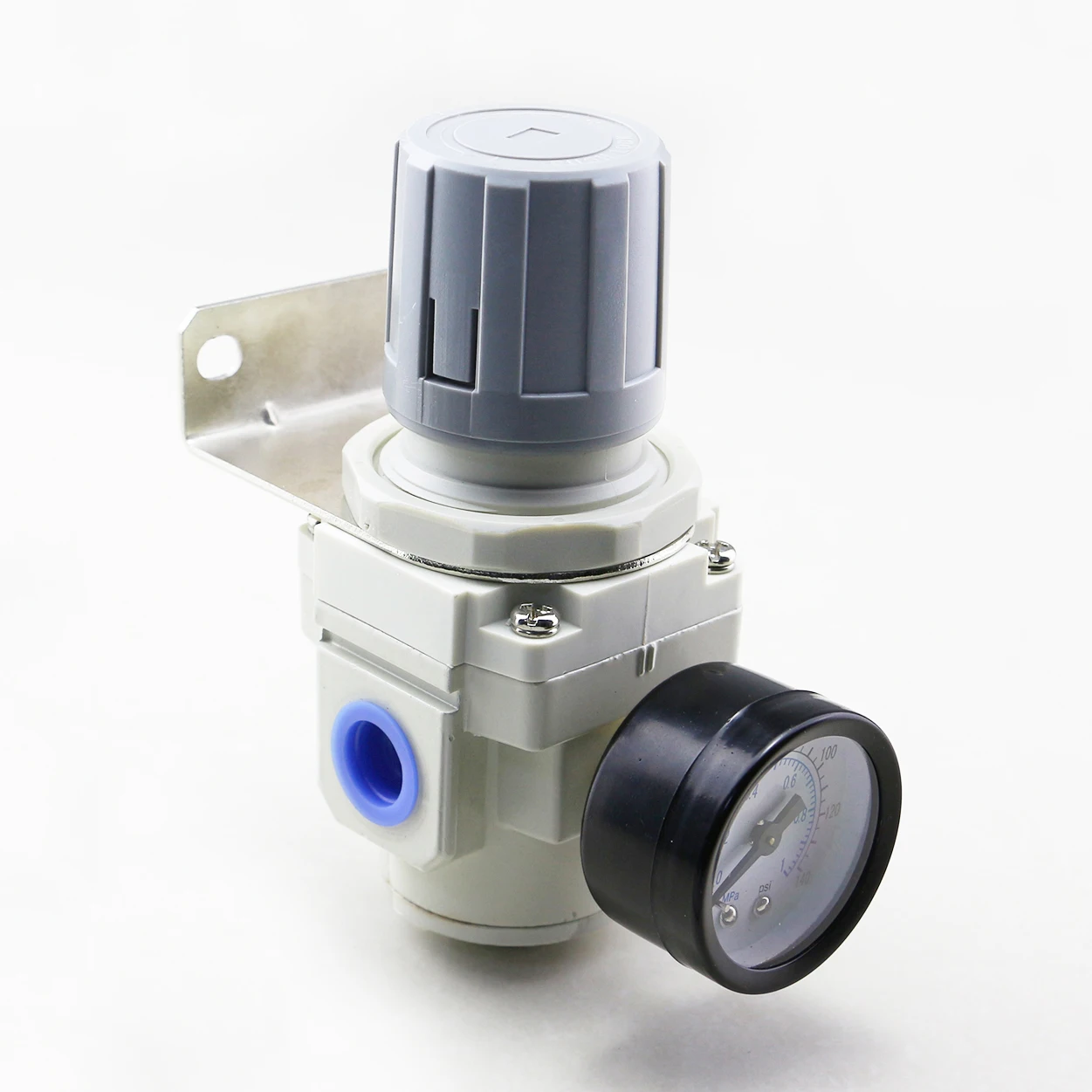

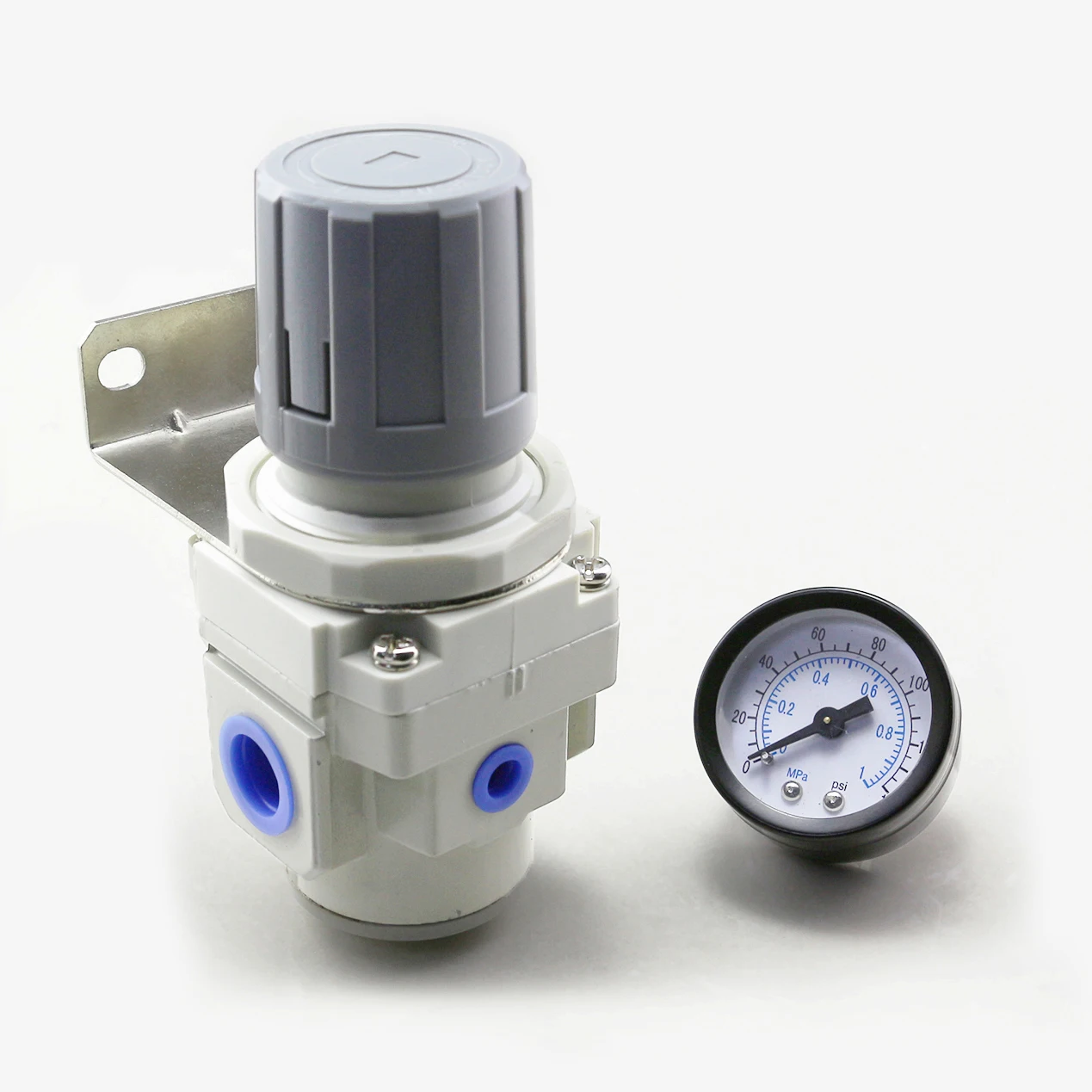

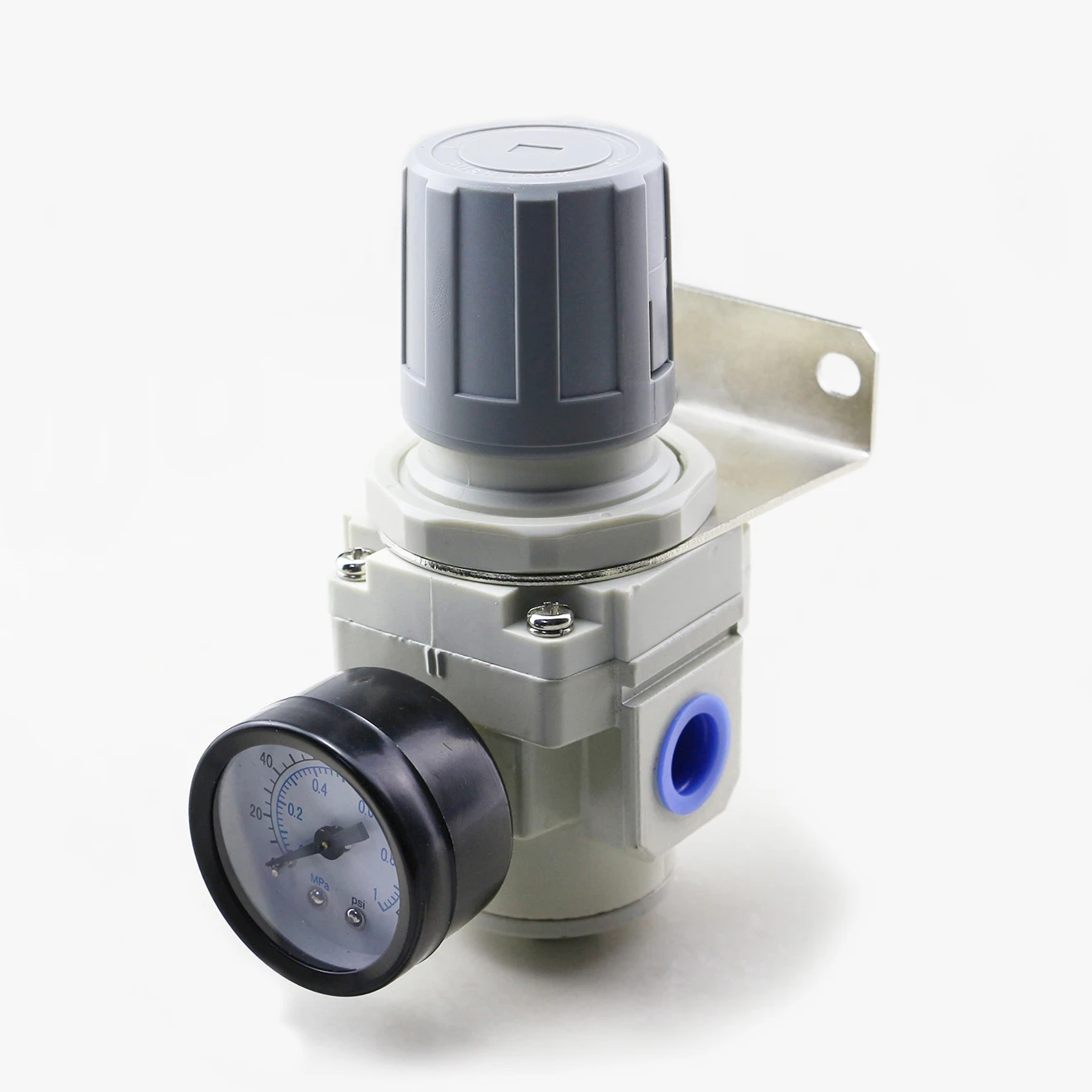

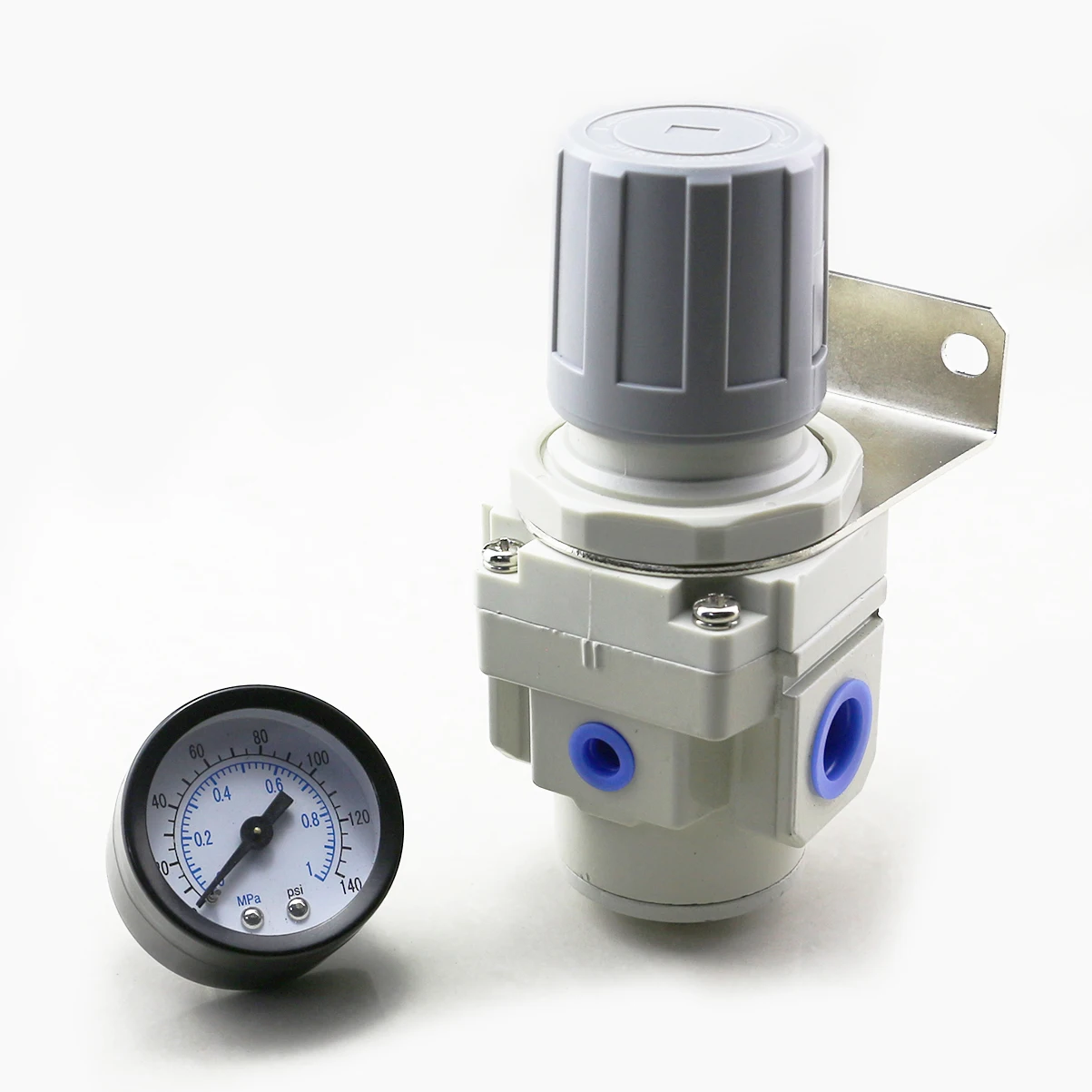

AR SMC Regulator AR3000-02 AR3000-03 G1/4'' G 3/8'' Air Pressure Regulator

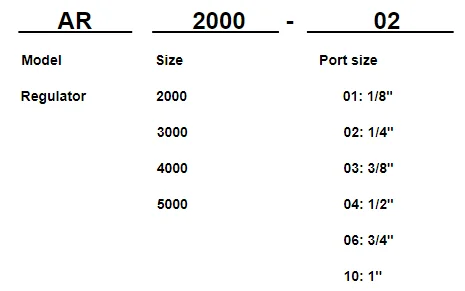

Ordering Code:
Specification
Model | AR2000-01 | AR2000-02 | AR3000-02 | AR3000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000 -10 | |||||||
Port size | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 3/4'' | 1'' | |||||||
Flow rate (L/Min) | 550 | 550 | 2000 | 2000 | 4000 | 6000 | 7000 | 7000 | |||||||
Fluid | Air | ||||||||||||||
Proof pressure | 1.5Mpa(15.3kgf/cm²) | ||||||||||||||
Max. operating pressure | 1.0Mpa(10.2kgf/cm²) | ||||||||||||||
Ambient & fluid temperature | 5~60°C | ||||||||||||||
Adjustable Pressure range | 0.05~0.85Mpa | ||||||||||||||
Pressure gauge | Y40-01Z | Y50-02Z | |||||||||||||
Body material | Aluminum alloy | ||||||||||||||

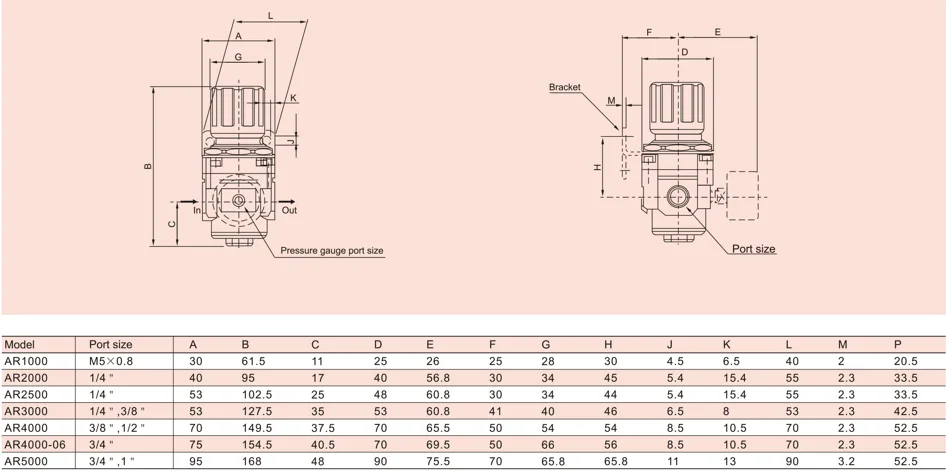

Dimension
Product Details:
More Product:
Other type for you to choose
Other pneumatic part for you to choose
Main Products:
Why Choose Us:
FAQ:
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each F.R.L by one box packing with protection.
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
A: 5pcs for MOQ.
Q: What is your packing?
A: Each F.R.L by one box packing with protection.
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
