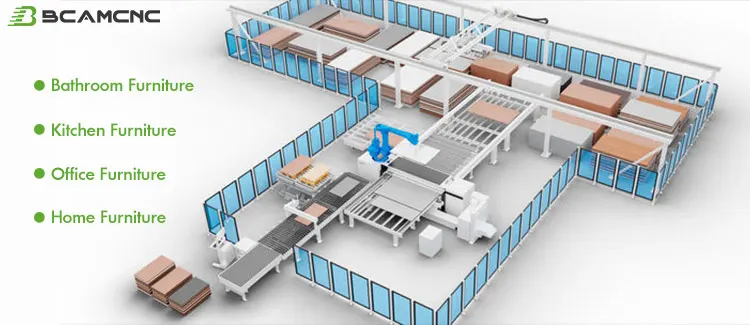

High precision CNC engraving wooden door furniture production line
High precision CNC engraving wooden door furniture production line
High precision CNC engraving wooden door furniture production line
High precision CNC engraving wooden door furniture production line
High precision CNC engraving wooden door furniture production line
High precision CNC engraving wooden door furniture production line

High precision CNC engraving wooden door furniture production line

Share on (1600518529003):


Price:$46,898.00 - $68,970.00

Quantity:


Product Overview

Description



panel furniture machinery kitchen cabin woodworking pvc furniture machine used in manufacturing pvd coating for

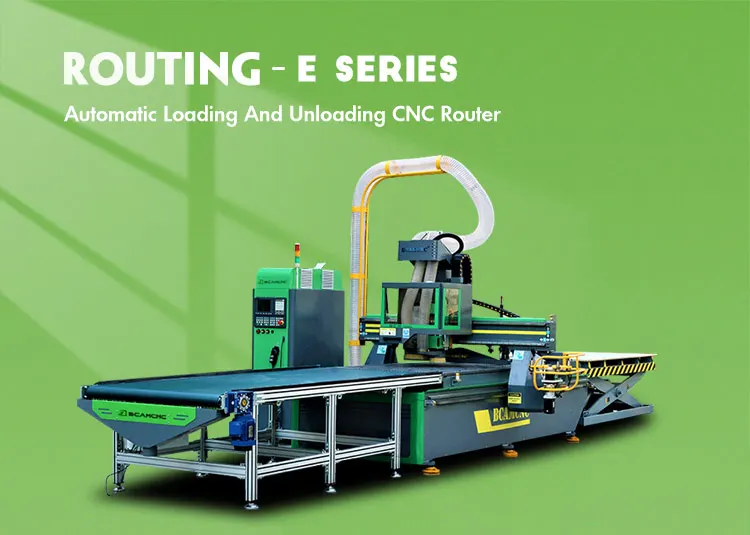

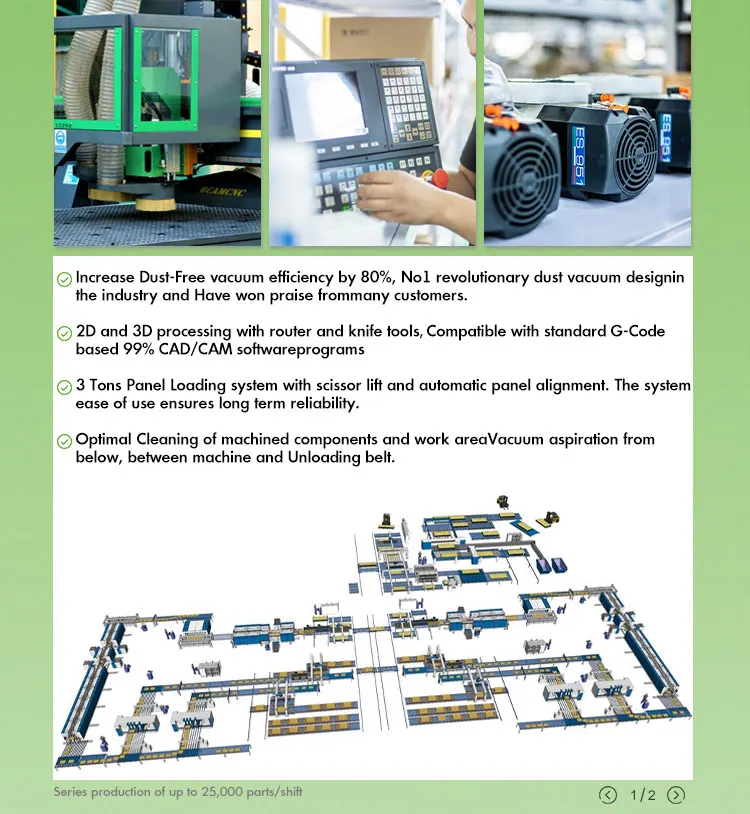

Smart cutting details






Parameters

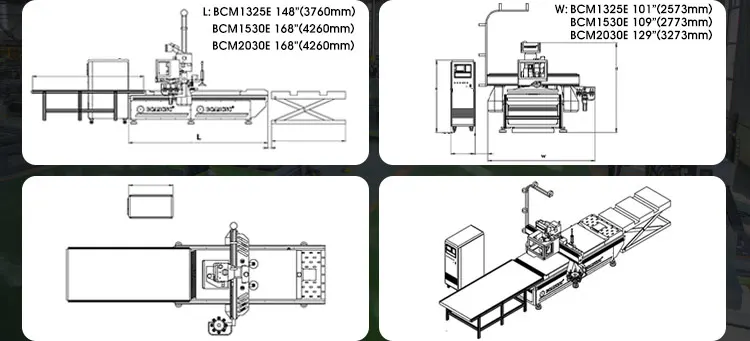

Standard Specifications BCM1325E Plus
X,Y,Z Working Area
1300*2500*200mm|4*8ft
Optional Working Area
1300*1300*200mm|4*4ft
Optional Working Area
1500*3000*200mm|5*10ft
Optional Working Area
2000*3000*200mm|7*10ft
Spindle Power
9kw Italy HSD air cooling spindle
X,Y,Z Traveling Positioning Accuracy
0.01/2000mm
Table Surface
Vacuum table
X,Y,Z Rail and Trasmission
X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate
80m/min
Max. Working Speed
45m/min
Cutting thickness
According materials
Spindle Speed
24000r/min
Drive Motors
4 sets 750w Yaskawa servo motor and drivers
Working Voltage
AC380v/50HZ/3 phase
Command Language
G Code
Operating System
Taiwan Syntec 6MB control system
Interface
USB,NETWORK
Software Compatibility
Option:Alpacam/Carblnets Version/BCAMNESTTING/Solidworks,etc.
Running Environment
Temperature: 0℃~45℃ Relative Humidity: 30%~75%

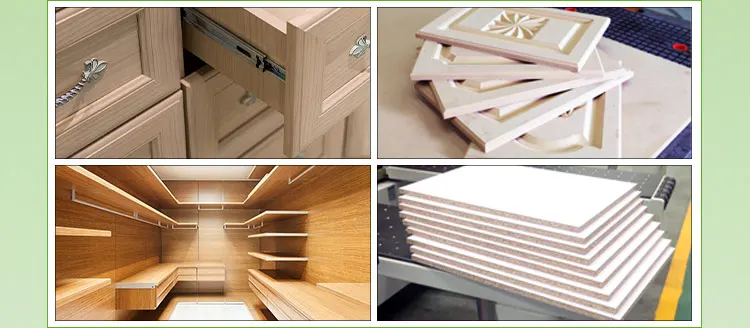

Smart cutting samples






High Speed Edge Banding Details




Parameters
BCF506
Edge thinkness
0.4-3mm
Feed speed
12-20m/min
Panel thickness
10-60mm
Panel Length
>=150mm
Panel width
>=60mm
End cutting motor
0.55kw*2@18000rpm
Rough trimming motor
0.75kw*2@18000rpm
Fine trimming motor
0.75kw*2@18000rpm
Buffing motor
0.18kw*2@18000rpm
Total motor power
16kw
Max. Rapid Travel Rate
30m/min
Max. Working Speed
20m/min
Working Pressure
0.8Mpa
Netweight
2700kg

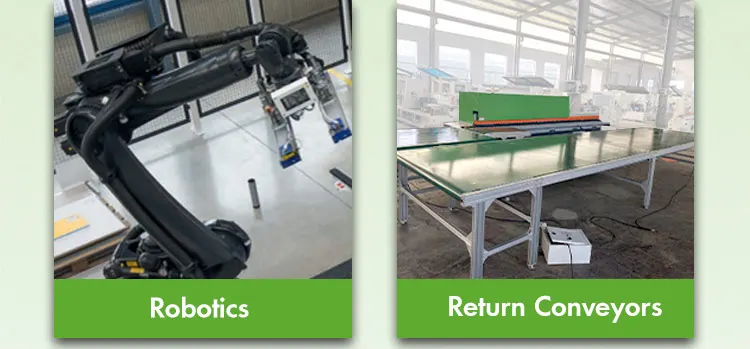

Transmission lines

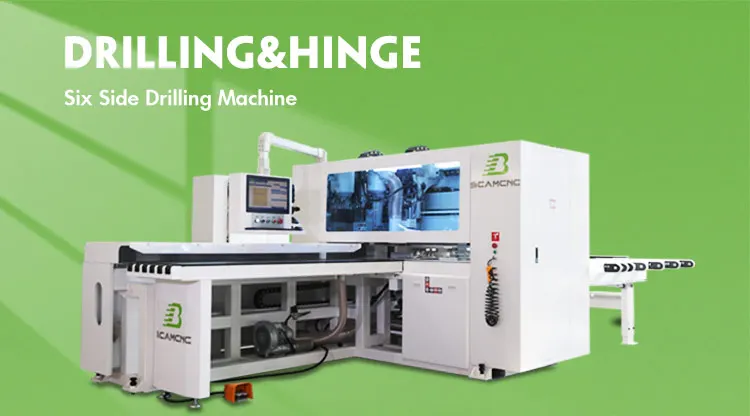

Smart Drilling Details






Model
BCD2812D
Panel width：
30-1200mm
Panel thickness ：
10-50mm
Max speed：
135/135/75/30m/min
Main spindle power：
3.5kw×2
Max rotation speed：
18000rpm
Upper vert.drill：
12
Upper vert. drill：
X direction：2×2； Y direction：2×2
Lower vert.drill：
10
Rotation speed：
4000rpm
Dust collector：
Top dust collector φ150mm； Bottom dust collector φ125mm
Total power：
18kw
Overall dimension：
5546×2910×2100mm
Net weight：
3500kg

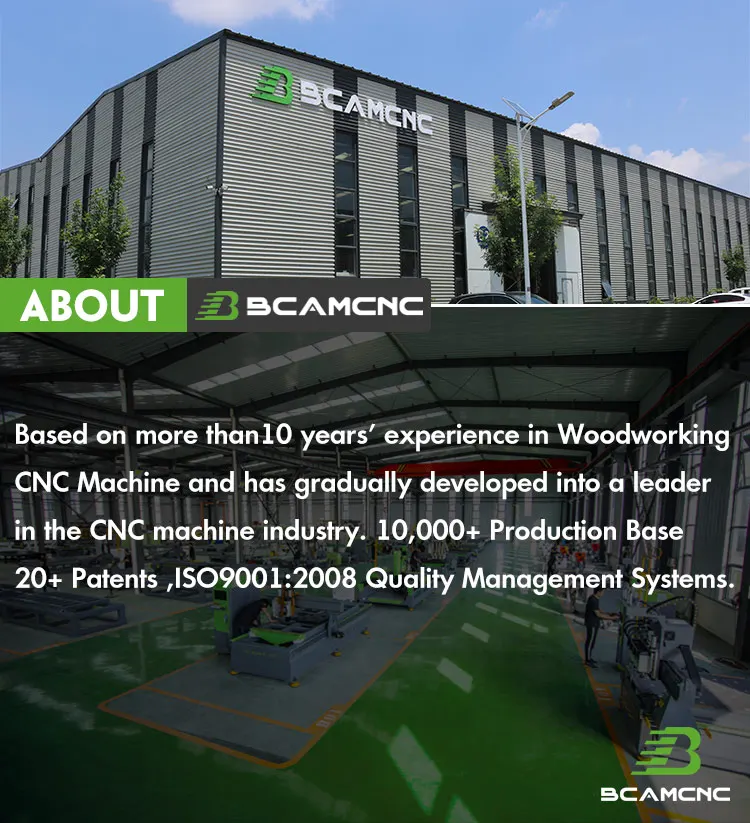

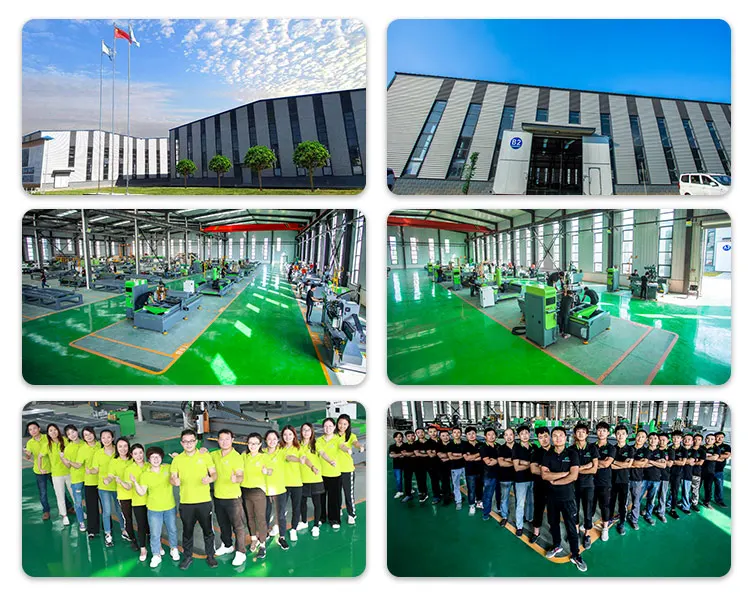

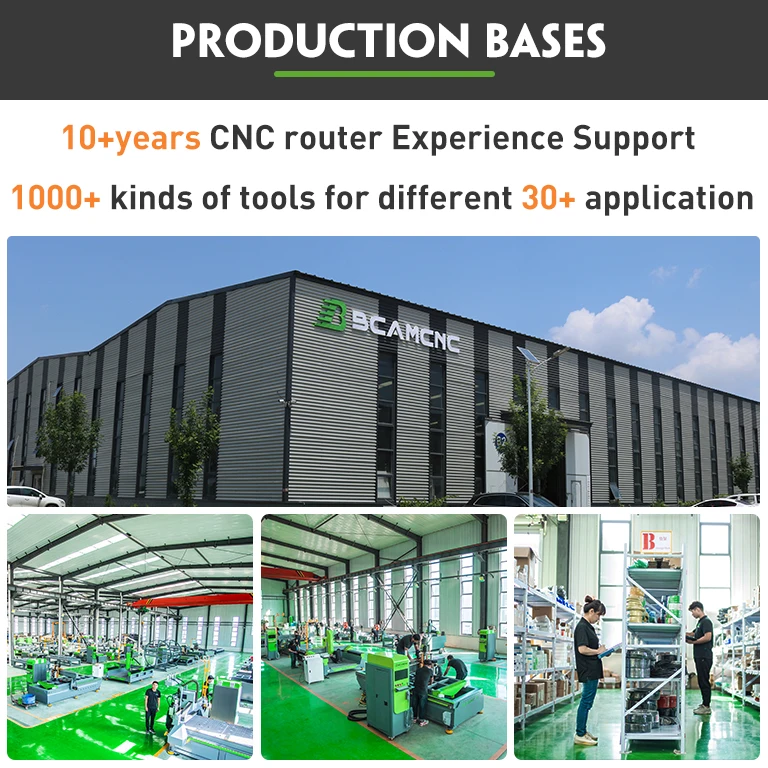

Company Profile










Certifications






FAQ


1. How to use the machine after receving the machine
Firstly, when you got machine, you need to contact with us, our engineer will work together with your to deal with it, Secondly, we send user manuals and CD to you before you get the machine. Thirdly, Our professional technician online teach you until you can use it well by yourself.
2. Payment terms, There are 2 ways to pay money.
1)T/T, means international bank transfer. 50% deposit, we produce the machine for you. 50% before shipping. It is convenient and fast.
2)Alibaba Secure payment. Reliable and safe, Alibaba will charge a little handling fee. 3)Other kinds of payment we can consider if acceptable for us.
3. How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
4. Do you have a setup and equipment commissioning service?
Yes, we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug the machine.
5. What is the warranty period for the equipment?
Three years warranty and 24 hours online professional technical support.
