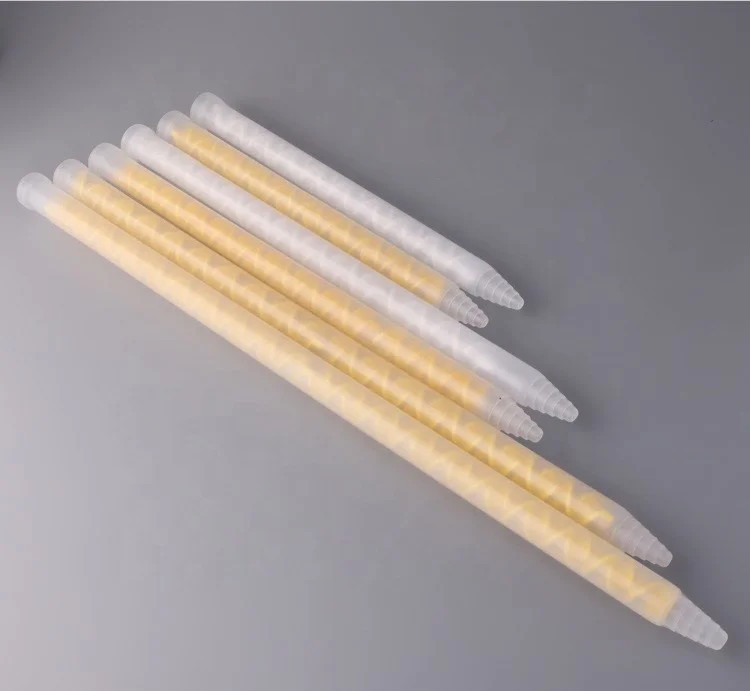

Dual Epoxy Static Mixer MC13 18 Plastic Mixing Nozzle Machine Mixer Tip for ABglue, Adhesive, Epoxy

Product Overview

Description

Dual Epoxy Static Mixer  MC13-18 Plastic Mixing Nozzle Machine Mixer Tip for ABglue, Adhesive, Epoxy



Series No.	Type No.	Element No.	Inner Dia. (mm)	Outer Dia. (mm)	Connector ID (mm)	Oultet ID (mm)	Total Length (mm)
C1	MC05-18	18	5	8	17	1	122
C2	MC05-24	24	5	8	17	1	150
C3	MS05-24	24	5	8	17	1	150
C4	ME05-32	32	5	8	17	1	150
C5	MC05-32	32	5	8	17	1	188
C6	MS05-32	32	5	8	17	1	188
C7	ME05-32	32	5	8	17	1	188

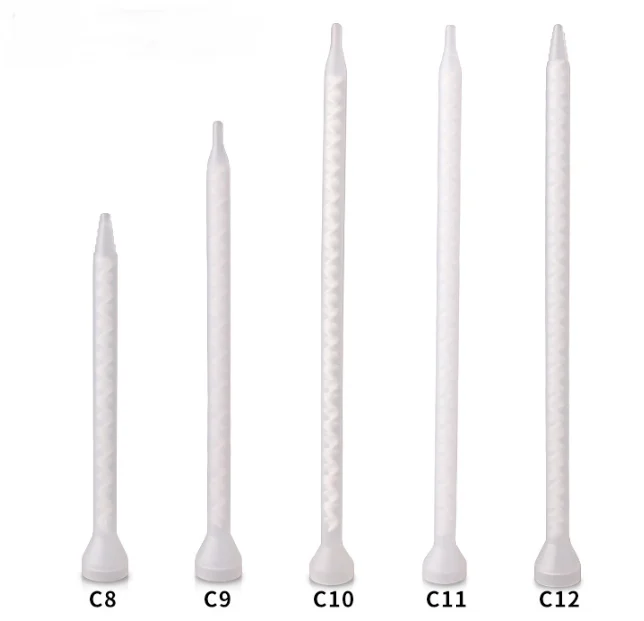

C8	MC06-18S	18	6	10	17	1.5	150
C9	MC06-24L	24	6	9.5	17	2	188
C10	MC06-32L	32	6	9.5	17	2	240
C11	MC06-32	32	6	9.5	17	2	240
C12	MC06-32S	32	6	10	17	2	235

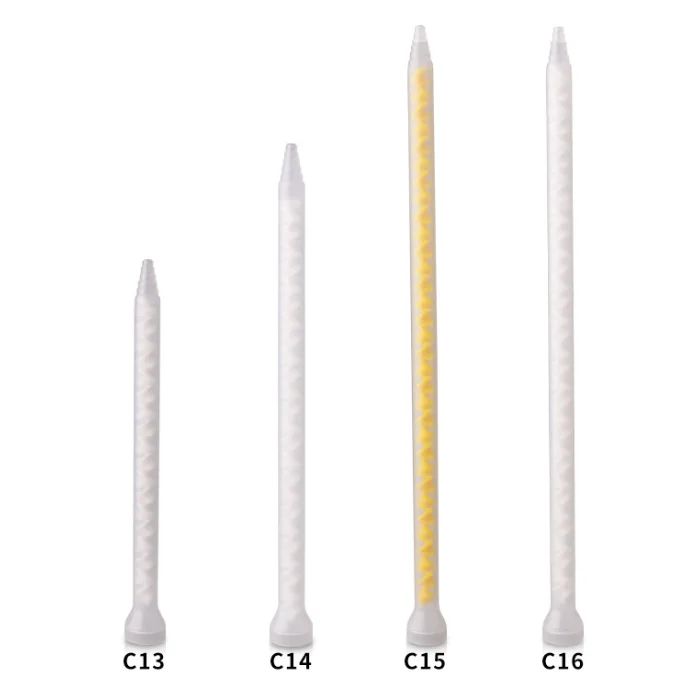

C13	MC08-18	18	8	12	17	2	177
C14	MC08-24	24	8	12	17	2	224
C15	MS08-32	32	8	12	17	2	290
C16	MC08-32	32	8	12	17	2	290

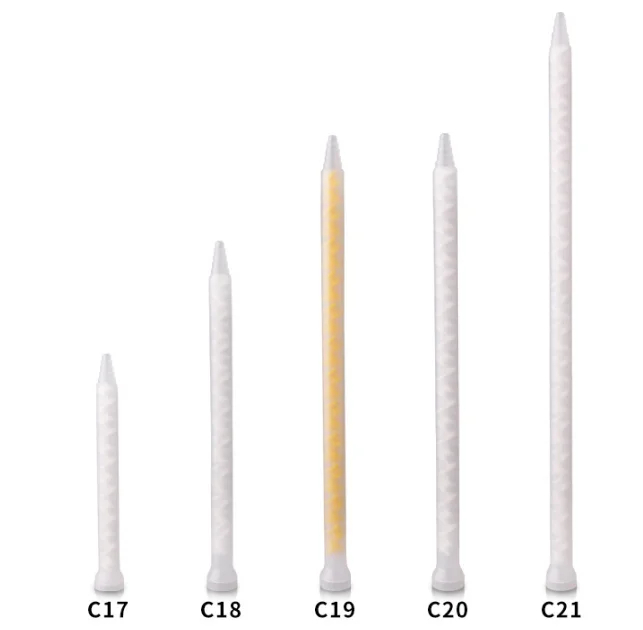

C17	MC10-12	12	10	14	17	3	157
C18	MC10-18	18	10	14	17	3	215
C19	MS10-24	24	10	14	17	3	275
C20	MC10-24	24	10	14	17	3	275
C21	MC10-32	32	10	14	17	3	354

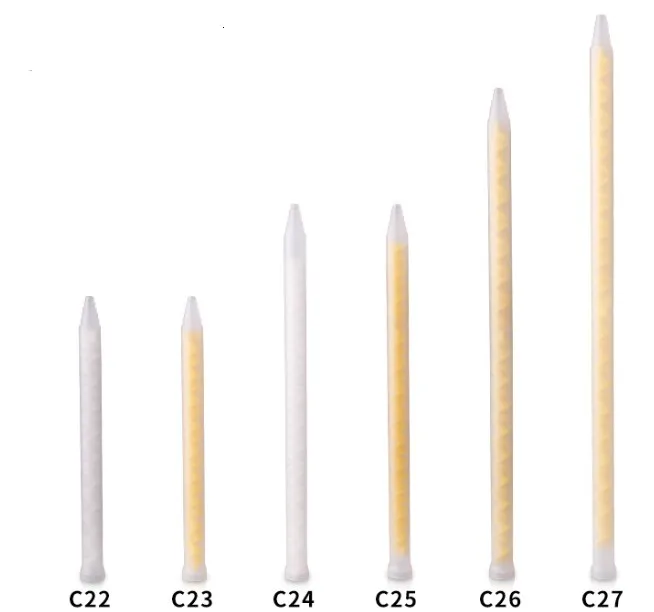

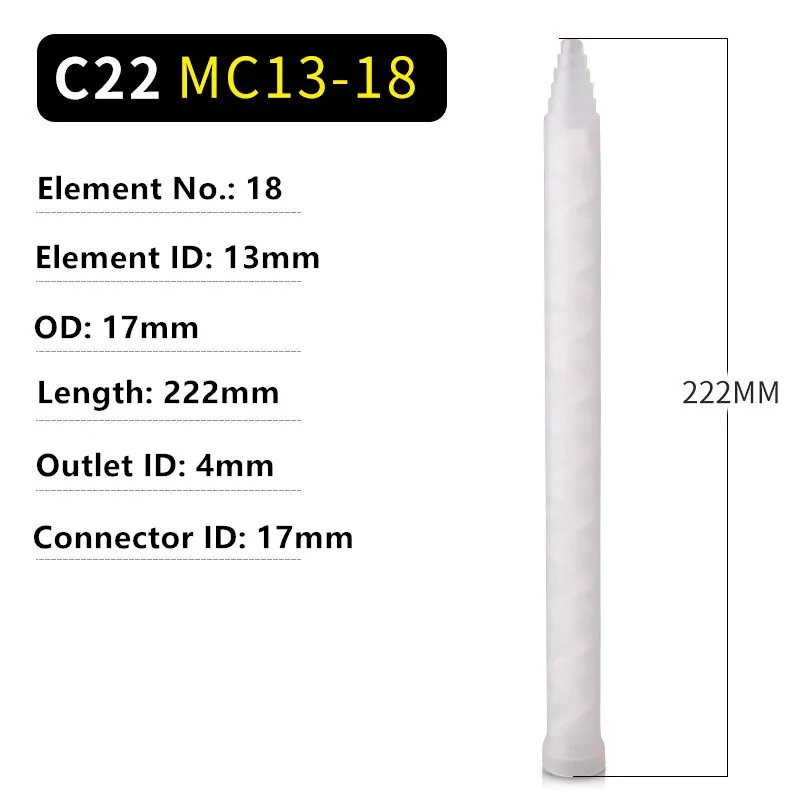

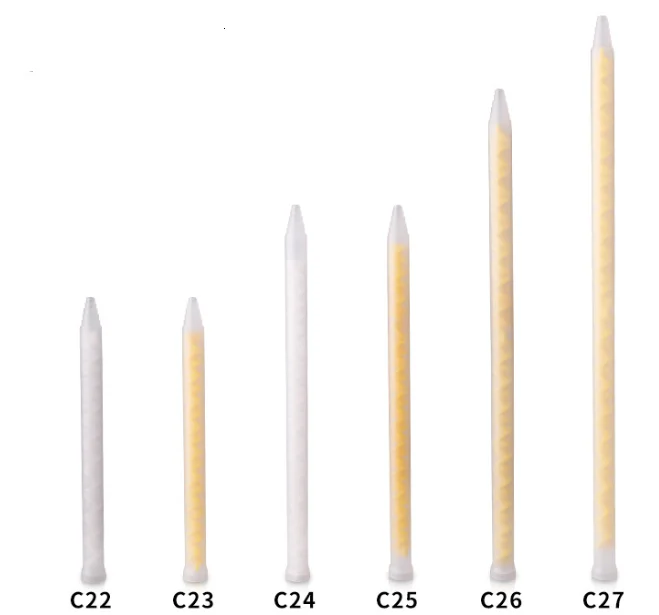

C22	MC13-18	18	13	17	17	4	222

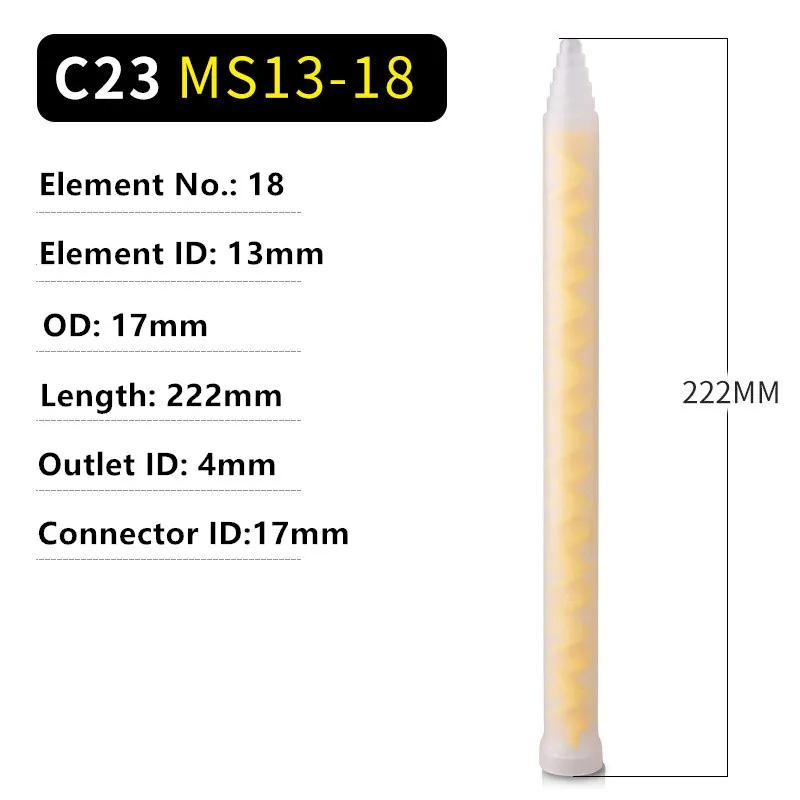

C23	MS13-18	18	13	17	17	4	222
C24	MC13-24	24	13	17	17	4	295
C25	MS13-24	24	13	17	17	4	295
C26	MS13-32	32	13	17	17	4	377
C27	MS13-36	36	13	17	17	4	421





Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener, we accept small order.



Q2: Can you send products  to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.



Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.



Q4: What's your payment terms ?

A4: By T/T, 50% deposit in advance, balance 50%  before shipment, PayPal



Q5: How can I place the order?

A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.



Q7: When can I get the quotation ?

A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
