Cement Silo Spare Parts WAM VCP2731D Pressure Relief Safety Valves for Silo Top
- Category: >>>
- Supplier: Better International Co. Ltd.
Share on (1600518540875):
Product Overview
Description
Product Description

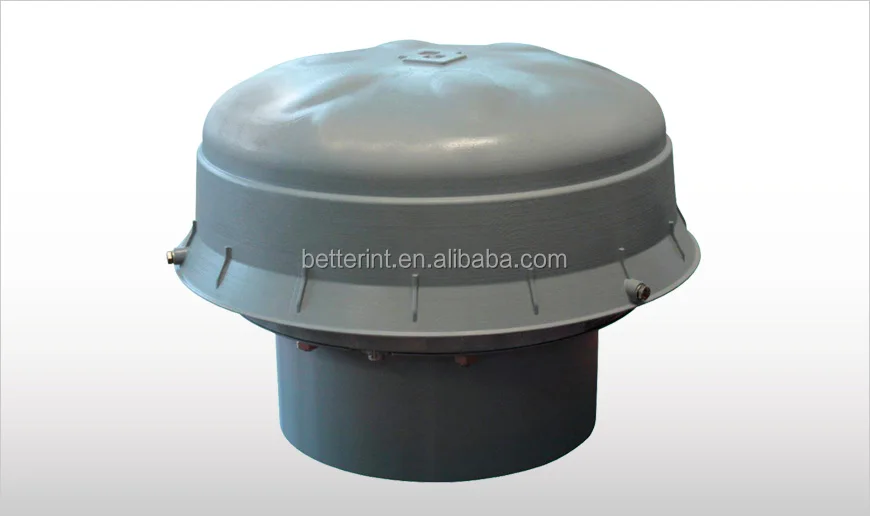

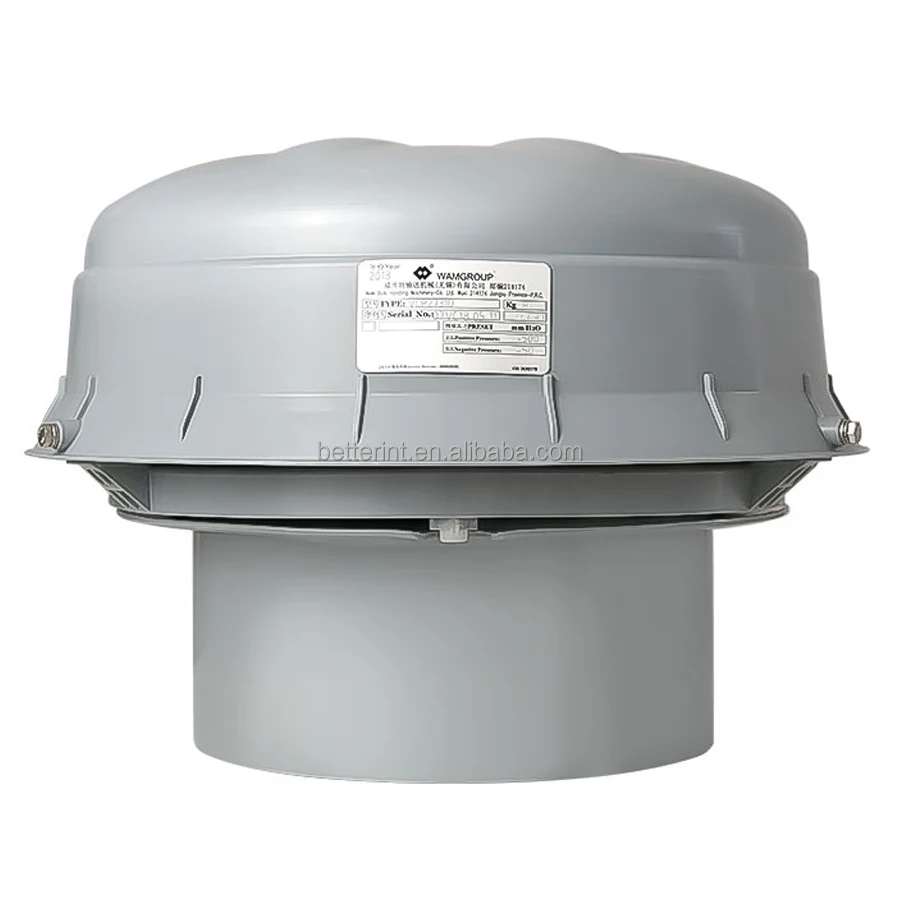

cement silo spare parts VCP2731D pressure relief safety valves

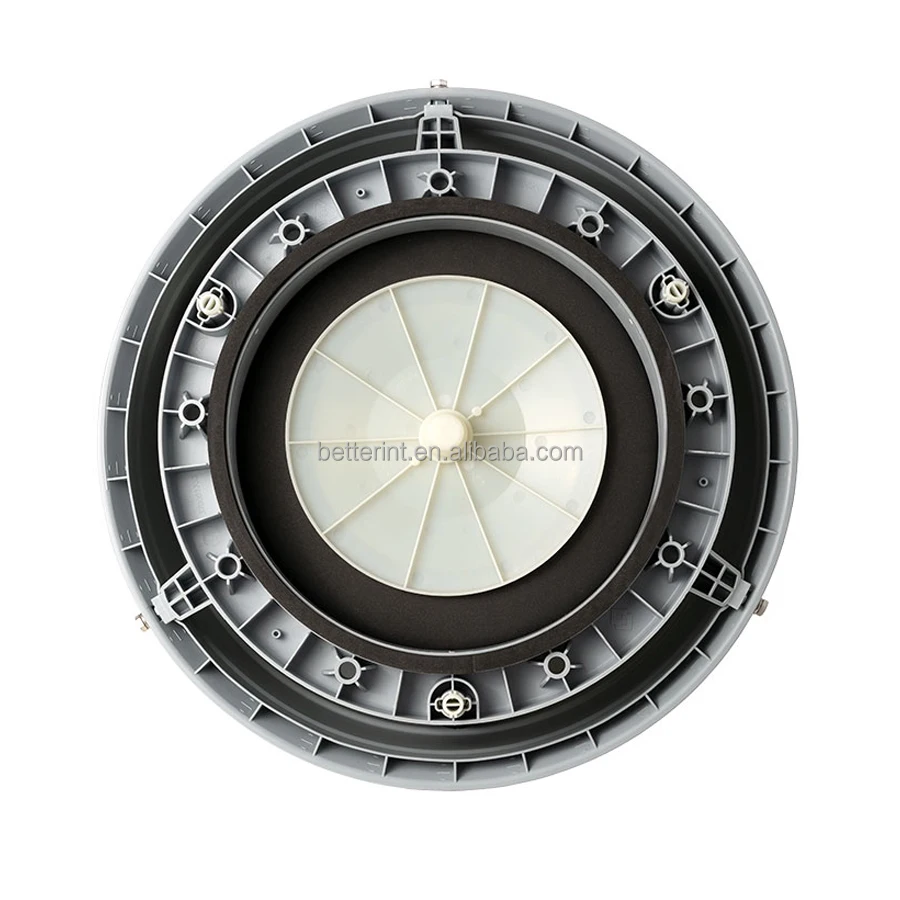

VCP-D Pressure Relief Valves consist of a cylindrical casing with a bottom flange to be connected with a spigot welded on the silo roof, a disc shape inner polymer lid for negative pressure operation held in position by a central spring rod, an outside steel ring for excess pressure kept in position by three spring rods, gaskets, and a weather protection cover.
Specification
VCP-D | Excess Pressure | Negative Pressure |
Standard Setting | 500mm H2O | -50mm H2O |
Air Flow Rate | 6000 Nm3/h | 1900 Nm3/h |
Function
cement silo spare parts VCP2731D pressure relief safety valves
Helical springs keep the valve lids closed when the pressure value remains within the preset limits. The three outside spring rods keep the external ring-shaped lid firmly closed as long as the force generated by the pressure inside the silo does not overcome the spring force. Once the pressure exceeds the pre-set value the lid is pushed up and pressure can escape. The smaller lid covers the central circular opening of the external lid from below. It is held in the middle by a single spring rod and is pressed onto the external lid by the normal air pressure inside the silo. In the event of suction pressure the spring is compressed and allows the lid to drop. The air entering the silo from outside ensures rapid pressure balance and pushes the central lid back up into "closed" position.
Features
cement silo spare parts VCP2731D pressure relief safety valves
* Flow rate: up to 6,000 m3/h (3,531 cfm)
* Painted carbon steel
* Polymer weather protection cover
* Mechanical set-up for inductive signalling sensor
* Preset for maximum negative pressure of -0.005 bar (-0.07 psi) and maximum excess pressure of 0.05 bar (0.72 psi)
* Painted carbon steel
* Polymer weather protection cover
* Mechanical set-up for inductive signalling sensor
* Preset for maximum negative pressure of -0.005 bar (-0.07 psi) and maximum excess pressure of 0.05 bar (0.72 psi)
Benefits
cement silo spare parts VCP2731D pressure relief safety valves
* Lightweight design and reduced overall dimensions for extremely comfortable handling
* Easy to fit
* Quick maintenance
* Easy to fit
* Quick maintenance

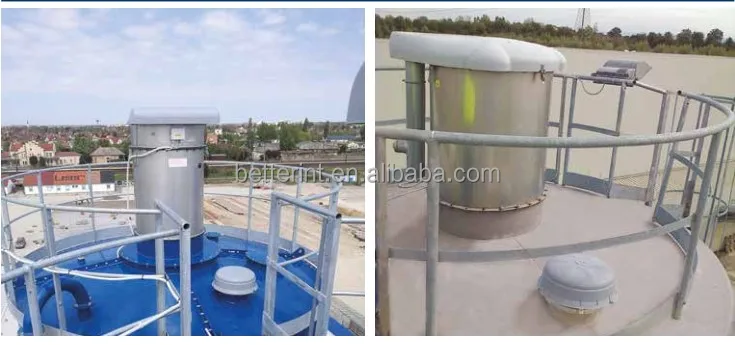

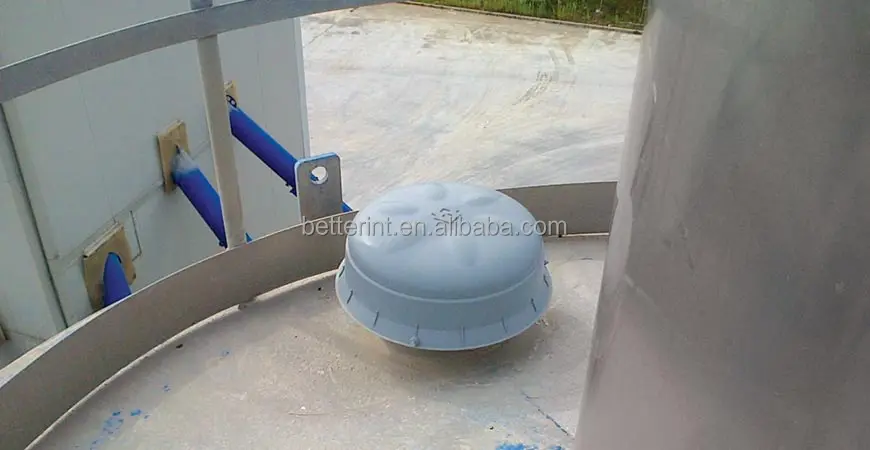

Application

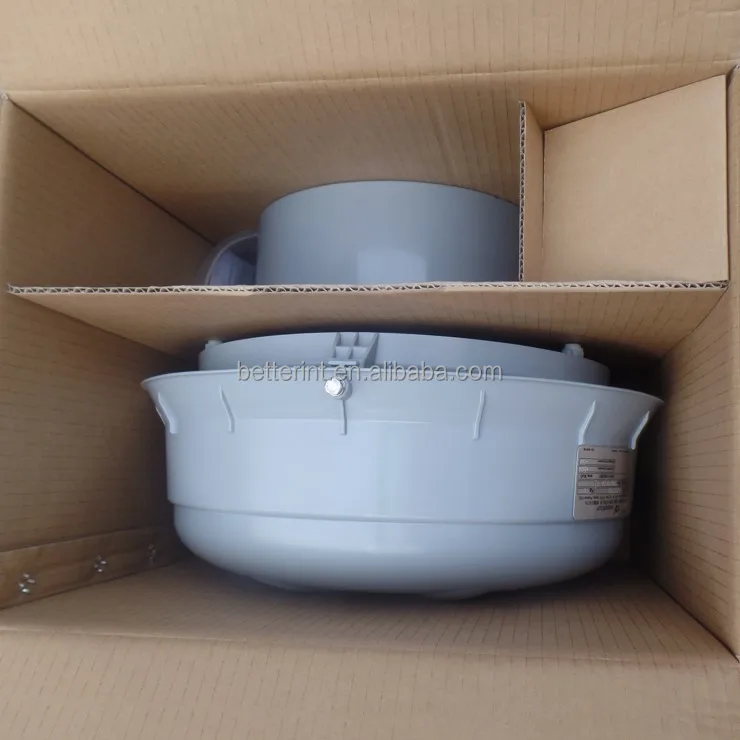

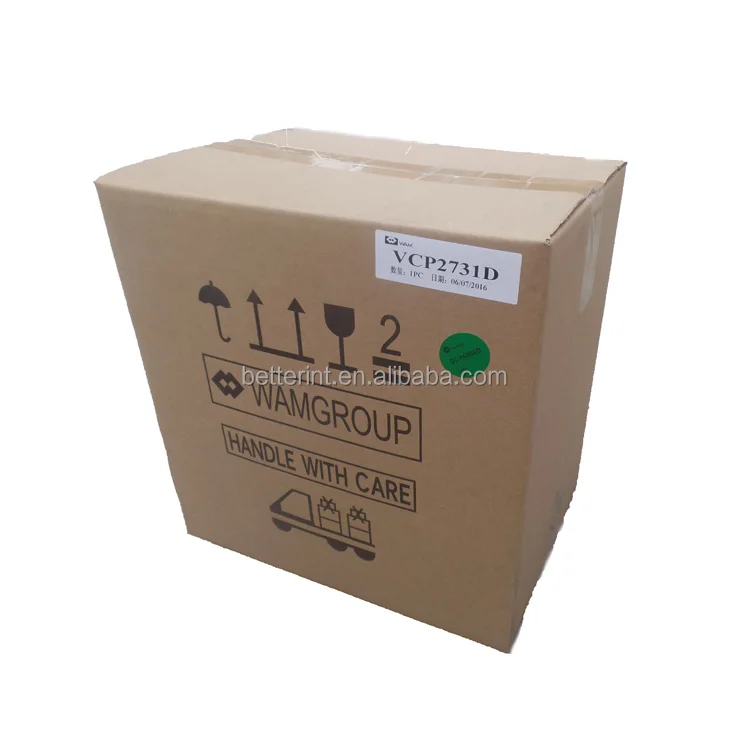

Packing & Delivery
cement silo spare parts VCP2731D pressure relief safety valves
carton/set shipped by air or by express such as DHL,Fedex,UPS
pallet shipped by sea
