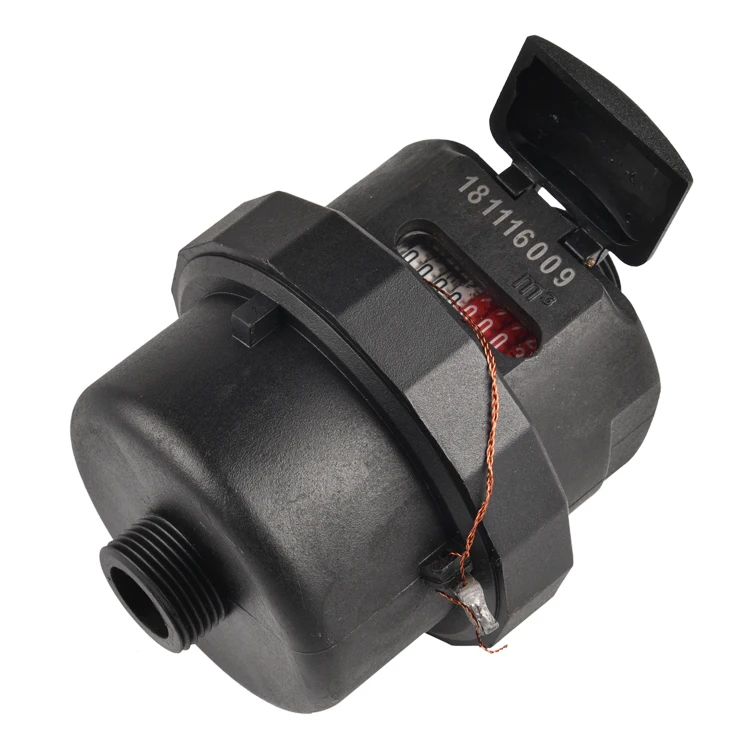

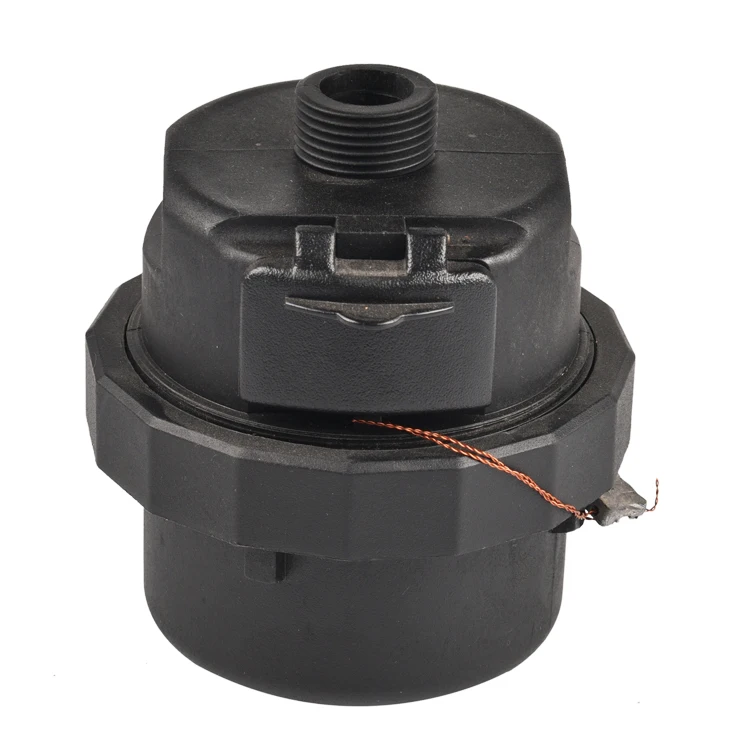

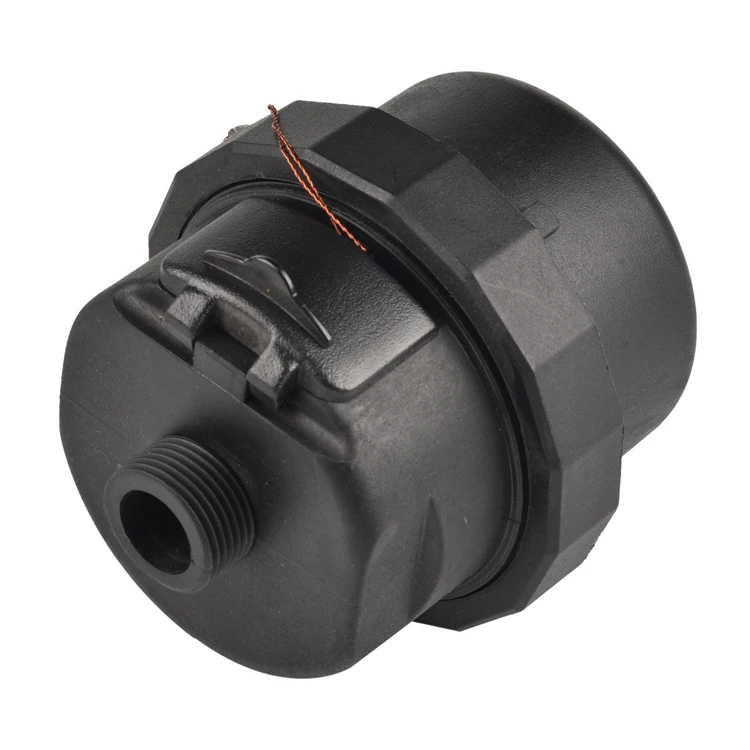

Class C 15mm Rotary Piston Volumetric water meter multi jet

Product Overview

Description

Application:
--Measuring the total volume of cold potable water passing through the pipeline.



Feature:
--Volumetric meter, on principle of piston rotation, complies with ISO4064 Class C(R160)standard;
--High sensitivity, accurate measurement even at low flow rate of 4L/h;
--Optimum accuracy and performance at all times, in any position;
--Liquid-sealed register(LXH), vacuum sealed(LXHG)easy and long term clear reading.
--Piston adopts high quality material to ensure stable and durable performance;
--High quality materials corrosion resistance
--Plastic connector nut

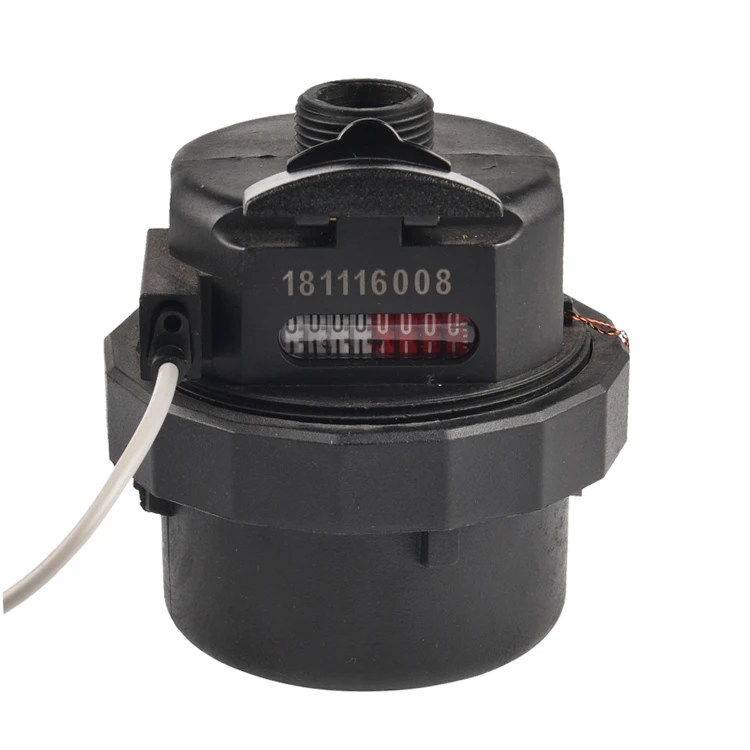

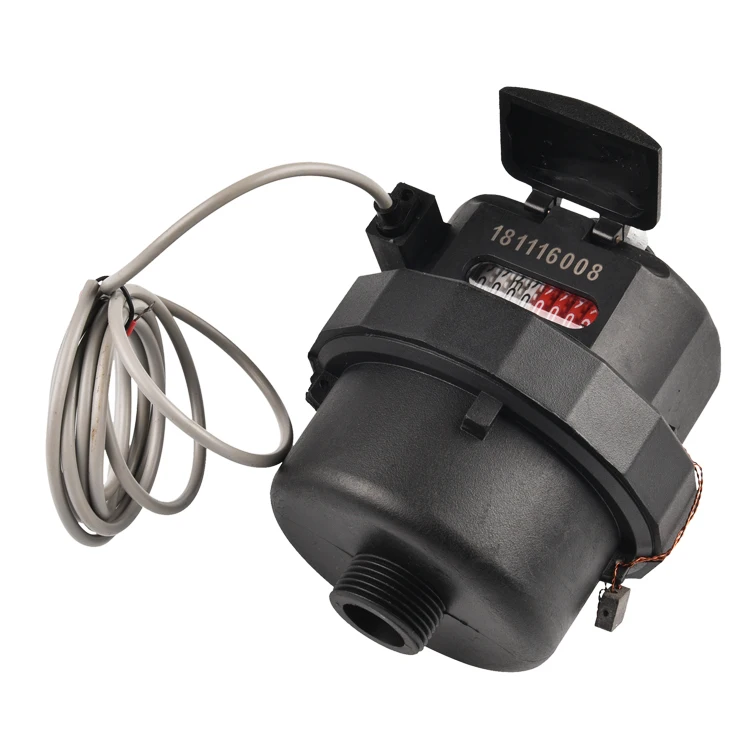

--Data Output Options: 10 L/Pulse, 100 L/Pulse, or 1000 L/Pulse for LXHG; 1 L/Pulse for LXH.



Working condition:
Water temperature: 0.1°C~50°C for cold water meter.
Water pressure   : ≤1.0Mpa
Compliance with standard: ISO4064(GB/T778.1-1996) ISO4064(GB/T778.1-2007)

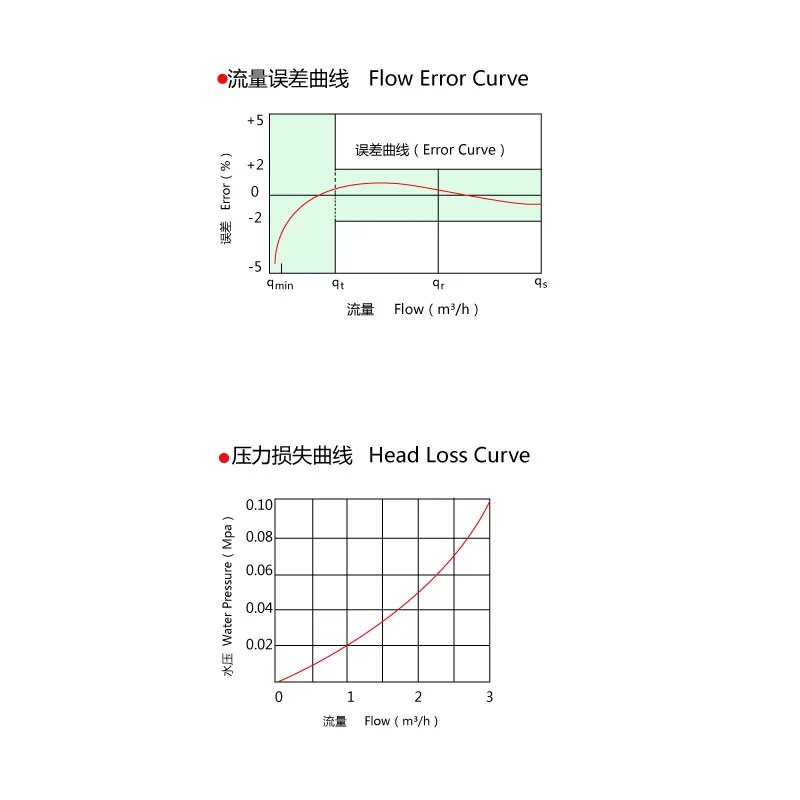

Maximum permissible error:
(1) in the lower zone from Qmin(Q1) inclusive up to but excluding Qt(Q2) is ±5%.
(2) in the upper zone from Qt(Q2) inclusive up to and including Qs(Q4) is ±2%;



MAIN TECHNICAL SPECIFICATIONS
According ISO4064(GB/T778.1-1996) standard



Type	Size    (mm)	Class	Qs Overload   Flow	Qp Permanent         Flow	Qt Transitional Flow	Qmin Minimum Flow	Minimum Reading	Maximum Reading
			m3/h		L/h		m3
LXHG-15S	15	C	3	1.5	22.5	15	0.0001	99,999
LXHG-20S	20	C	5	2.5	37.5	25	0.0001	99,999
LXH-15S	15	C	3	1.5	22.5	15	0.0001/0.001	99,999/ 9,999
LXH-20S	20	C	5	2.5	37.5	25	0.001	99,999

According ISO4064(GB/T778.1-2007) standard

Type	Size	Q3/Q1	Q4	Q3	Q2	Q1	Minimum	Maximum
	(mm)		Overload                Flow	Permanent          Flow	Transitional Flow	Minimum	Reading	Reading
						Flow
			m3/h	L/h			m3
LXHG- 15S	15	160	3.125	2.5	25	15.6	0.0001	99,999
LXHG- 20S	20	160	5	4	40	25	0.0001	99,999
LXH-15S	15	160	3.125	2.5	25	15.6	0.0001/0.001	99,999/
								9,999
LXH-20S	20	160	5	4	40	25	0.001	99,999

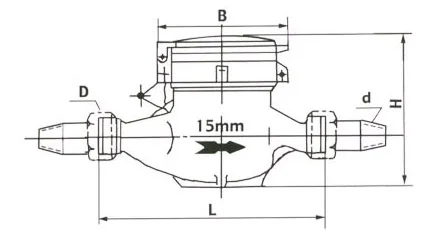

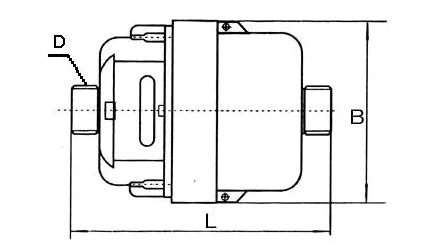

Dimensions and Weight

Type	Meter Size	Length	Width	Height	Connecting		Weight
					Thread
	mm	mm			D	d	kg
LXHG-15S	15	165	104	113	G3/4B	R1/2	0.6
LXHG-20S	20	190	104	121	G1B	R3/4	0.8
LXH-15S	18/15	115	86/88	86/88	G3/4B	R1/2	0.535
LXH-20S	20	195	88	88	G1B	R3/4	0.63

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.



2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.



3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.



4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.



5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.



6. Which price terms could accepted?
A: FOB,CIF all acceptable.
