New Design AGV Omni directional Moving AGV Automated Guided Vehicle

Product Brief Introduction

AGV is short for Automated Guided Vehicle, is one kind of logistics robot, can handle and transport the material inside workshop or warehouse automatically. It's a technology-mature equipments that applied in various industries already, for example: in Electronic Industry, Garment Industry, Medical Industry, etc.

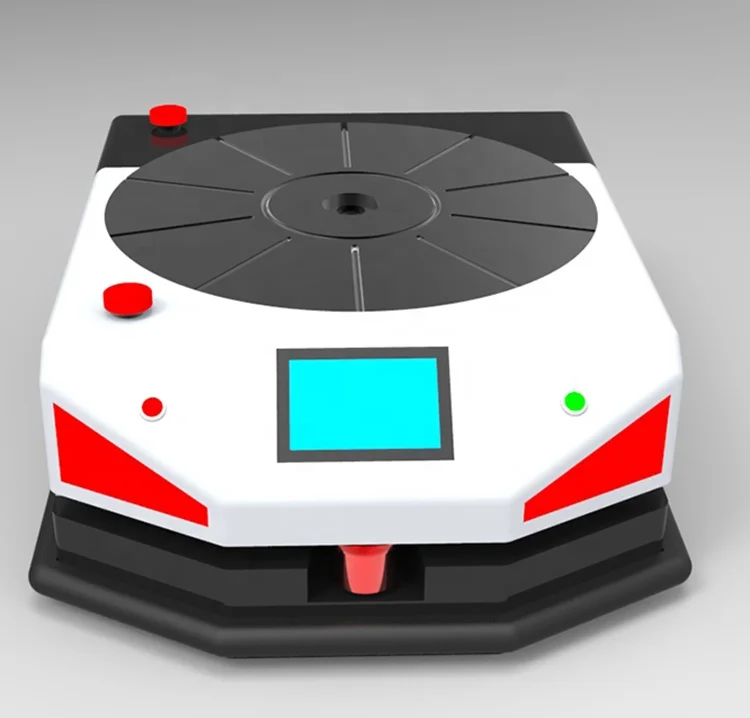

Introduction about Omini-direction Moving AGV

 omnidirectional mobile platform uses the our own highest-quality mecanum wheels and PU wheels  to realize the function of moving in any direction in the two-dimensional plane through the combination of different wheel speeds and steering, including straight travel. , Horizontal, diagonal, arbitrary curve movement, small turning radius turning and other omnidirectional movement forms. It can freely shuttle to the bottom of the train, using equipment movement and lifting accuracy to achieve high-precision positioning during the assembly process, which can more quickly, more flexibly and accurately complete the installation, disassembly, and maintenance of undercarriage equipment, as well as the adjustment and pulling of the empty rail train , Hanging rails, etc. When the two cars are linked, the two workshops have millisecond-level synchronous communication and control to automatically realize the synchronous lifting action of the two cars, which is especially suitable for the handling and assembly of long heavy-duty train cars.

Guidance Mode of  our AGV

Now on market, there are 3 kinds of AGV Guidance mode

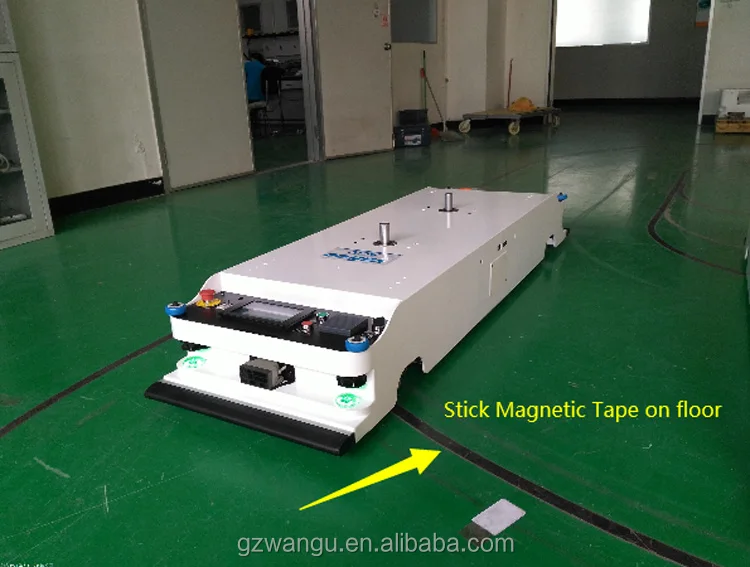

1)Magenetic Tape Guidance Mode

Stick magenetic tape on floor, the AGV will follow the magenetic tape route to move or transport the material from one stop to another stop

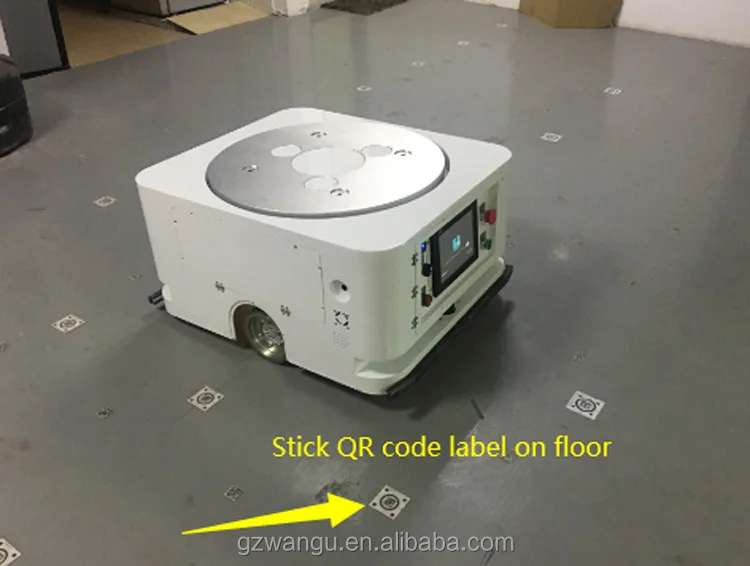

2)QR Code Guidance Mode

Stick QR Code label on floor, the AGV will follow the QR Code labels to move or transport the material from one station to another station

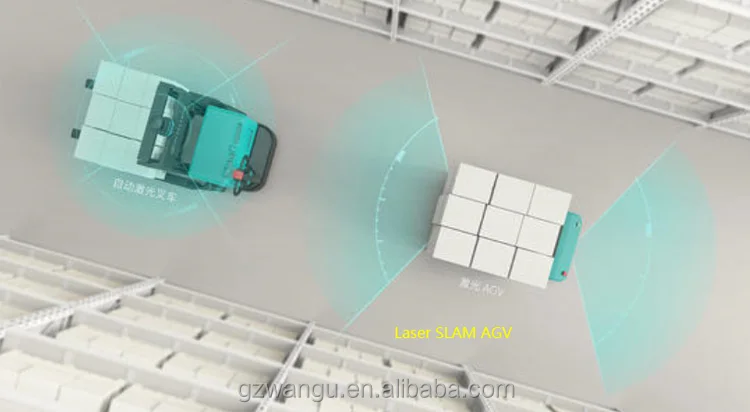

3)Laser SLAM Guidance Mode

AGV use laser technology to build Simultaneous Localization And Mapping(SLAM), and AGV will follow the map that built to move or transport material from one station to another station

Docking Mode of AGV and Material

According to the docking mode between AGV and Material, we have 4 kinds AGV

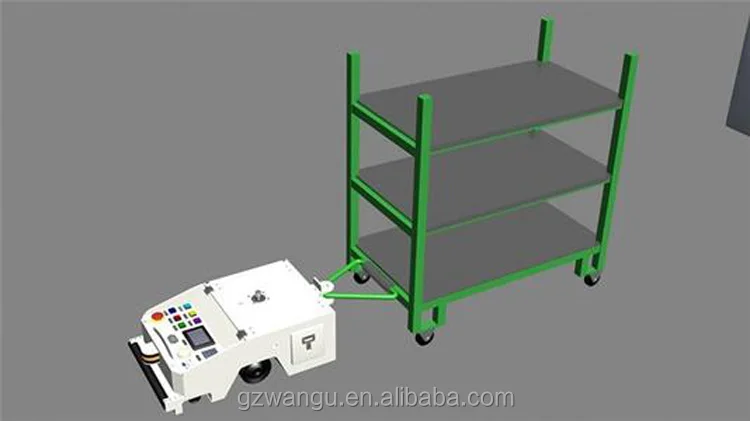

1)Towing Type AGV

This kind of AGV will have a rear-hook, and the material is stored in material cart, then connect the material cart to the AGV rear part, then AGV will towing the material cart to transport the material from one station to another

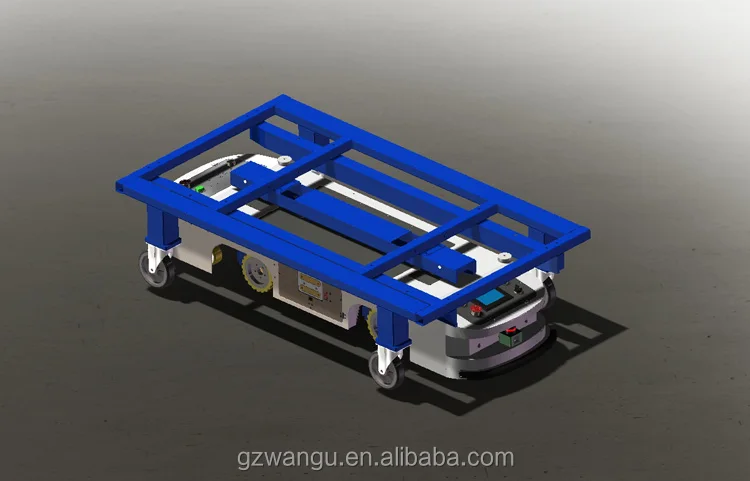

2)Lurking Type AGV

This kind of AGV will lurk down to the Material cart bottom, then the AGV will have a tug pin jacking up to the material cart bottom, then lock with material cart and bring the material cart from one station to another station

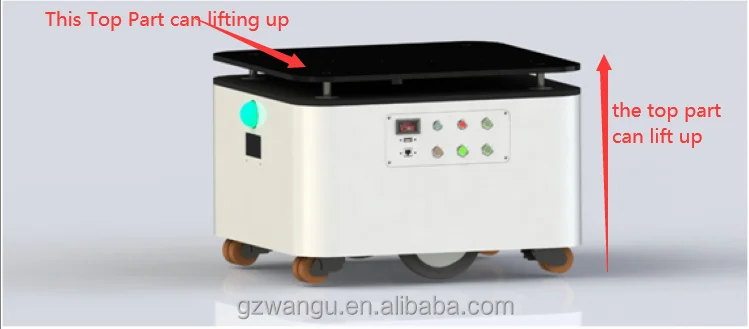

3)LiftingType AGV

The top part of this kind AGV can lift up, normally in 50mm, to lift up the material cart or shelf or box, and transport the material from one station to another station

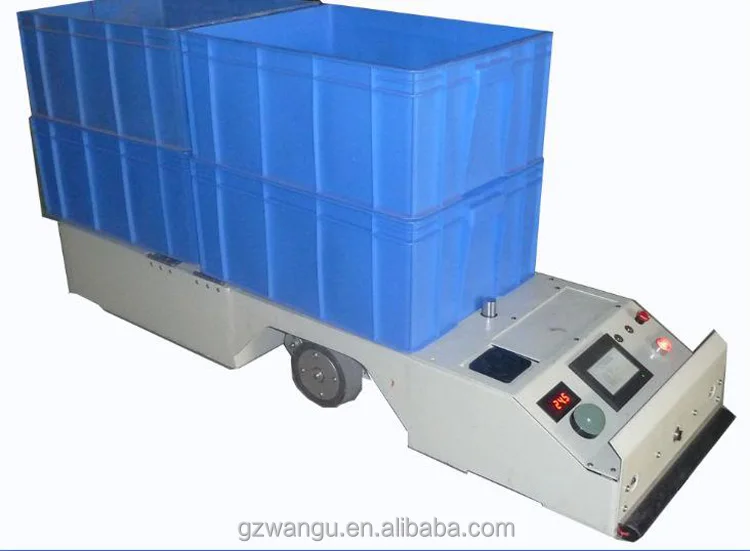

4)Carrying Type AGV

This kind of AGV is simply carry the material box or carton on top of AGV body, and transport the material from one station to another station

Main Features of our AGV:

1. The outline size can be customized on basis of Customer's Needs

2. Exquisite drive module design, no skidding, light and comfortable operation, strong turning;

3. Lurking type, Towing type, Carrying type available, with automatic positioning

4. In situ rotation technology, turn and turn in situ, which is very suitable for narrow passageways and other occasions with limited space;

5. The car body is equipped with operation touch screen, which are easy to operate (press and go, and stop at the station automatically) without professional training;

6. The running speed can be up to 1m/s (the speed can be adjusted at will), which can meet the needs of most workshop logistics;

7. Multi-level safety protection configuration

Benefits of our AGV Transport Robots:

AGV  has accurate positioning. It does not need other positioning device on the floor. The moving path is flexible, and it can adjust to various kinds of onsite conditions. The end user can revise the moving path at any time via software. It is much easier without magnetic tape or landmark maintenance. It is the most advanced guidance type. It can carry empty pallet, load pallet, paper roll, etc.

Parameter for Servo Motor Differential Driving Lifting Type AGV for Reference:

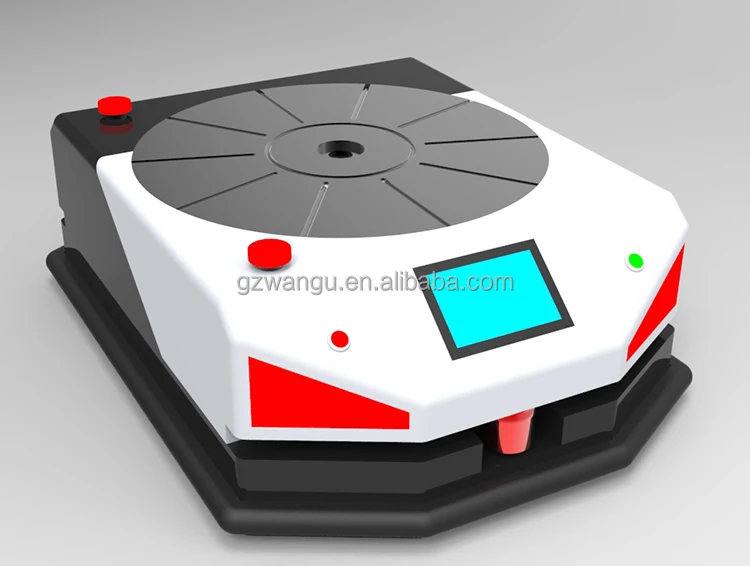

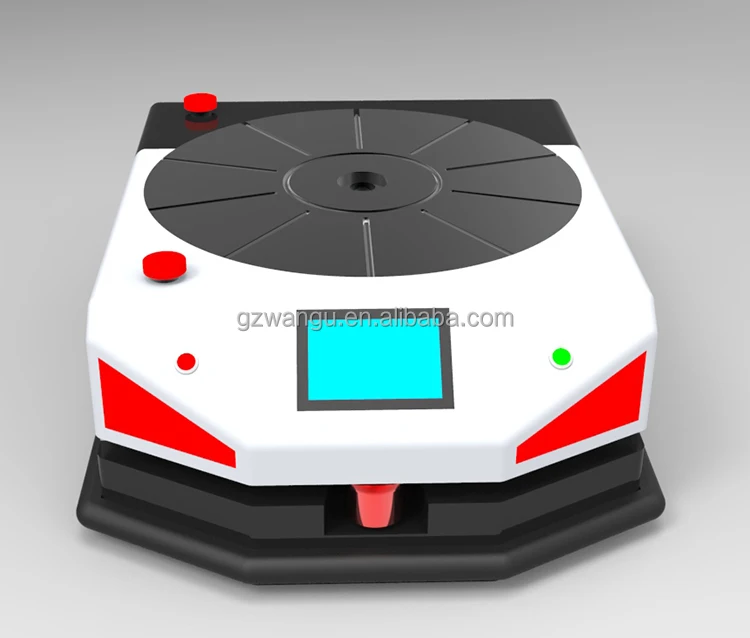

More pictures for Servo Motor Differential Driving Lifting Type AGV JS100KG-01SF:

Q: Are you a manufacturer or trading company?
A: We are a group company, we have our own factory that produce Stacker Crane, Conveyors and Material Cart, for other warehouse equipment we have long-term cooperator.

Q: What's your product range?
A: We are mainly supplying warehouse equipment and logistics equipment.

Q: Have you cooperated with big brand companies?
A: Yes, we've cooperated with CRRC, Huawei,  foxconn,  Lenovo, etc. for their realted products.

Q: What kind of payment method do you accept?
A: T/T and Western Union preferred,

Q: What is the delivery time?

A: 1 to 3 months base on order quantity.
