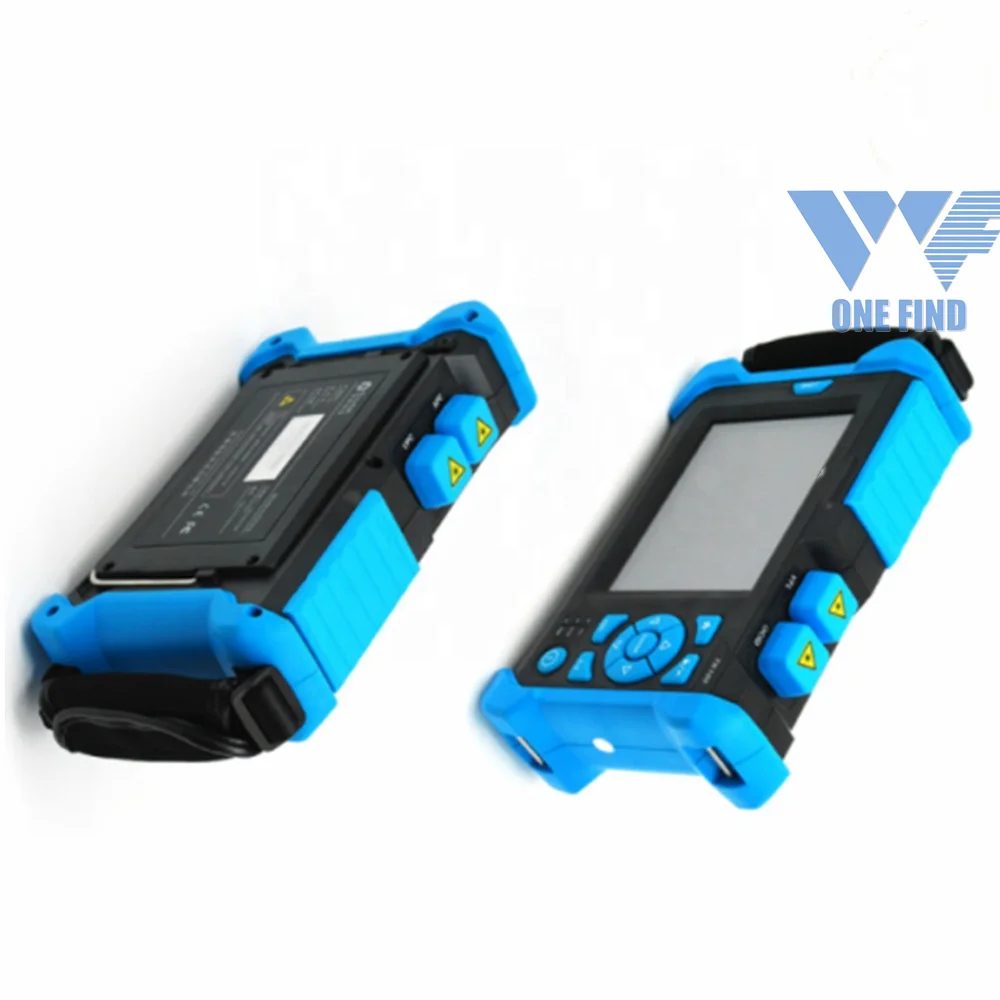

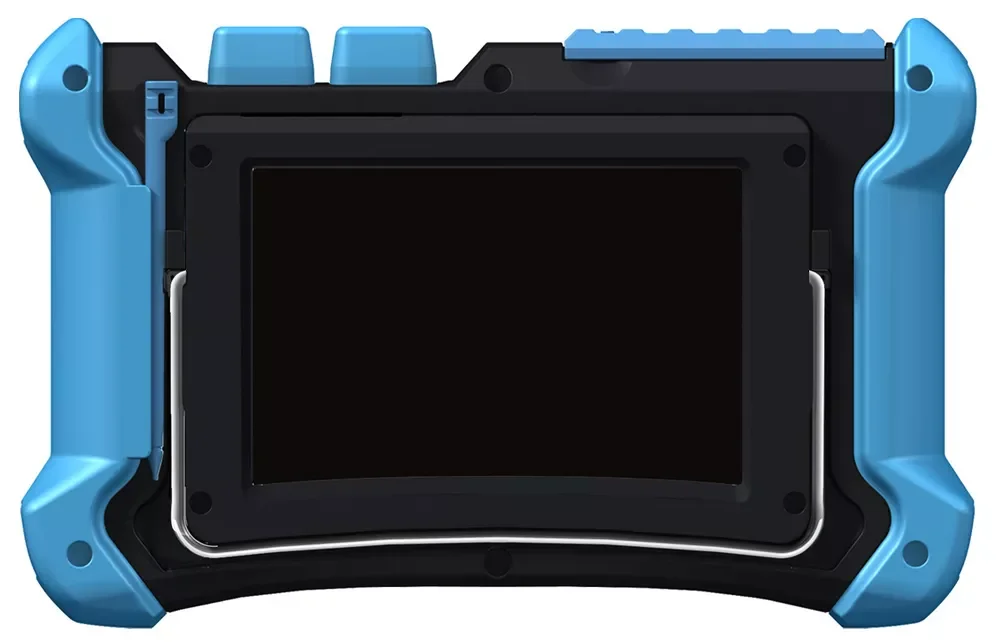

Onefind TD610 40km track and identify the target cable fiber optic cable seeker

Product Overview

Description

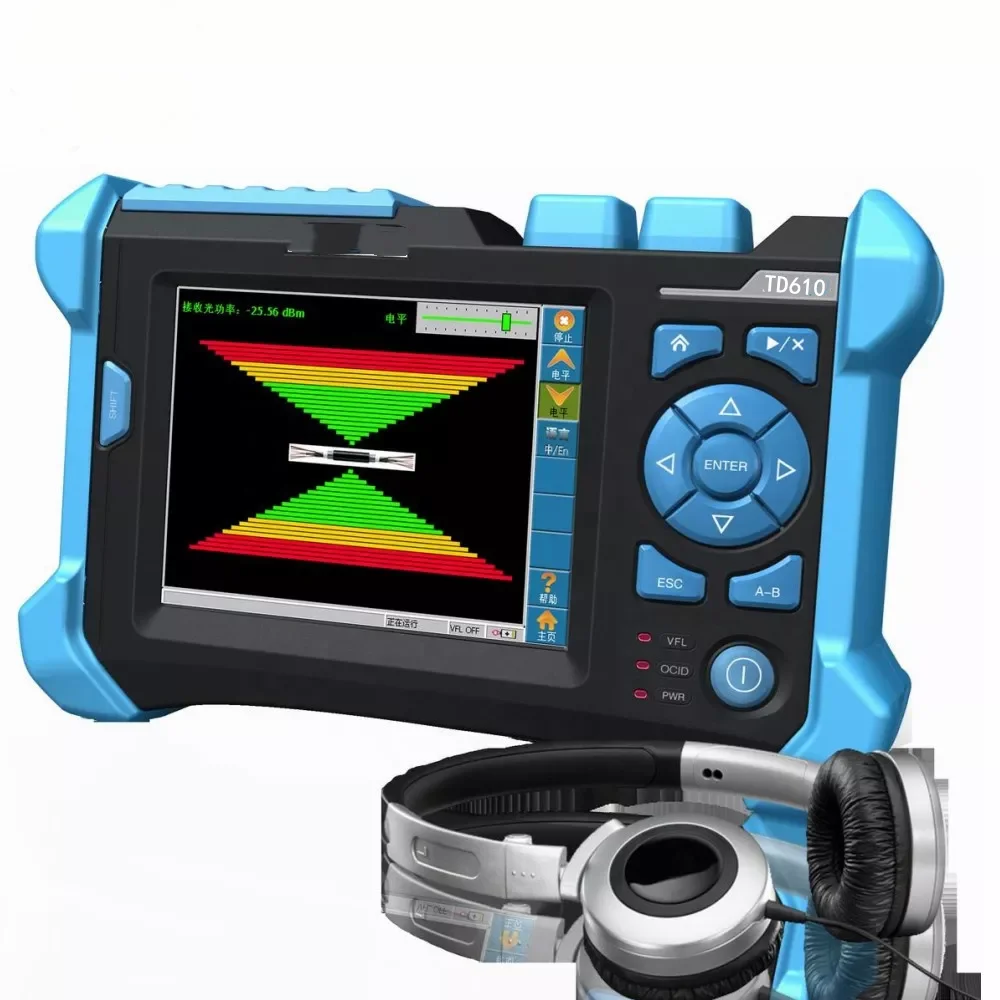

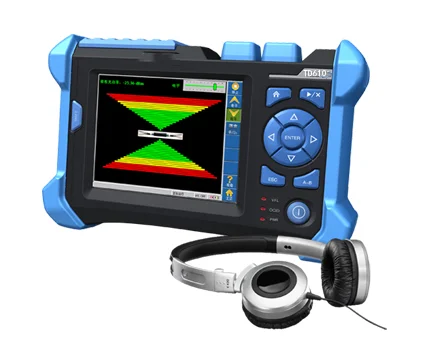

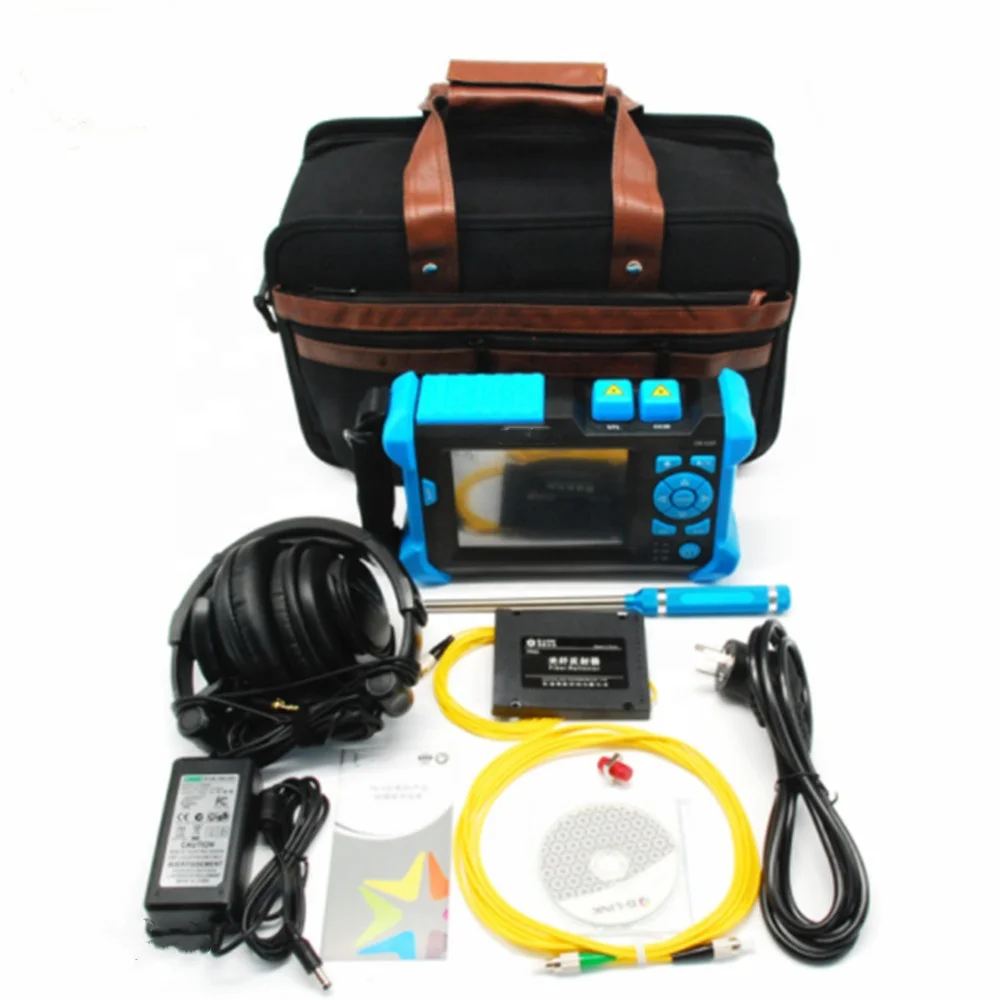

Onefind fiber cable seeker TD610 40km track and identify the target cable and fiber cable finder

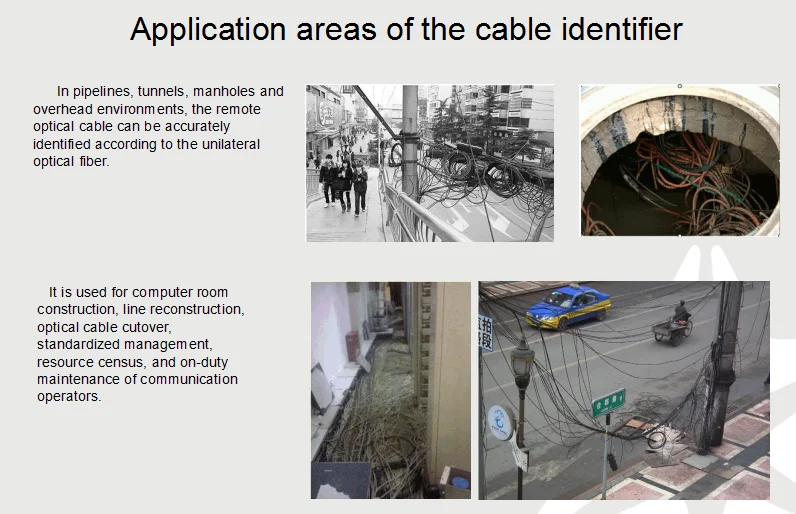

Optical Cable Identifier, OCID was a specially developed instrument for telecommunication’s engineers and technicians to identify a desired target fiber optical cable, which is a friendly, easy to operate and non-invasive to the optical fiber cables. It can be used in various environments, such as manholes, tunnels conduits and aerial.

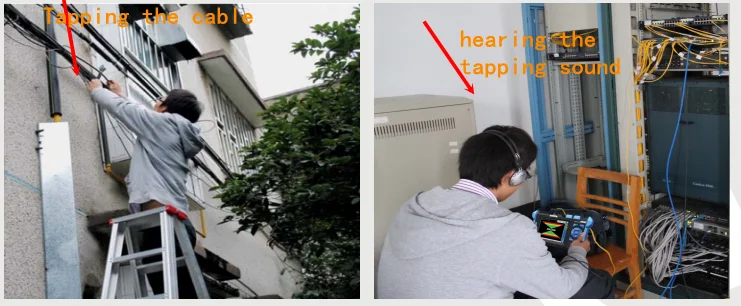

         Based on the properties of photo elastic effect, the OCID TD610 converts the coherent laser energy into visual or audio signal, so user can easily locate the target desired fiber in manholes, tunnels conduits, and aerial, etc. With the OCID TD610, the user can easily recognize the target optical cable from the rest by gently tapping them.



1. Compact light weight, touchscreen and keypad


2. able to locate the target cable by loopback far-end knocking test with single fiber or single-double fiber.


3. Strong on-spot application capacity can meet the demands of accurately searching the target cable when looking over the directly-buried cable and pipe cables or cutting cables.


4. able to monitor the mechanical vibration conditions of the far-end cables.


5. able to locate the target cable through audio or visible signal even under noisy environment.


6. Self-calibration for optimization, adapt to different lengths of fiber cables


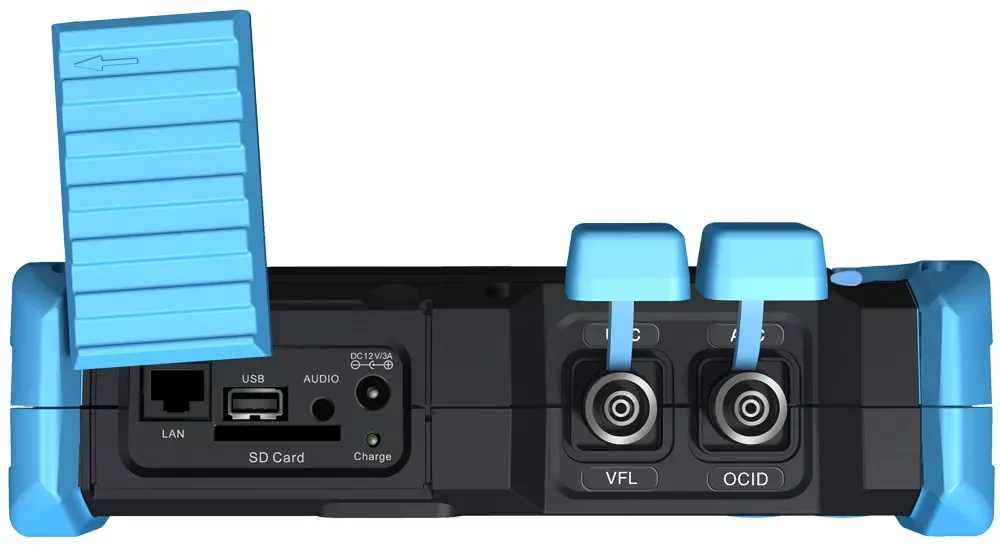

7.  VFL (visible fault location) port helps accurately locate the target cable.

Model	TD610-20/N	TD610-40/N	TD610-60/N
Measurement method	Single fiber test
Wavelength	1550nm
Min. output power of light source	-10dBm	-6dBm	-3dBm
Loss of one way cable	5dB	10dB	15 dB
Measurement distance	20Km	40 Km	60Km
Initial blind zone	No blind zone
Signal to noise ratio	>40dB
Optical fiber interface	SM
Optical connector	FC/APC
Display screen	5.6’ touch screen
Input	Touch screen LCD + buttons
Output model	Visible: vibration amplitude(touch screen LCD), audio: sound (corresponding excitation intensity)
Power supply	DC12V/3A
Battery	Lithium battery (7.4V 10.4Ah), continuous work ≥14 hours
Power	≤8W
Dimensions(H×W×L)	65*150*235mm
Weight	1.5Kg (including battery)
Working temperature	0~45℃
Storing temperature	-20~55℃
VFL visual fault location	Wavelength: 650nm, output power (dBm): ≥-3, maximum testing distance: 5km
Remarks: 1. add reflector at the end (reflected value > -3dB) to increase 5dB. 2. add reflector at the end (reflected value > -3dB) to increase 20Km.
