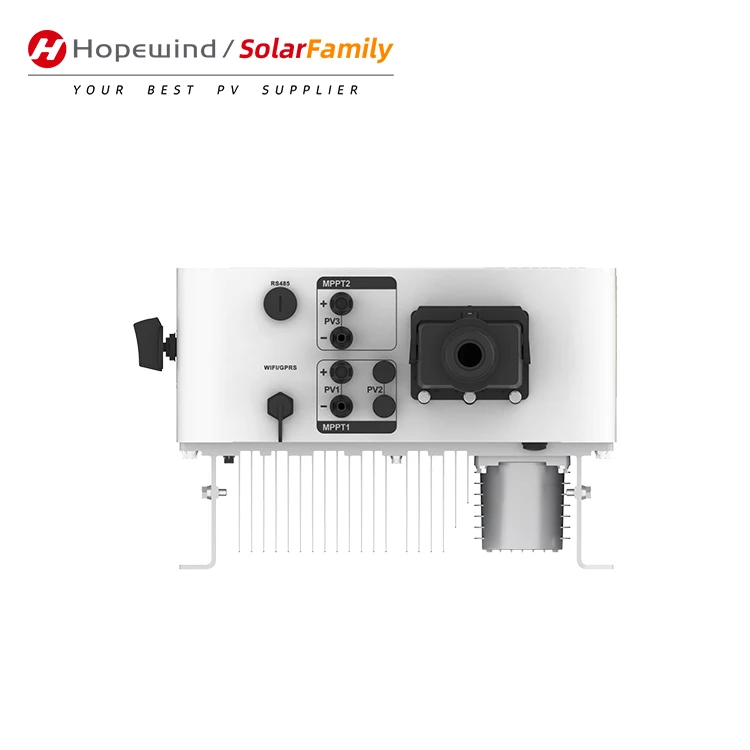

HOPEWIND Long Lifetime 3 Phase Inversor 10KW Grid Tie Inverter 20KW On Grid Solar Inverter
HOPEWIND Long Lifetime 3 Phase Inversor 10KW Grid Tie Inverter 20KW On Grid Solar Inverter
HOPEWIND Long Lifetime 3 Phase Inversor 10KW Grid Tie Inverter 20KW On Grid Solar Inverter
HOPEWIND Long Lifetime 3 Phase Inversor 10KW Grid Tie Inverter 20KW On Grid Solar Inverter
HOPEWIND Long Lifetime 3 Phase Inversor 10KW Grid Tie Inverter 20KW On Grid Solar Inverter
HOPEWIND Long Lifetime 3 Phase Inversor 10KW Grid Tie Inverter 20KW On Grid Solar Inverter
HOPEWIND Long Lifetime 3 Phase Inversor 10KW Grid Tie Inverter 20KW On Grid Solar Inverter

HOPEWIND Long Lifetime 3 Phase Inversor 10KW Grid Tie Inverter 20KW On Grid Solar Inverter

Share on (1600518597118):


Price:$560.00 - $610.00

Quantity:


Product Overview

Description







Product Description




High Power
Max DC voltage 1100V
max power 18.7kW
High Efficiency
Max efficiency 99.0%
High Reliability
Double channels MPPT


Lightning protection
Provide full range of lightning protection , reliable under/over voltage protection
Compact Structure
Easy for installation and maintenance
Friendly to environment
Provide clear and green energy Photovoltaic power generation
Save electricity cost


Specification


Model
hopeSun
8KTL
hopeSun
10KTL
hopeSun
12KTL
hopeSun
15KTL
hopeSun
17KTL
DC Input
Max. DC Voltage
1100V
Starting Voltage
200V
MPPT Voltage Range
200V~1000V
MPPT Range Full Load
370V~850V
450V~850V
Max. Input Current of Each MPPT
20A / 20A
26A / 20A
Max. short-circuit current
30A / 30A
39A / 30A
Number of DC Inputs
1/1
2/1
MPPT Number
2
AC Output
Rated Output Power
8kW
10kW
12kW
15kW
17kW
Max. Active Power (cosθ=1)
8.8kW
11kW
13.2kW
16.5kW
18.7kW
Rated Output Voltage
400V (Three Phase) (380V optional)
Operating Voltage Range
300V~520V
Rated Output Current
11.6A
14.5A
17.4A
21.7A
24.6A
Max. Output Current
12.7A
16.0A
19.1A
23.9A
27.0A
Rated Grid Frequency
50Hz / 60Hz
Power Factor
0.8 (Leading) ~ 0.8 (Lagging)
THD
<3%
System Parameters
Max. Efficiency
98.60%
98.61%
98.62%
European Efficiency
98.40%
98.41%
98.42%
AC/DC SPD
Support
Insulation Impedance Detection
Support
Residual Leakage Current Detection
Support
PV String Fault Detection
Support
Output Overcurrent Protection
Support
Protection Degree
IP65
Operating Temperature Range
-40℃ ~ +60℃
Cooling System
Natural Cooling
Standby Power Consumption
<1W
Topology Structure
Transformerless
Operating Altitude
5000m (Derating above 4000m)
Display
LED Indicator + APP
Communication
WiFi / GPRS / 4G
DC & AC Terminator
OT/ DT
Certification
EN50549 / IEC61683 / IEC62109 / IEC61000 / IEC62116 / IEC61727 / CQC / CGC
Optional
WiFi&GPRS Module / Anti-PID Module / Anti-Reversed Module
Mechanical Parameters
Dimensions (W*H*D)
380*400*247mm
Weight
≤22kg
More Details Please Send Inquiry To Us

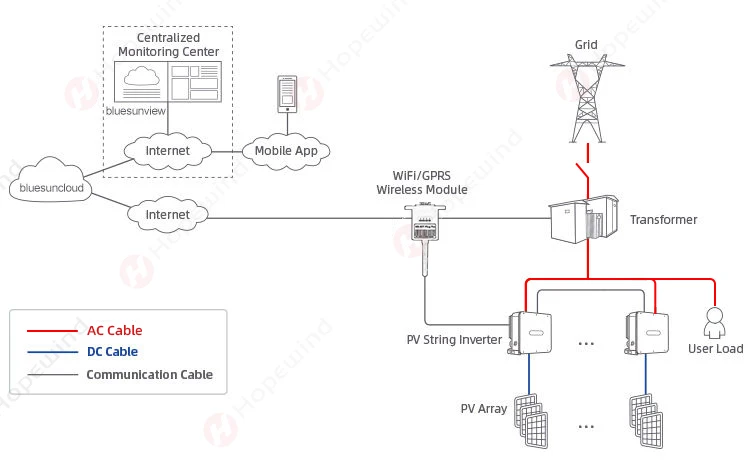

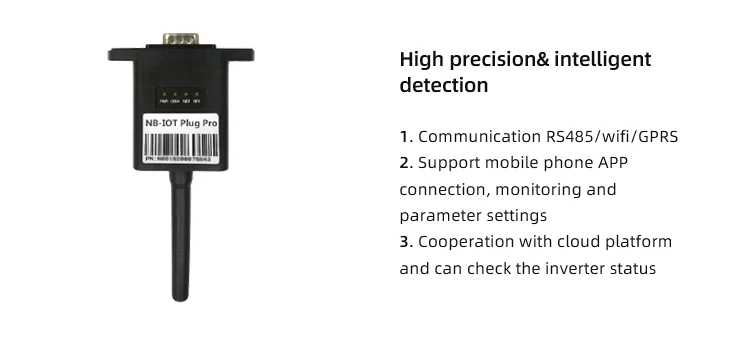

Monitoring System

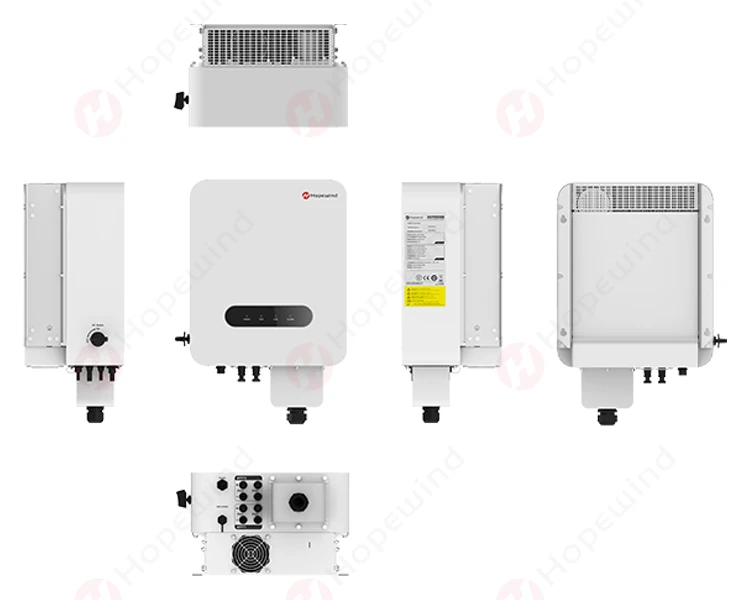

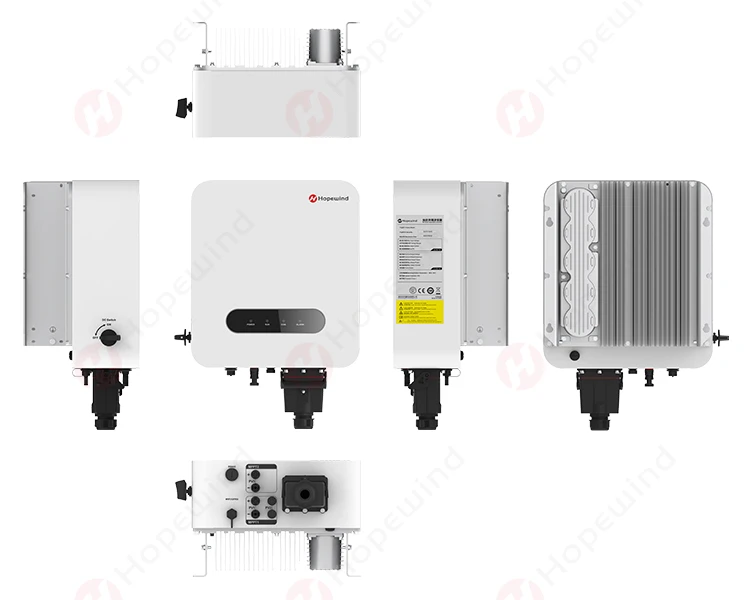

Detailed Images

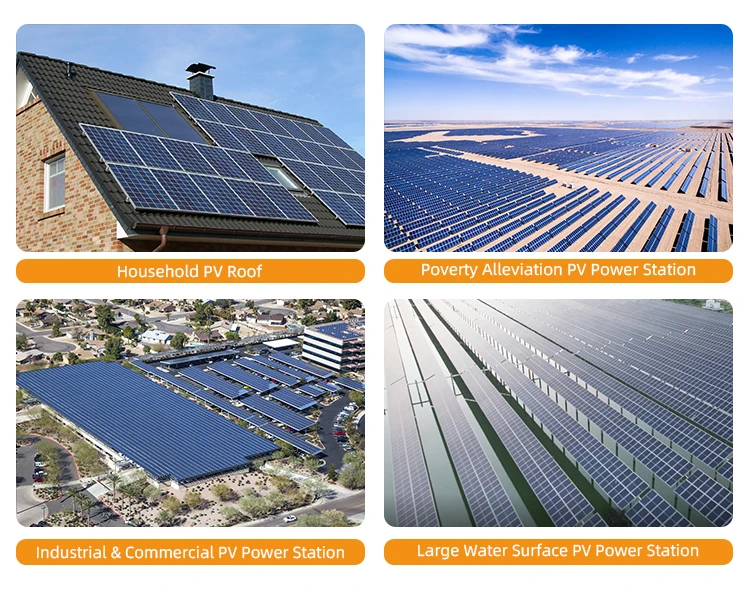

Application

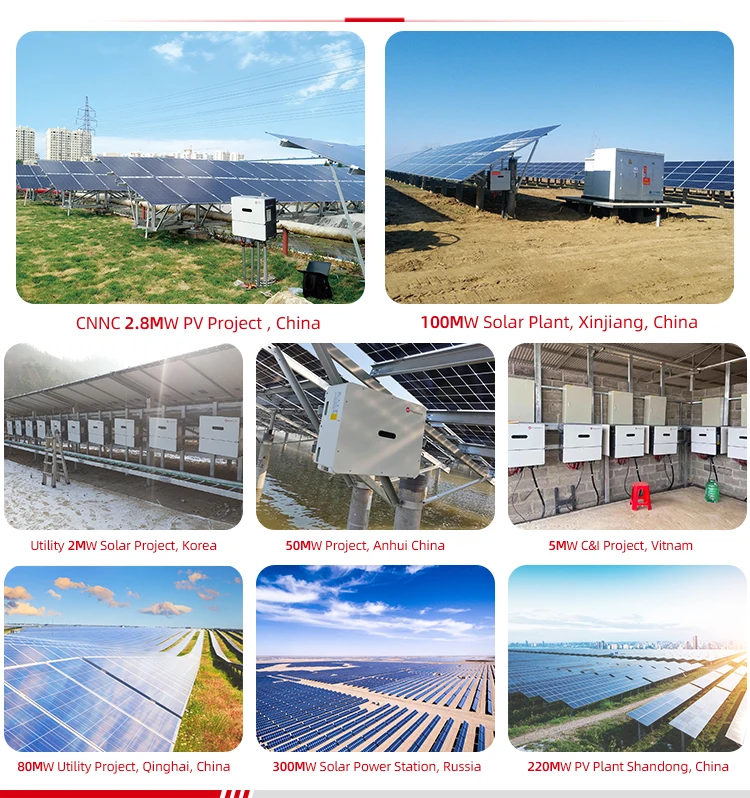

Project

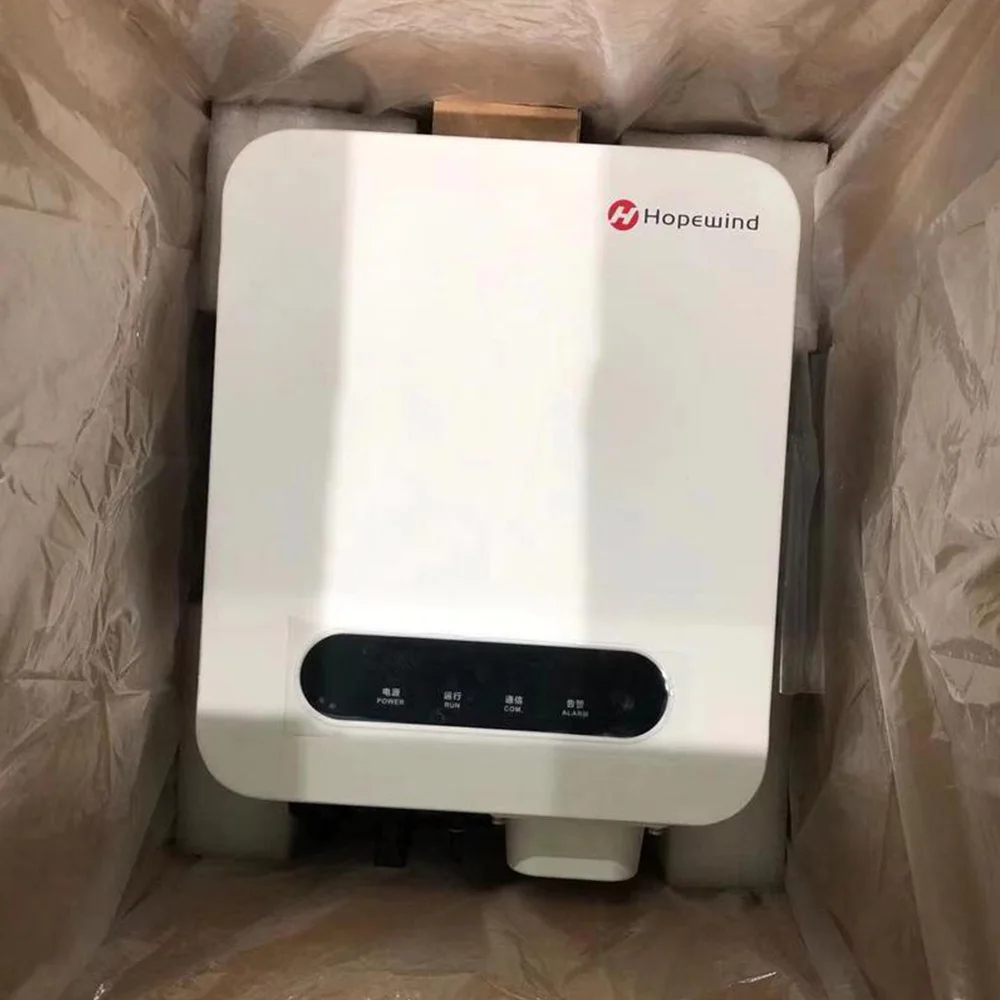

Packing & Delivery
