Insulation Duct insulation cup head pin and nails
- Category: Other Heat Insulation Materials >>>
- Supplier: Dongguan Kedi Thermal Insulation Building Materials Co. Ltd.
Share on (1600518664593):
Product Overview
Description
Specification
General description

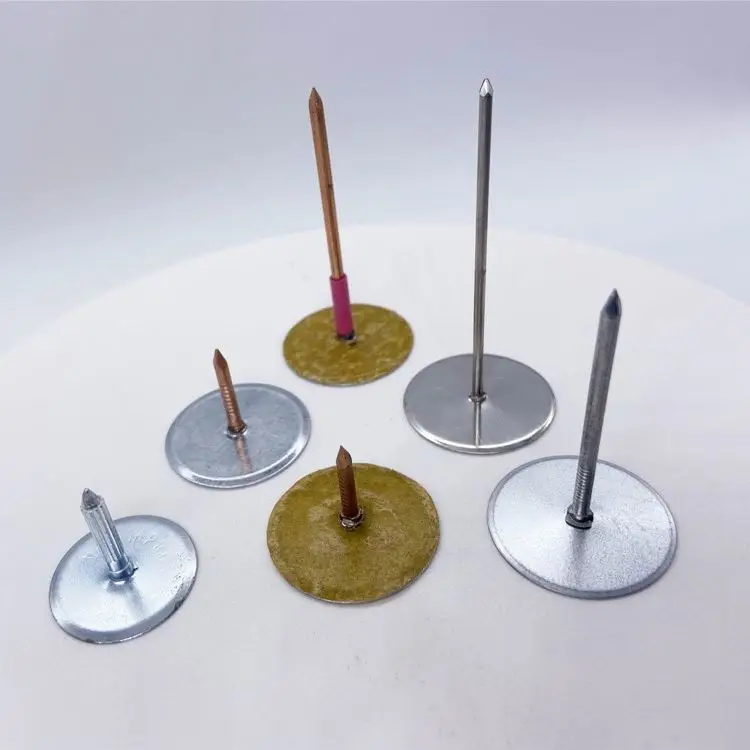

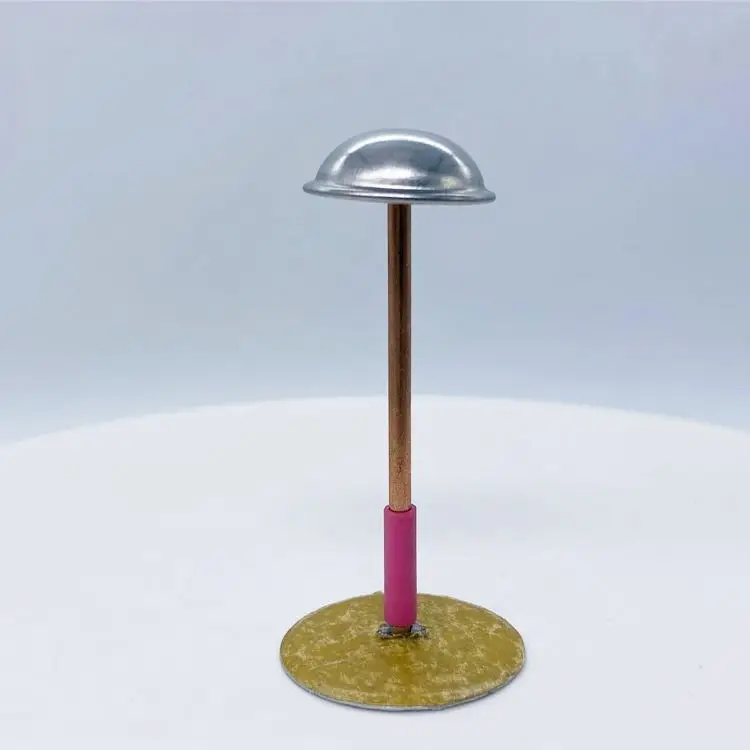

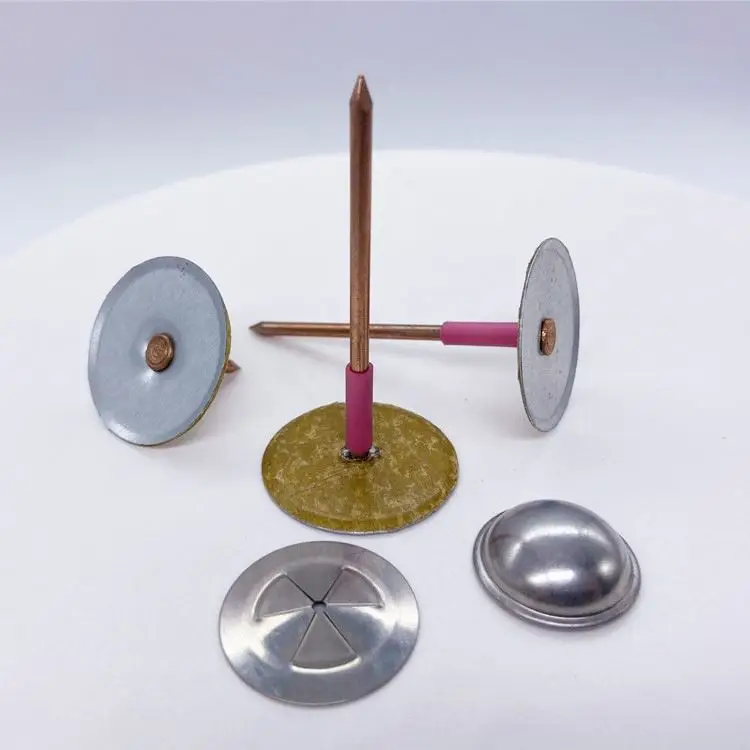

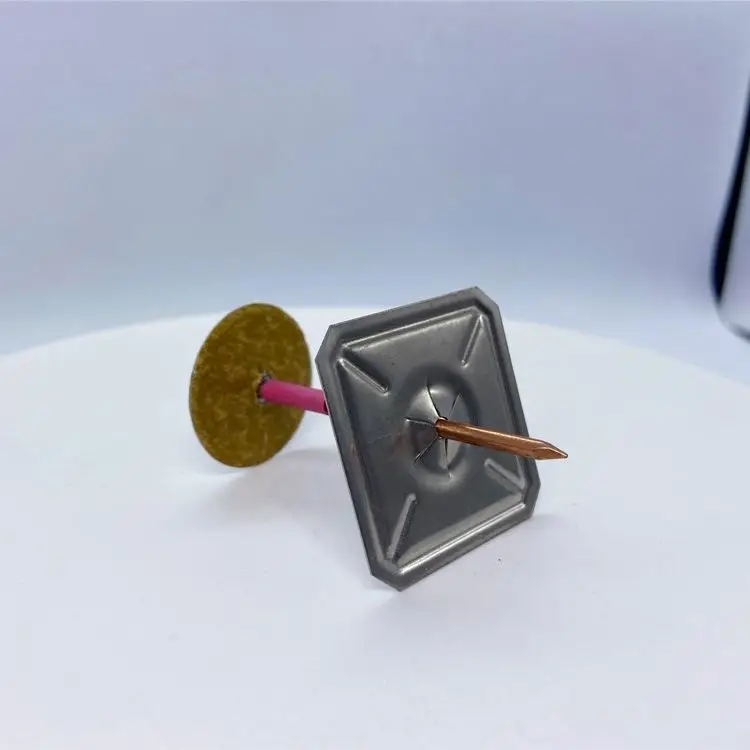

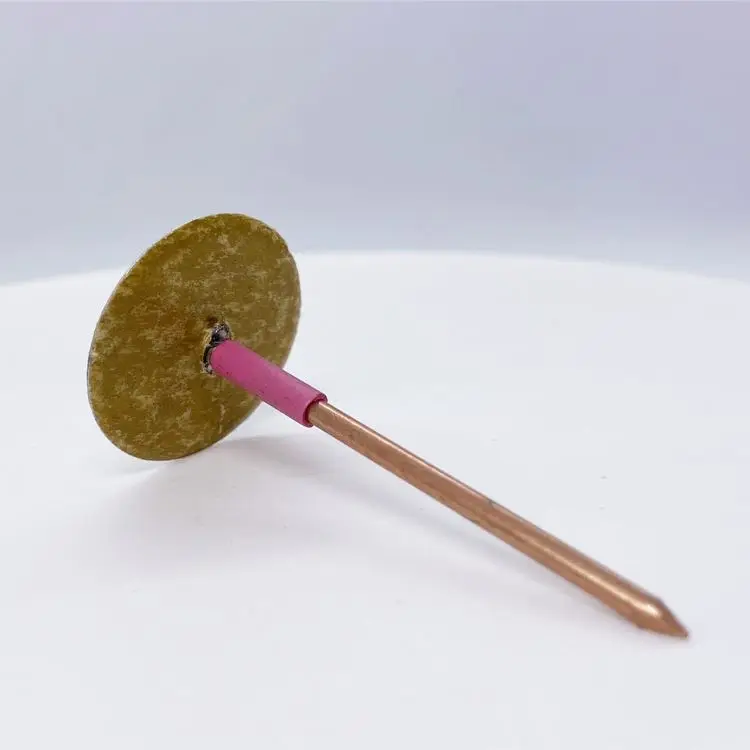

Cup Heap Pin with insulation consist of a copper or galvanized coated steel shank partly insulated and firmly crimped on a galvanized steel washer head , with an insulated underhead . It allow the fixing of aluminum faced insulation or wired mattress on sheet metal such as airducts , metal beams , metal industrial equipment etc . in a single operation .
Cup Head Pin without insulation is suitable for plain insulation(without aluminum facing).
It is used with welding machine .
Cup Heap Pin with insulation consist of a copper or galvanized coated steel shank partly insulated and firmly crimped on a galvanized steel washer head , with an insulated underhead . It allow the fixing of aluminum faced insulation or wired mattress on sheet metal such as airducts , metal beams , metal industrial equipment etc . in a single operation .
Cup Head Pin without insulation is suitable for plain insulation(without aluminum facing).
It is used with welding machine .
Shank | Material | copper or galvanized coated steel |
Insulation | heatshrunk polylefin sleeve | |
Washer Head | Material | galvanized steel |
Under head insulation | paper | |
Thickness | 0.4mm (28 ga.) |
TYPE | SIZES | ||||
A | B | C | |||
CHP1 | 30mm(1-3/16”) | 9.5mm to 300mm | 2.7mm(12ga) ,2.0mm(14ga) | ||
CHP2 | 38mm(1-1/2”) | 9.5mm to 300mm | 2.7mm(12ga) ,2.0mm(14ga) | ||
