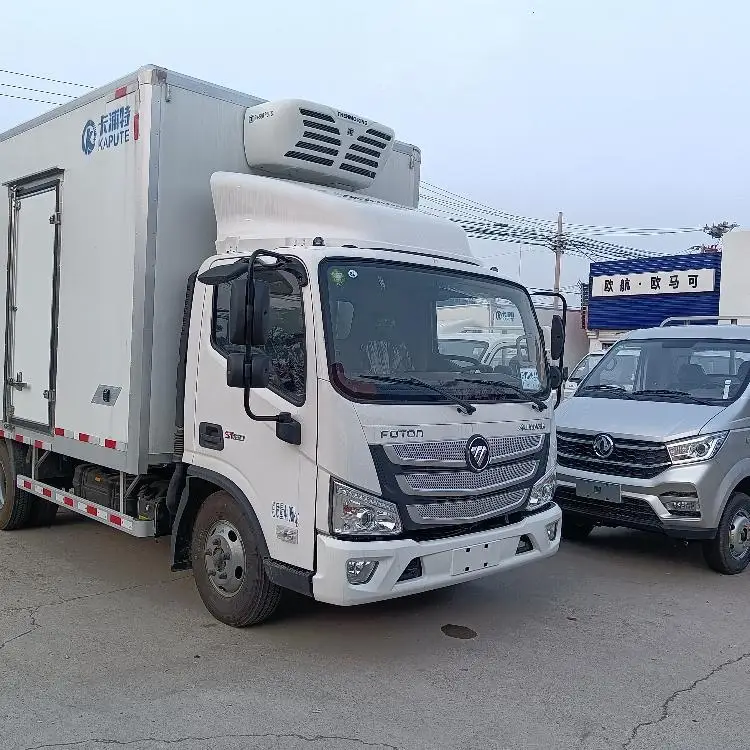

FOTON 3T Frozen Food Freezer Reefer Van Refrigerator Cargo Truck
FOTON 3T Frozen Food Freezer Reefer Van Refrigerator Cargo Truck
FOTON 3T Frozen Food Freezer Reefer Van Refrigerator Cargo Truck
FOTON 3T Frozen Food Freezer Reefer Van Refrigerator Cargo Truck
FOTON 3T Frozen Food Freezer Reefer Van Refrigerator Cargo Truck
FOTON 3T Frozen Food Freezer Reefer Van Refrigerator Cargo Truck
FOTON 3T Frozen Food Freezer Reefer Van Refrigerator Cargo Truck

FOTON 3T Frozen Food Freezer Reefer Van Refrigerator Cargo Truck

Share on:


Price:$10,800.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description




Specification


chassis
model
BJ1043
category
Ⅱ
manufacturer
BEIQI FOTON MATOR CO.,LTD
axle
2
wheel base（mm)
3360
wheel track（front/rear mm）
1590/1525
tire size
6.5R16
tire
6
engine
model
N490QB
manufacturer
ANHUI QUANCHAI
delivery capacity（ml）
2540
fuel
diesel
rated power（Kw)
42
emission standard
GB17691-2005 EUROⅢ,GB3847-2005
frame
front
type
steel plate spring
quantity
4
back
type
steel plate spring
quantity
6+7
car load
dimension parameters
overall dimensions（mm)
5995*2120*2900
L*W*H
interior cargo body dimensions（mm)
4000*2000*1900
L*W*H
front overhang/rear overhang(mm)
1100/1535
quality parameters
approach angle/departure angle(°)
23/19
curb weight(Kg)
2750
payload capacity(Kg)
3000
max. speed(km/h)
95
Persons in cab (persons)
3


Company Profile


SHANDONG CARRYMAN TRUCK BODY MANUFACTURER CO.,LTD (here in and after referred to as carryman), dated from the year of 2012,has
been approved industry and information technology of China, is the backbone of producing all kinds of truck body in North China,
is the refrigerator truck body, insulated truck body, van body, tank-type water vehicles body, trailer body, and other special
vehicles body , development and production base.The annual output is more than 5,0000 sets. Now, Yakai auto has 5 thousands m2 of
manufacturing zone,more than 30 people, of which 3 are senior engineers, Strong technical force, high efficiency research and
development of productive capacity, advanced production equipment, high degree of specialization, the detection is perfectly
complete.these years,our company was fouce on the high level of refrigetator and insulated van of R&D,we provide the international
2 generation productions, The characteristic of cargo body of carryman brand:1. All the body boards are designed with totally
enclosed type by high polymer material and Super Pressure-high Temperature compression moulding from good performance machine.2.
The surface of the fibre-glass epoxy is the orginal color,high radiance,with the cutted and Precision Bonding rigid PU foam,the
reinforce bars are high polymer material inside of the board, well-distributed.3. The reinforce bar of the baseboard inside,has
been designed specially ,anti-destory,anti-high pressure, Racking Resistance.4. Between two board,they are connected by high
quality mucilage and bolts preinstalled ,with good performance and has 15 years working life.5. All the body is lightness ,good
strength performance,insulated, corrosion resisting,no cold metal thermal We focus on export, we design more professional
packaging transportation, reduce the damage in transit, we design a simpler assembly process, achieve zero welding assembly of the
truck box


FAQ


1. What is your terms of shipping method? Generally,we ship our truck body CKD(completely knocked down) or SKD(semi knock down) by container, assembled truck by container too, but the it is small quantity .
2. Our truck is korea or japan brand,your truck body fit it? Of course,Generally, global light trucks can be divided into 10ft,11ft,12ft,14ft,15ft,16ft and 18 feet in terms of cargo box length, middle truck have 20-32ft length, The truck body can be combined with different brand trucks simply by adjusting the distance of the beam.
3. Is it difficult to install Truck body CKD or SKD ? My company has ten years' experience in exporting truck body. We can provide the truck body ckd of easiest assemble .
4. Why should your buy from us not from other supplier? In the past 10years, Our company only makes truck body. We are more professional for truck body.
5. what is your terms of payment? T/T 30% as deposit,and 70% against BL copy .
6. what is your terms of delivery? EXW,FOB, CFR,CIF.
7. How about your delivery time? Generally, within 10days.
8. can you produce according to customer’s requirement? Yes, we can produce according to the customer’s technical drawings and specifications.
