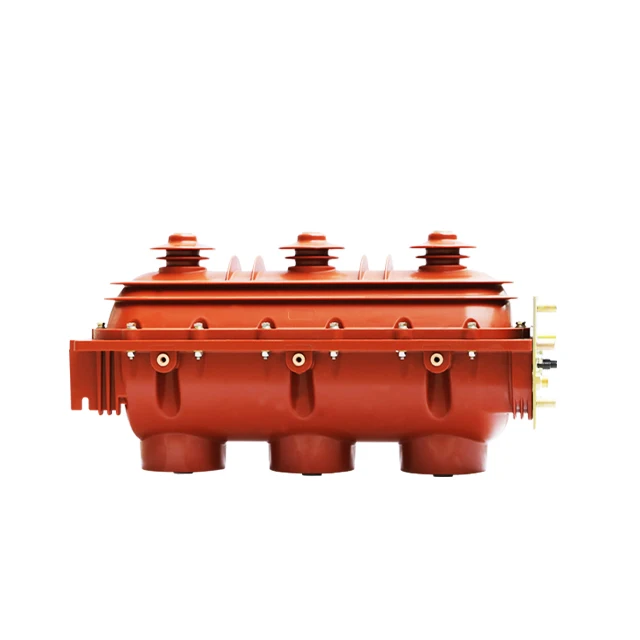

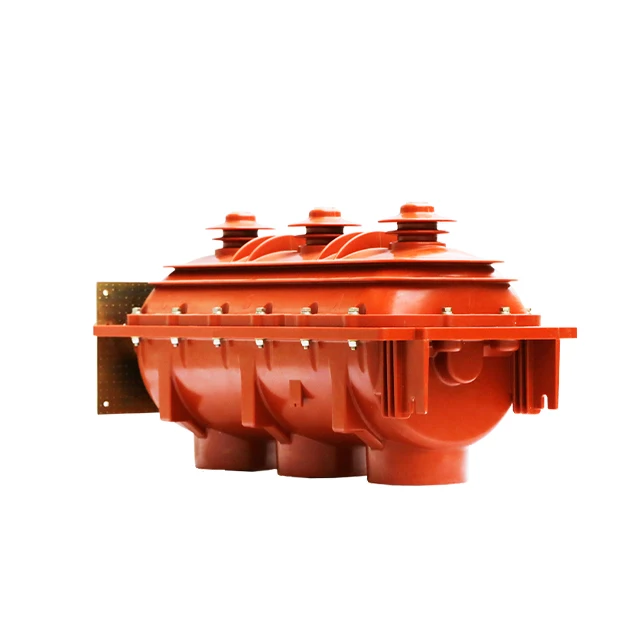

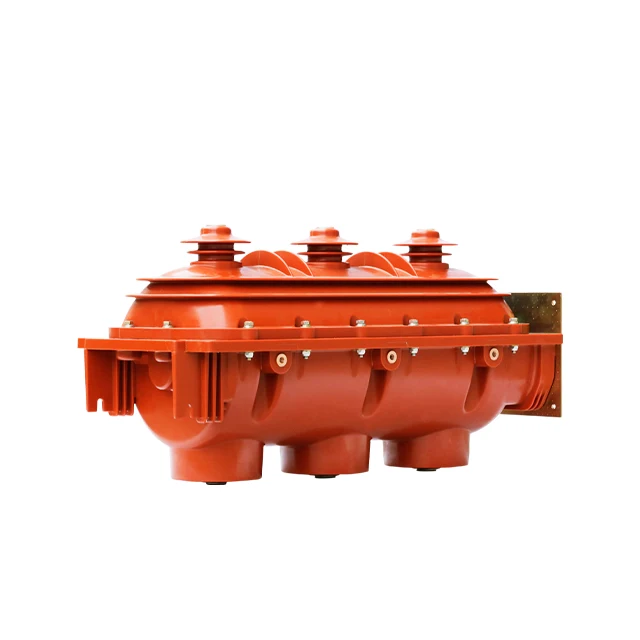

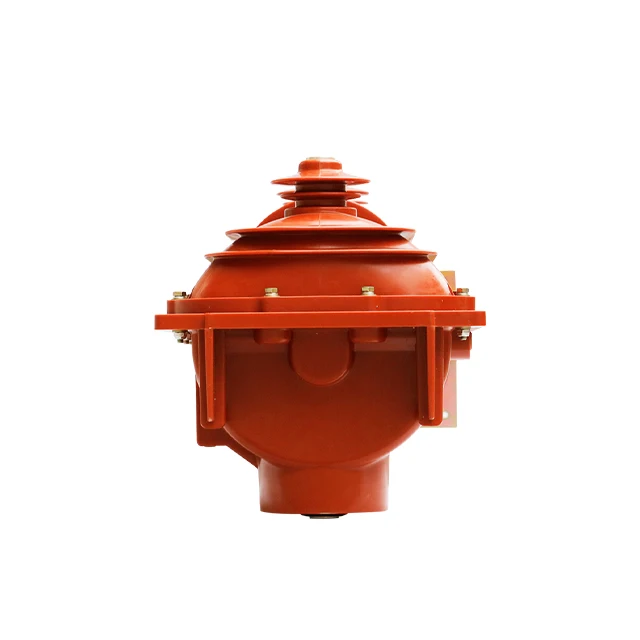

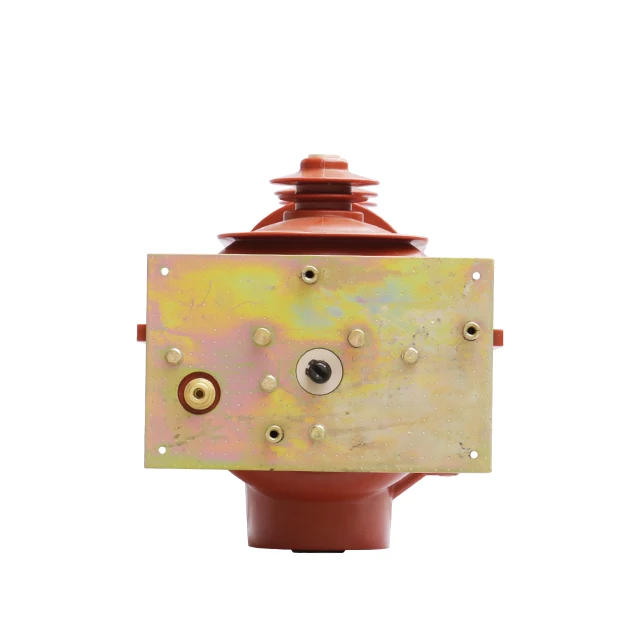

Factory wholesale FLN36 12R/125A indoor high voltage gas insulated SF6 load break switch with fuse
- Category: >>>
- Supplier: Zhejiang Amerson Electric Co. Ltd.
Share on (1600518992778):
Product Overview
Description
Product Description
FLN36-12 type sulfur hexafluoride load switch is the medium voltage switch equipment developed by our company according to the relevant standards of China's power system and introduced the latest international technology. Its performance indicators are in full compliance with IEC standards. It is the ideal main component for high voltage switch cabinet, ring network cabinet, box type substation and distribution switch.
FLN36-12 type sulfur hexafluoride load switch is set load switch, grounding switch, isolated on the integration of multi-function medium voltage switchgear, in a fully sealed, epoxy resin with strengthening structure inside the shell, SF6 gas at 0.045 Mpa, realize the above three kinds of function with the least amount of component, thus ensure the product quality and reliability, With excellent insulation and breaking ability, it can guarantee the safe operation of equipment for 20 years under normal conditions.
FLN36-12 type sulfur hexafluoride load switch is set load switch, grounding switch, isolated on the integration of multi-function medium voltage switchgear, in a fully sealed, epoxy resin with strengthening structure inside the shell, SF6 gas at 0.045 Mpa, realize the above three kinds of function with the least amount of component, thus ensure the product quality and reliability, With excellent insulation and breaking ability, it can guarantee the safe operation of equipment for 20 years under normal conditions.
Item | Value |
Certification | ISO9001:2015 |
Place of Origin | ZHE |
Brand Name | Amerson |

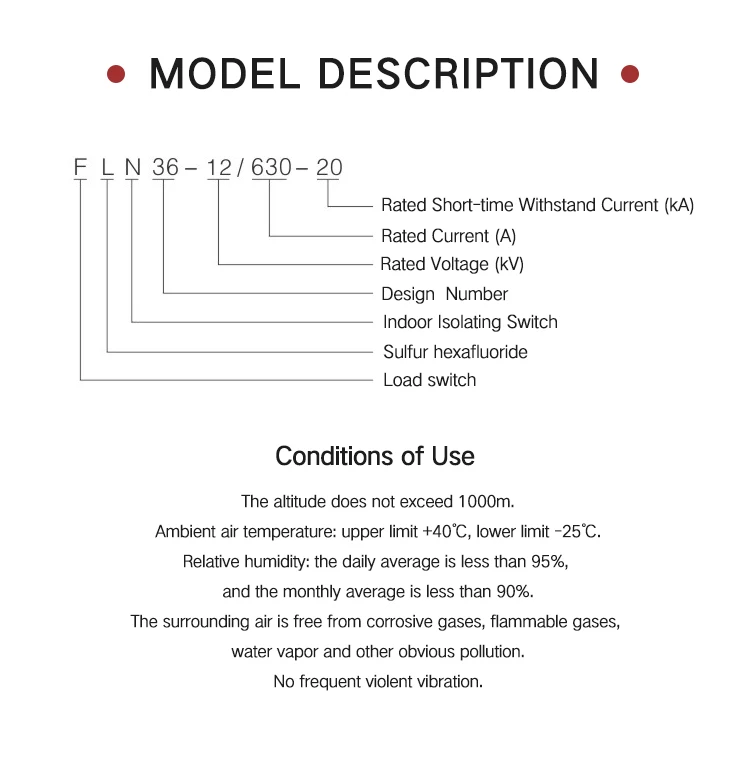

Model Number | FLN36-12/630-20 |
Rated current | 630A |
Rated voltage | 12kV |
Rated short-time withstand current | 20KA |

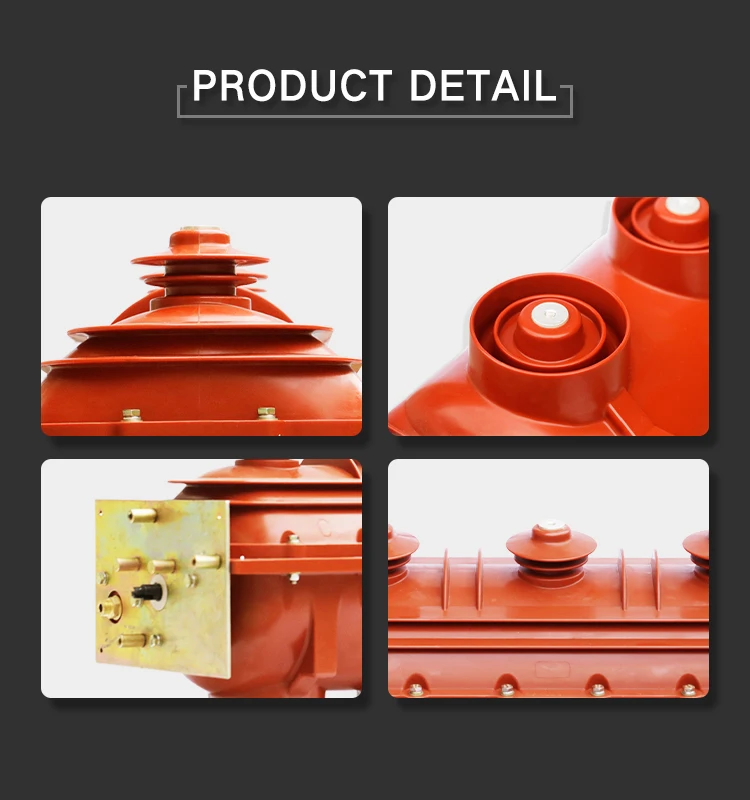

Details Images

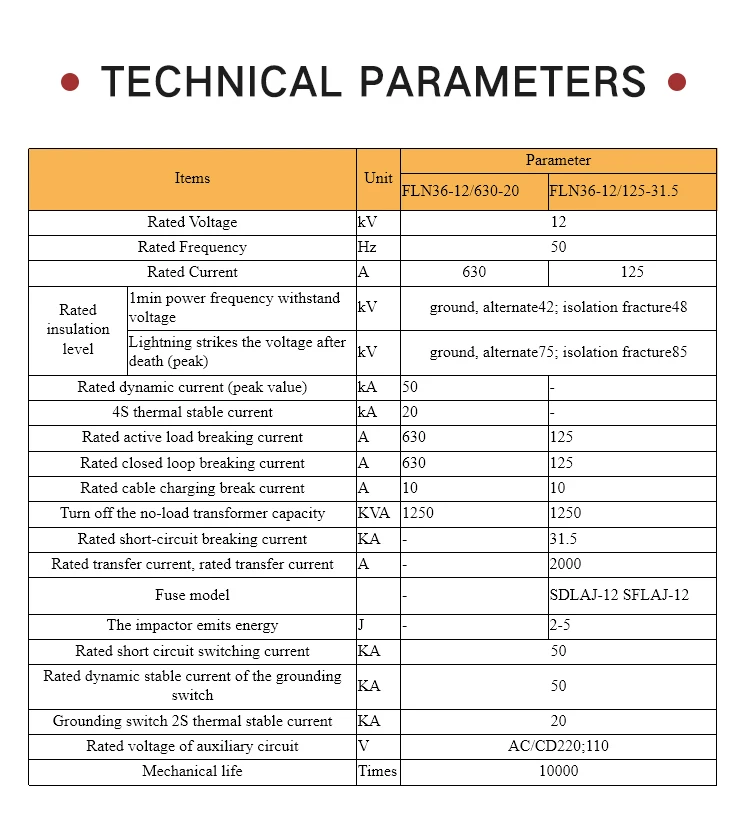

Specification
Company Certificate
Company Profile
Packing & Delivery
Standard export wooden case packing.
Also can order the packing according to your request.
Also can order the packing according to your request.
FAQ
Q:What’s your main products
A:High voltage electrical equipment, including circuit breaker, arrester, insulator, load switch,etc.Low voltage electrical equipment including smart meter, time switch,etc.
Q:Do you have a catalog? Could you send me your catalogue?
A:Yes, we have a catalogue.Please contact us, we can send you product catalog online or email.
Q:Can I get some samples?
A:Yes, sample order is available for quality check and market test.
Q:Can your factory produce according to customer's requirements?
A:Yes, we can produce different products according to customers' requirements.
A:Yes, we can produce different products according to customers' requirements.
Q:What's your packing standard?
A:Usually we use standard cartons for packing or according to your requirements
Q:When is the delivery time?
A:We will arrange shipment within 3-20days after your payment.
Q:What's the payment?
A:Usually we accept T/T. We also accept PayPal, Western Union and L/C.
Q:Can wevisit your company?
A: Yes, for sure, you are welcome to visit our company.
