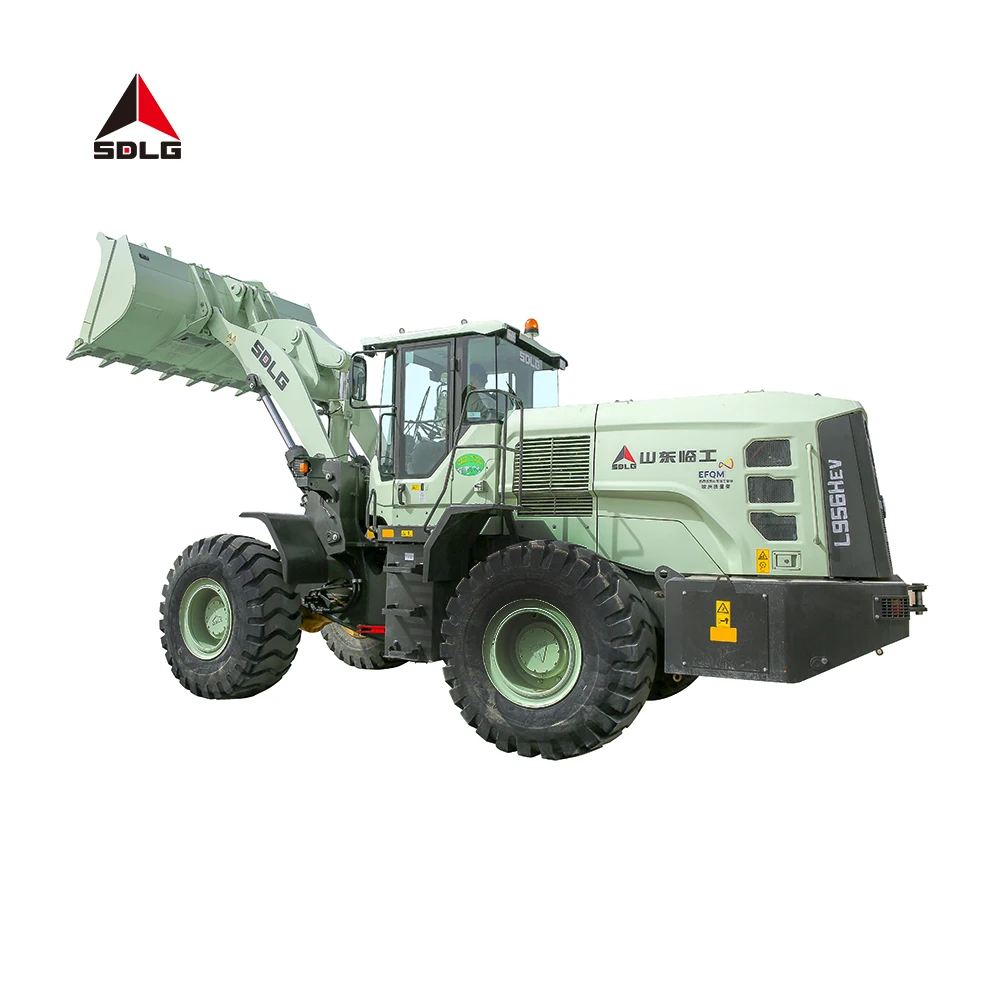

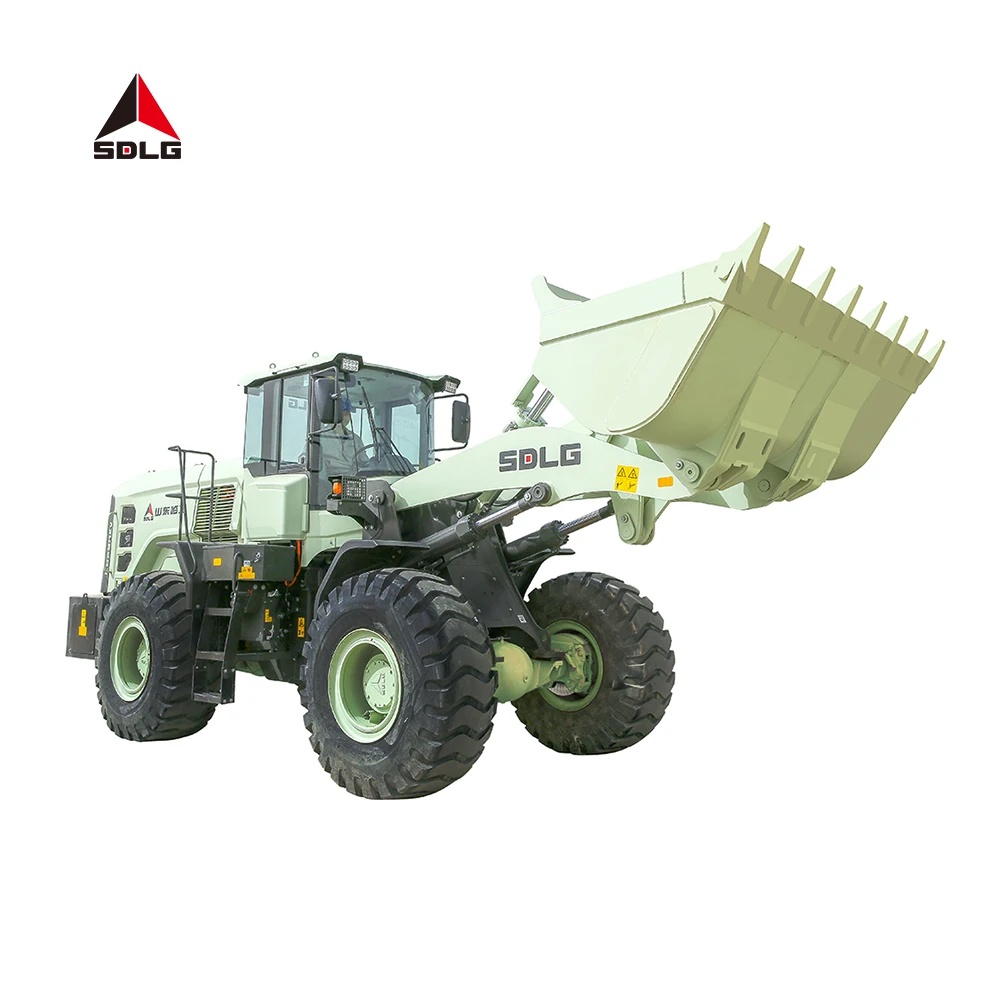

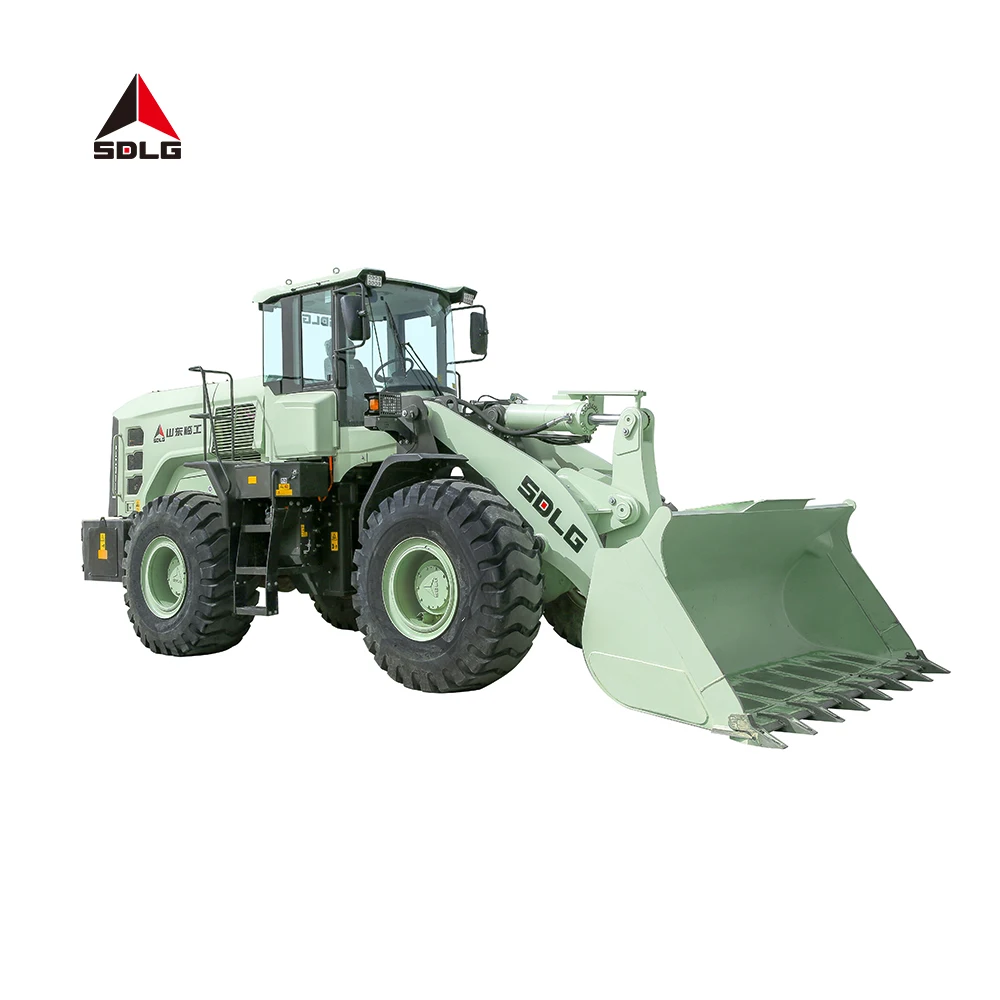

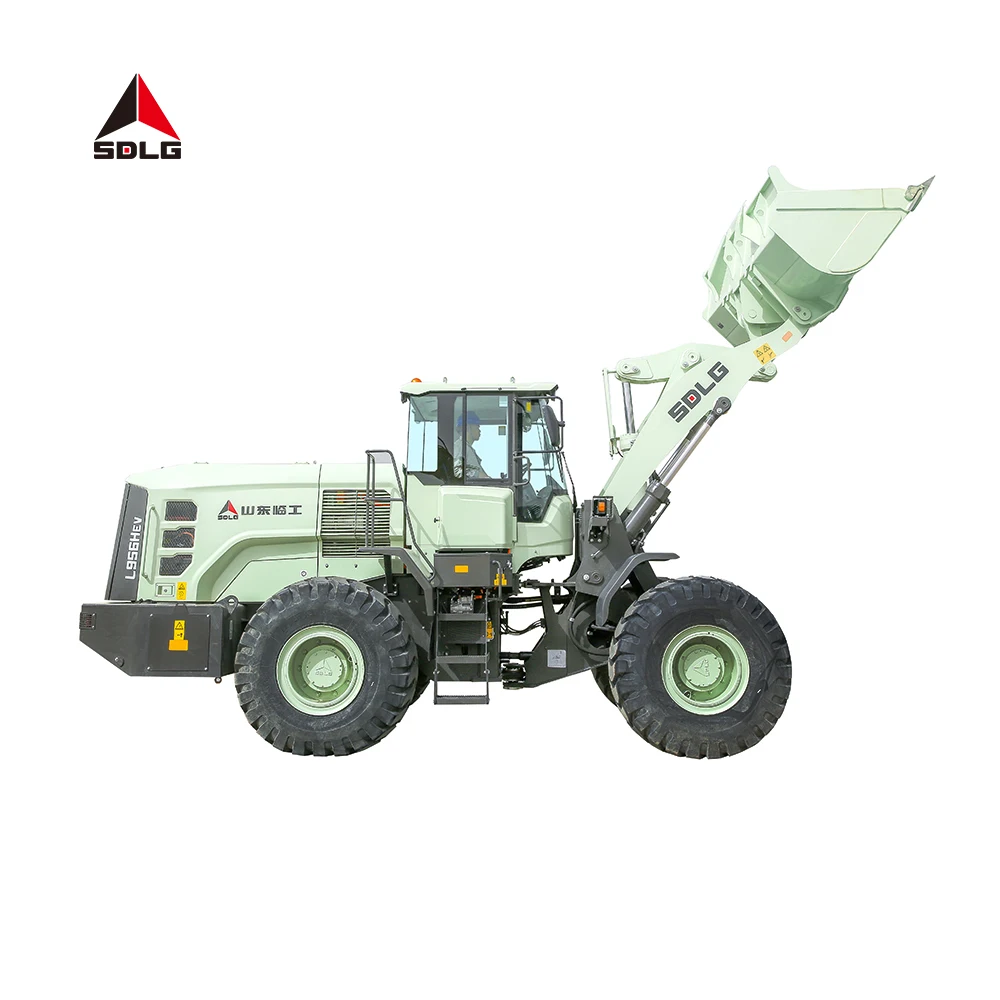

SDLG L956HEV New Design Electric Loader 4 Wheel Drive 3 M3 Bucket 5ton Electric Loader Wheel Loaders for Sale Building 435 Mm
- Category: >>>
- Supplier: Shandong Lingong Construction Machinery Co. Ltd.
Share on (1600519001943):
Product Overview
Description
Product Description

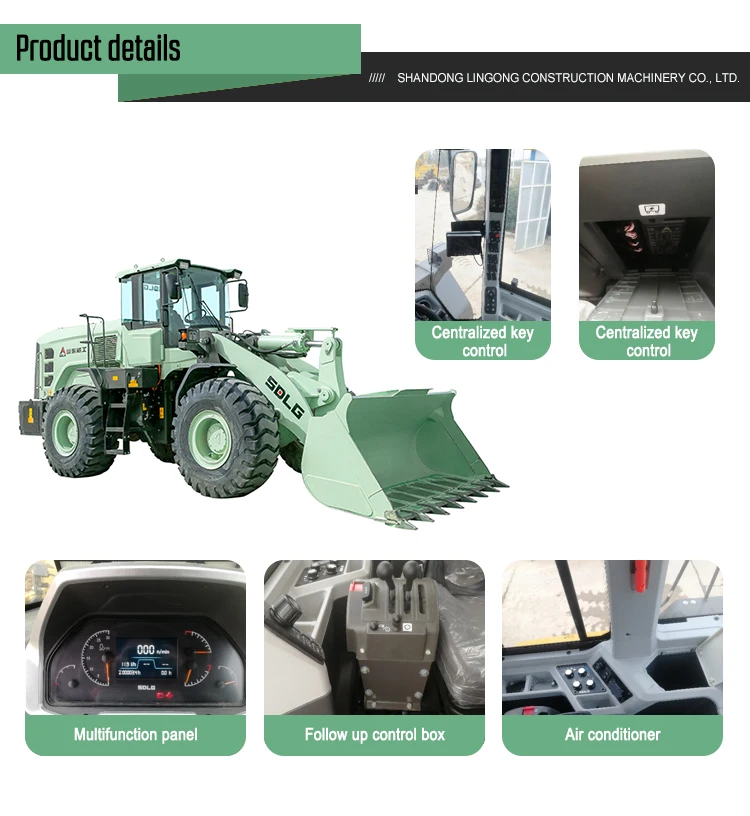

SDLG L956HEV new design electric mini loader 5 ton electric wheel loader with 3 m3 bucket
Product Paramenters
parameters | |||||||||
Rated bucket capacity | 3.0(2.7～4.5) | ||||||||
Minimum steering radius (outside of rear wheel) | 6200 mm | ||||||||
Rated carrying-capacity (kg) | 5500 | ||||||||
Transverse passing radius (outside of bucket) | 7240 mm | ||||||||
Maximum traction force (kN) | 170 kN | ||||||||
Altitude (m) | 4000 | ||||||||
Tipping load(kN) | ≥110 | ||||||||
Ambient temperature (℃) | -25～45 | ||||||||
Maximum breakout force | ≥170 kN | ||||||||
Fording depth (mm) | 630 | ||||||||
Forward I | 0～13 km/h | ||||||||
Forward Ⅱ(km/h) | 0～38 km/h | ||||||||
Reverse I (km/h) | 0～13 km/h | ||||||||
Speed at FII(km/h) | 0-38 | ||||||||
Speed at RI(km/h) | 0-17 | ||||||||
Dimension | |||||||||
Overall length (mm) | 8880 | ||||||||
Overall width (mm) | 3016 | ||||||||
Outside width of wheel | 2895 | ||||||||
Overall height (mm) | 3420 | ||||||||
wheelbase（mm） | 3300 | ||||||||
Dumping angle | -45° | ||||||||
Maximum dumping height | 3420mm | ||||||||
Number of axles | 2 | ||||||||
Corresponding dump reach | 1200 mm | ||||||||
Total mass (kg) | 18400 | ||||||||
Minimum ground clearance | 435 mm | ||||||||
Axis pin at maximum lift height | 4470mm | ||||||||
Wheelbase (front/rear) (mm) | 3300(1650/1650) | ||||||||
Engine | |||||||||
Engine model/Drive Motor Model | TZ380XS016J | ||||||||

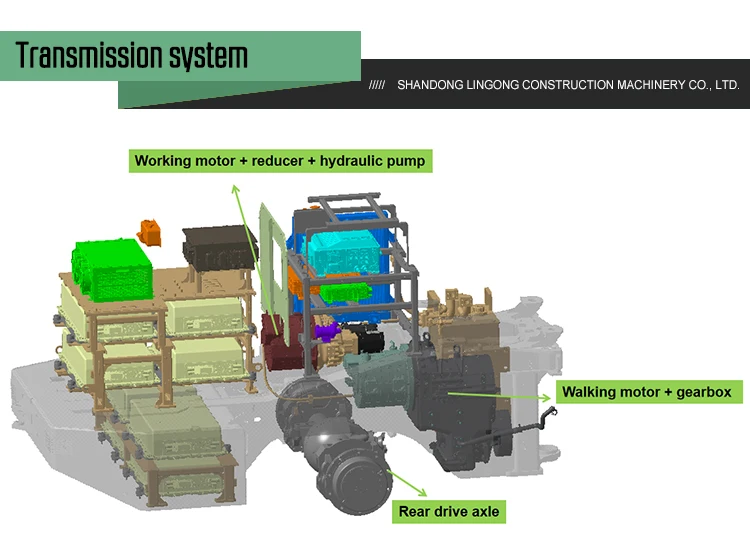

Transmission system | |||||||||
Transmission type | Planetary power shift | ||||||||
Related Production To Choose
Online Service

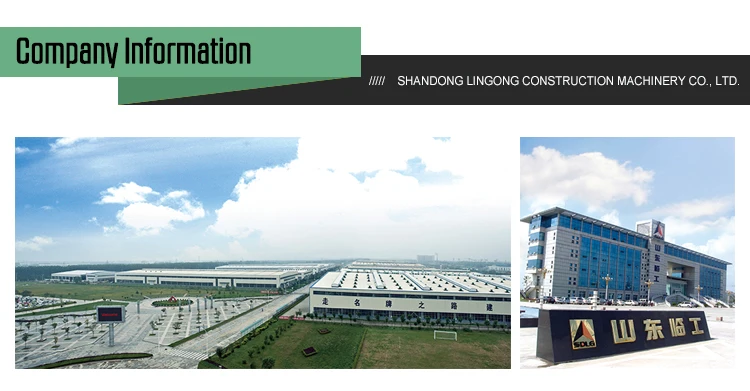

Company Introduction
SDLG founded in 1972,is a world-famous manufacturer and service provider of loaders,excavators,rollers, backhoes and related parts in more than 130 countries and regions.
Our Advantages
Packing&Shipping
yes,we SDLG are an official leading manufacture in construction machinery in China.
2、What kind terms of payment can be accepted?
Normally we can work on T/T or L/C term.
3、What about the delivery time?
7-30 days after receving the deposit.
4、what about the warranty time?
12 months after shipment or 2000 working hours.
