DC FUSE 1500VDC SOLAR PV FUSE feeo dc fuse
US $2.50-$6.80
5A Non resettable RH thermal fuse for lamp ceramic RY fuse link with wire leads for ballast 15A source thermal fuse
- Category: Fuses >>>
- Supplier: Yangzhou Baozhu Electric Appliances Co. Ltd.
Share on (1600519002212):
Product Overview
Description
Product Description
1.Usage
Thermal fuse series are widely used in water heaters,toiletseats,air conditioning,heating rooms,automobile air conditioning,induction cooker,desiccant,power supply,electronic energy saving lamps,ballast and heaters,displays,lighting fixtures,Refrigerator,electric heat furnace,Electric iron,heater, hair dryer,power tool,Microwave oven,rice cooker, electric heating pot,coffeepot,etc.
2.Products structure
The thermal fuse is composed of shell, low melting point alloy wire, special resin, copper lead wire and sealing resin.
3.Apperance
Printing marks must be clear, sealing resin should be filled with mouth and uniform, good tin coating, no oxidation black spot damage phenomenon, the shell without damage scar, perforation, etc.
Thermal fuse series are widely used in water heaters,toiletseats,air conditioning,heating rooms,automobile air conditioning,induction cooker,desiccant,power supply,electronic energy saving lamps,ballast and heaters,displays,lighting fixtures,Refrigerator,electric heat furnace,Electric iron,heater, hair dryer,power tool,Microwave oven,rice cooker, electric heating pot,coffeepot,etc.
2.Products structure
The thermal fuse is composed of shell, low melting point alloy wire, special resin, copper lead wire and sealing resin.
3.Apperance
Printing marks must be clear, sealing resin should be filled with mouth and uniform, good tin coating, no oxidation black spot damage phenomenon, the shell without damage scar, perforation, etc.
Product Name | RH series thermal fuse |
Lead wire | AWG24# 3135；AWG20# 3135； |
Remarks | Can customized according to customer requirements |

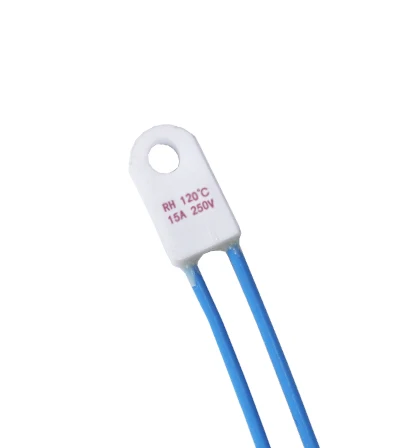

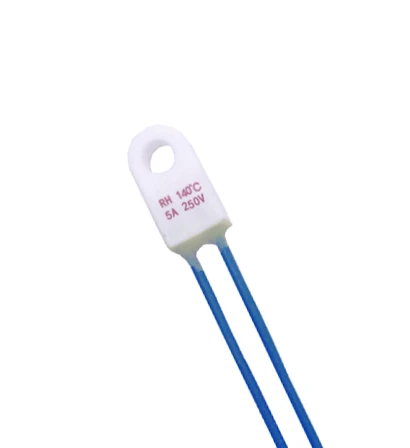

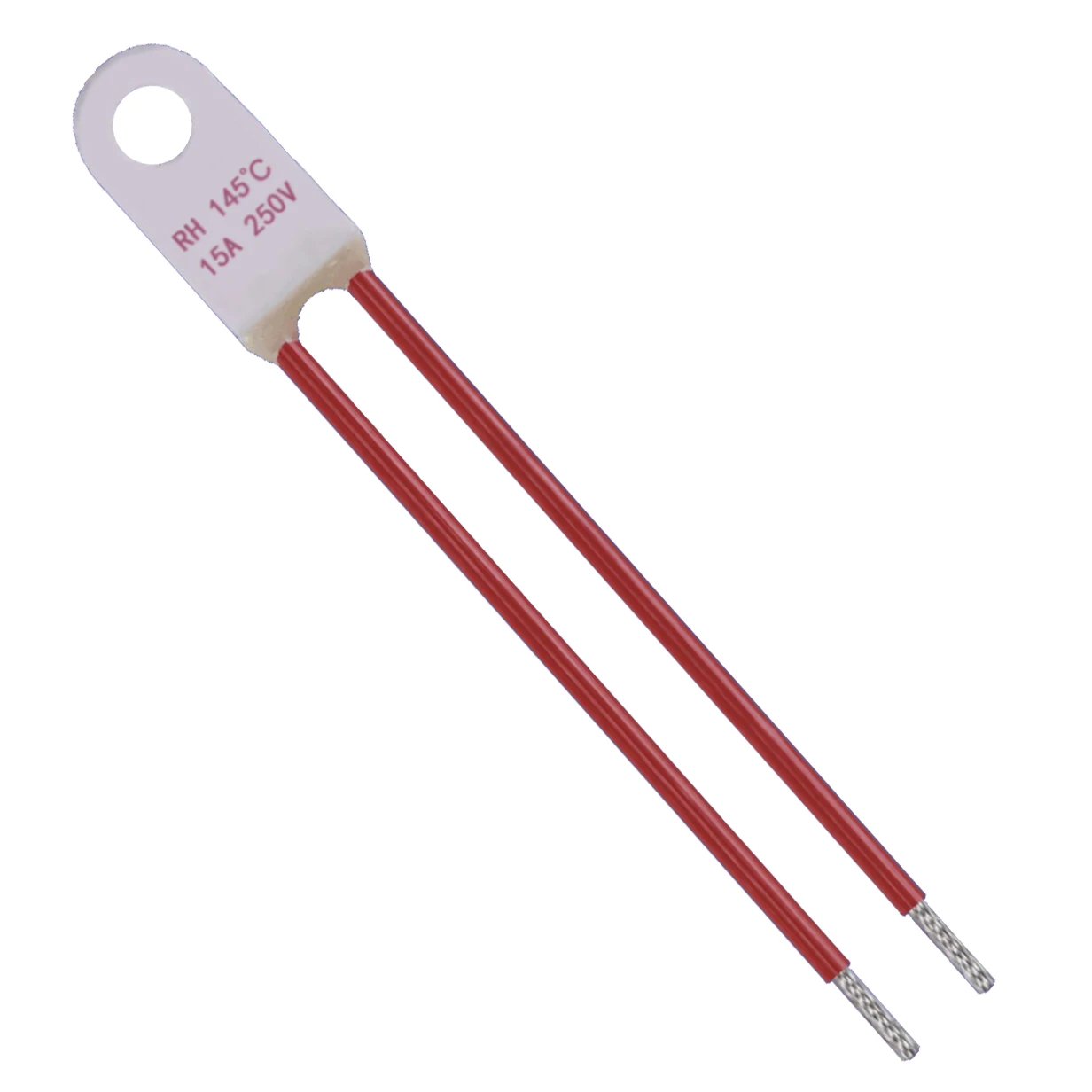

Products Show

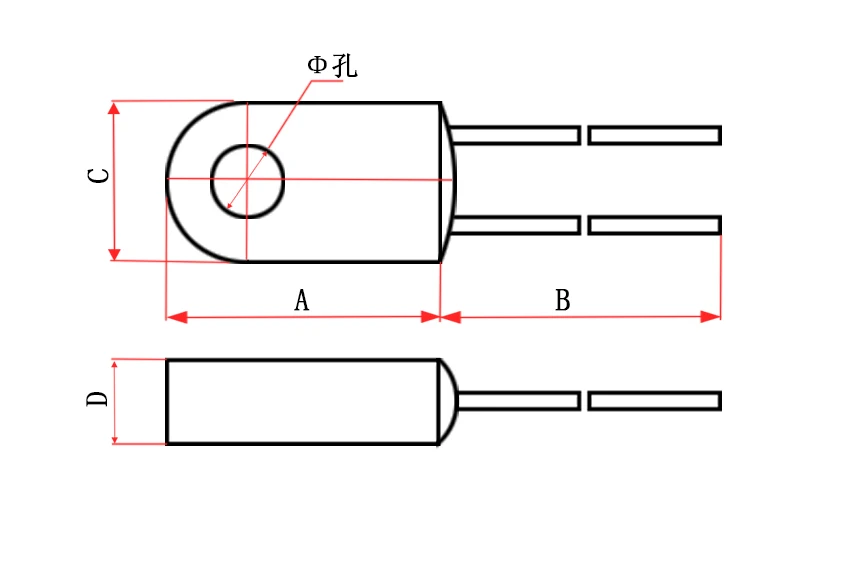

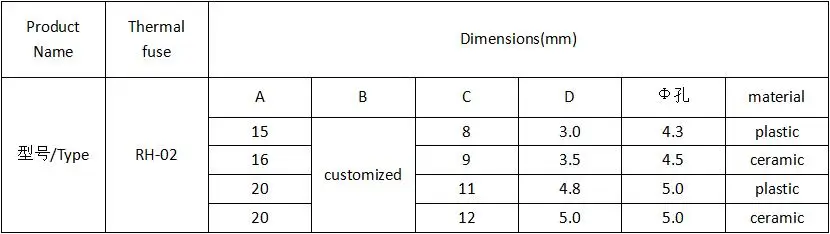

Size

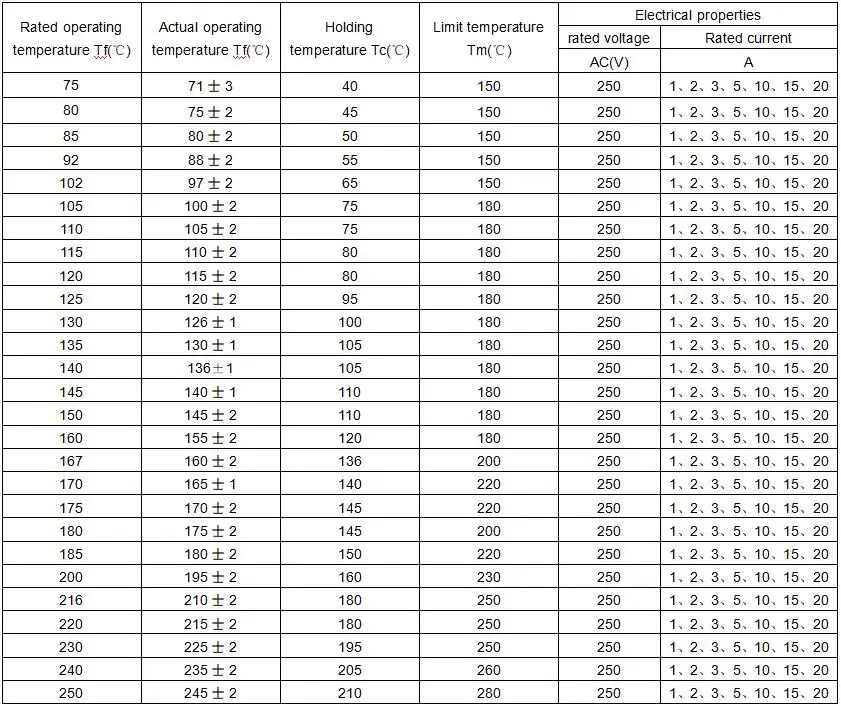

Table of temperature parameters

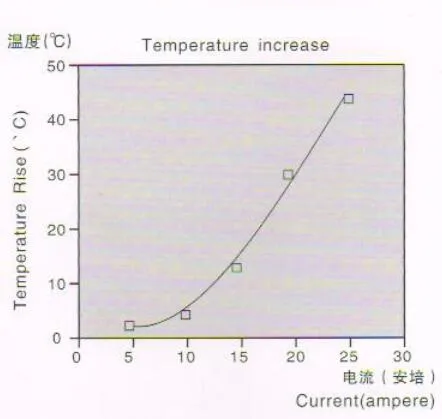

Temperature increase curve Certifications
VDE:40050455
Package and label
Transparent plastic bags size:
115mm wide * 160mm long or 198mm wide * 275mm.
Shipping mark size:
100mm wide * 150mm long.
Our Service
Free sample
Our company can provide 10 free samles for your testing.
Our Company
Factory
Headquarters
Workshop
Our Workshop
Chengnan Branch
Jinghe branch
Warehouse
Our Warehouse
Equipmen
Our Part equipment
Packing & Delivery
Samples Packing Details : File pocket
Order Packing Details :
1000pcs in one plastic bag
5000pcs in one export carton(26*18*22cm)
10000pcs in one export carton (carton size:32*26*22cm)
Delivery Details : 7-15 days
Decide delivery time according to order quantity and requirement.
Our Certifications
Certificates of our products include CE, CQC, ROHS, UL, VDE, etc.
Please contact me if you need relevant certificates.
Please contact me if you need relevant certificates.
