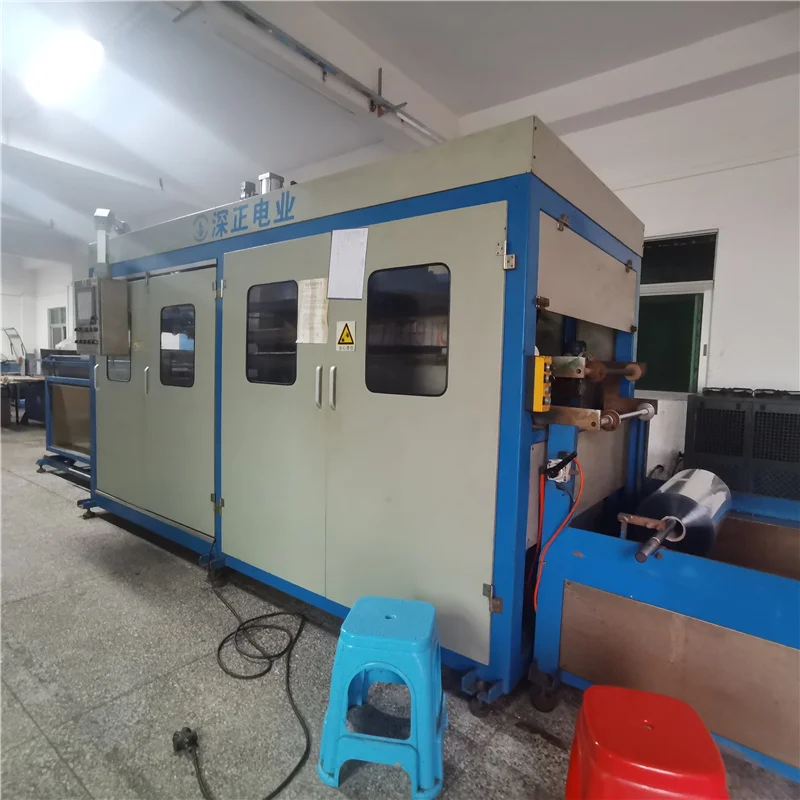

Used Fast Food Box Forming Fully Automatic Thermoforming Recycled Plastic Pallet Making Machine
- Category: >>>
- Supplier: Shenzhen Weixin Plastic Machinery Factory
Share on (1600519016206):
Product Overview
Description
Product Description
Specification
item | value |
Processing Type | Plastic Thermoforming Machine |
Plastic Type | Hips, PU, PVC, PS, PA, BOPS, PP, Bopp, EPS, PET |
Max.Forming Height(mm) | 180mm |
Forming Width (mm) | 710mm |
Forming Length (mm) | 1220mm |
Production Speed(Cycles/min) | 20 |
Video outgoing-inspection | Provided |
Machinery Test Report | Not Available |
Marketing Type | second hand |
Warranty of core components | 1 Year |
Core Components | Motor, Pump |
Air Pressure(MPa) | 0.8MPa |
Sheet Thickness(mm) | 0.2mm - 2mm |
Heating Power (kW) | 30kW |
Air Comsumption(L/min) | 0.5L/min |
Water Comsumption(L/min) | 0.1L/min |
ondition | second hand |
years | 2019 |

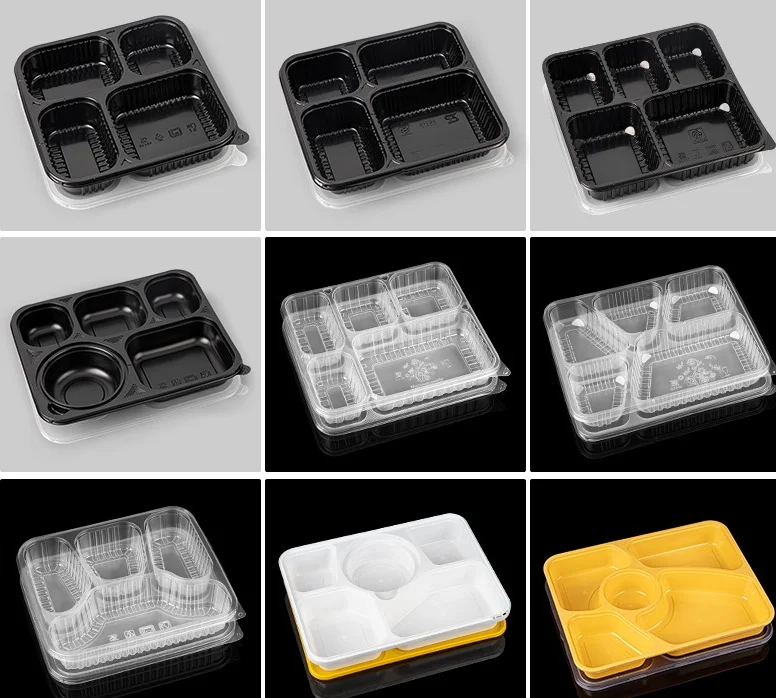

Product Type | Fast Food Box |
Place of Origin | China |
Forming and punching form | Full servo drive |
Brand Name | shenzheng |
Voltage | 380v |
imension(L*W*H) | L11000xW2300xH2500mm |
Weight (T) | 4T |
Power(KW) | 32 |
Warranty | 3 months |

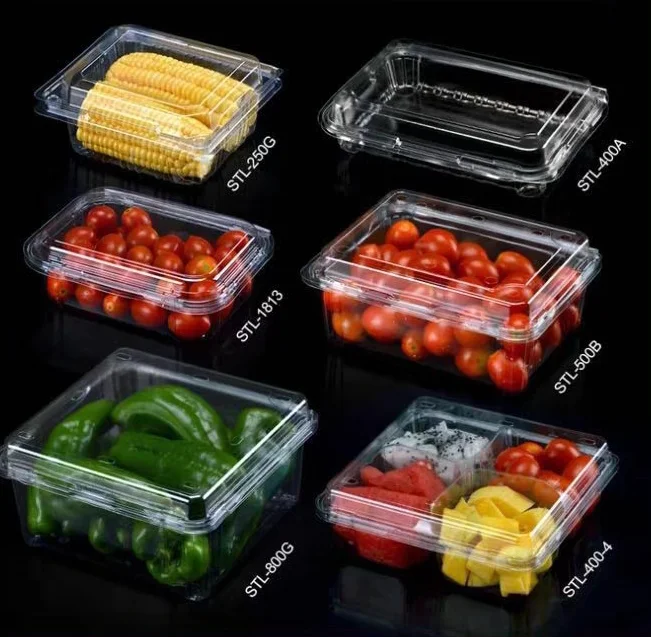

main production | Fruit boxes, lunch boxes, egg boxes, electronic trays and other large single-volume plastic products |
Key Selling Points | Easy to Operate |
Showroom Location | None |
Application | Plastic Products |
Finished Products | Cake Boxes |
Product name | Plastic Blister Vacuum Forming Machine |
Suitable material | PP PET PVC PS PLA |
Keyword | Automatic Suppository Thermoforming Machine |
Type | Automatic High Speed Thermoforming Machine |
Forming Area | 1220*710mm |
Sheet Material | PP.PS.HIPS.PET.PVC |
Max Forming Depth | 180mm |
Total Power | 32kW 280V |
Show details

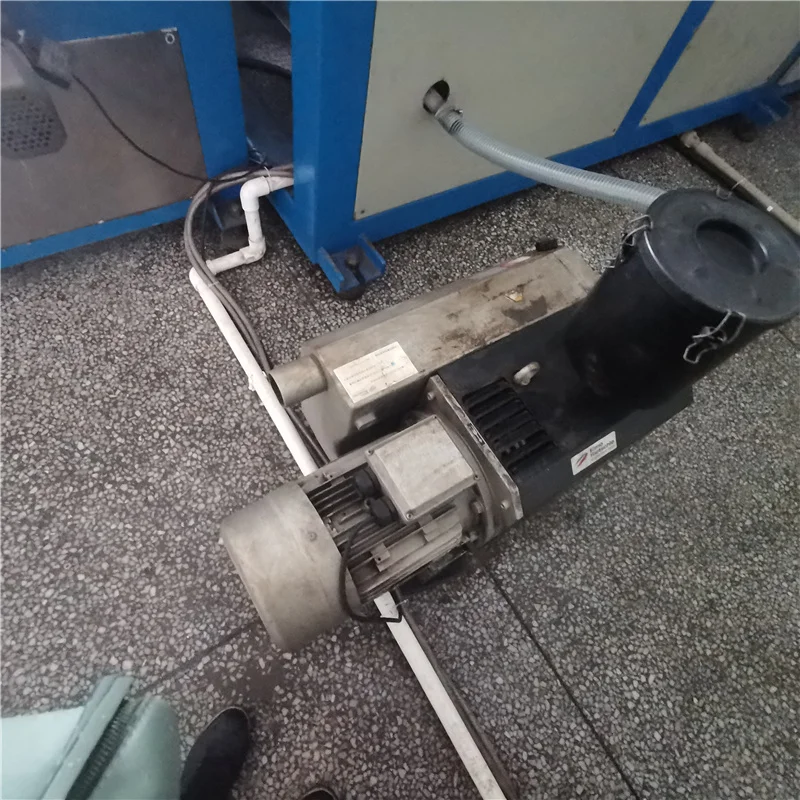

This is a refurbishment of the old blister machine. More than half of the accessories are new, such as: PLC, computer screen, all circuits, relays, nozzles, solenoid valves, air pipes, and matching die plates, vacuum pumps, and chillers Wait, in order to achieve a cost-effective machine, the quality of which is similar to the new machine.

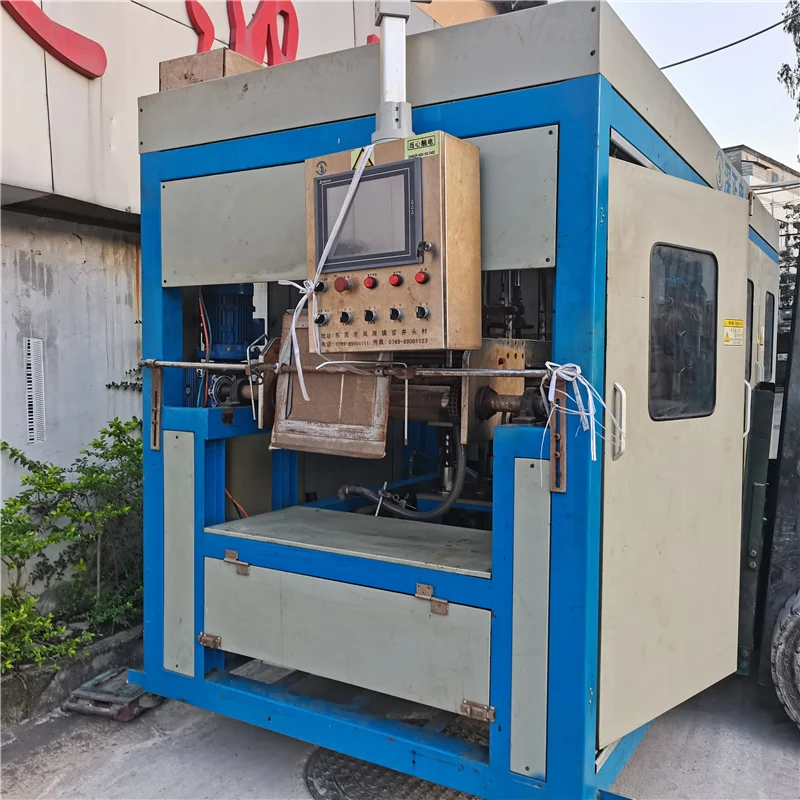

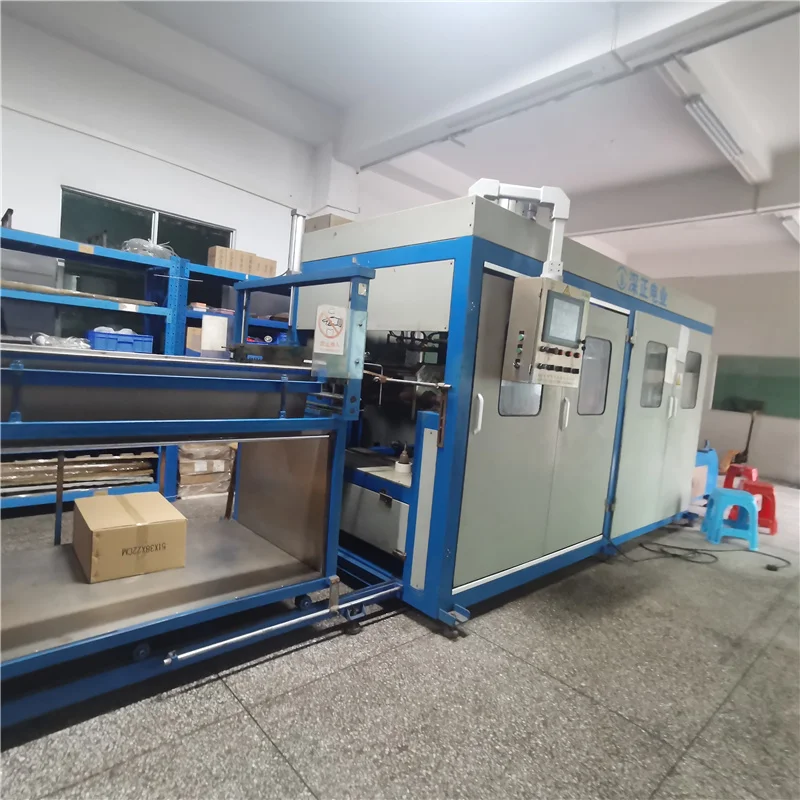

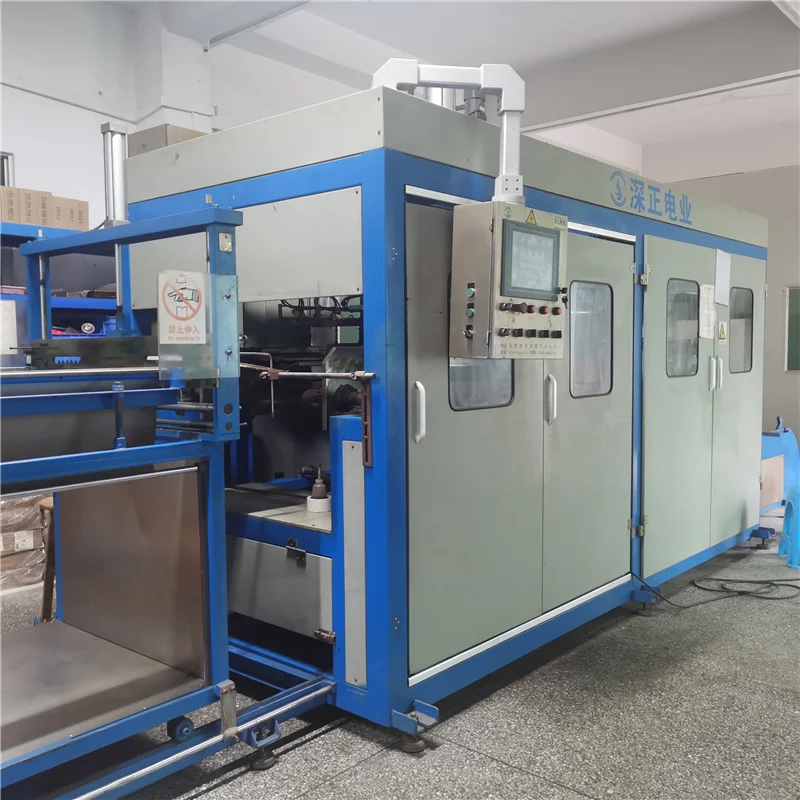

Machine Details
Blister Machine Fast Food Box Fruit Box Vacuum Forming Machine Blister Thermoforming Machine Forming Area: 1220X710, Electric Pull Tab, New CKD Solenoid Valve, Digital Display Control, Electric Girder Adjustment, Electric Furnace Going Furnace, New Heating Brick, With Automatic Feeding, Good machine performance and stable output
Machine Details
Vacuum blister machine, mechanical features and introduction

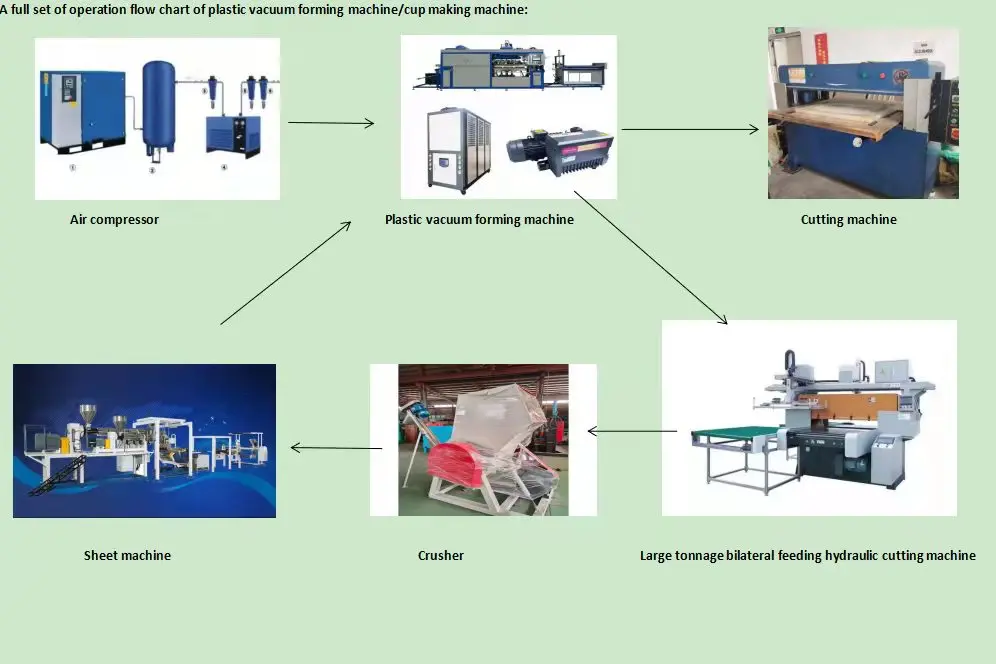

Control system: The central integrated control system enables automatic and continuous blister forming work such as feeding → heating → blistering → cooling → stripping → cutting. The use of imported components improves the control performance of the whole machine, especially to ensure the quality and quality of the whole machine;
Control system: The central integrated control system enables automatic and continuous blister forming work such as feeding → heating → blistering → cooling → stripping → cutting. The use of imported components improves the control performance of the whole machine, especially to ensure the quality and quality of the whole machine;
Machine Details
Electric furnace control: The electric furnace is made of stainless steel to avoid the use of iron plates for similar models to produce iron oxides falling on the sheets under the action of high temperature, causing the product to be scrapped;
New Omron relay, neat line
The new electrical appliances and wiring system are the same as the new machine.
New heating electric furnace brick
Newly heated electric furnace bricks, fast heating speed and stable heating
New electric furnace module temperature control system
The new module controls the heating of the electric furnace, which is adjusted by the computer, speed and precision
Product Description

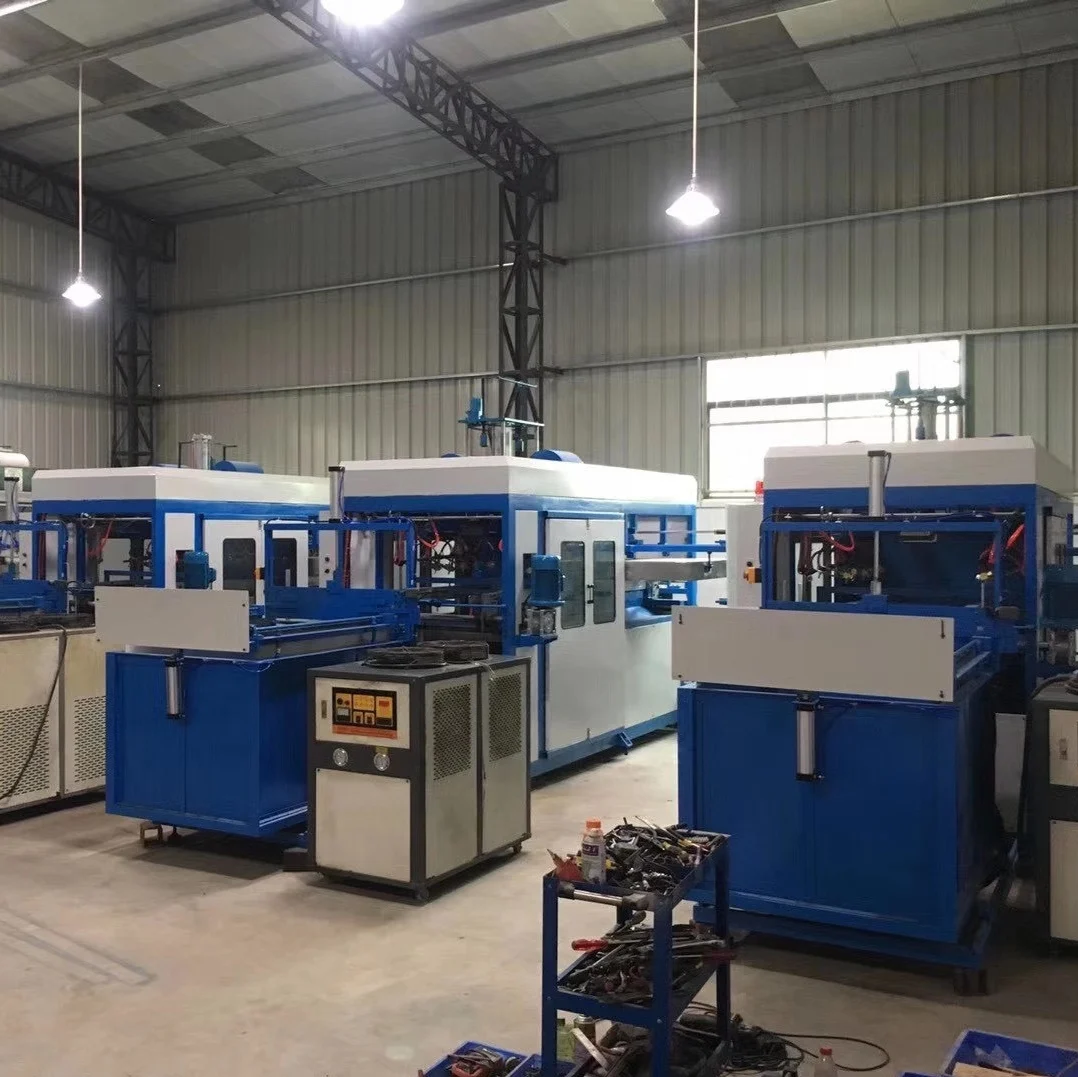

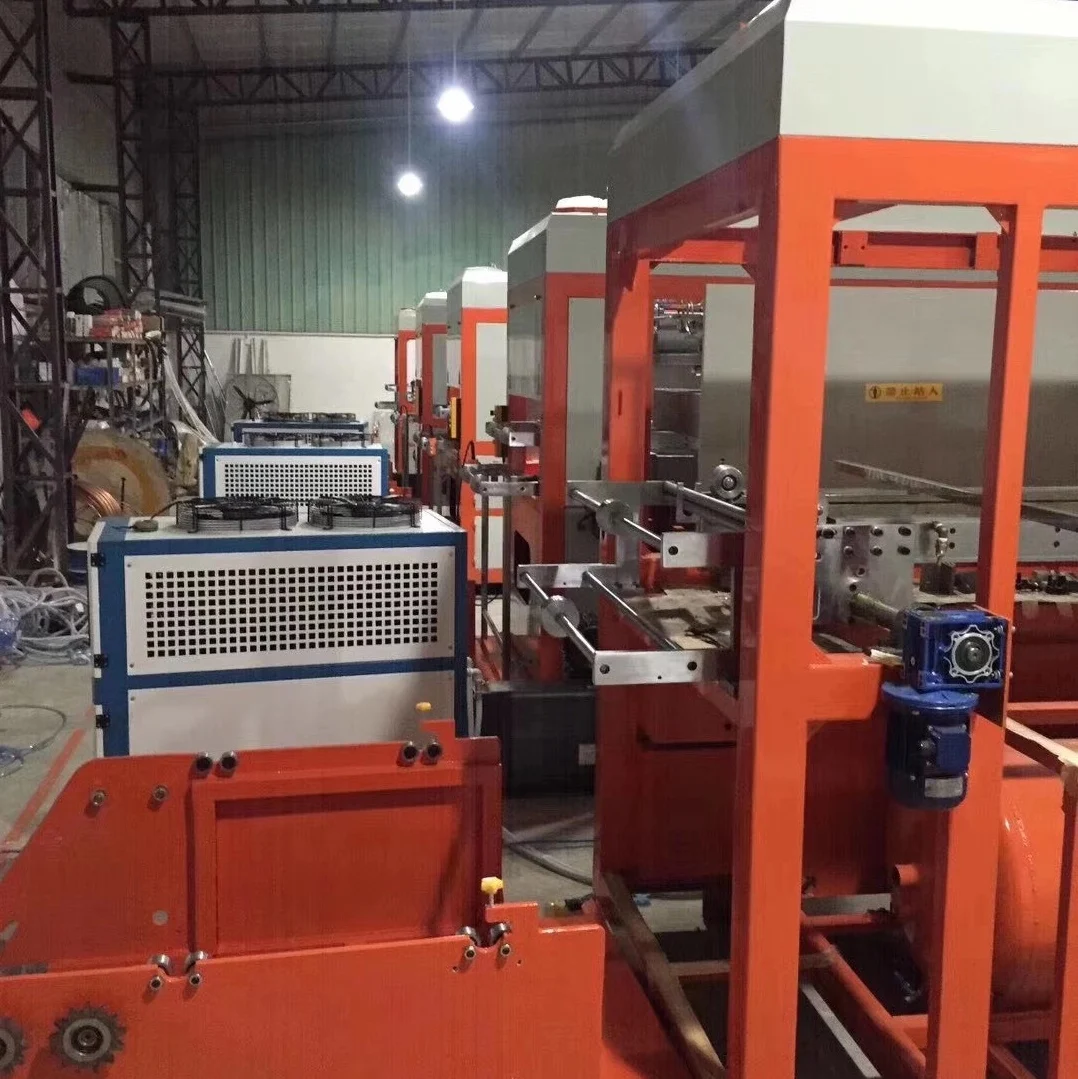

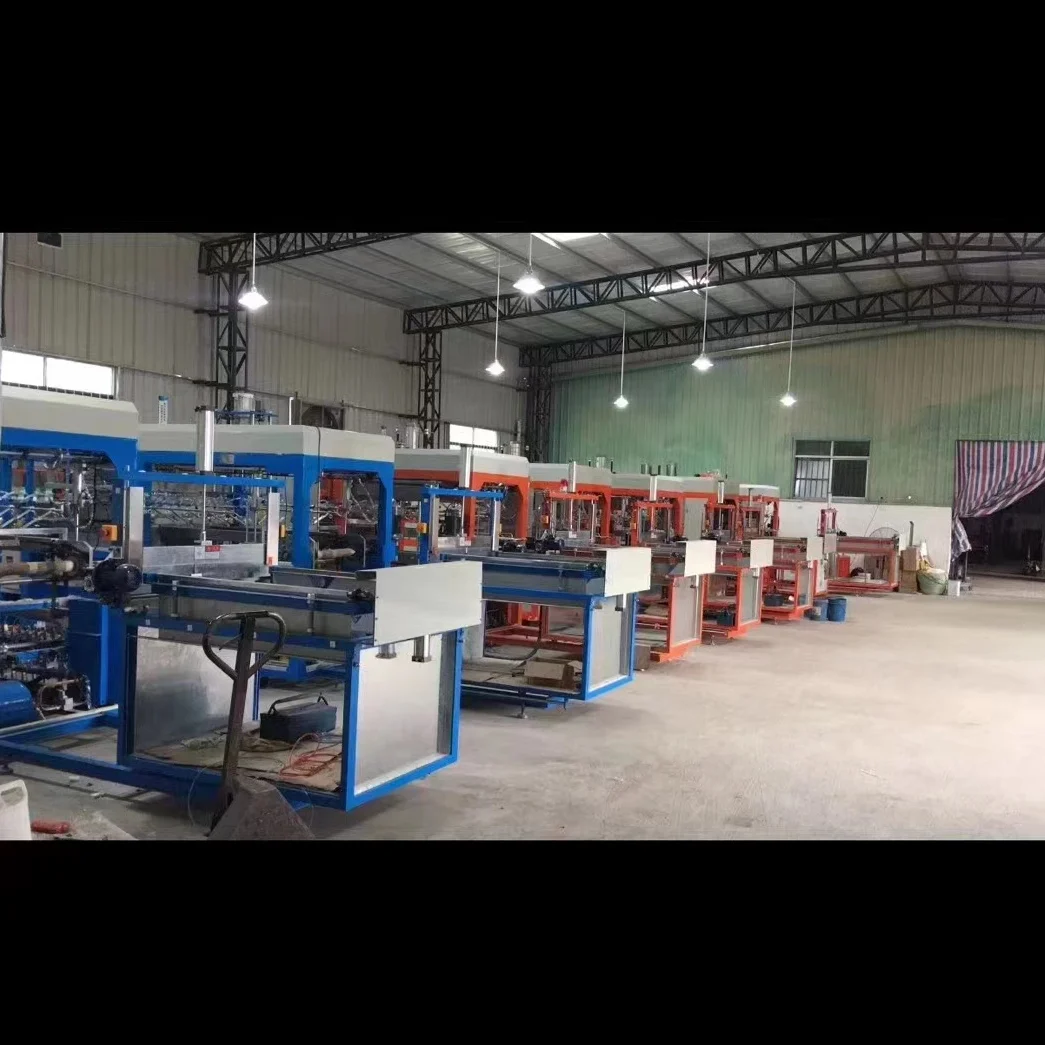

Production workshop
our team
Company Profile

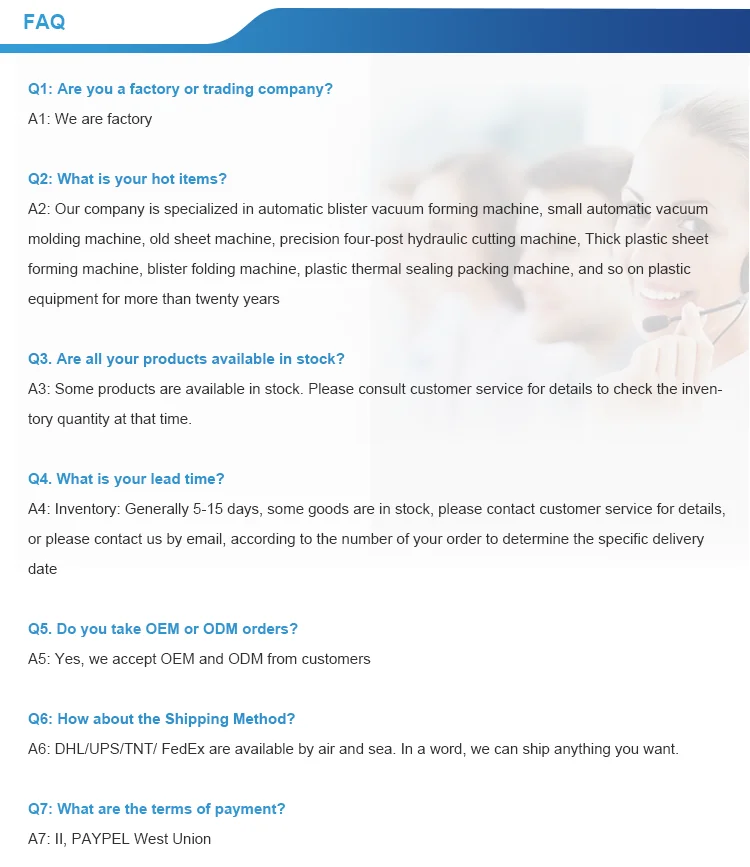

FAQ
