Fully Automatic Disposable Paper Food Lunch Box Paper Plate Making Forming Machine
Fully Automatic Disposable Paper Food Lunch Box Paper Plate Making Forming Machine
Fully Automatic Disposable Paper Food Lunch Box Paper Plate Making Forming Machine
Fully Automatic Disposable Paper Food Lunch Box Paper Plate Making Forming Machine
Fully Automatic Disposable Paper Food Lunch Box Paper Plate Making Forming Machine
Fully Automatic Disposable Paper Food Lunch Box Paper Plate Making Forming Machine
Fully Automatic Disposable Paper Food Lunch Box Paper Plate Making Forming Machine

Fully Automatic Disposable Paper Food Lunch Box Paper Plate Making Forming Machine

Share on (1600519023277):


Price:$32,000.00 - $35,000.00

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Model
CDHK-LHH800
Speed
180PCS/MIN
Paste
Water solubility of glue
Applicable materials
150 ~ 600g / m2 cardboard and coated paper
Material thickness
1.5MM Max
Power
4.5KW
Power Supply
Three phase, 380V, 50 / 60Hz
Machine(L*W*H)
3520*1870*1420MM
Machine size
3550*1910*1700MM
Machine weight
2000KG
Air source
Pressure: 6kg / cm2; (0.6MPa);

Output: 200 L / minute; (0.2~0.4 m3/minute)

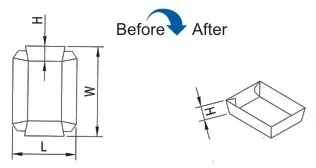

L=60~450mm
W=60~480mm
H=10~200mm
Angle: 5°~ 30°

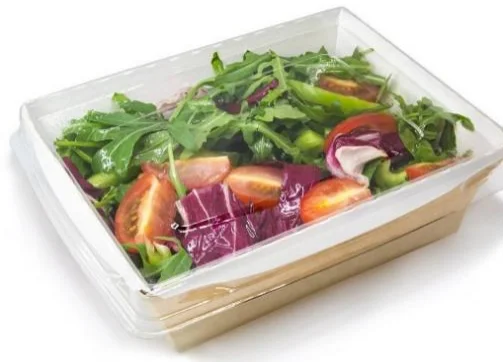

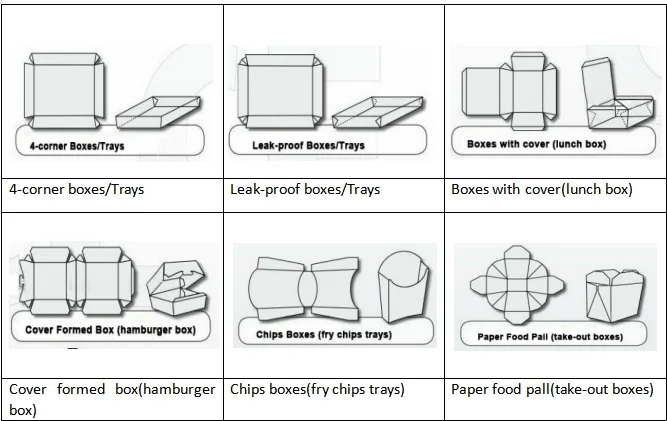

Sample








Our Advantages

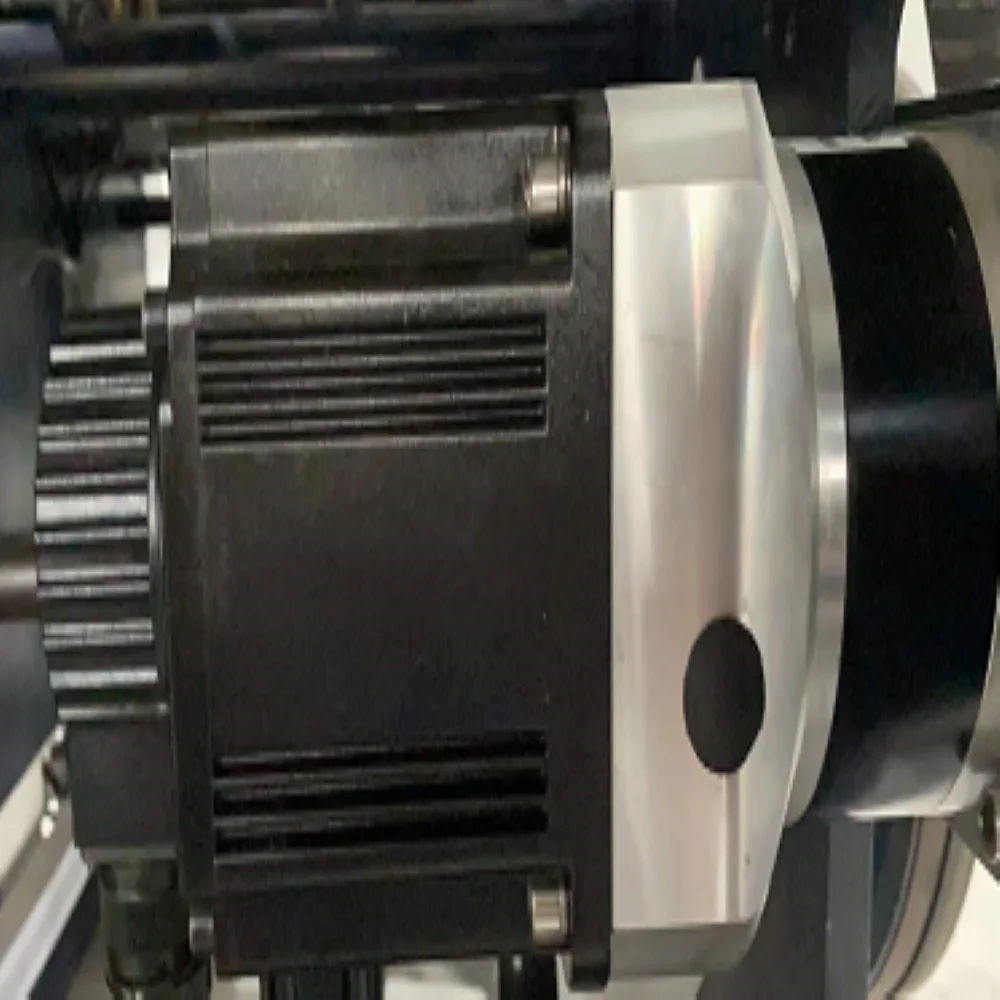

The reduction motor is matched with the servo motor to improve the operation efficiency of the machine. In the process of shutdown, it can stop stably instead of emergency braking

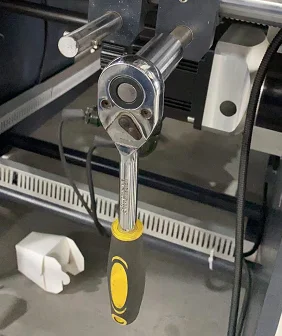

During the rotation of the machine, it is not necessary to adjust by breaking the belt. Just shake the regulator to adjust the distance, which is more safe, stable and efficient

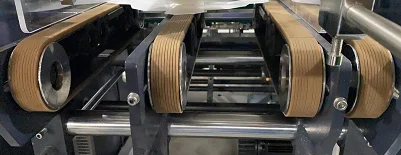

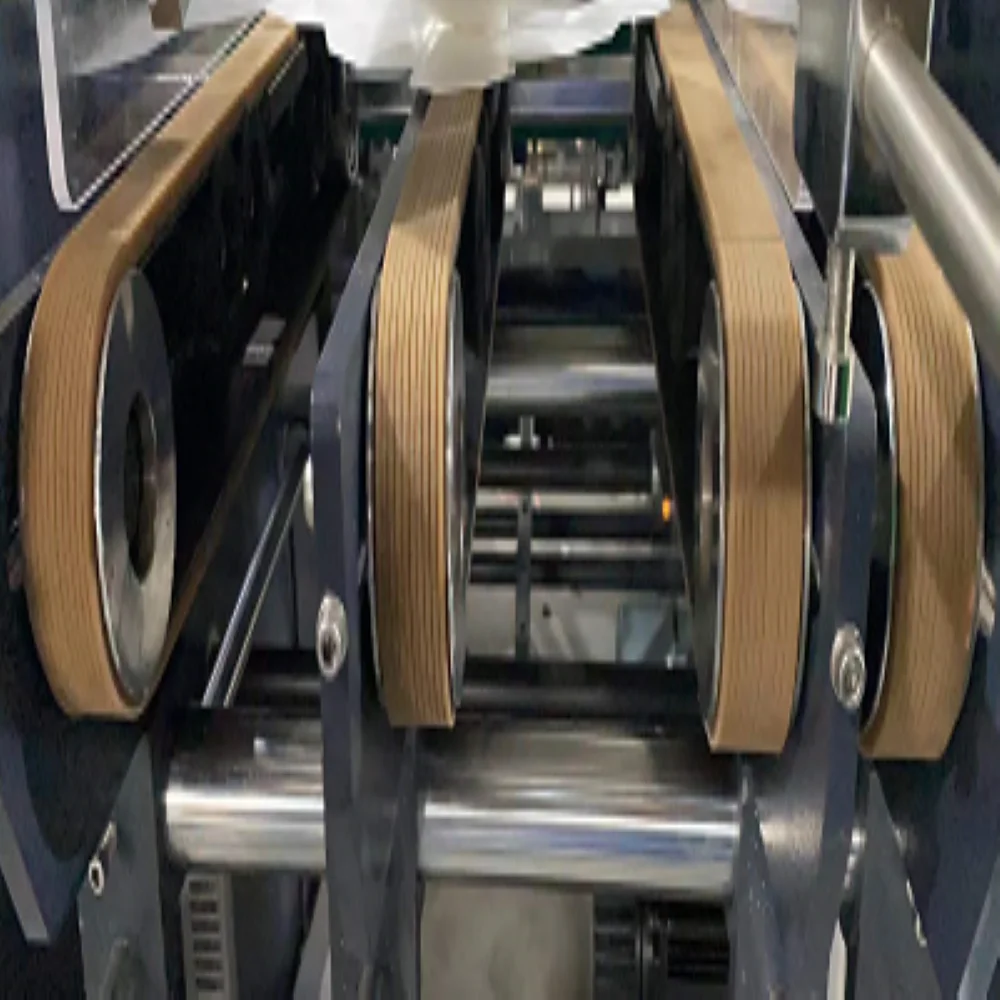

We use 4 ox tendon belts, only 1 in the same type of factory, which makes the machine more durable and the belt more wear-resistant

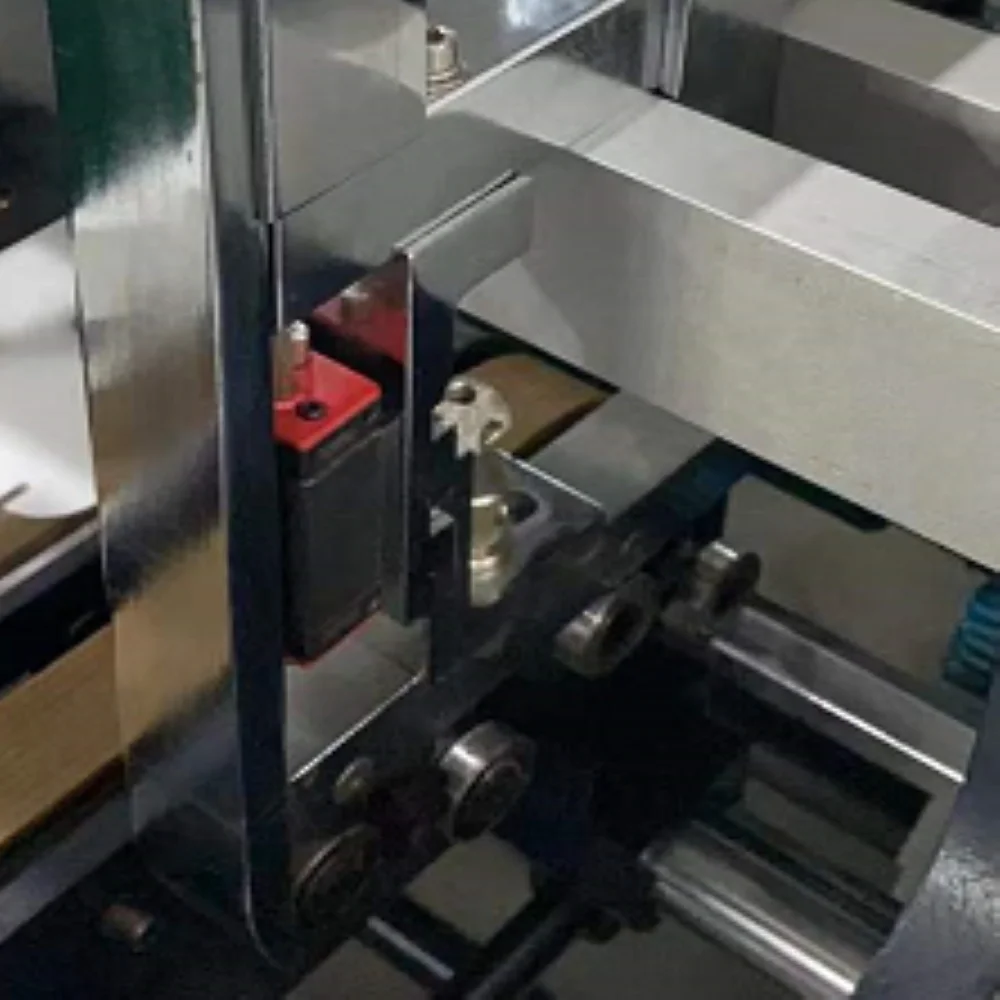

Two paper discharge knives, one on the left and one on the right. The height can be adjusted at any time according to the thickness of the paper. 45 steel is adopted, which is not easy to deform

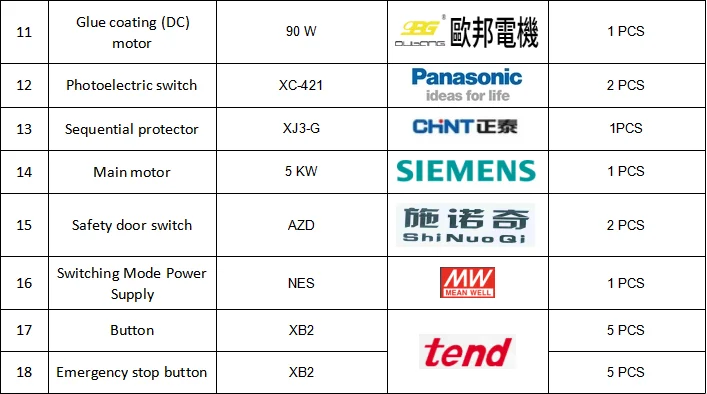

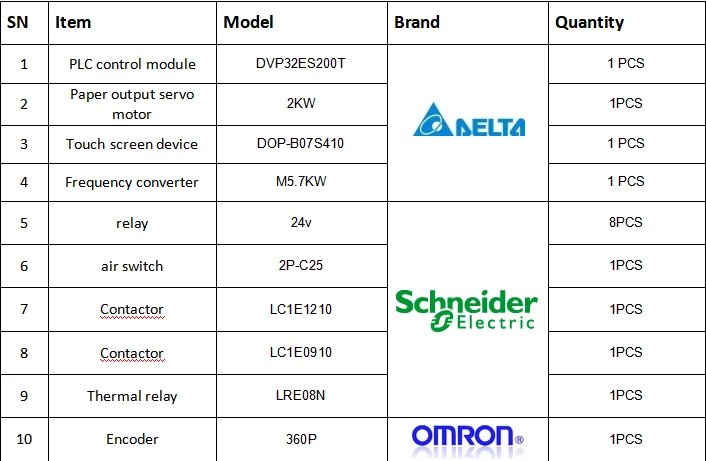

Machine Configuration
