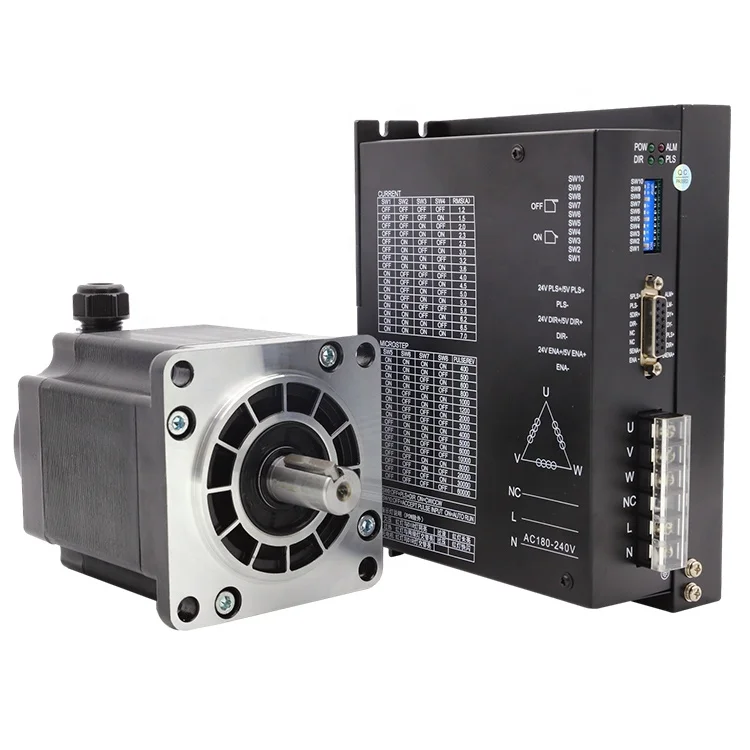

Nema43 Motor Stepper cnc stepper motor controller driver kit fast stepper
- Category: >>>
- Supplier: Beijing Haijie Jiachuang Technology Co. Ltd.
Share on (1600519023514):
Product Overview
Description
Products Description

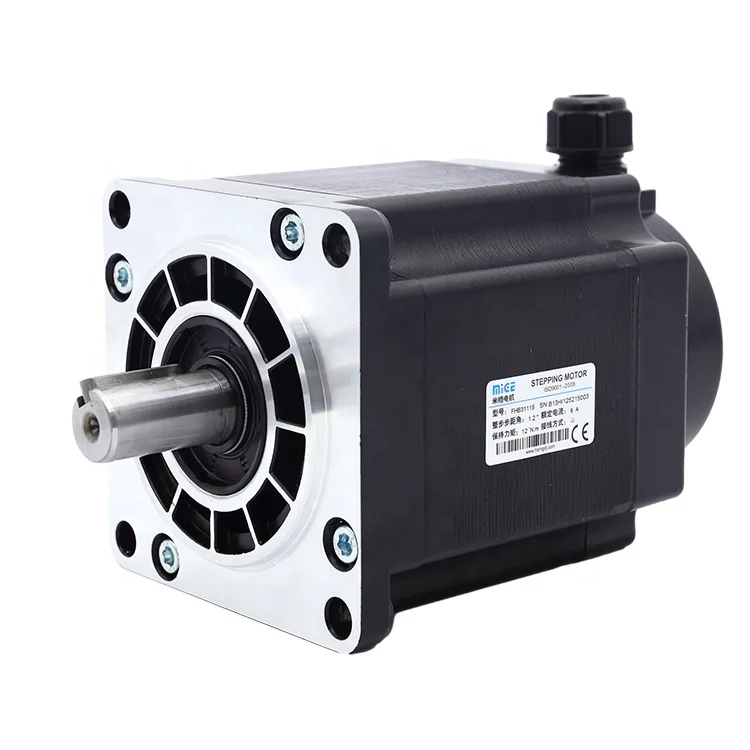

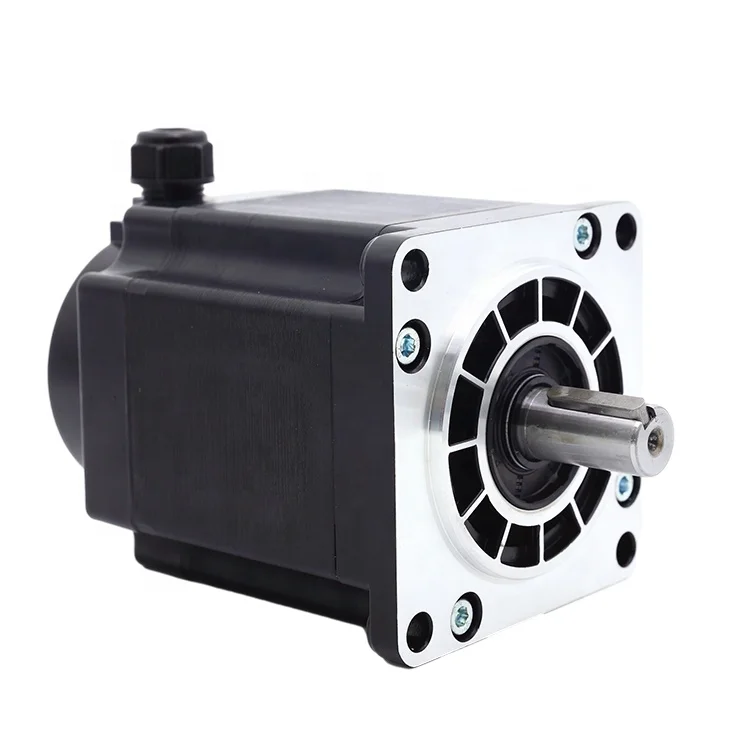

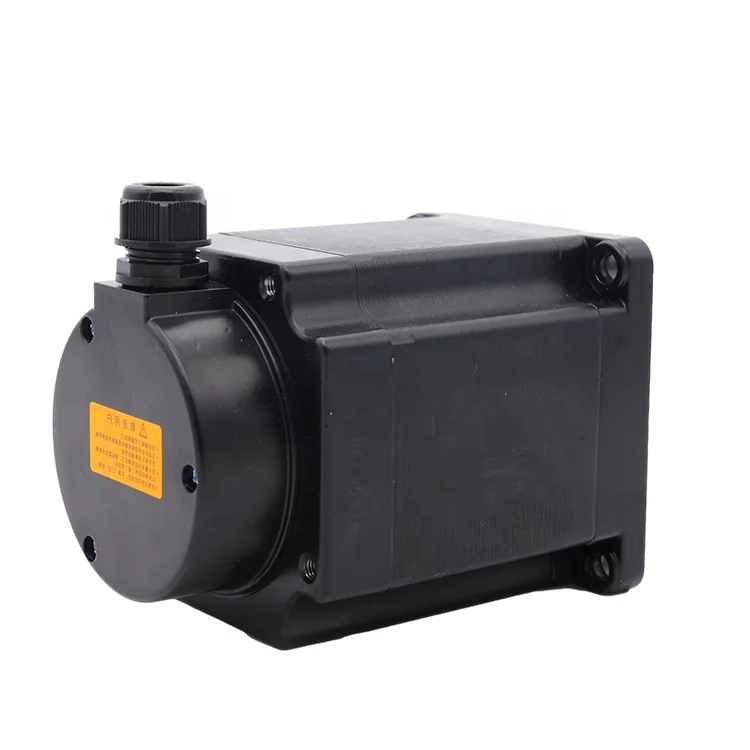

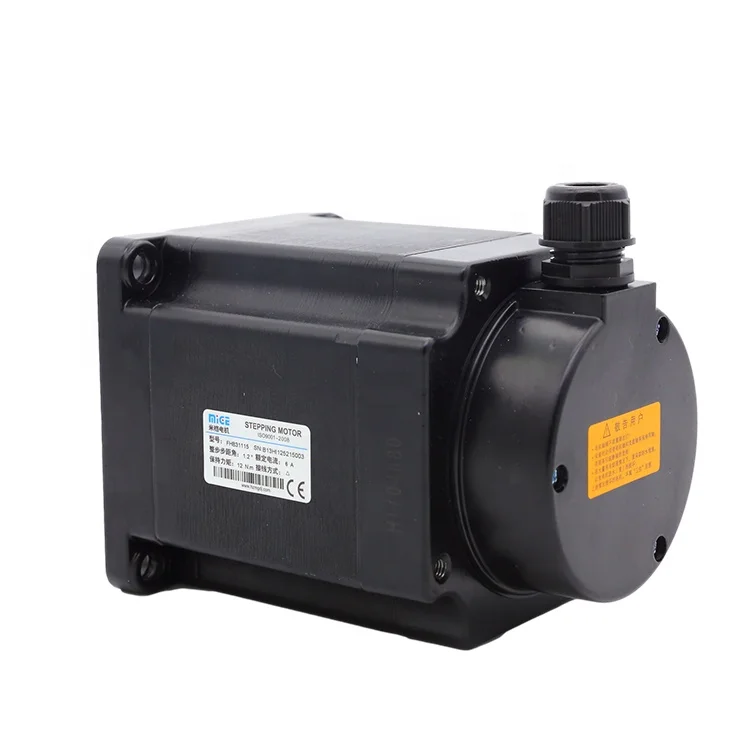

Cnc kit high torque nema 43 closed loop stepper motor Nema 43 Stepper Motor
Step Angle Accuracy | Temperature Rise | Ambient Temperature | Insulation Resistance | Dielectric Srength | Shaft Radial Play | Shaft Axial Play |
5% | 80℃ Max | -20℃-+50℃ | 100MΩ Min (500VDC) | 500V AC 1 minute | 最大0.06mm (450g负载) | 最大0.08mm (450g负载) |
Model | FHB31112 | FHB31115 | FHB31118 | FHB31122 |
Step Angle(°) | 1.2 | 1.2 | 1.2 | 1.2 |
Length L(mm) | 127 | 151 | 185 | 219 |
Holding Torque (N.m) | 8.0 | 12 | 16 | 20 |
Current(A/phase) | 4.3 | 6.0 | 6.4 | 6.9 |
Rotor Inertia(g.cm²) | 6000 | 9720 | 13560 | 17400 |
Weight(kg) | 5.0 | 6.3 | 8.5 | 10.7 |
Matcheddriver | HBQ30722A | HBQ30722A | HBQ30722A | HBQ30722A |
Shaft Diameter(mm) | 19 | 19 | 19 | 19 |
Axis Stretch(mm) | Flat key6×30 | Flat key6×30 | Flat key6×30 | Flat key6×30 |
Resistance(Ω) | 1.04 | 0.6 | 0.7 | 0.57 |
Inductance(mH) | 4.3 | 2.67 | 2.96 | 2.46 |
Wiring Diagram | F | F | F | F |
The rotor 01
It is forged with imported materials, and each rotor is finely ground and polished to ensure that each tooth groove is smooth.Make the motor run stably, with lower noise, longer life, and no jamming.
It is forged with imported materials, and each rotor is finely ground and polished to ensure that each tooth groove is smooth.
Make the motor run stably, with ower noise, longer life, and no jamming.
the motor run stably, with lower noise, longer life, and no jamming.
Precise control
winding specifications can be made according to requirements
Recommend Products
Company Profile
Beijing Haijie Jiechuang Technology Co., Ltd. is a professional supplier of CNC automation products.The company founder team members are all engineers，with more than 10 years of industry technical experienceWe provide cost-effective automation products， but also to provide quality pre-sale and after-sales service， linear module products to provide 1-year free，warranty，servo，step，brushless DC system to provide 2-year free warranty.
Our factory is located in Jiangsu Province, one of the four major motor industry bases in China, with dozens of CNC machiningcenters, and a number of automatic production line factories can achieve servo system monthly production capacity of 12,000 sets,stepper and DC brushless system monthly productior capacity of 27,000 sets, linear module sliding table monthly production
capacity of 9,000 sets.
capacity of 9,000 sets.
