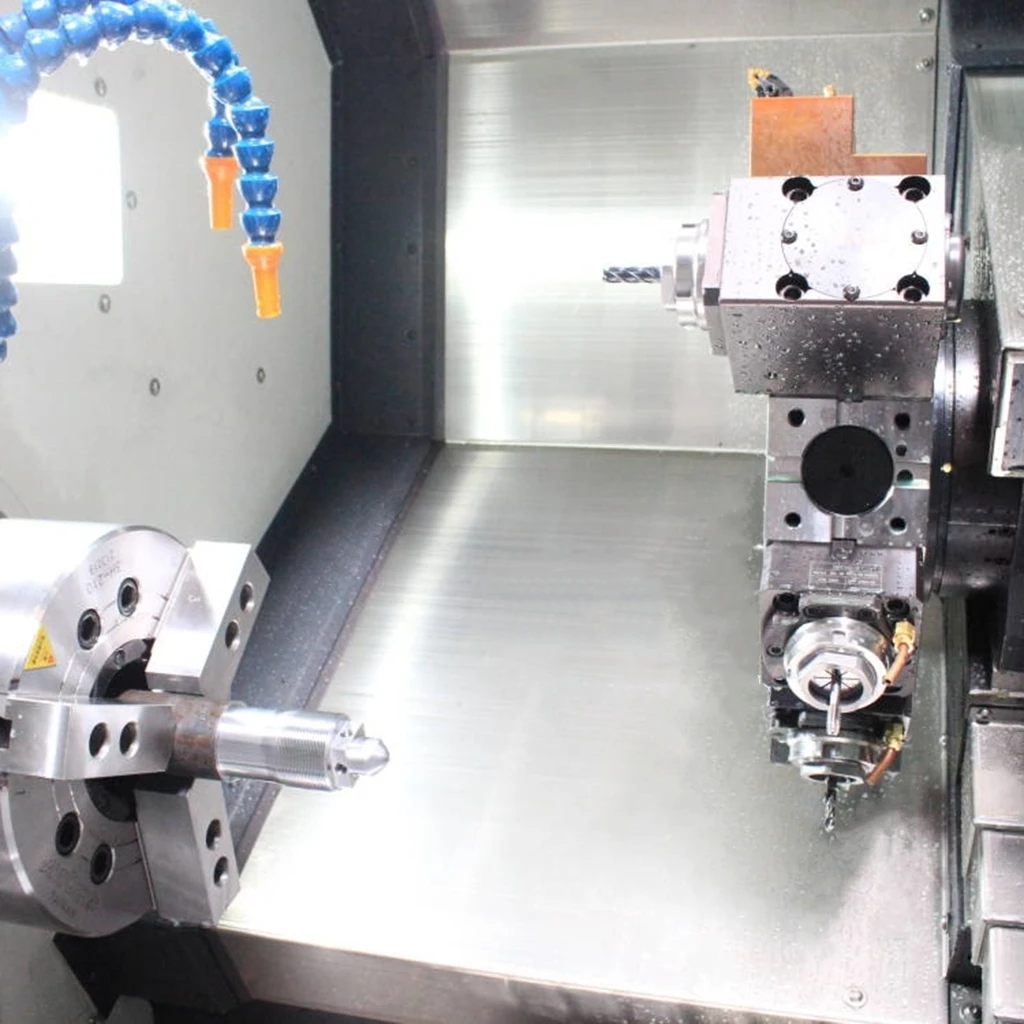

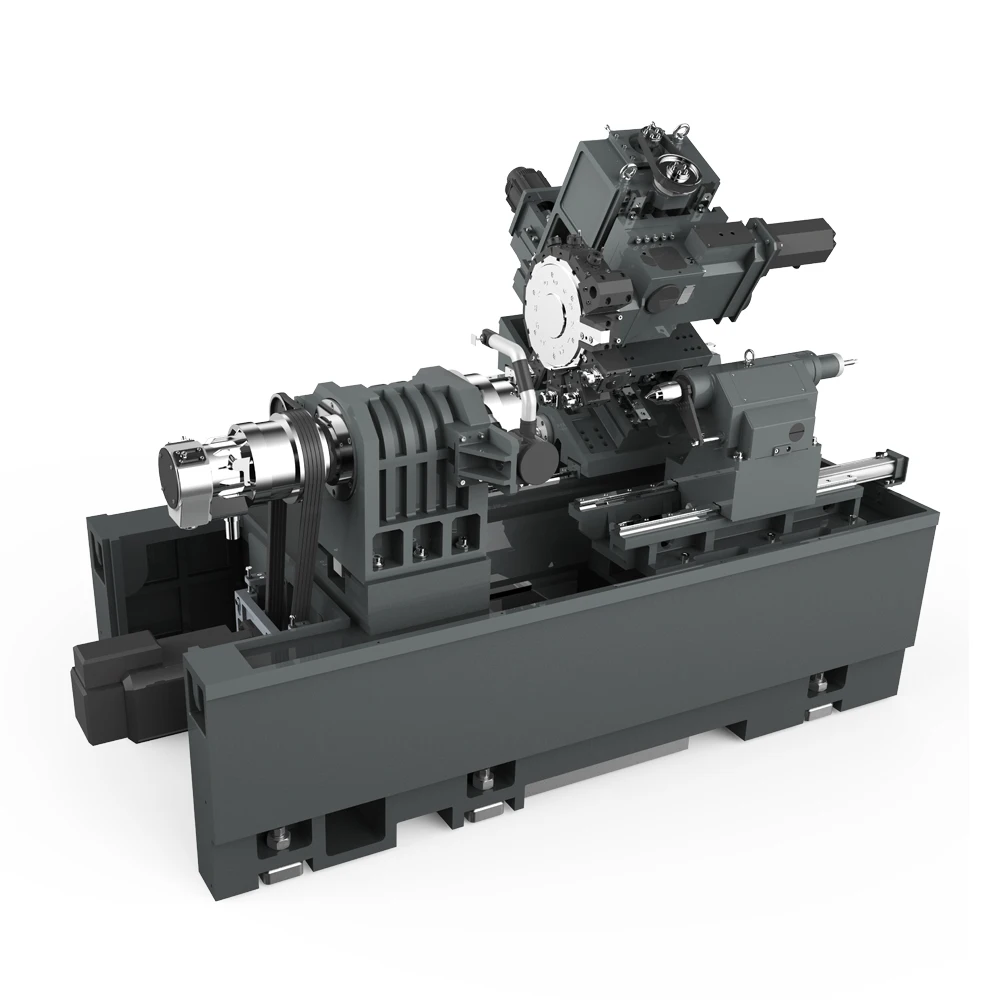

RL 750Y 750mm travel turning length with Y axis torno metal lathe cnc lathe machine
- Category: >>>
- Supplier: Munzer Technology Co. Ltd.
Share on (1600519028465):
Product Overview
Description
Products Description
Content | Item | Unit | RL-106 | |
Capacity | Max.swing over bed | mm | Φ460 | |
2 | Max.turning diameter | mm | Φ360 | |
3 | Swing over cross slide | mm | Φ170 | |
4 | Max. turning length | mm | 350 | |
5 | Bar hole | mm | Φ45 | |
Spindle | Spindle nose | - | A2-5 | |
7 | Spindle hole | mm | Φ56 | |
8 | Spindle speed | rpm | 4500 | |

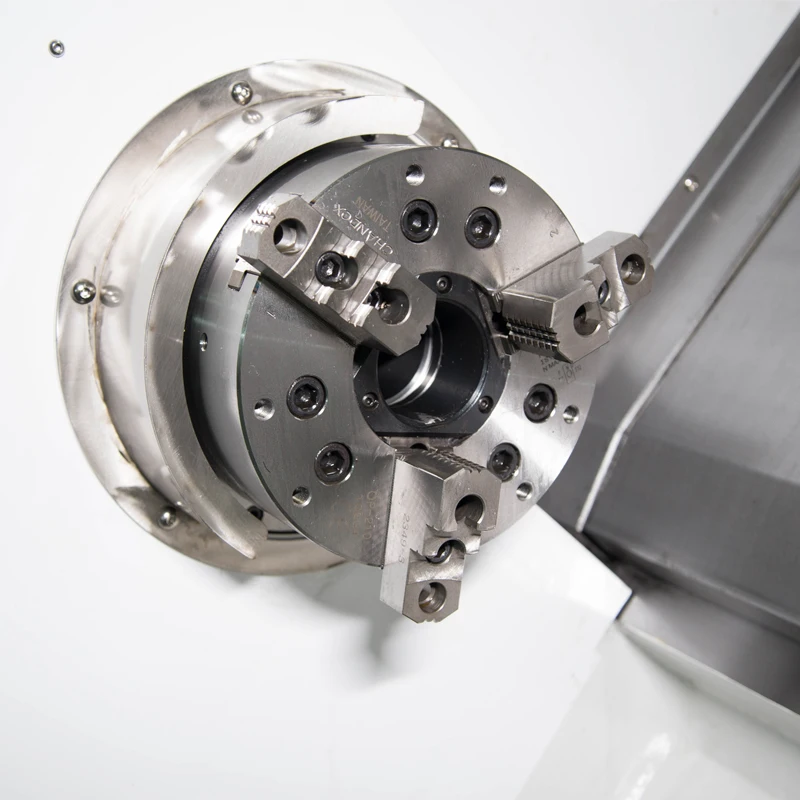

Chuck size | inch | 6'' | ||
Axis travel | x/z/y axis travel | mm | 210/400 | |
x/y/z axis rapid traverse | m/min | 24/24 | ||
x/y/z linear guide size | mm | 35 | ||
positioning accuracy | mm | ±0.005 | ||
repeat accuracy | mm | ±0.003 | ||
Tool Turret | Tool Turret type | - | 12T | |
O.D. tool holder | mm | 25*25 | ||
I.D. tool holder | mm | Φ32 | ||
Adjacent tool change time | mm | 0.2 | ||
Tailstock | Tailstock type | - | Programmable | |
Tailstock spindle taper | # | MT#4 | ||
Quill diameter | mm | Φ60 | ||
Quill travel | mm | 80 | ||
Machine dimensions | L*W*H | mm | 2000*1600*1660 | |
weight | kg | 3000 | ||
Company Profile
Munzer Technology Co.,Ltd. Munzer focus one design, manufacturer and distribution of advanced metal-cutting machine tool solutions. As manufacturing demands, we bring innovation and expand our CNC machine and workholding options to many demanding applications. |
Certifications
Our Advantages
We are Taiwan manufacture of CNC lathe and VMC which focus on this field more than 20 years. Chinese factory was established in 2008. Munzer sends around 95% components from Taiwan to our China factory to assembly the complete machine in order to supply the more competitive price with the same quality as original in Taiwan.
Payment Delivery
FAQ
Q1. Where is your factory?
We are located in Dongguan, Guangdong, 1 hour to Shenzhen city, warmly welcome to visit us.
Q2. Why MUNZER?
MUNZER is Taiwan manufacture of CNC lathe, VMC and quick-change collet system who focus on these fields over 20 years. Chinese factory was established in 2008. MUNZER sends around 95% components from Taiwan to Chinese factory and assemble the complete machine so that supply the more competitive price with the same quality as original in Taiwan.
Q3. What is warranty of products?
All of machines with 1 year guarantee. video teaching , or delegate an engineer or dealer to solve the problem.
Q4. How to purchase?
You can send me your details or ask me for product details by email: laron@munzertec.com WhatsApp/WeChat:+86 17755929857.
Q5. What about after sales service?
Our after-sales staff will reply within 12 hours, if the warranty period, replace accessories is for free. After warranty period, we will charge the accessories.
