Plastic The Flange Gasket Band Seal Adaptors Cover Loose Mating Guard Decorative Flang Pipe Fittings Adapter Flange Protectors
- Category: Flange >>>
- Supplier: Dongguan Zanyang Hardware Co. Ltd.
Share on (1600519029285):
Product Overview
Description

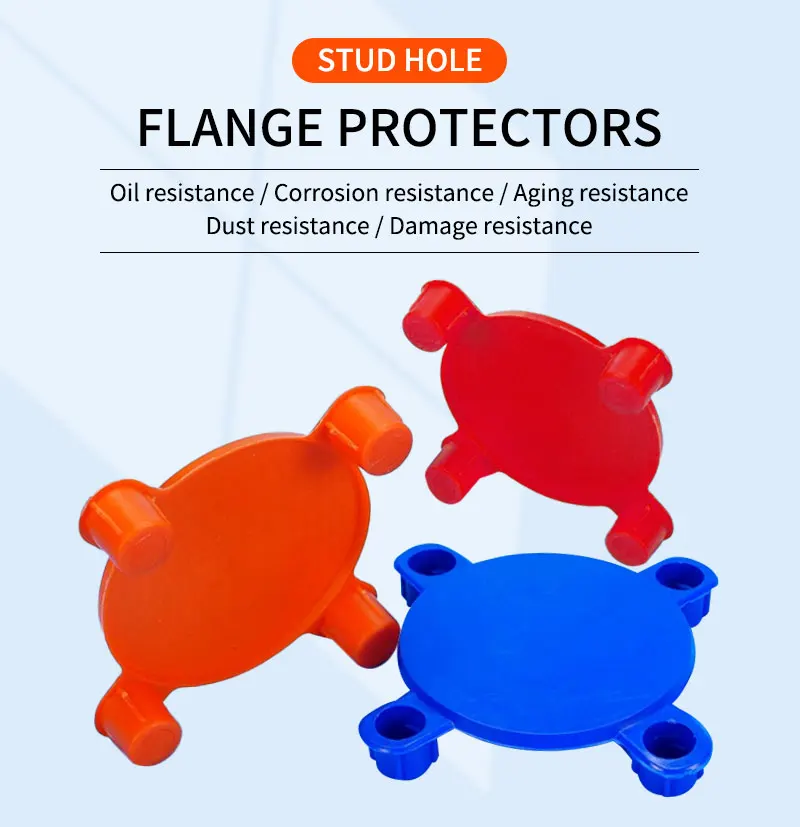

Plastic The Flange Gasket Band Seal Adaptors Cover Loose Mating Guard Decorative Flang Pipe Fittings Adapter Flange Protectors
Product Name: | Flange Protectors | ||
Model： | CY-F302 | ||

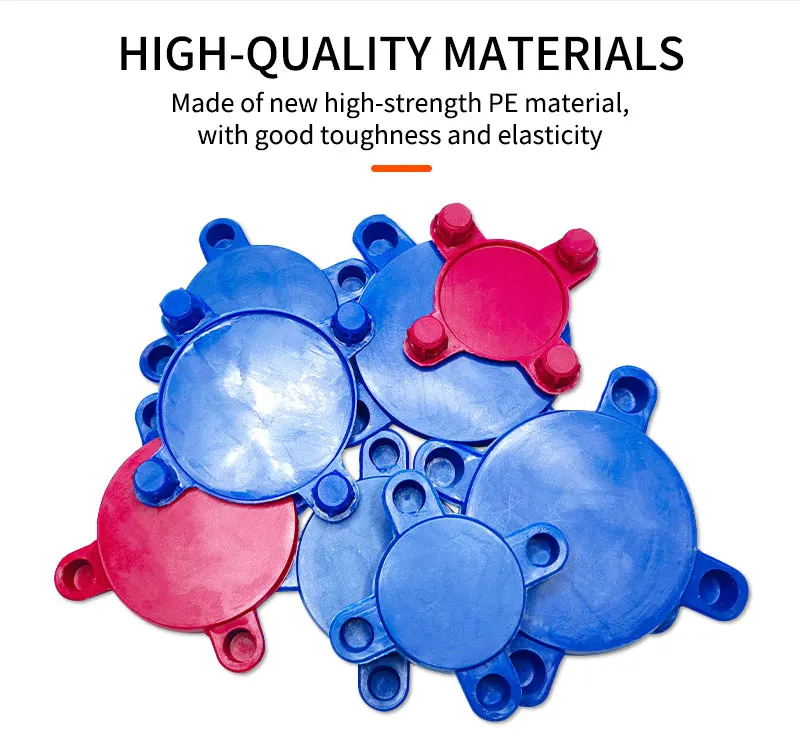

Material: | PE/LDPE/plastic | ||
Specification: | DN10-600 or customized | ||
Color: | Blue,Orange, Red,Yellow or Customized | ||

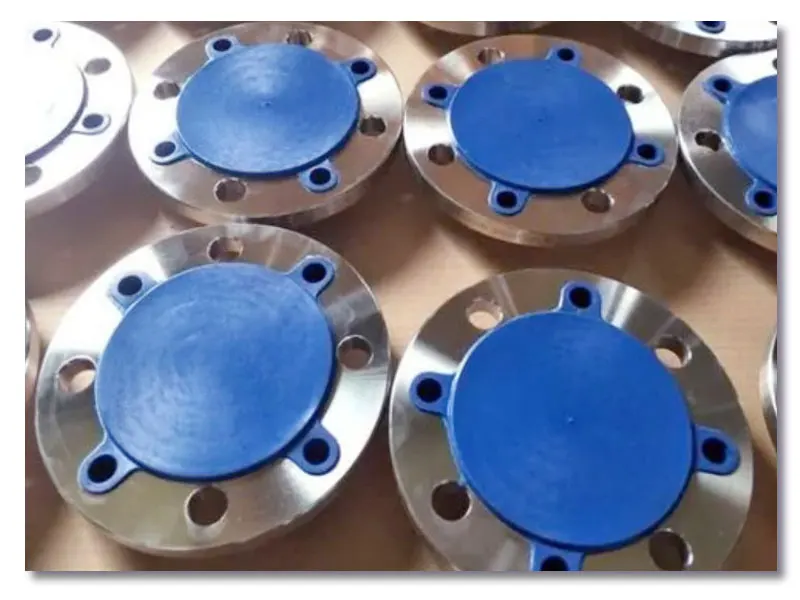

Application： | All kinds of pipes, tubes, valves, flanges, and so on | ||
Product Size: | DN80，D1:160，D2：135，Z-∅d：4-18 | ||
Single Package Size: | 200*200*45mm | ||
Single Piece Net Weight: | 30g | ||
Single Gross Weight: | 60g | ||
Application fields
All kinds of pipes, tubes, valves, flanges, and so on
Details Images

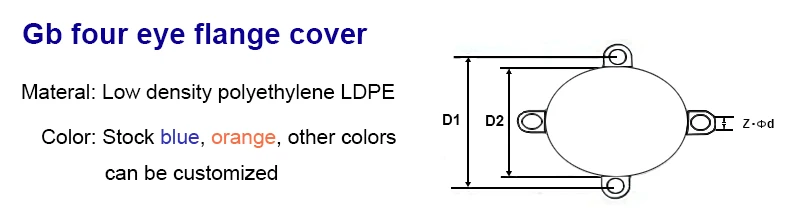

DN | D1 | D2 | Z-∅d | ||||||
16P | 25P | 16P | 25P | 16P | 25P | ||||
15 | 65 | 65 | 45 | 45 | 4-14 | 4-14 | |||
20 | 75 | 75 | 55 | 55 | 4-14 | 4-14 | |||
25 | 85 | 85 | 65 | 65 | 4-14 | 4-14 | |||
32 | 100 | 100 | 78 | 78 | 4-18 | 4-18 | |||
40 | 110 | 110 | 85 | 85 | 4-18 | 4-18 | |||
50 | 125 | 125 | 100 | 100 | 4-18 | 4-18 | |||
65 | 145 | 145 | 120 | 120 | 4-18 | 4-18 | |||
80 | 160 | 160 | 135 | 135 | 4-18 | 4-18 | |||
100 | 180 | 190 | 155 | 160 | 8-18 | 8-23 | |||
125 | 210 | 220 | 185 | 188 | 8-18 | 8-25 | |||
150 | 240 | 250 | 210 | 218 | 8-18 | 8-25 | |||
200 | 295 | 310 | 265 | 278 | 12-23 | 12-25 | |||
250 | 355 | 370 | 320 | 332 | 12-25 | 12-25 | |||
300 | 410 | 430 | 375 | 390 | 12-25 | 16-30 | |||
350 | 470 | 490 | 435 | 448 | 16-25 | 16-34 | |||
400 | 525 | 550 | 485 | 505 | 16-30 | 16-34 | |||
450 | 585 | 600 | 545 | 555 | 20-30 | 20-34 | |||
500 | 650 | 660 | 608 | 610 | 20-34 | 20-41 | |||
600 | 770 | 770 | 718 | 718 | 20-41 | 20-41 | |||
